1. EPIROC - all HYDRAULIC MOTOR #21856
2. EPIROC - all HYDRAULIC MOTOR #21857
3. EPIROC - all HYDRAULIC MOTOR #22454
4. EPIROC - all HYDRAULIC MOTOR #22733
5. EPIROC - all HYDRAULIC MOTOR #22738
6. EPIROC - all HYDRAULIC MOTOR #22743
7. EPIROC - all HYDRAULIC MOTOR #22783
8. EPIROC - all HYDRAULIC MOTOR #22874
9. EPIROC - all HYDRAULIC MOTOR #22881
10. EPIROC - all HYDRAULIC MOTOR #23000
11. EPIROC - all HYDRAULIC MOTOR #23017
12. EPIROC - all HYDRAULIC MOTOR #23163
13. EPIROC - all HYDRAULIC MOTOR #23234
14. EPIROC - all HYDRAULIC MOTOR #23246
15. EPIROC - all HYDRAULIC MOTOR #23253
16. EPIROC - all HYDRAULIC MOTOR #23263
17. EPIROC - all HYDRAULIC MOTOR #23462
all HYDRAULIC MOTOR #21856
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
0

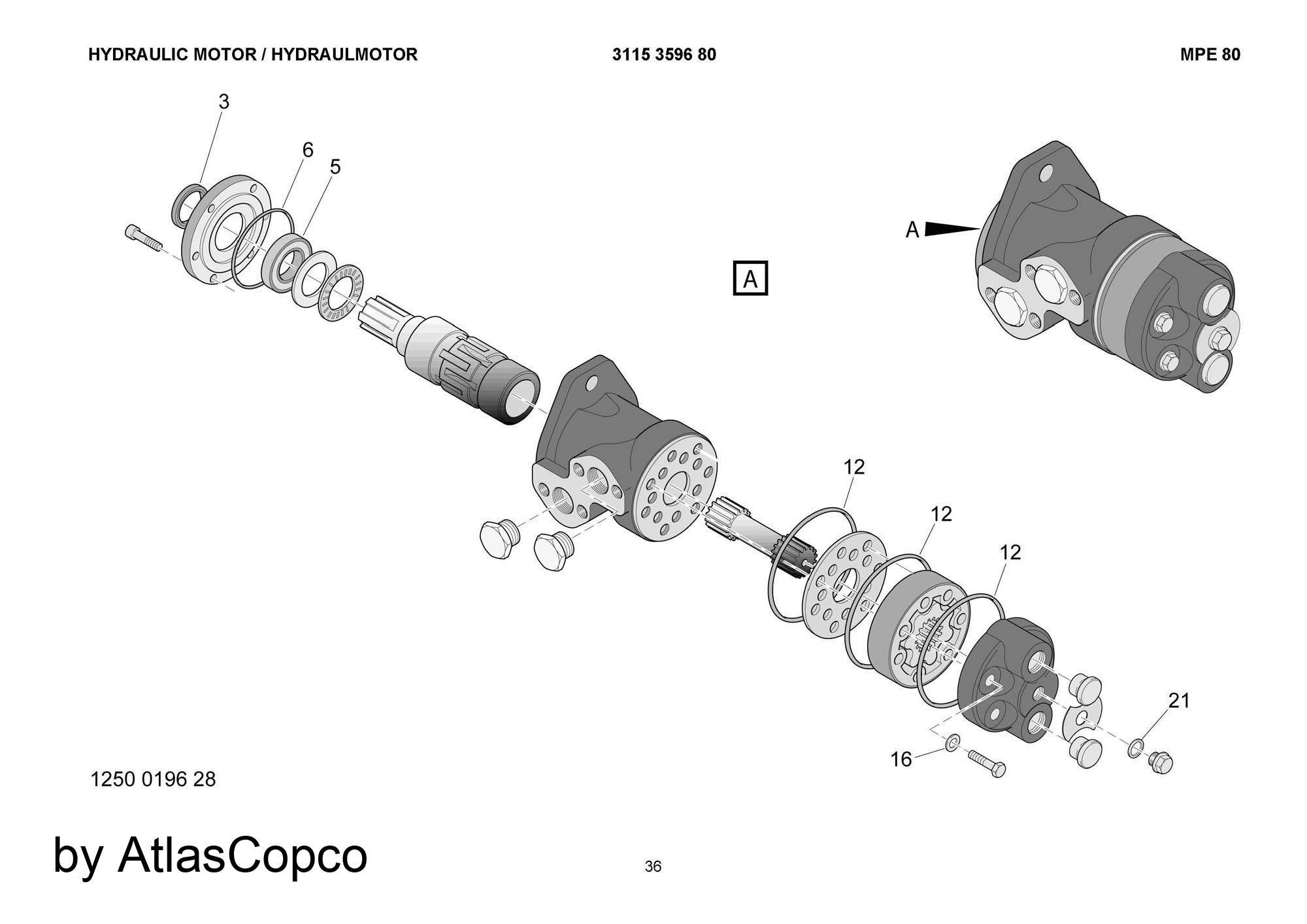

3115359680
HYDRAULIC MOTOR
0
3115354390
SEAL KIT
all HYDRAULIC MOTOR #21857
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
0
3115359681
HYDRAULIC MOTOR
0
3115354390
SEAL KIT
all HYDRAULIC MOTOR #22454
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
0

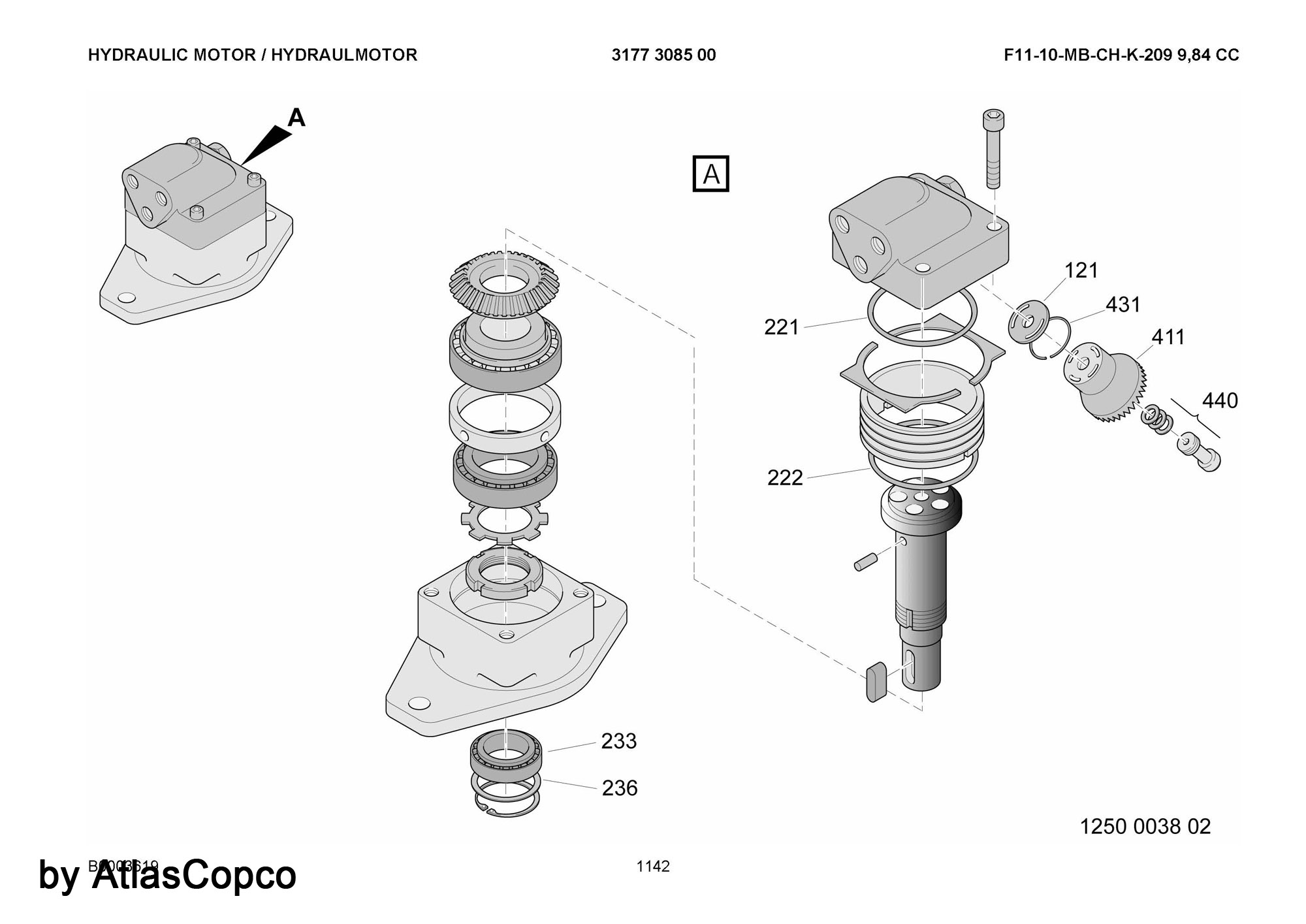

3177308500
HYDRAULIC MOTOR
0
3222305072
REPAIR SET
0
3222305073
SEAL KIT
all HYDRAULIC MOTOR #22733
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
0

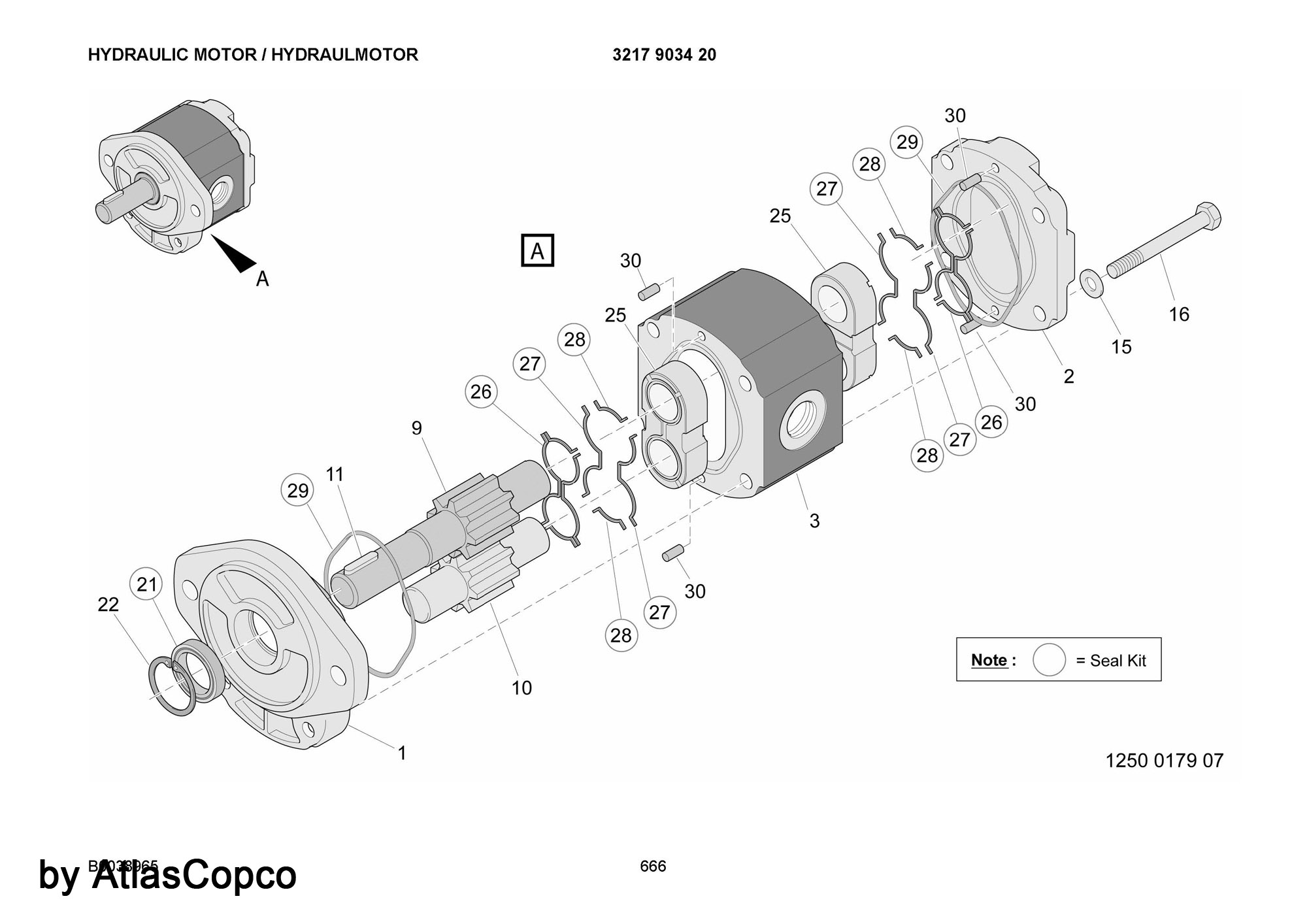

3217903420
HYDRAULIC MOTOR
0
3218200665
SEAL KIT
all HYDRAULIC MOTOR #22738
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
0
3177308500
HYDRAULIC MOTOR
0
3222305072
REPAIR SET
0
3222305073
SEAL KIT
all HYDRAULIC MOTOR #22743
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
0
3222346860
HYDRAULIC MOTOR
0
6060000555
SEAL KIT
1
3222328709
KIT
2
3222328710
BEARING
3
3222328711
BEARING
12
3222328715
ORING
13
3222328716
VALVE
14
3222328717
VALVE
15
6060000557
BRAKE VALVE
18
3222328719
NUT
25
3222328720
ORING
all HYDRAULIC MOTOR #22783
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
0
3128309378
HYDRAULIC MOTOR
0
3177000273
SEAL KIT
all HYDRAULIC MOTOR #22874
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
0
3217903420
HYDRAULIC MOTOR
0
3218200665
SEAL KIT
all HYDRAULIC MOTOR #22881
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
0
3222317581
HYDRAULIC MOTOR
0
3115347390
SEAL KIT
all HYDRAULIC MOTOR #23000
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
2
3222328072
HYDRAULIC MOTOR
3
0147140203
SCREW. HEX HEAD
4
0301235800
WASHER
5
3222346317
BRAKE UNIT
6
0211133303
HEX SOCK. SCREW
7
3176654700
NIPPLE
8
3222345302
VALVE
9
3222346321
HYDRAULIC HOSE
all HYDRAULIC MOTOR #23017
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
0
3176788914
HYDRAULIC MOTOR
0
3176788915
REPAIR KIT
0
3176788916
BEARING SET
all HYDRAULIC MOTOR #23163
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
1
3177308500
HYDRAULIC MOTOR
2
3222325702
VALVE BLOCK
3
3217651308
RESTRICTION
all HYDRAULIC MOTOR #23234
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
0
3115524984
HYDRAULIC MOTOR
1
3115347390
SEAL KIT
1
3115581206
SCREW
all HYDRAULIC MOTOR #23246
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
0
3115524987
HYDRAULIC MOTOR
1
3115347390
SEAL KIT
1
3115581210
SCREW
all HYDRAULIC MOTOR #23253
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
0
3115524986
HYDRAULIC MOTOR
1
3115347390
SEAL KIT
1
3115581208
SCREW
all HYDRAULIC MOTOR #23263
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name
0
3115524985
HYDRAULIC MOTOR
1
3115347390
SEAL KIT
1
3115581207
SCREW
all HYDRAULIC MOTOR #23462
all HYDRAULIC MOTOR
ads
Ref
Parts Num
Name

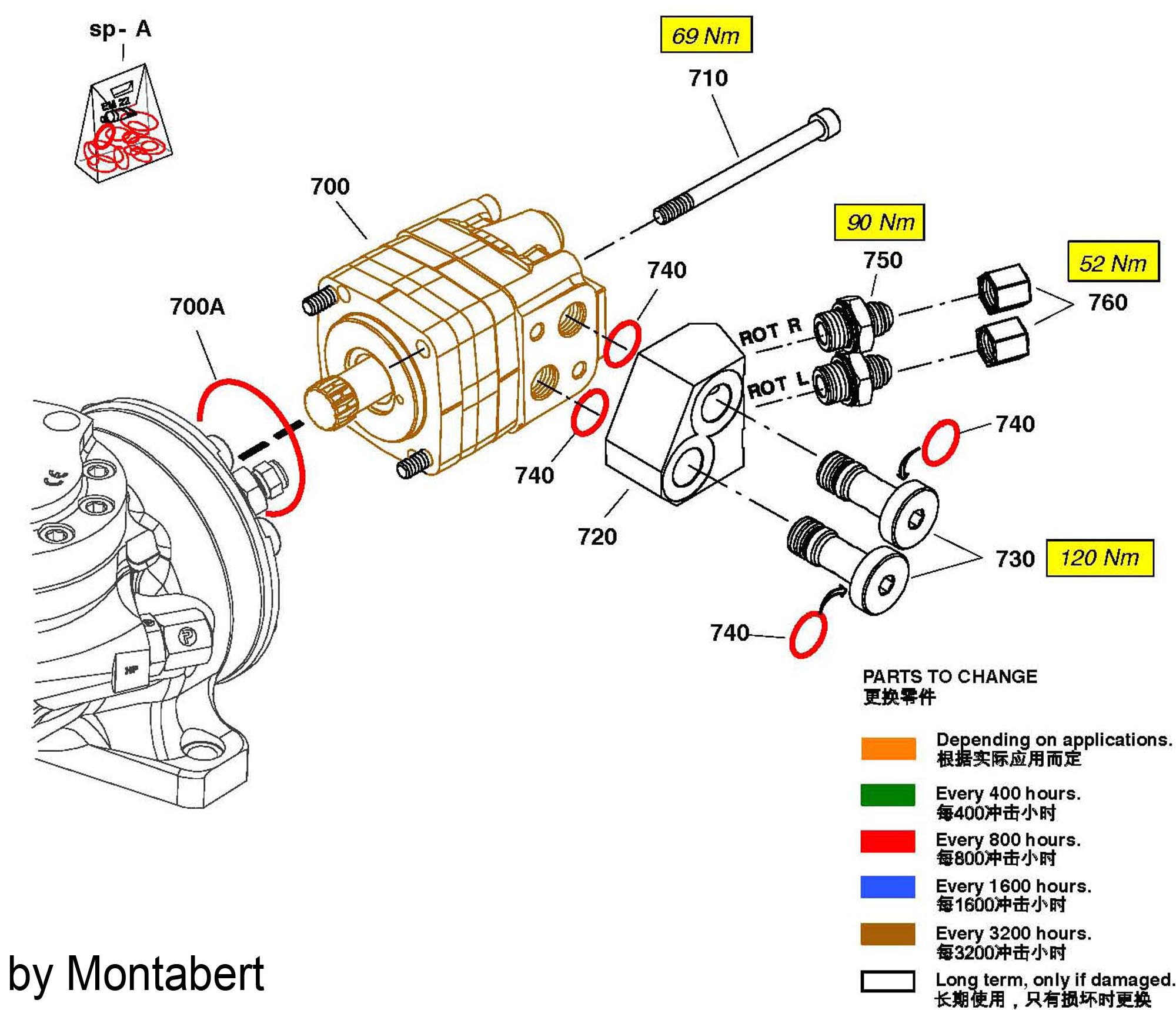

700
86718004
HYDRAULIC MOTOR
710
96709274
SOCKET HEAD SCREW
720
86778602
FLANGE
730
86778610
THREADED AXLE
740
86587995
O RING
750
86266301
ADAPTER
760
86247723
PLUG
700A
86238201
O RING
