BOLTEC 235 HOSE SET #9194
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
BM02
3128311102
HOSE SET
BP04
9106063312
HOSE
BB24
3128311181
HOSE SET
BIN2
3128311191
HOSE SET
BC13
3128311201
HOSE SET
BP03
3128311211
HOSE SET
BB07
3128313309
HOSE HOLDER
BP02
3128313334
NOZZLE SET
BB12
3128315081
ROLLER CHAIN
BM03
3128315375
SLEEVE
BD02
3128315982
HOSE SET
BIN1
3128318848
DRILL HOLDER
BB14
3128322870
BASIC PART SET
BD02
3128322984
NIPPLE SET
BD07
7841993739
DRILL BIT
0
8999063350
BOLTING UNIT
BP01
3128310878
FEEDING DEVICE
BC40
3128315093
TUBE SHAFT
BM03
3128315374
SLEEVE
BC25
3128316316
DIVIDING DISK
BC15
3128316560
DIVIDING DISK
BD03
3115092600
RUBBER HOOD
BC30
3128309406
ATTACHMENT
BC41
3128309411
STOP
BB21
3128311171
HOSE SET
BB04
3128309858
GUIDE
BB06
3128311009
HOSE FRAME
BC32
3128311122
HOSE SET
BB09
3128311132
HOSE SET
BB15
3128311142
HOSE SET
BB18
3128311152
HOSE SET
BB01
3128311262
HOSE SET
BB11
3128311723
ATTACHMENT SET
BB08
3128311880
DRIVE UNIT
M20
3128316127
HOSE SET
BD06
7993364400
SLEEVE
BB17
3128310848
BOLT CRADLE
BB02
3128313364
FEED BEAM
BD01
8311128226
ROCK DRILL
BB10
3128311802
PULLEY WHEEL
BB20
3128309130
DRILL STEEL SUP
BM01
3128316178
BOLT ROTATOR
BC10
3128309445
MAGAZINE UNIT
BB22
3128202102
BUSHING HALF
BC11
3128309408
MAGAZINE
BC31
3128309410
MAGAZINE
BB23
3128313397
STINGER
BB05
3128309418
SLIDING PIECE
BOLTEC 235 HOSE SET #9801
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
9106165806
HOSE SET
8
3176826400
FLOW CONT.VALVE
11
3214897280
DIRECTION VALVE
BOLTEC 235 HOSE SET #11412
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128209033
HOSE SET
0
9106181103
BOOM PANEL
1
3128209069
DIRECTION VALVE
2
0147137103
SCREW. HEX HEAD
5
0686925061
CAP
8
3176650200
NIPPLE
9
3176661600
CAP NUT
17
3128201949
GUIDE PLATE
18
3128201950
ATTACHM. PLATE
22
0147125403
SCREW. HEX HEAD
24
0686925060
CAP
30
8234020037
PR.CONTR.VALVE
32
3176542700
NIPPLE
33
3176542900
CAP
34
3715634400
NIPPLE
40
3128202015
PRESS.RED.VALVE
41
3128201985
PRESS.RED.VALVE
42
3125425700
ATTACHMENT
47
0686925062
CAP
50
3128228101
FLOW REGULATOR
51
3125318890
SIGN SET
52
0663614100
O RING
BOLTEC 235 HOSE SET #17326
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128316070
HOSE SET
HP06
0574353211
HOSE ASSEMBLY
HT06
0574328011
HOSE ASSEMBLY
RRL06
0574328311
HOSE ASSEMBLY
HDP05
0574132111
HOSE ASSEMBLY
WF05
0574333211
HOSE ASSEMBLY
1AL05
0574228611
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #17368
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128313487
HOSE SET
DS03
0574128511
HOSE ASSEMBLY
DS05
0574128411
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #17441
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128311262
HOSE SET
MRP
0574026011
HOSE ASSEMBLY
XCS01
0574006450
HOSE ASSEMBLY
MRT01
0574031511
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #17473
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128209033
HOSE SET
FE13
3176697300
HOSE ASSEMBLY
FE14
0574126911
HOSE ASSEMBLY
K5
3176567600
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #17480
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128316065
HOSE SET
DS07
0574128411
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #17581
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128311201
HOSE SET
BHA03
3176697600
HOSE ASSEMBLY
BHA01
3217957811
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #17669
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3217883591
HOSE SET
G13
0574006596
HOSE ASSEMBLY
F12
0574126011
HOSE ASSEMBLY
T78
3176568700
HOSE ASSEMBLY
G12
3217957811
HOSE ASSEMBLY
G10
3217957810
HOSE ASSEMBLY
P30
0574006454
HOSE ASSEMBLY
F13
0574125411
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #17696
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
9106165407
HOSE SET
BUP4
3176686100
HOSE ASSEMBLY
BUT1
3176686200
HOSE ASSEMBLY
AP3
3217957807
HOSE ASSEMBLY
BRO13
3217957811
HOSE ASSEMBLY
AP2
3217957819
HOSE ASSEMBLY
DP8
3217957822
HOSE ASSEMBLY
XWAP
3217957823
HOSE ASSEMBLY
SWG
3217957830
HOSE ASSEMBLY
XBIC
0574025211
HOSE ASSEMBLY
DH30
0574026011
HOSE ASSEMBLY
XASW1
0574770015
HOSE ASSEMBLY
BRO12
0574225811
HOSE ASSEMBLY
XASW
0574770013
HOSE ASSEMBLY
BHA09
3176685700
HOSE ASSEMBLY
AP1
3217957809
HOSE ASSEMBLY
AG1
3217957810
HOSE ASSEMBLY
CS07
0574032711
HOSE ASSEMBLY
BUT4
0574227011
HOSE ASSEMBLY
BUP3
0574226711
HOSE ASSEMBLY
BUP1
0574226311
HOSE ASSEMBLY
1P8
0574225611
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #17786
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128313571
HOSE SET
FE3
0574128511
HOSE ASSEMBLY
FE5
0574006378
HOSE ASSEMBLY
FR1
0574129011
HOSE ASSEMBLY
BRL4
3176567600
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #17796
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128311181
HOSE SET
SR01
3176718600
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #17834
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128316127
HOSE SET
FL01
0574006369
HOSE ASSEMBLY
FE01
0574126911
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #17854
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128316074
HOSE SET
BRO09
0574228311
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #17871
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
9110989550
HOSE SET
J11
0574032211
HOSE ASSEMBLY
HB23
3176522100
HOSE ASSEMBLY
J24
0574032111
HOSE ASSEMBLY
J12
0574032311
HOSE ASSEMBLY
J51
0574032511
HOSE ASSEMBLY
J23
0574028911
HOSE ASSEMBLY
P15
3176567000
HOSE ASSEMBLY
J52
3176712000
HOSE ASSEMBLY
T15
3176686100
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #17884
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128323089
HOSE SET
HP04
0574353511
HOSE ASSEMBLY
HT05
0574000010
HOSE ASSEMBLY
1W03
0574328511
HOSE ASSEMBLY
HT03
0574328111
HOSE ASSEMBLY
HP05
0574000020
HOSE ASSEMBLY
1AL03
0574228511
HOSE ASSEMBLY
HDP04
0574128911
HOSE ASSEMBLY
RRL04
0574331411
HOSE ASSEMBLY
HP03
0574353111
HOSE ASSEMBLY
1W04
0574328911
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #18069
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128313481
HOSE SET
FMD06
0574128511
HOSE ASSEMBLY
FMD07
0574128411
HOSE ASSEMBLY
FM09
0574227011
HOSE ASSEMBLY
FM05
0574227711
HOSE ASSEMBLY
FM08
0574228511
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20303
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128316061
HOSE SET
MRT04
0574031811
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20323
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128311191
HOSE SET
DH01
0574031411
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20337
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128316075
HOSE SET
NF8
0574031811
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20338
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128313491
HOSE SET
BOLTEC 235 HOSE SET #20357
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128313497
HOSE SET

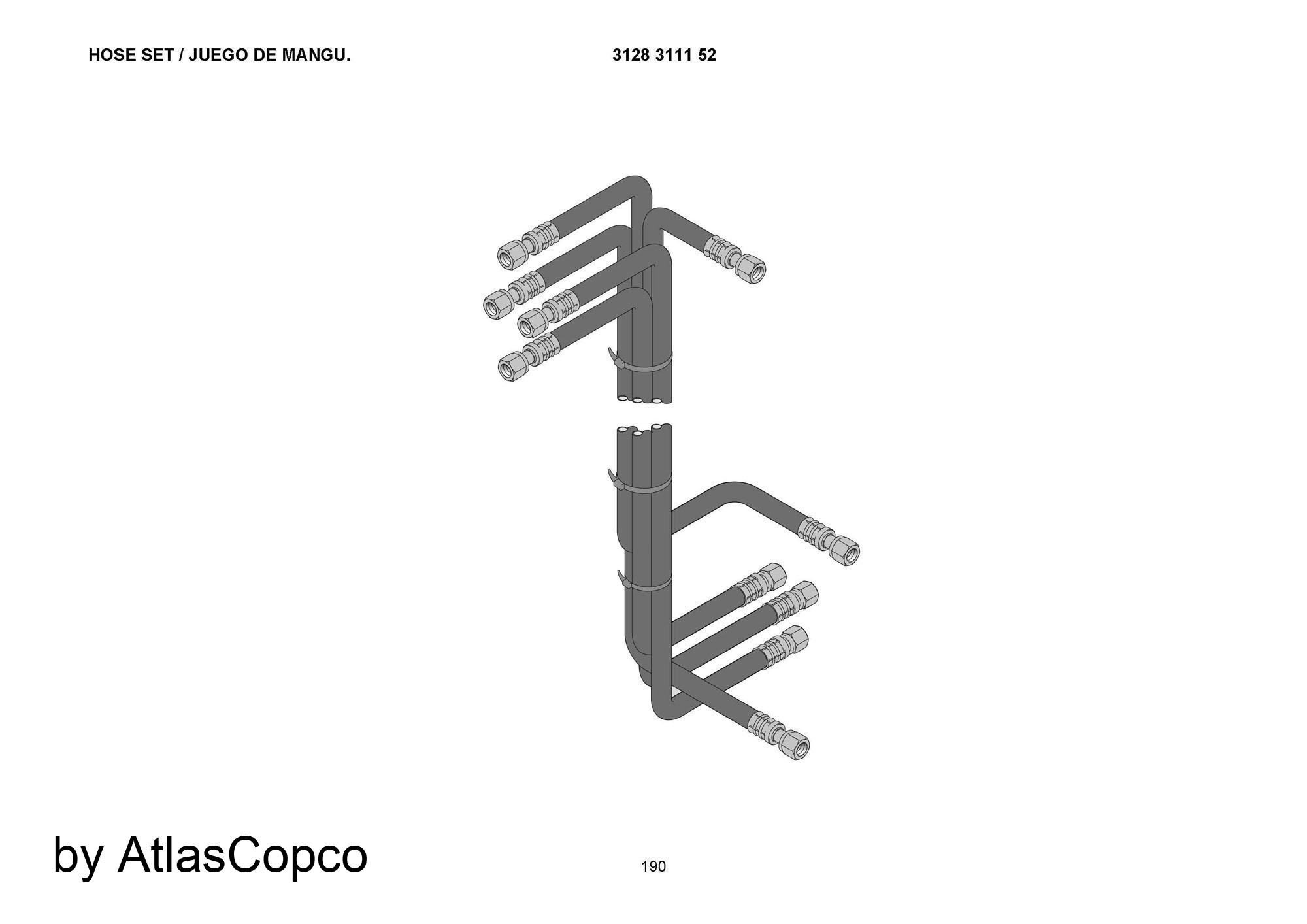

BOLTEC 235 HOSE SET #20386
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128311152
HOSE SET
BIC03
0574031511
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20393
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128311142
HOSE SET
CS01
3176648700
HOSE ASSEMBLY
CS02
0574031411
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20403
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128311132
HOSE SET
FMD03
0574006544
HOSE ASSEMBLY
FM03
3176567200
HOSE ASSEMBLY
FM20
0574006449
HOSE ASSEMBLY
FBR01
0574032811
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20445
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128311171
HOSE SET
DS02
0574127711
HOSE ASSEMBLY
DS01
0574127511
HOSE ASSEMBLY

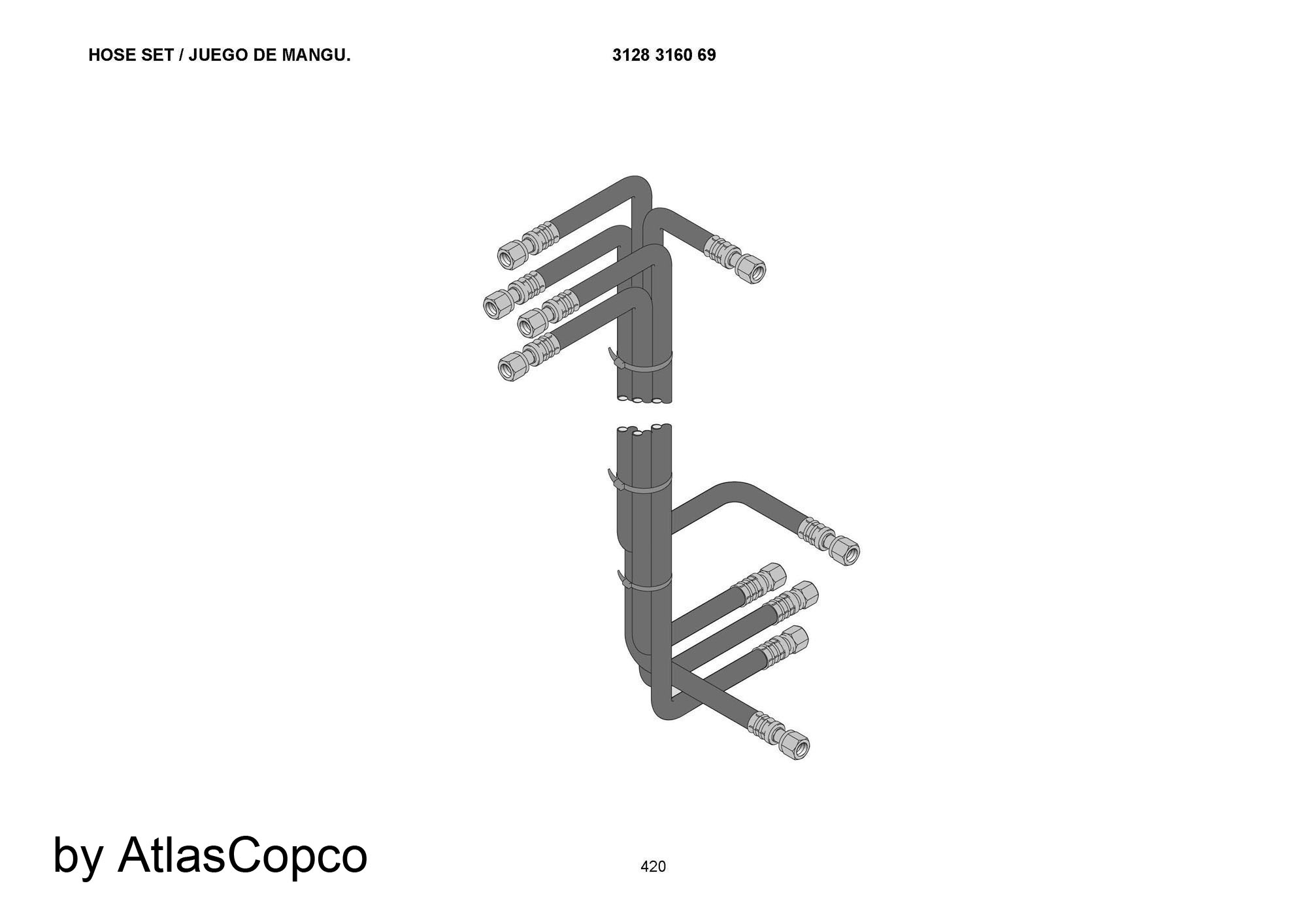

BOLTEC 235 HOSE SET #20473
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128316069
HOSE SET
BOLTEC 235 HOSE SET #20491
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128313507
HOSE SET
BRO07
0574229111
HOSE ASSEMBLY
BRO05
0574228511
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20526
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128311122
HOSE SET
MR01
3176685500
HOSE ASSEMBLY

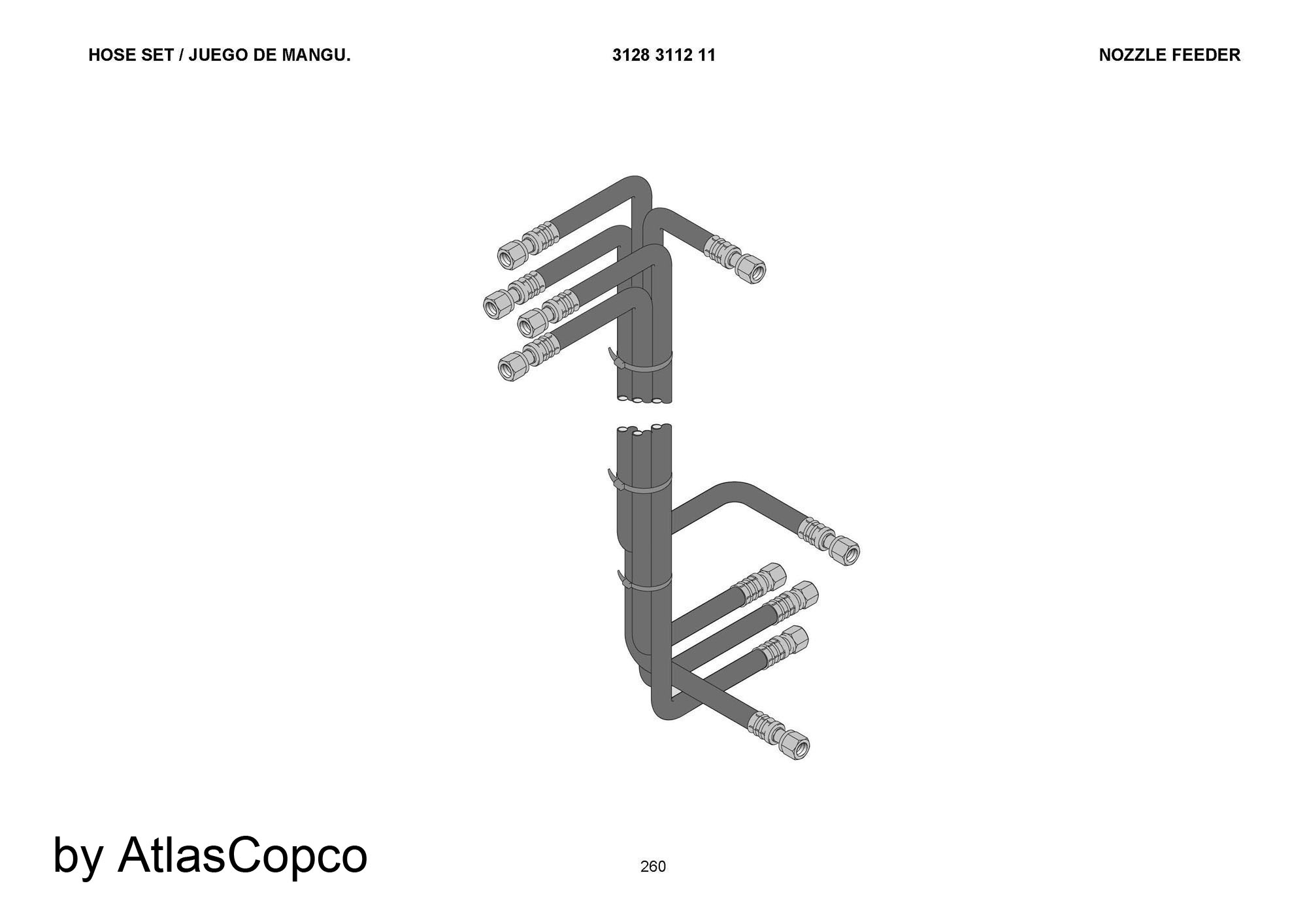

BOLTEC 235 HOSE SET #20545
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128311211
HOSE SET
NF01
0574031511
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20551
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
9106159872
HOSE SET
1BOW3
3176685600
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20556
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128316080
HOSE SET
BE3
3176633700
HOSE ASSEMBLY
BRL5
0574000023
HOSE ASSEMBLY
BE4
0574127511
HOSE ASSEMBLY
FE6
0574128111
HOSE ASSEMBLY
FL7
0574027811
HOSE ASSEMBLY
FE5
0574131611
HOSE ASSEMBLY
FE8
3176567600
HOSE ASSEMBLY
FE7
0574126411
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20573
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
11
9106165407
HOSE SET
BOLTEC 235 HOSE SET #20604
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
9106143446
HOSE SET
TF2
3176567200
HOSE ASSEMBLY
TF1
0574327711
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20606
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128316066
HOSE SET
SR07
3176685900
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20637
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128316062
HOSE SET
FM25
3176685700
HOSE ASSEMBLY
FMD08
0574131611
HOSE ASSEMBLY
FM11
0574232611
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20647
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128311102
HOSE SET
BRO01
3176686200
HOSE ASSEMBLY
BRO03
0574232111
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20652
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128313505
HOSE SET
BOLTEC 235 HOSE SET #20661
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128313509
HOSE SET
BOLTEC 235 HOSE SET #20666
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128316064
HOSE SET
BOLTEC 235 HOSE SET #20667
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128313493
HOSE SET
BOLTEC 235 HOSE SET #20676
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128313485
HOSE SET
BIC05
0574006594
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20684
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
BM02
3128316074
HOSE SET
M20
3128316080
HOSE SET
0
8999063322
HOSE SET COMPL.
BB01
3128316061
HOSE SET
BB09
3128316062
HOSE SET
BB15
3128316063
HOSE SET
BB18
3128316064
HOSE SET
BP03
3128316075
HOSE SET
BB24
3128316066
HOSE SET
BC13
3128316067
HOSE SET
BC32
3128316069
HOSE SET
BD02
3128316070
HOSE SET
BIN02
3128316073
HOSE SET
BB21
3128316065
HOSE SET
BOLTEC 235 HOSE SET #20699
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128313483
HOSE SET
BOLTEC 235 HOSE SET #20705
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
9106165806
HOSE SET
BIH09
3176648700
HOSE ASSEMBLY
WBIH05
3176685600
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20710
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128316067
HOSE SET
BHJ09
0574006594
HOSE ASSEMBLY
BHA09
0574027811
HOSE ASSEMBLY
BOLTEC 235 HOSE SET #20717
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
BM02
3128313507
HOSE SET

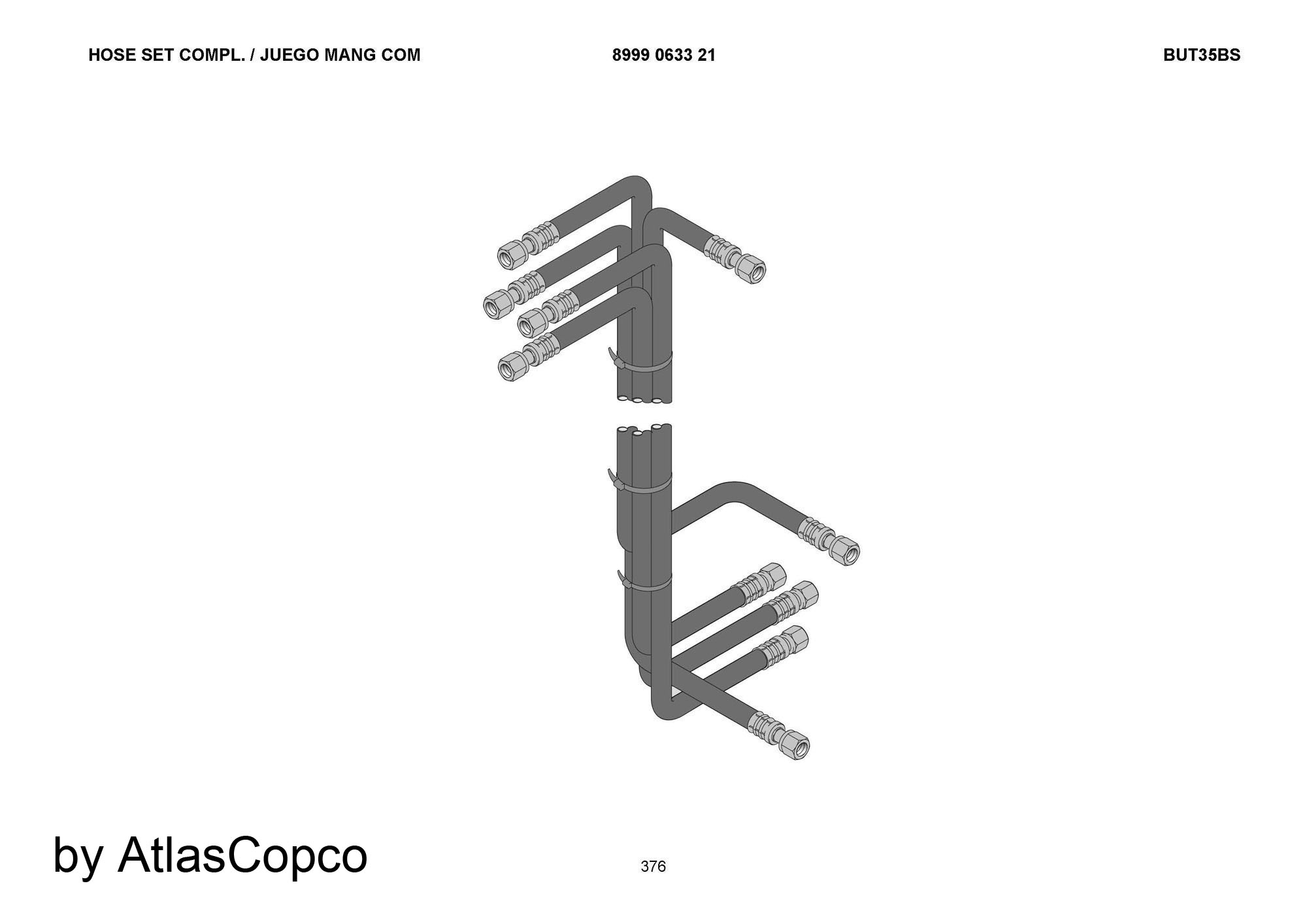

0
8999063321
HOSE SET COMPL.
BD02
3128323089
HOSE SET
BB09
3128313481
HOSE SET
BB15
3128313483
HOSE SET
BB18
3128313485
HOSE SET
BP03
3128313509
HOSE SET
BB24
3128313491
HOSE SET
BC13
3128313493
HOSE SET
BC32
3128313497
HOSE SET
BIN02
3128313505
HOSE SET
BB21
3128313487
HOSE SET
BOLTEC 235 HOSE SET #20720
BOLTEC 235 HOSE SET
ads
Ref
Parts Num
Name
0
3128316063
HOSE SET

Search by your machine to find part numbers with illustrations. New Parts Catalog. Hyundai parts catalog
New Holland parts catalog
Part Number Information parts manager pro is the electronic parts catalog (EPC) and parts manuals. The original directory on the selection of spare parts for machinery . Find great deals for Genuine OEM Replacement Spacer EPC
Contacts My Privacy Policy
The names Komatsu, Cat, Deere or any other original equipment manufacturers are registered trademarks of the respective original equipment manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
777parts tpe-parts.com is in no way associated with Komatsu any of the manufacturers we have listed. All manufacturer's names and descriptions are for reference only.
Back to top
