BOLTEC 235 SEAL KIT #9267
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3128312533
SEAL KIT
0
3128309310
HYDR. CYLINDER
2
9126395100
COVER
8
3222318608
SPACER
9
3128312534
PISTON ROD
BOLTEC 235 SEAL KIT #9312
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
5112310918
SEAL KIT
0
5112302095
CARDAN SHAFT
1
0502801021
BEARING HOUSING
2
0503210900
BALL BEARING
3
5112310923
COUNTER FLANGE
4
5112310924
WASHER
5
5112310280
NUT
6
0144429100
SCREW. HEX HEAD
7
5112310271
TRUNNION BLOCK
BOLTEC 235 SEAL KIT #9361
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3222182491
SEAL KIT
0
3222182490
SEAL KIT
0
3222182480
HYDRAULIC MOTOR
10
3222182425
ROTOR
12
3222303454
PISTON
15
3222303456
REPAIR SET
25
3222182430
CAM
40
3222290134
VALVE COVER
41
3222290159
COVER
42
3222290160
SCREW
44
3222303461
SCREW
47
6060000220
DISTRBUTOR
52
3222303464
SPRING
70
3222303452
SUPPORT
71
3222303446
BEARING SUPPORT
73
3222182453
BEARING
74
3222182454
BEARING
75
3222303448
SHIMS SET
76
3222303449
RING
77
3222303450
RING
78
3222303451
SEAL
90
3222182470
SHAFT
100
3222290136
DISK BRAKE
101
3222290163
BRAKE HOUSING
102
3222290164
SCREW
106
3222290165
O RING
107
3222290166
PISTON
108
3222303434
WASHER
109
3222290167
CIRCLIP
110
3222303436
SHAFT
123
3222290168
BALL
135
3222290169
BRAKE DISC KIT
143
3222303444
O RING
BOLTEC 235 SEAL KIT #9402
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3115083991
SEAL KIT
0
9106165202
HYDRAULIC MOTOR
BOLTEC 235 SEAL KIT #9684
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3128259218
SEAL KIT
0
3128259200
HYDR. CYLINDER
2
3128259217
WASHER
4
3128259216
PISTON
7
3128259215
PISTON ROD
14
9126396000
COVER
17
3128209034
PISTON
18
3176771400
BUSHING
BOLTEC 235 SEAL KIT #10205
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
1
9106063124
SEAL KIT
2
9106063123
CARTRIDGE
BOLTEC 235 SEAL KIT #10293
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
9120099303
SEAL KIT
0
3128319021
HYDR. CYLINDER
1
3128317119
MANTLE
2
3128317120
PISTON ROD
3
9126429500
PISTON
8
9126430200
COVER
17
0501001200
BEARING.SP.PL.
18
0335213600
CIRCLIP
BOLTEC 235 SEAL KIT #10393
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3222316810
SEAL KIT
0
3128309254
HYDR. CYLINDER
1
3218200677
NUT
4
3222316812
PISTON
5
3128317082
CYL.TUBE ASSY
6
3128317083
PIST.ROD COMPL
7
3218200674
GUIDE
12
9106196000
NIPPLE
13
0501000069
BEARING.SP.PL.
14
0335213200
CIRCLIP

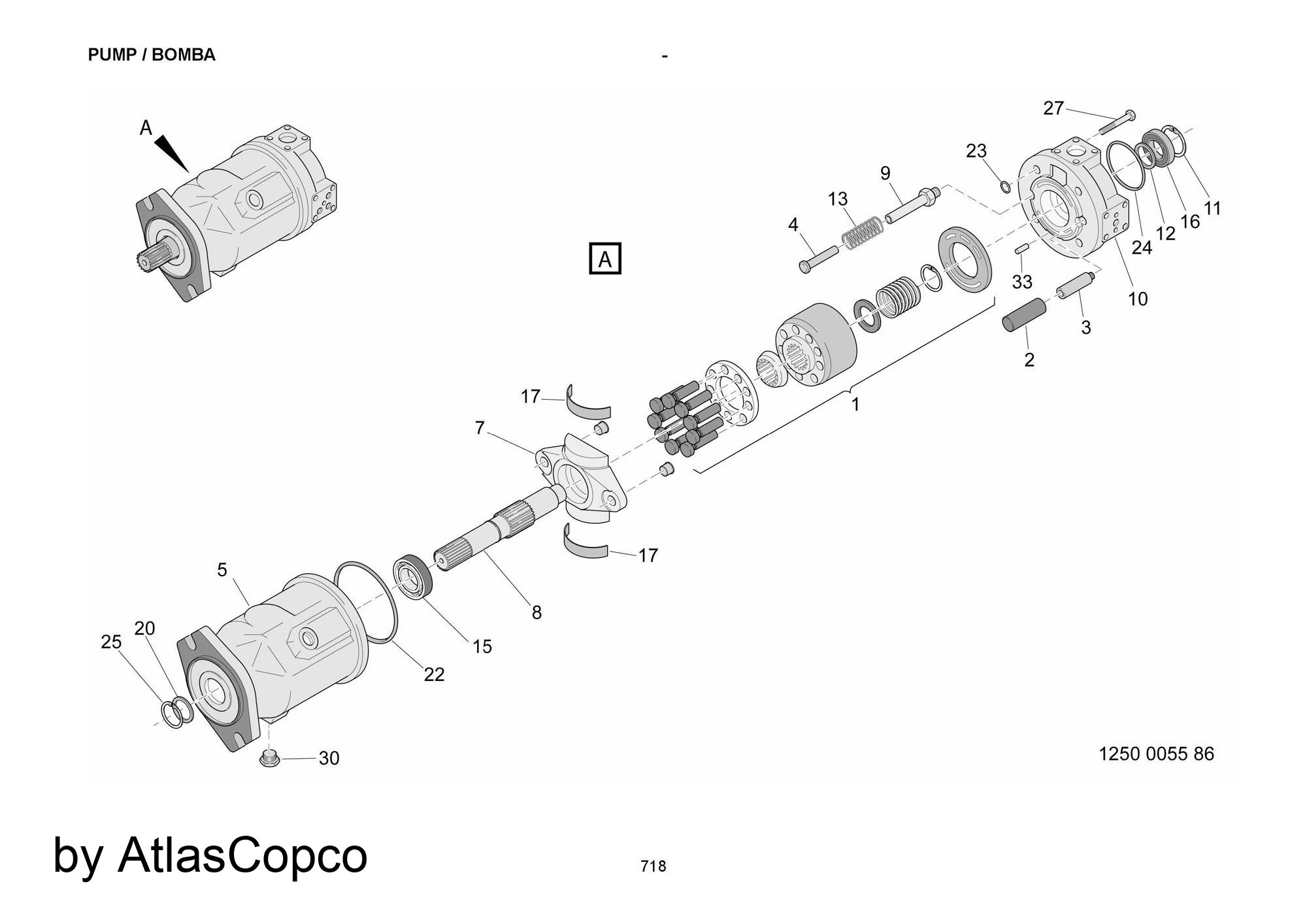

BOLTEC 235 SEAL KIT #10766
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3217920682
SEAL KIT
1
3217920611
PUMP UNIT
2
3217920612
REG PISTON
3
3217920646
PISTON GUIDE
4
3217920614
PISTON
5
3217920615
PUMP HOUSING
6
3217920647
CONNECT. PLATE
7
3217920648
CRADLE
8
3217920618
SHAFT
9
3217920619
PISTON GUIDE
12
3217920622
WASHER
13
3217920623
SPRING
15
3217920625
ROLLER BEARING
16
3217920626
ROLLER BEARING
17
3217920627
BEARING PLATE
20
3217920649
SEAL
22
3217920630
ORING
23
0663210531
ORING
24
0663210364
ORING
25
3217920650
LOCK RING
27
0211196086
SCREW
28
0211147703
SCREW
30
0686925063
CAP
33
0101231600
PIN
BOLTEC 235 SEAL KIT #10959
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3222302648
SEAL KIT
0
3222326676
SEAL KIT
0
9106149204
SEAL KIT
0
3214766981
FLOW REGULATOR
1
3217893713
PRESS.REL.CART.
2
3222326677
FLOW REGULATOR
14
3222326678
STEERING WH.SET
BOLTEC 235 SEAL KIT #10975
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3217893711
SEAL KIT
0
9106149204
SEAL KIT
0
3128302428
CHECK VALVE
0
3217893701
VALVE BLOCK
1
3217893713
PRESS.REL.CART.
3
9111377004
PRESS.REGULATOR
11
3128304311
ORING
BOLTEC 235 SEAL KIT #11296
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
9120099020
SEAL KIT
0
9121591301
HYDR. CYLINDER
0
9121591350
SEAL KIT
1
0665921400
WIPER
2
0665100046
SEAL
3
0661154000
BACKUP RING
5
0663213400
ORING
6
0665080021
PISTON SEAL
7
0665930046
GUIDE RING. EXT
8
0194132000
SET SCREW
9
9128707600
PISTON
10
0661151000
BACKUP RING
15
9126201001
PISTON ROD
16
9126201200
PISTON
17
9126201100
COVER
BOLTEC 235 SEAL KIT #11360
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3217894512
SEAL KIT
0
3217896800
VALVE BLOCK
0
3217894513
SEAL KIT
1
3217894510
PRESS.REL.VALVE
2
3217894500
PRESS.REL.VALVE
3
3217894515
PILOT OP.CHECKV
4
3217894514
VALVE
BOLTEC 235 SEAL KIT #11367
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
1
9106063124
SEAL KIT
BOLTEC 235 SEAL KIT #11427
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3217983412
SEAL KIT
0
3217983435
CONTROL SET
3
3217983411
SEAL HOLDER
5
3217983413
COVER
9
3217983415
HOLDER
15
3217983416
SCREW
16
3217983417
SCREW
19
3217983418
STUD
25
3217983423
LEVER HOLDER
26
3217983436
LEVER SET
27
3217983419
NUT
30
3217983420
CENTERING SET
31
3217983421
CATCH
32
0663909600
O RING
33
0663911200
O RING
BOLTEC 235 SEAL KIT #11466
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
9120099302
SEAL KIT
0
3128310883
HYDR. CYLINDER
1
9126429300
PISTON
7
9126424400
COVER

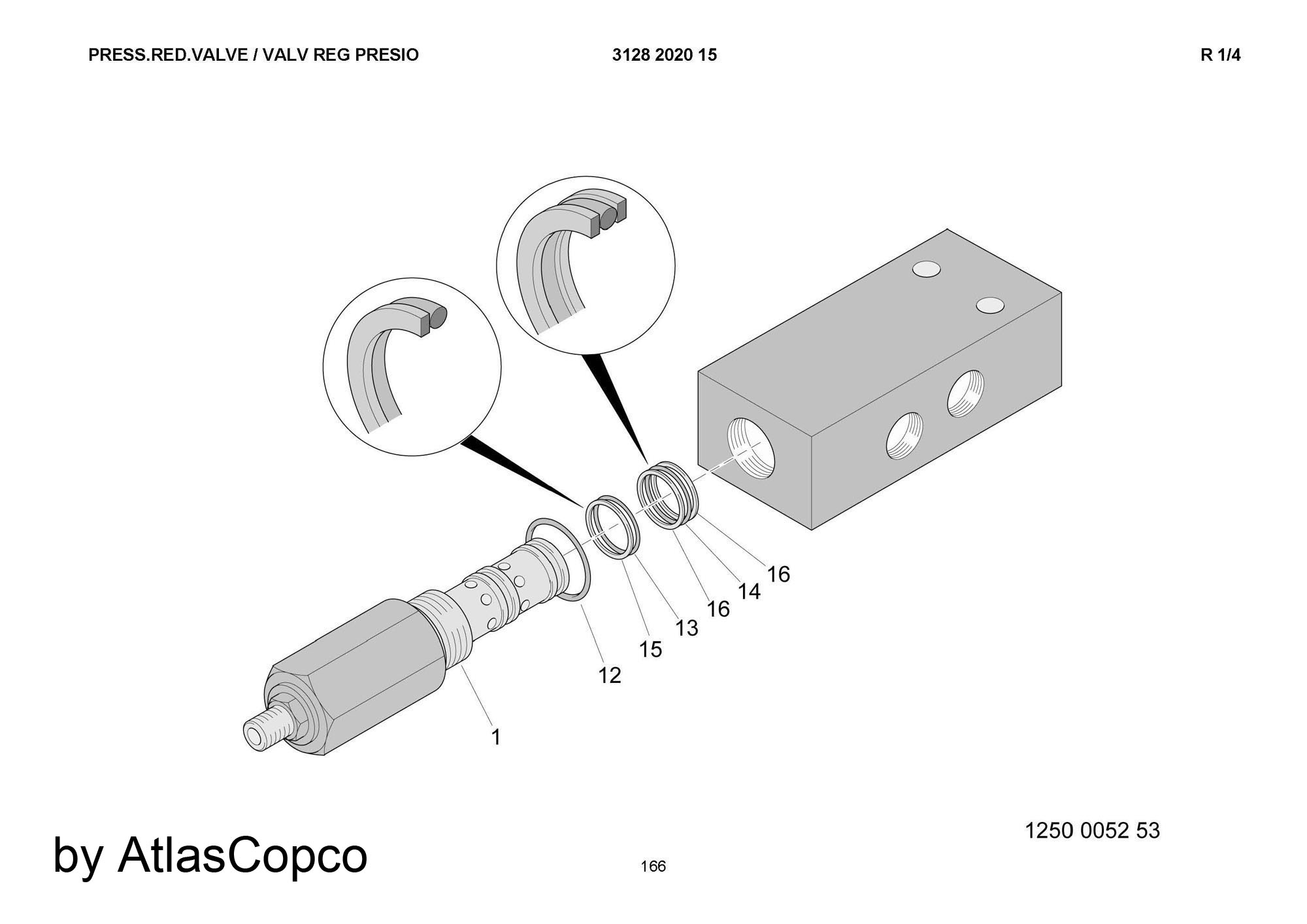

BOLTEC 235 SEAL KIT #17364
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3128302372
SEAL KIT
0
3128202015
PRESS.RED.VALVE
1
3128302371
INSERT

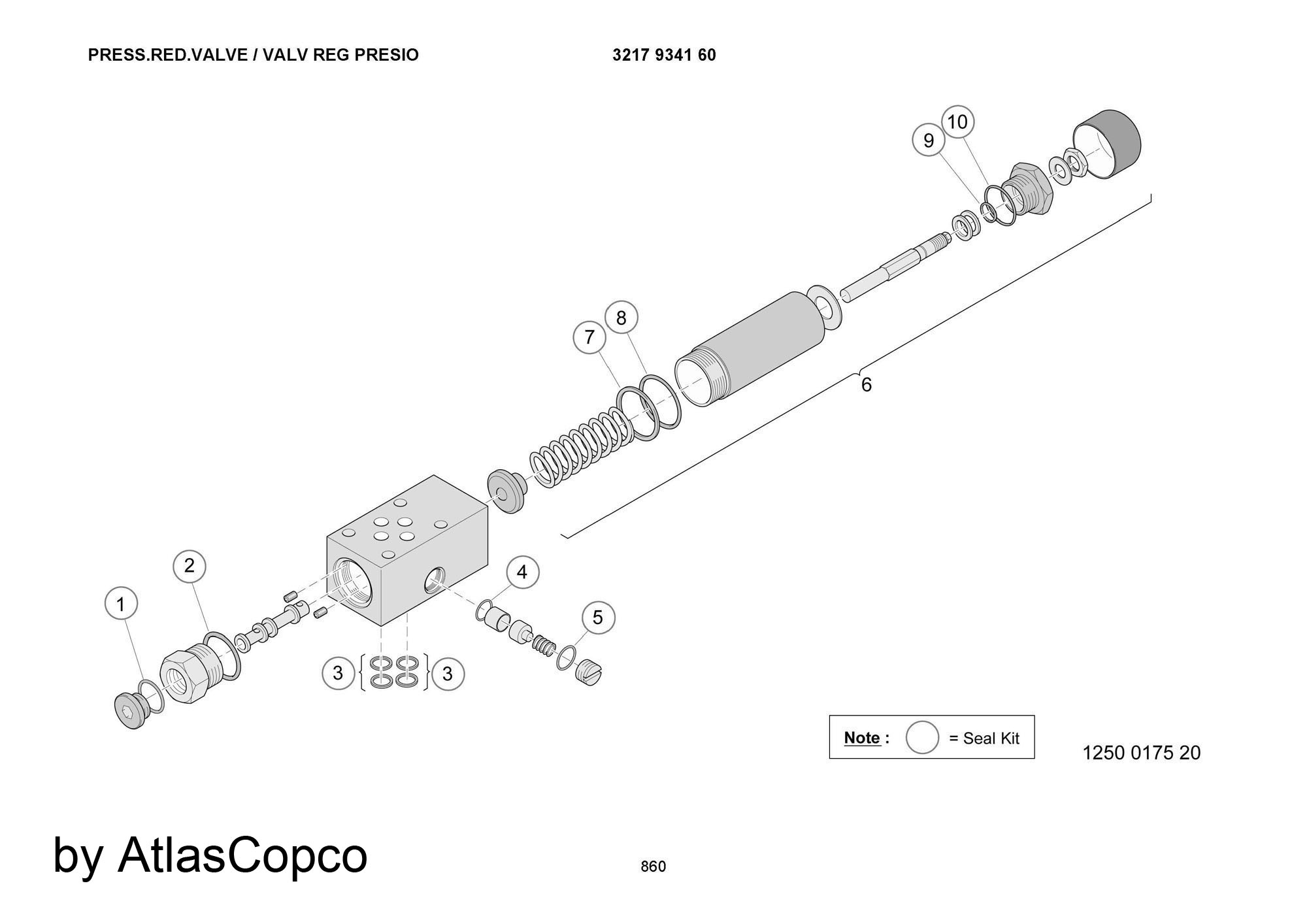

BOLTEC 235 SEAL KIT #17448
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3214871287
SEAL KIT
0
3217934160
PRESS.RED.VALVE
6
3214871286
SEAL KIT
BOLTEC 235 SEAL KIT #17513
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3176000710
SEAL KIT
0
3176879150
SHUT OFF VALVE
BOLTEC 235 SEAL KIT #17982
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3128302372
SEAL KIT
0
3128202015
PRESS.RED.VALVE
1
3128302371
INSERT

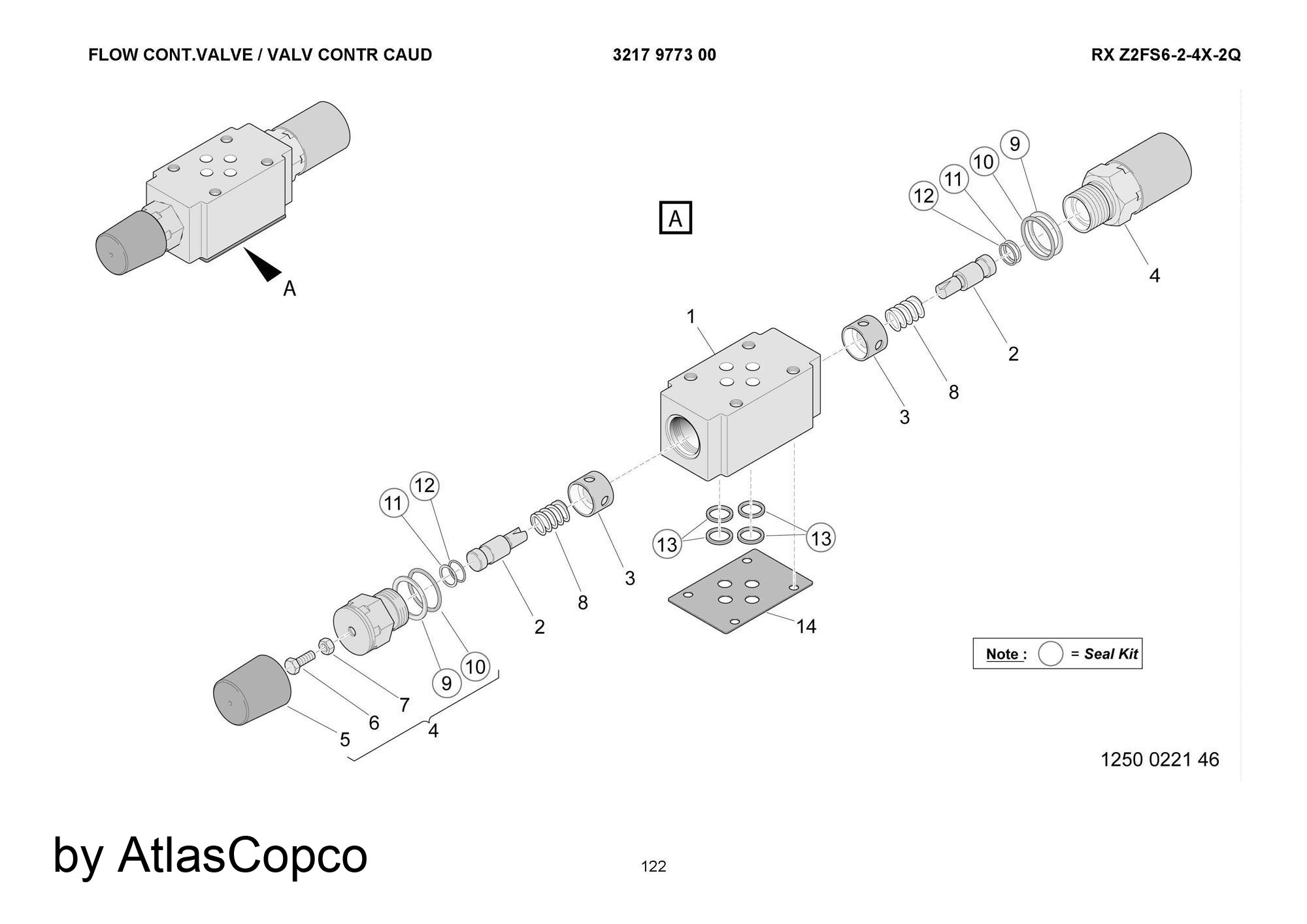

BOLTEC 235 SEAL KIT #20404
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3217977319
SEAL KIT
BOLTEC 235 SEAL KIT #20477
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3217977319
SEAL KIT

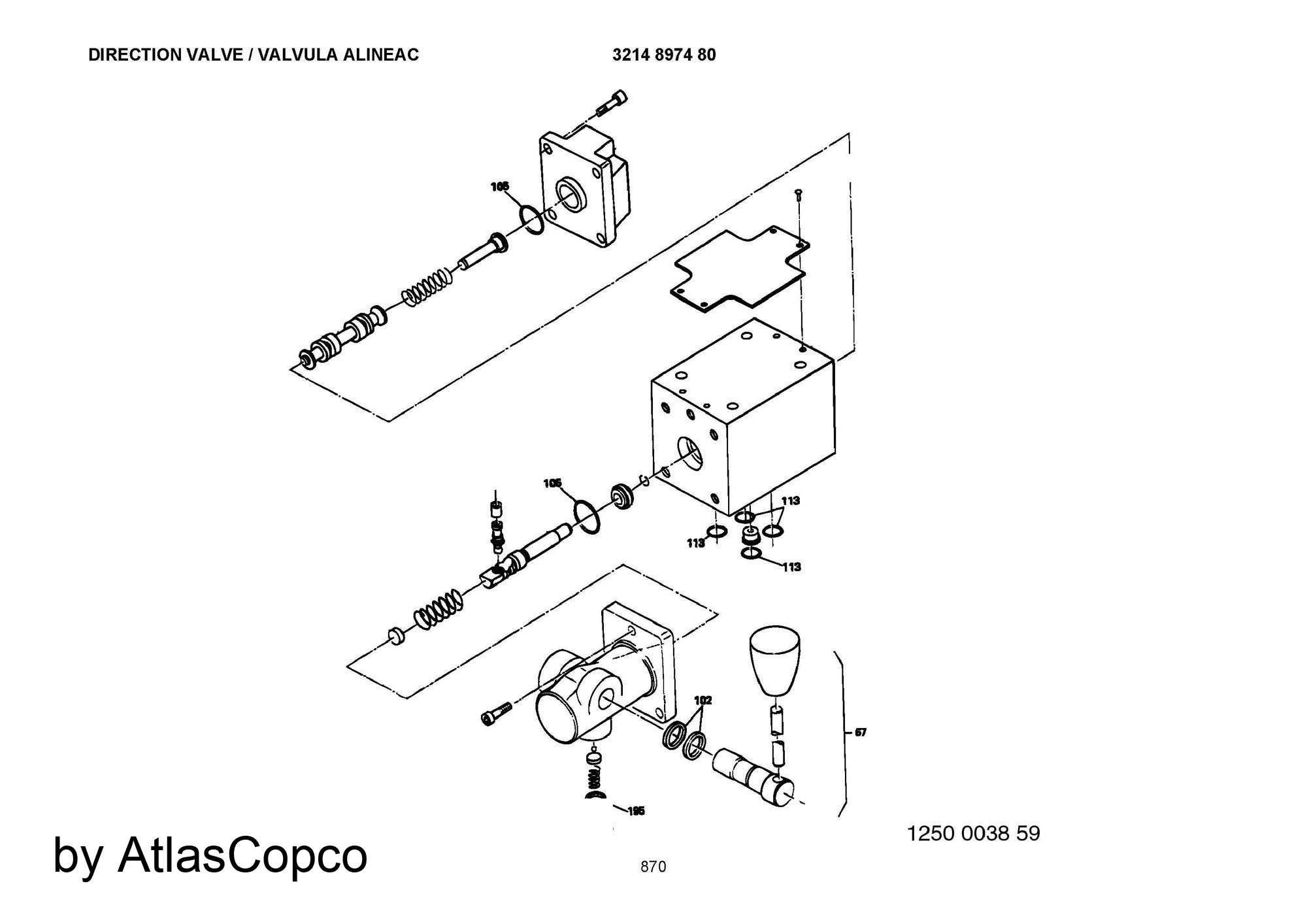

BOLTEC 235 SEAL KIT #20722
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3217848303
SEAL KIT
0
3214897480
DIRECTION VALVE
67
3222326991
LEVER
BOLTEC 235 SEAL KIT #20723
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3128310724
SEAL KIT
0
9110989507
DIRECTION VALVE
BOLTEC 235 SEAL KIT #20749
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3128302372
SEAL KIT
1
3128302371
INSERT
BOLTEC 235 SEAL KIT #21676
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3222330822
SEAL KIT
BOLTEC 235 SEAL KIT #21682
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
0
3222330822
SEAL KIT
BOLTEC 235 SEAL KIT #21708
BOLTEC 235 SEAL KIT
ads
Ref
Parts Num
Name
6
3214871286
SEAL KIT
