BOLTEC 235H DIRECTION VALVE #14224
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177315603
DIRECTION VALVE
0
3177315790
O RING SET
10
3177315710
COVER
11
3177315711
COVER
12
3177315712
BUSHING
107
0663903201
O RING
108
9125628300
O RING
113
0663905001
ORING
128
0211117900
SCREW
195
3177315750
SNAP
BOLTEC 235H DIRECTION VALVE #14235
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177315607
DIRECTION VALVE
0
3177315790
O RING SET
4
3177315704
COVER
9
3177315709
COVER
12
3177315712
BUSHING
60
3177315740
WASHER
71
3177315741
SPRING
72
3177315742
SPRING
105
0663903201
O RING
108
9125628300
O RING
113
0663905001
ORING
128
0211117900
SCREW
129
0211117300
SCREW
186
3177315747
RESTRICTION
BOLTEC 235H DIRECTION VALVE #14305
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
80
3214897280
DIRECTION VALVE
81
3217907300
DOUBLE CH.VALVE
82
3176205300
CONNECT. PLATE
83
0211122300
SCREW
107
0211122900
SCREW
125
3217977300
FLOW CONT.VALVE
BOLTEC 235H DIRECTION VALVE #14543
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309248
DIRECTION VALVE
113
3177309253
SEAL KIT
157
3177309251
COIL
160
3177309254
NUT SET
BOLTEC 235H DIRECTION VALVE #14545
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
8234020045
DIRECTION VALVE
0
3177302007
OUTLET SECTION
0
3177305803
INLET SECTION
0
9120079008
PLUNGER P. SET
0
9120079025
PULL ROD SET
0
9120079280
SEAL KIT
0
3177302103
VALVE SECTION
33
9120079013
LEVER JOINT
34
9120079003
CHECK VALVE
35
9121546003
PLUG
36
9120079017
PROTECTION HOOD
37
9120079018
CENTERING SET
BOLTEC 235H DIRECTION VALVE #14616
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
80
3214897280
DIRECTION VALVE
81
3217907300
DOUBLE CH.VALVE
82
3176205300
CONNECT. PLATE
83
0211122300
SCREW
107
0211122900
SCREW
125
3217977300
FLOW CONT.VALVE
BOLTEC 235H DIRECTION VALVE #14839
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3217848301
DIRECTION VALVE
0
3217848303
SEAL KIT
63
3217848304
BOLT
64
3217848305
SPACER
67
3217848306
LEVER SET
71
3217848307
SPRING
72
3217848308
SPRING
132
3217848309
PLUG
195
3217848310
SEAL

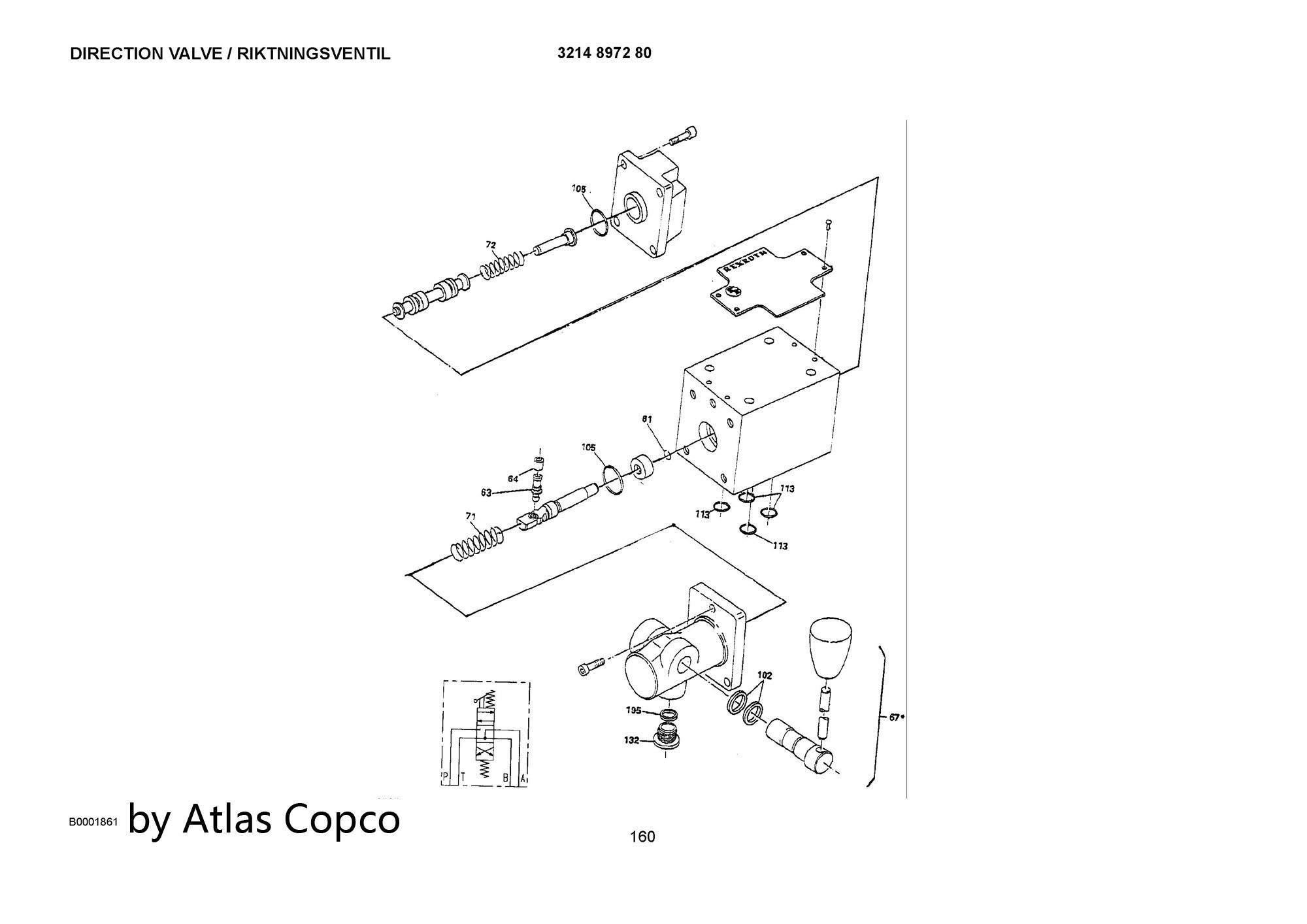

BOLTEC 235H DIRECTION VALVE #15045
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3214897280
DIRECTION VALVE
0
3217848303
SEAL KIT
63
3217848304
BOLT
64
3218200775
SPACER
67
3217848306
LEVER SET
71
3217848307
SPRING
72
3217848308
SPRING
132
3217848309
PLUG
195
3217848310
SEAL

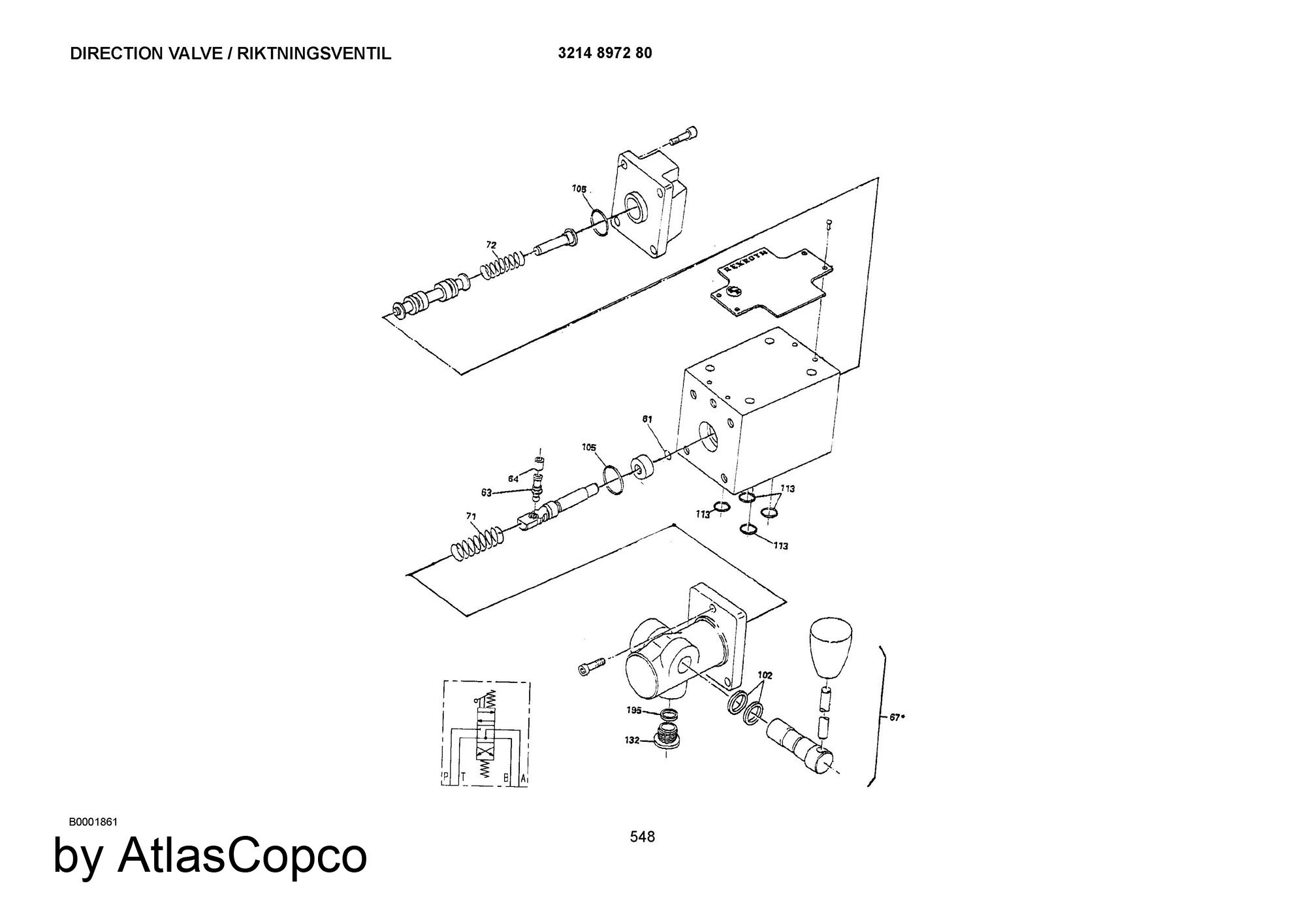

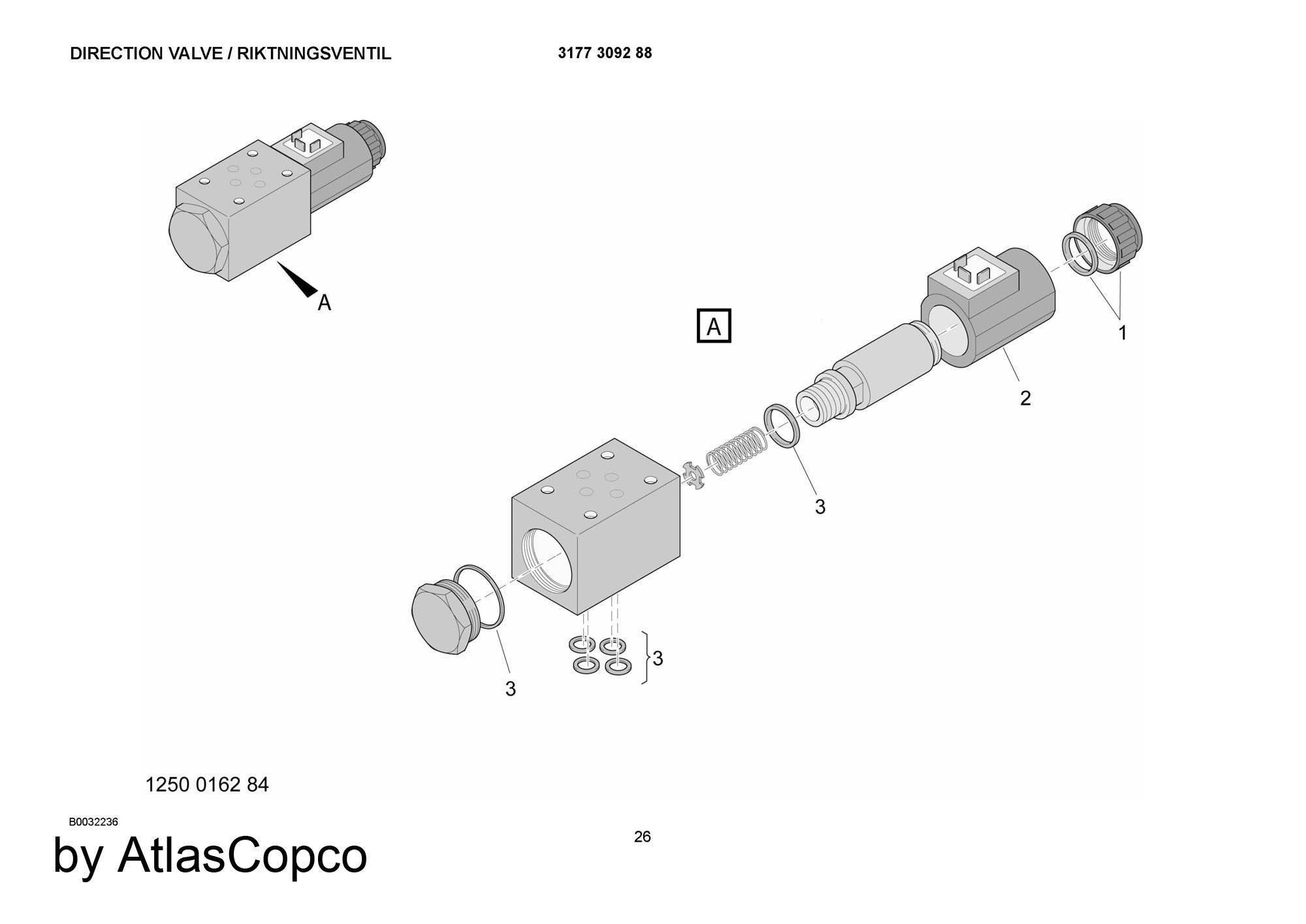

BOLTEC 235H DIRECTION VALVE #15085
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309288
DIRECTION VALVE
1
3177309257
NUT SET
2
3177309255
COIL
3
3177309256
SEAL KIT
BOLTEC 235H DIRECTION VALVE #15117
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
1
3214897280
DIRECTION VALVE
2
0211196044
SCREW
3
3217977300
FLOW CONT.VALVE
4
3214871280
PRESS.RED.VALVE
5
3217907300
DOUBLE CH.VALVE
6
3176205300
CONNECT. PLATE
8
3177301600
COUPLING
BOLTEC 235H DIRECTION VALVE #15175
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
1
8234020044
DIRECTION VALVE
2
3176757301
PLATE
3
3176757200
PLATE
4
3176757302
PLATE
5
9122178015
HAND LEVER
P13
0574231811
HOSE ASSEMBLY
KV3
3176373700
HOSE ASSEMBLY
T11
0574225511
HOSE ASSEMBLY
DKV
3176764400
HOSE ASSEMBLY
P10
0574127211
HOSE ASSEMBLY
T10
0574227411
HOSE ASSEMBLY
6
3177312603
FLOW CONT.VALVE
7
3176757500
PLATE
BOLTEC 235H DIRECTION VALVE #15255
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
8234020043
DIRECTION VALVE
0
9120079022
PULL ROD SET
0
9120079008
PLUNGER P. SET
0
9120079007
SEAL KIT
1
9120079013
LEVER JOINT
2
9120079003
CHECK VALVE
3
9120079017
PROTECTION HOOD
4
9120079018
CENTERING SET
5
9120079065
PRESS.REL.VALVE
6
9121546003
PLUG
62
0663212200
ORING
64
9128837000
SPACER RING
65
0663212101
O-RING
67
0663910301
O-RING
68
9128898500
BACK-UP RING
71
9123654700
ATTACHM. PLATE
72
0266113701
NUT

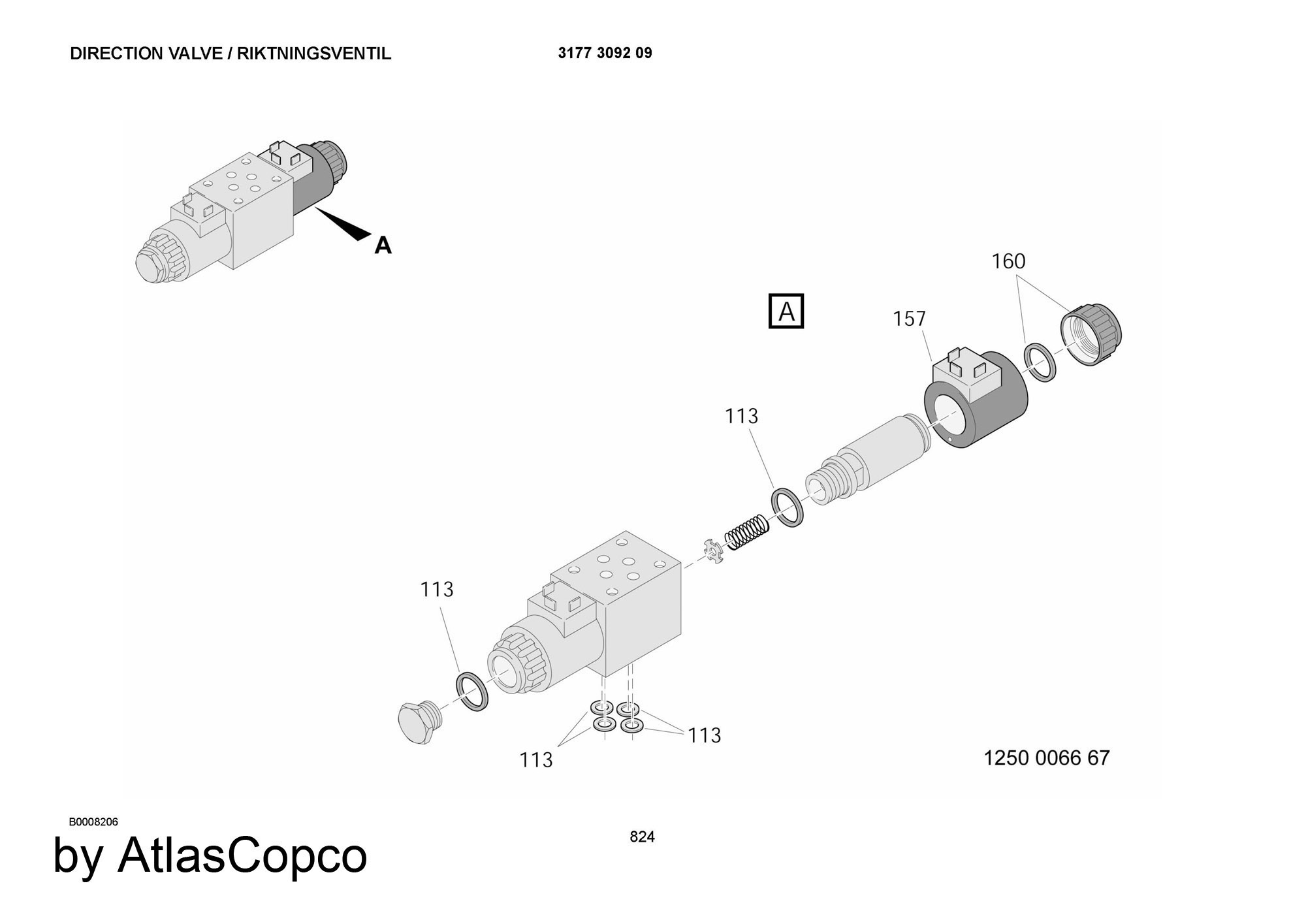

BOLTEC 235H DIRECTION VALVE #15298
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309209
DIRECTION VALVE
113
3222305858
SEAL KIT
157
3177309252
COIL
160
3177309254
NUT SET
BOLTEC 235H DIRECTION VALVE #15505
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3214897280
DIRECTION VALVE
0
3217848303
SEAL KIT
63
3217848304
BOLT
64
3217848305
SPACER
67
3217848306
LEVER SET
71
3217848307
SPRING
72
3217848308
SPRING
132
3217848309
PLUG
195
3217848310
SEAL
BOLTEC 235H DIRECTION VALVE #15778
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3214897280
DIRECTION VALVE
0
3217848303
SEAL KIT
63
3217848304
BOLT
64
3218200775
SPACER
67
3217848306
LEVER SET
71
3217848307
SPRING
72
3217848308
SPRING
132
3217848309
PLUG
195
3217848310
SEAL
BOLTEC 235H DIRECTION VALVE #16279
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
1
8234020044
DIRECTION VALVE
2
3176651500
NIPPLE
3
3715058500
NIPPLE
4
3176659000
NIPPLE
5
9122178015
HAND LEVER
6
3176651300
NIPPLE
7
3176657800
NIPPLE
8
3176306000
NIPPLE
9
3176733600
NIPPLE
15
0147136203
SCREW. HEX HEAD
16
0291112820
LOCK NUT
BOLTEC 235H DIRECTION VALVE #16367
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
1
3217983400
DIRECTION VALVE
2
3217896800
VALVE BLOCK
3
3217893700
VALVE BLOCK
5
3125090690
VALVE UNIT
6
3217884005
THROTTLE VALVE
8
3217884051
DISTRIBUT. PIPE
9
3176458905
PRESSURE SWITCH
10
3217867400
STRAINER
11
3176850500
RESTRICTION
12
3217651301
RESTRICTION
13
3217651302
RESTRICTION
14
3177303200
PRESSURE GAUGE
15
3177314700
PRESSURE GAUGE
18
3176869500
PRESSURE GAUGE
20
3217001075
SEALING COVER
20
3217001072
INTERMED. PART
20
3217001002
TRIGGER
21
3217001087
MUSHROOM PUSHB.
22
3217919600
LIGHTNING
23
1089028901
INDICATION LAMP
24
3177504800
BALL COCK
27
3217894610
LEVER
28
3217988100
DRAINAGE BLOCK
29
3217988110
BRANCH BLOCK
30
3177301600
COUPLING
38
3217896620
PIPE
40
3217895100
PLATE
42
3217895120
PLATE
47
3217895113
PLATE
50
3217895110
PLATE
63
5118092900
COUPLING LIST
64
0160604200
SCREW. SLOTTED

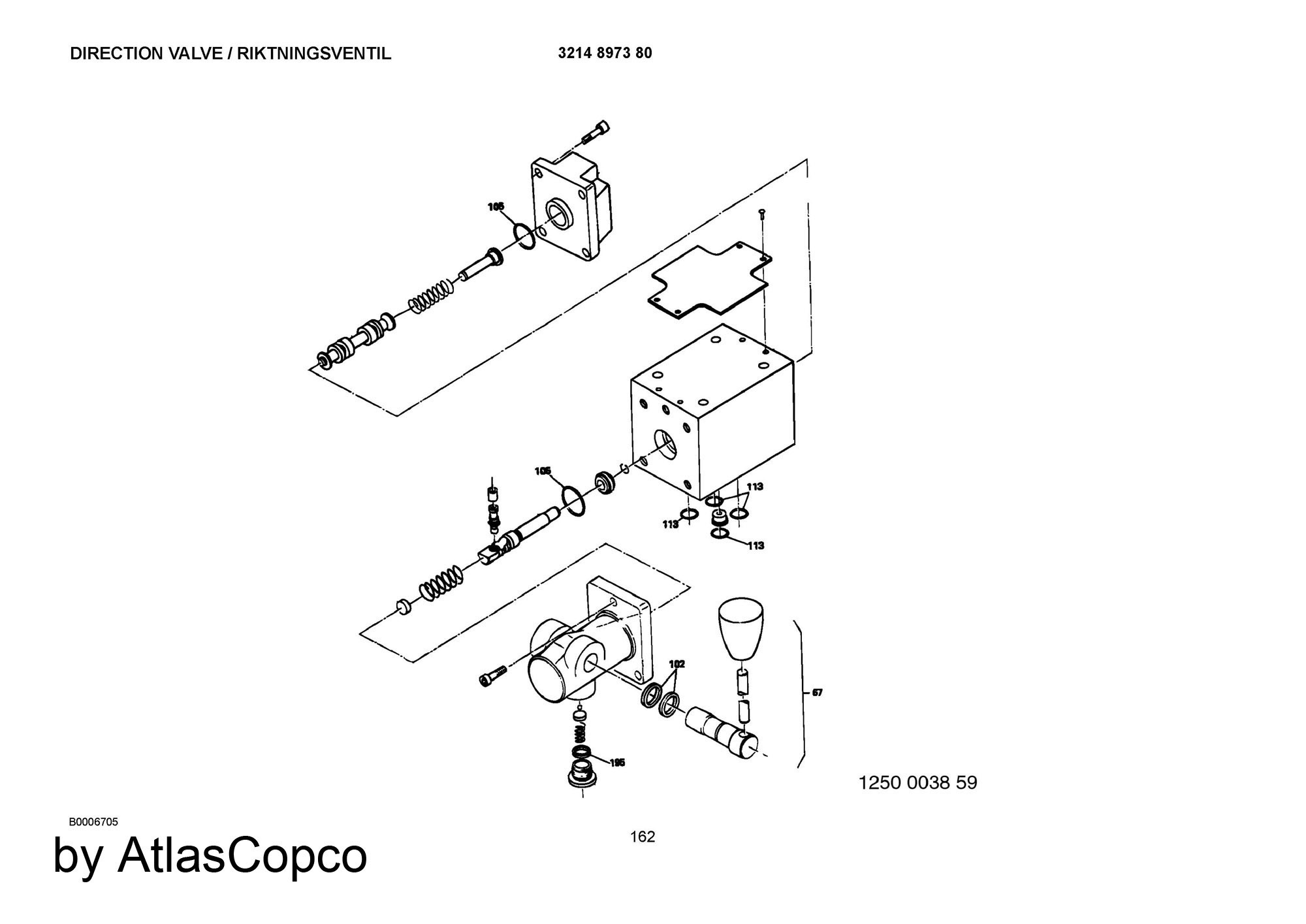

BOLTEC 235H DIRECTION VALVE #21250
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3214897380
DIRECTION VALVE
0
3222305230
SEAL KIT
67
3222326991
LEVER

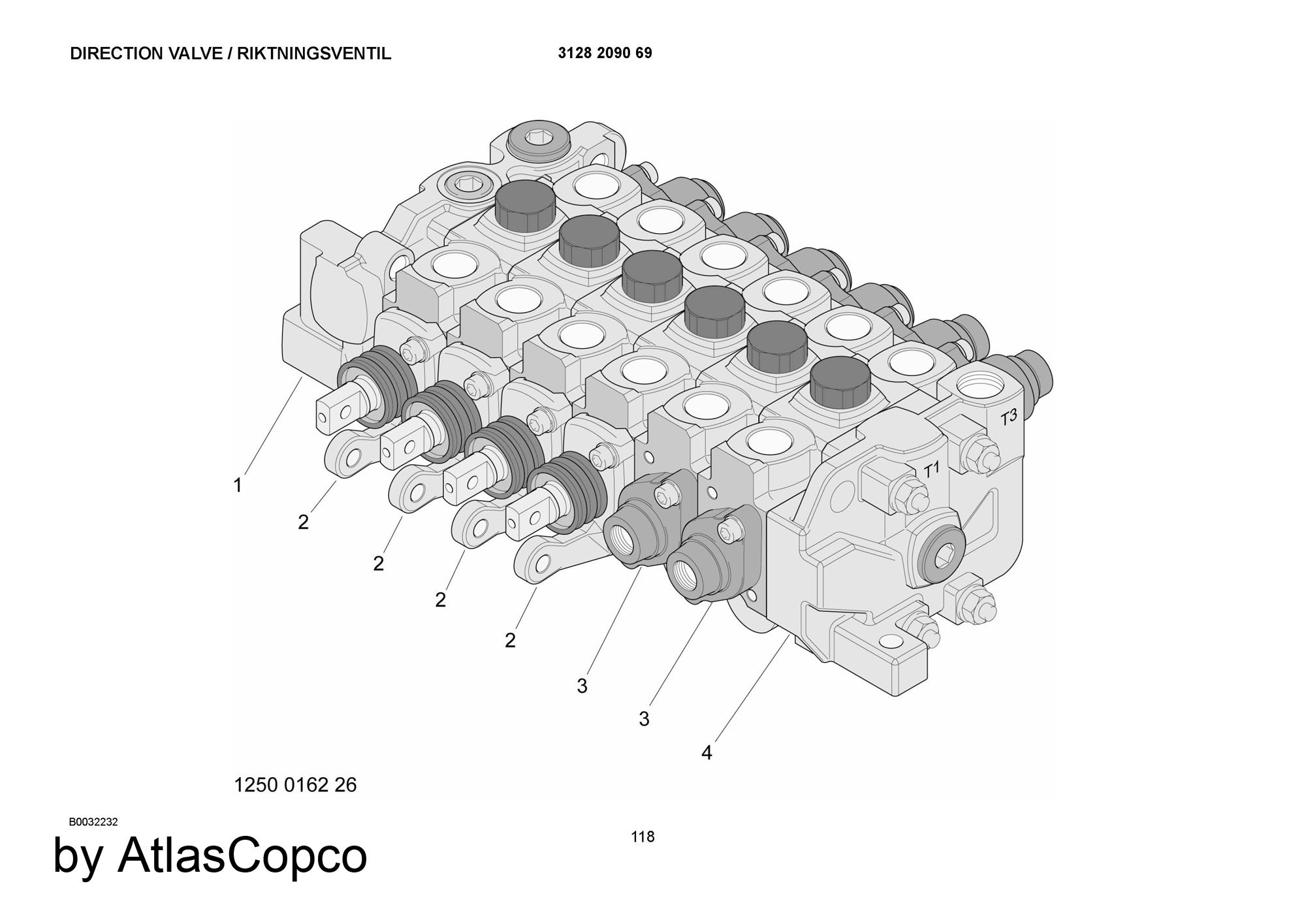

BOLTEC 235H DIRECTION VALVE #21261
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209069
DIRECTION VALVE
1
3128209101
INLET SECTION
2
3128209102
VALVE SECTION
3
3128209103
SPOOL VALVE
4
3128209104
OUTLET SECTION

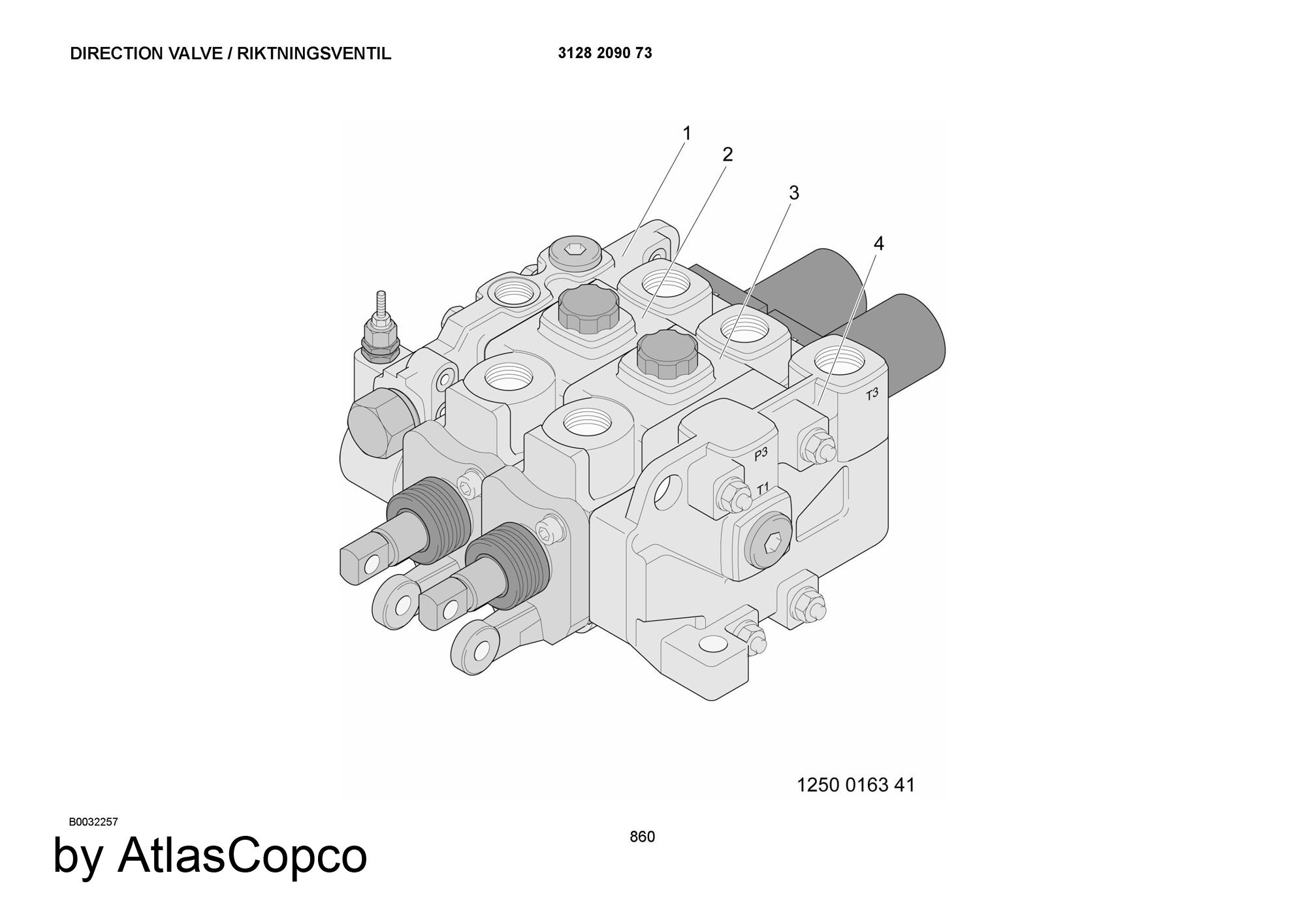

BOLTEC 235H DIRECTION VALVE #21303
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209073
DIRECTION VALVE
1
3128209122
INLET SECTION
2
3128209127
SPOOL VALVE
3
3128209124
OUTLET SECTION
BOLTEC 235H DIRECTION VALVE #21355
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209072
DIRECTION VALVE
1
3128209122
INLET SECTION
2
3128209102
VALVE SECTION
3
3128209124
OUTLET SECTION

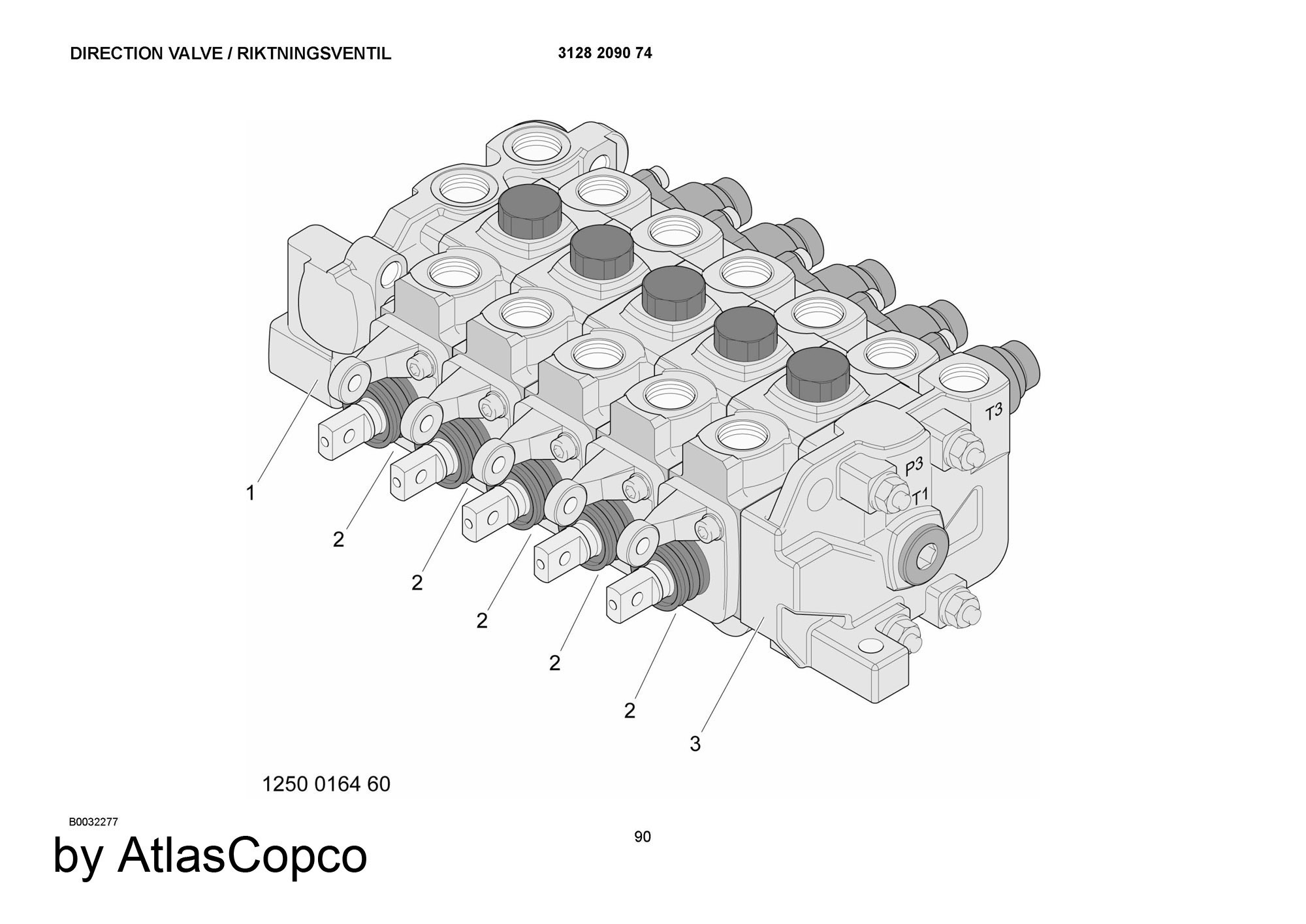

BOLTEC 235H DIRECTION VALVE #21367
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209074
DIRECTION VALVE
1
3128209101
INLET SECTION
2
3128209138
SPOOL VALVE
3
3128209139
OUTLET SECTION

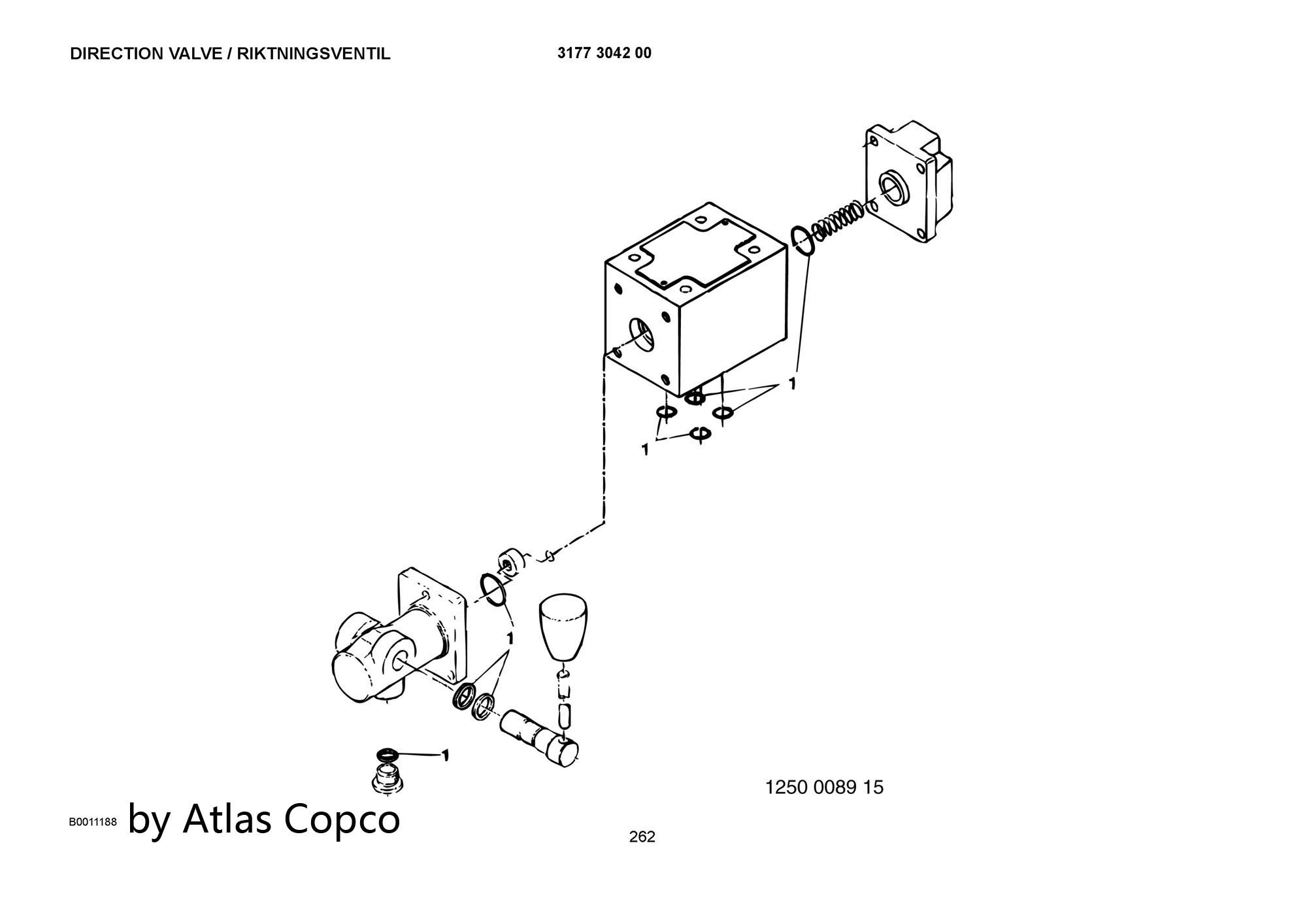

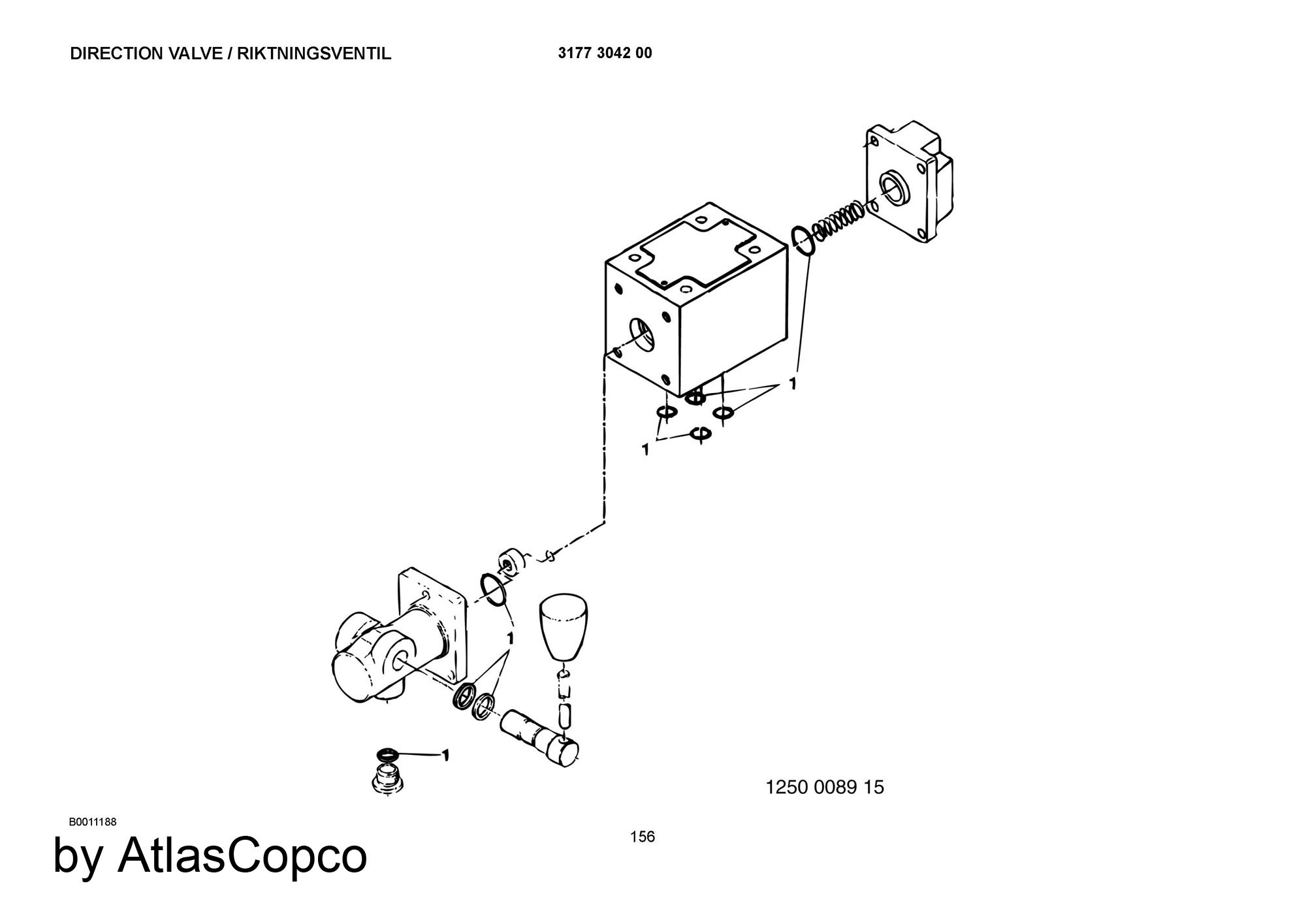

BOLTEC 235H DIRECTION VALVE #21383
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177304200
DIRECTION VALVE
1
3128310757
SEAL KIT
BOLTEC 235H DIRECTION VALVE #21387
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3217872810
DIRECTION VALVE
1
3128310757
SEAL KIT
BOLTEC 235H DIRECTION VALVE #21389
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3214897380
DIRECTION VALVE
0
3222305230
SEAL KIT
67
3222326991
LEVER
BOLTEC 235H DIRECTION VALVE #21406
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
86
8234020045
DIRECTION VALVE
87
9122178015
HAND LEVER
BOLTEC 235H DIRECTION VALVE #21431
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3214897380
DIRECTION VALVE
0
3222305230
SEAL KIT
67
3222305231
LEVER
BOLTEC 235H DIRECTION VALVE #21449
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177304200
DIRECTION VALVE
1
3128310757
SEAL KIT
BOLTEC 235H DIRECTION VALVE #21531
BOLTEC 235H DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177304200
DIRECTION VALVE
1
3128310757
SEAL KIT

Search by your machine to find part numbers with illustrations. New Parts Catalog. Hyundai parts catalog
New Holland parts catalog
Part Number Information parts manager pro is the electronic parts catalog (EPC) and parts manuals. The original directory on the selection of spare parts for machinery . Find great deals for Genuine OEM Replacement Spacer EPC
Contacts My Privacy Policy
The names Komatsu, Cat, Deere or any other original equipment manufacturers are registered trademarks of the respective original equipment manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
777parts tpe-parts.com is in no way associated with Komatsu any of the manufacturers we have listed. All manufacturer's names and descriptions are for reference only.
Back to top
