1. EPIROC - BOLTEC 235H FRAME #16157

2. EPIROC - BOLTEC 235H FRAME #16197

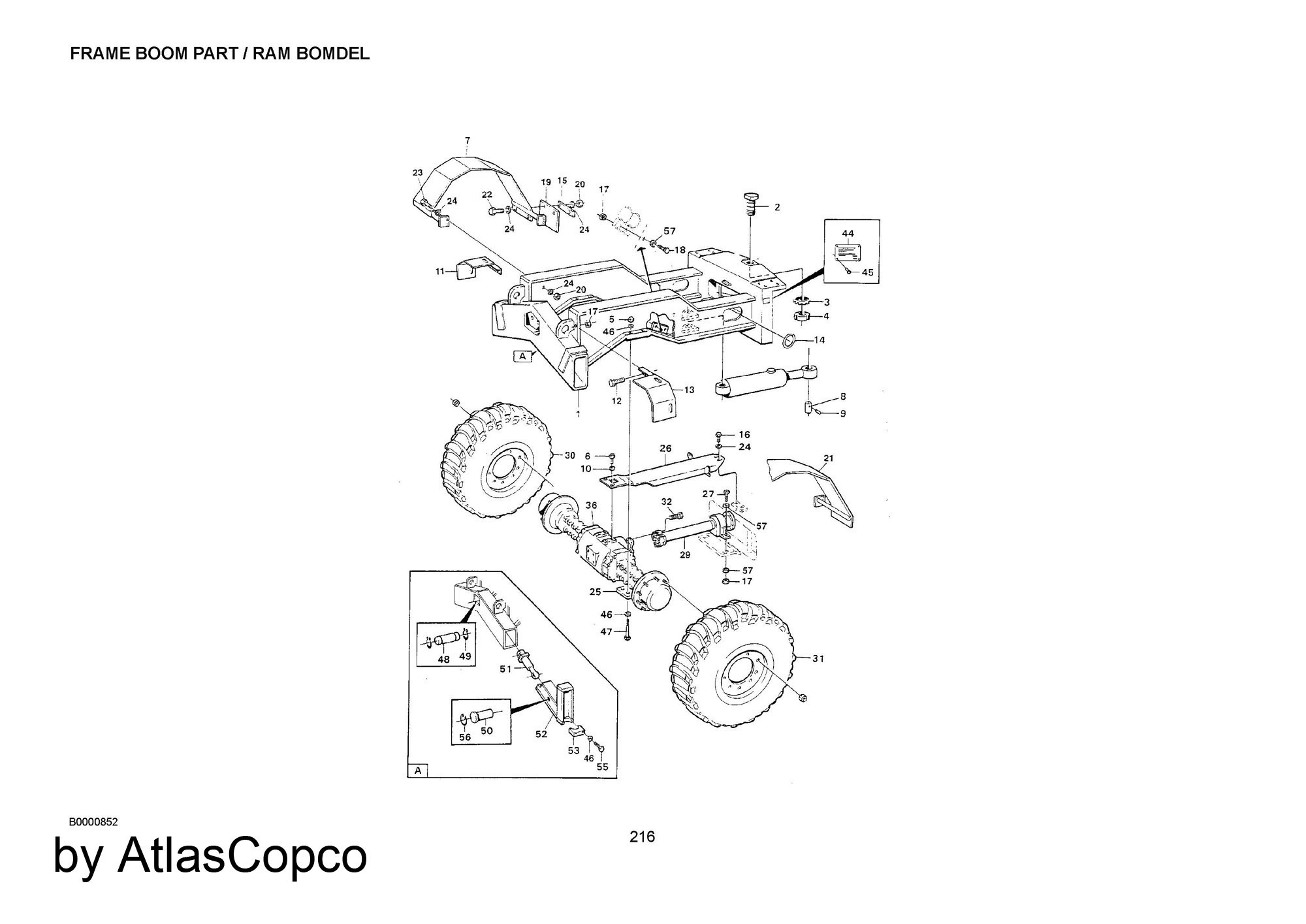

BOLTEC 235H FRAME #16157

BOLTEC 235H FRAME

ads

Ref

Parts Num

Name

1

FRAME

2

WAIST SHAFT

3

LOCK WASHER

4

LOCK NUT

5

LOCK NUT

6

SCREW. HEX HEAD

7

MUDGUARD

8

SHAFT

9

SPRING PIN

10

PLAIN WASHER

11

PROTECTION

12

SCREW. HEX HEAD

13

PROTECTION

14

RUBBER PROTEC

15

DAMPER BIT

16

SCREW. HEX HEAD

17

LOCK NUT

18

SCREW. HEX HEAD

19

FENDER

20

LOCK NUT

21

MUDGUARD

22

SCREW. HEX HEAD

23

SCREW. HEX HEAD

24

PLAIN WASHER

25

ATTACHM. PLATE

26

CARDAN PROTECT.

27

SCREW. HEX HEAD

29

CARDAN SHAFT

30

WHEEL COMPL.

32

SCREW. HEX HEAD

36

DRIVE SHAFT

44

PLATE

45

BLIND RIVET

46

PLAIN WASHER

47

SCREW

48

SHAFT

49

CIRCLIP

50

SHAFT

51

HYDR. CYLINDER

52

JACK TUBE

53

ATTACHM. PLATE

55

SCREW. HEX HEAD

56

CIRCLIP

57

WASHER

BOLTEC 235H FRAME #16197

BOLTEC 235H FRAME

ads

Ref

Parts Num

Name

1

FRAME

2

WAIST SHAFT

3

LOCK WASHER

4

LOCK NUT

5

LOCK NUT

6

SCREW. HEX HEAD

7

MUDGUARD

8

SHAFT

9

SPRING PIN

11

PROTECTION

12

SCREW. HEX HEAD

13

PROTECTION

14

RUBBER PROTEC

15

DAMPER BIT

16

SCREW. HEX HEAD

18

SCREW. HEX HEAD

19

FENDER

21

MUDGUARD

22

SCREW. HEX HEAD

23

SCREW. HEX HEAD

26

CARDAN PROTECT.

27

SCREW. HEX HEAD

29

CARDAN SHAFT

30

WHEEL COMPL.

32

SCREW. HEX HEAD

44

PLATE

45

BLIND RIVET

46

PLAIN WASHER

47

SCREW

48

SHAFT

49

CIRCLIP

50

SHAFT

51

HYDR. CYLINDER

52

JACK TUBE

53

ATTACHM. PLATE

55

SCREW. HEX HEAD

56

CIRCLIP
