BOLTEC 235H Pages
1. EPIROC - BOLTEC 235H HEADLIGHT #14297
2. EPIROC - BOLTEC 235H HEADLIGHT #14471
3. EPIROC - BOLTEC 235H HEADLIGHT #14830
4. EPIROC - BOLTEC 235H HEADLIGHT #16018
5. EPIROC - BOLTEC 235H HEADLIGHT #16145
6. EPIROC - BOLTEC 235H HEADLIGHT #16242
7. EPIROC - BOLTEC 235H HEADLIGHT #16351

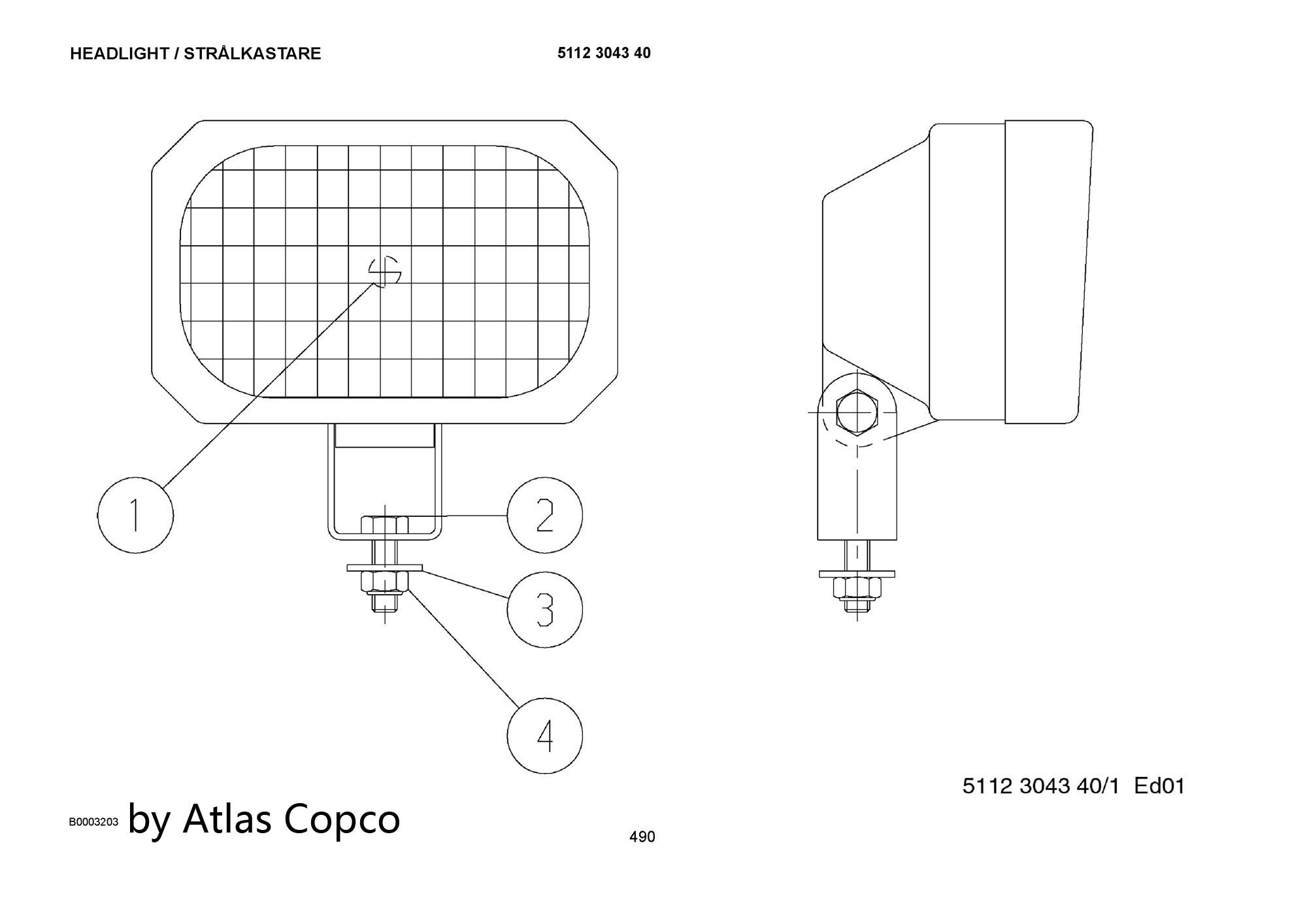

BOLTEC 235H HEADLIGHT #14297
BOLTEC 235H HEADLIGHT
ads
Ref
Parts Num
Name
0
5112304340
HEADLIGHT
1
3176449400
BULB
2
0147132503
SCREW. HEX HEAD
3
0300800500
PLAIN WASHER
4
0291112818
LOCK NUT
BOLTEC 235H HEADLIGHT #14471
BOLTEC 235H HEADLIGHT
ads
Ref
Parts Num
Name
1
3217979861
HEADLIGHT
2
3217979908
YOKE
3
0392111002
DAMPER
4
3176424501
BULB
5
0698521100
JUNCTION BOX
6
0698514014
CABLE GLAND
7
0346100201
PIPE CLAMP
8
0226035107
TAPPING SCREW
10
0147135803
SCREW. HEX HEAD
14
0698514007
CABLE GLAND
15
0698514008
CABLE GLAND
16
0346100203
PIPE CLAMP
BOLTEC 235H HEADLIGHT #14830
BOLTEC 235H HEADLIGHT
ads
Ref
Parts Num
Name
1
3217936101
HEADLIGHT
2
3176449400
BULB
3
5112304340
HEADLIGHT
5
0698520500
JUNCTION BOX
6
0698514009
CABLE GLAND
7
0698514014
CABLE GLAND
8
0346100201
PIPE CLAMP
9
0226035107
TAPPING SCREW

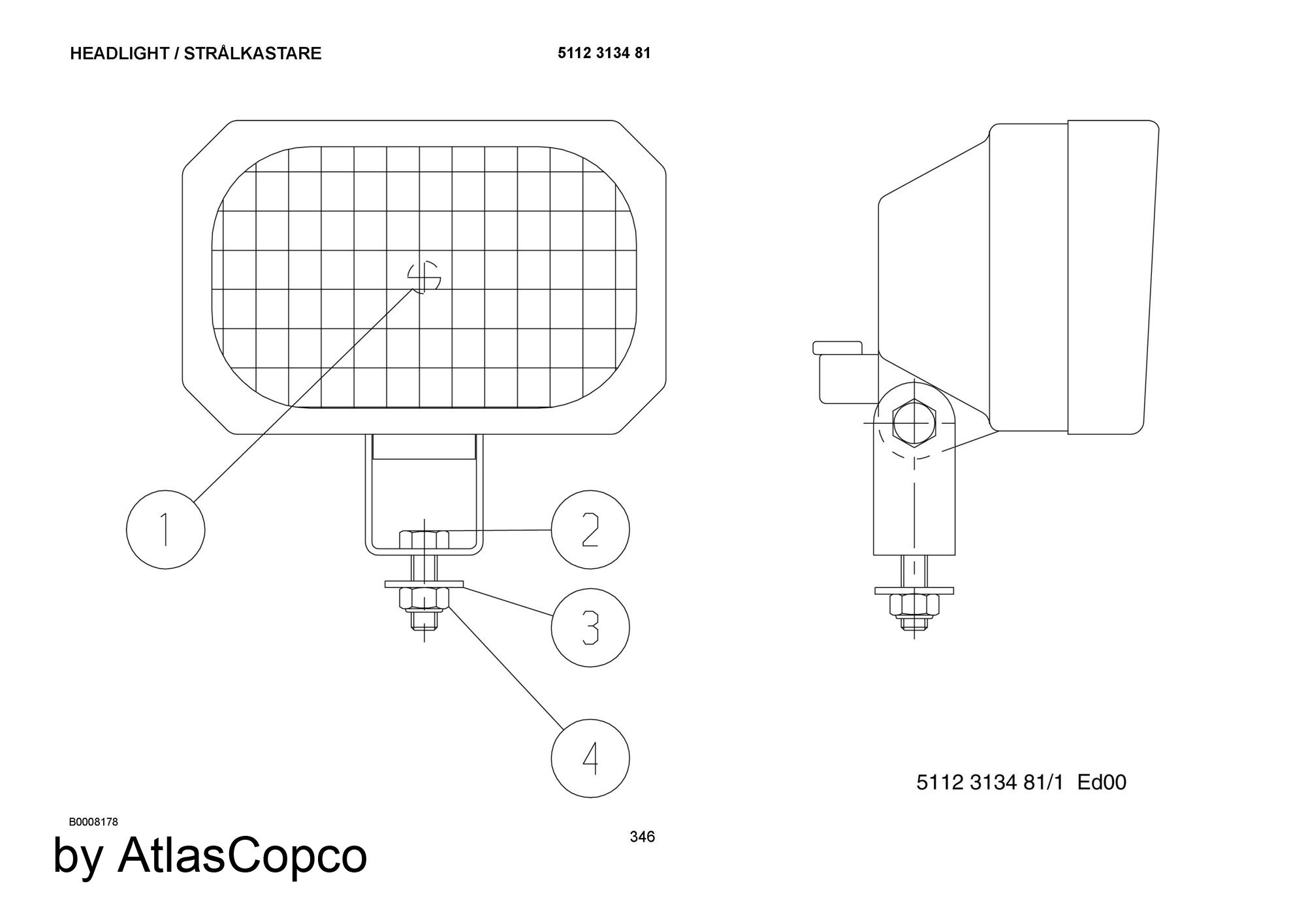

BOLTEC 235H HEADLIGHT #16018
BOLTEC 235H HEADLIGHT
ads
Ref
Parts Num
Name
0
5112313481
HEADLIGHT
1
3176449400
BULB
2
0147132503
SCREW. HEX HEAD
3
0300800500
PLAIN WASHER
4
0291112818
LOCK NUT
BOLTEC 235H HEADLIGHT #16145
BOLTEC 235H HEADLIGHT
ads
Ref
Parts Num
Name
1
3217936101
HEADLIGHT
2
3176449400
BULB
3
5112304340
HEADLIGHT
5
0698520500
JUNCTION BOX
6
0698514009
CABLE GLAND
7
0698514014
CABLE GLAND
8
0346100201
PIPE CLAMP
9
0226035107
TAPPING SCREW
10
9111389106
CABLE. 3CORE

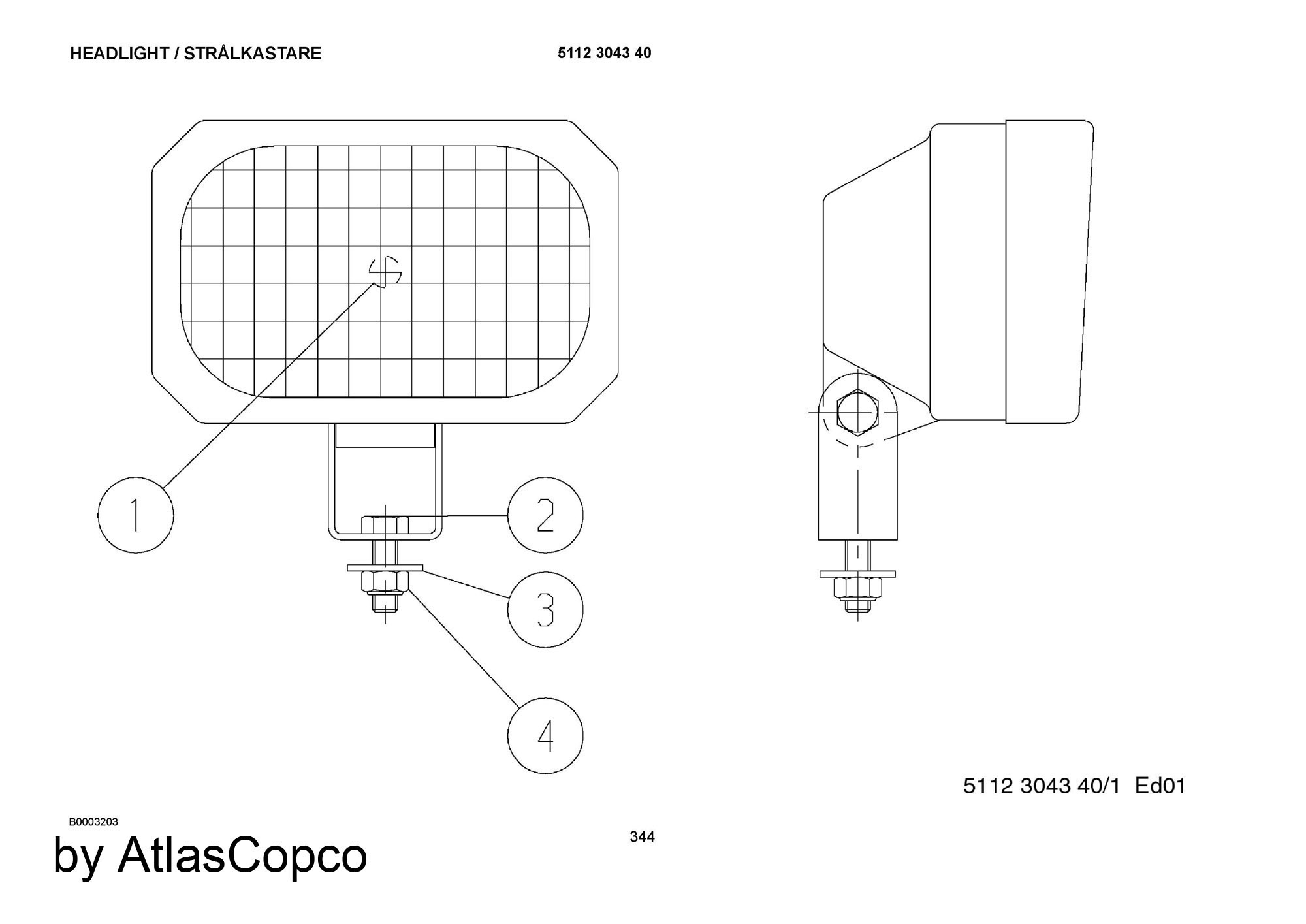

BOLTEC 235H HEADLIGHT #16242
BOLTEC 235H HEADLIGHT
ads
Ref
Parts Num
Name
0
5112304340
HEADLIGHT
1
3176449400
BULB
2
0147132503
SCREW. HEX HEAD
3
0300800500
PLAIN WASHER
4
0291112818
LOCK NUT

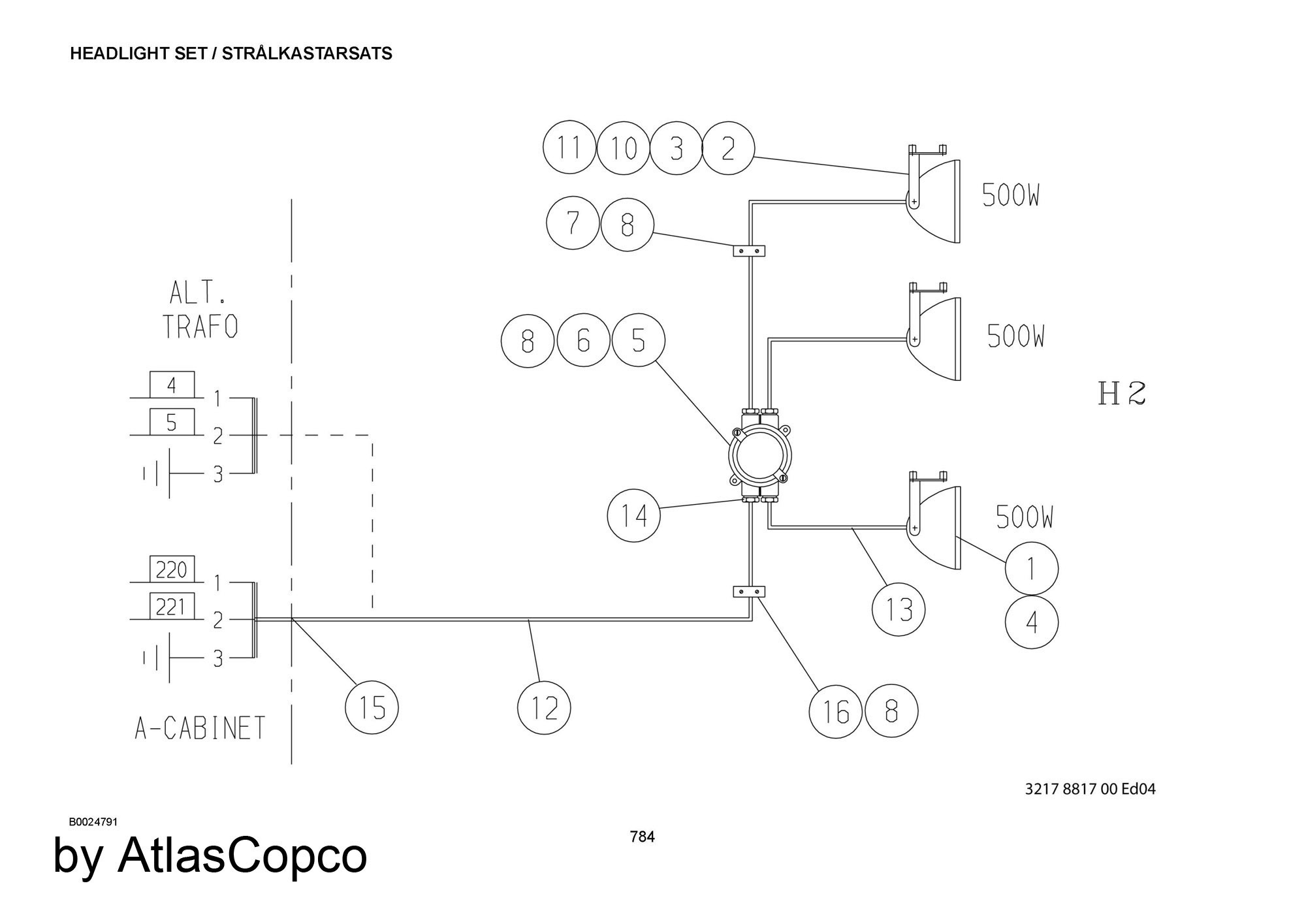

BOLTEC 235H HEADLIGHT #16351
BOLTEC 235H HEADLIGHT
ads
Ref
Parts Num
Name
1
3217979861
HEADLIGHT
2
3217979908
YOKE
3
0392111002
DAMPER
4
3176424501
BULB
5
0698521100
JUNCTION BOX
6
0698514060
CABLE GLAND
6
0697974566
ADAPTER
7
0346100201
PIPE CLAMP
8
0226035107
TAPPING SCREW
10
0147135803
SCREW. HEX HEAD
11
0301234400
PLAIN WASHER
12
9111389106
CABLE. 3CORE
14
0697974531
ADAPTER
14
0698514061
CABLE GLAND
15
0697974544
ADAPTER
16
0346100203
PIPE CLAMP
