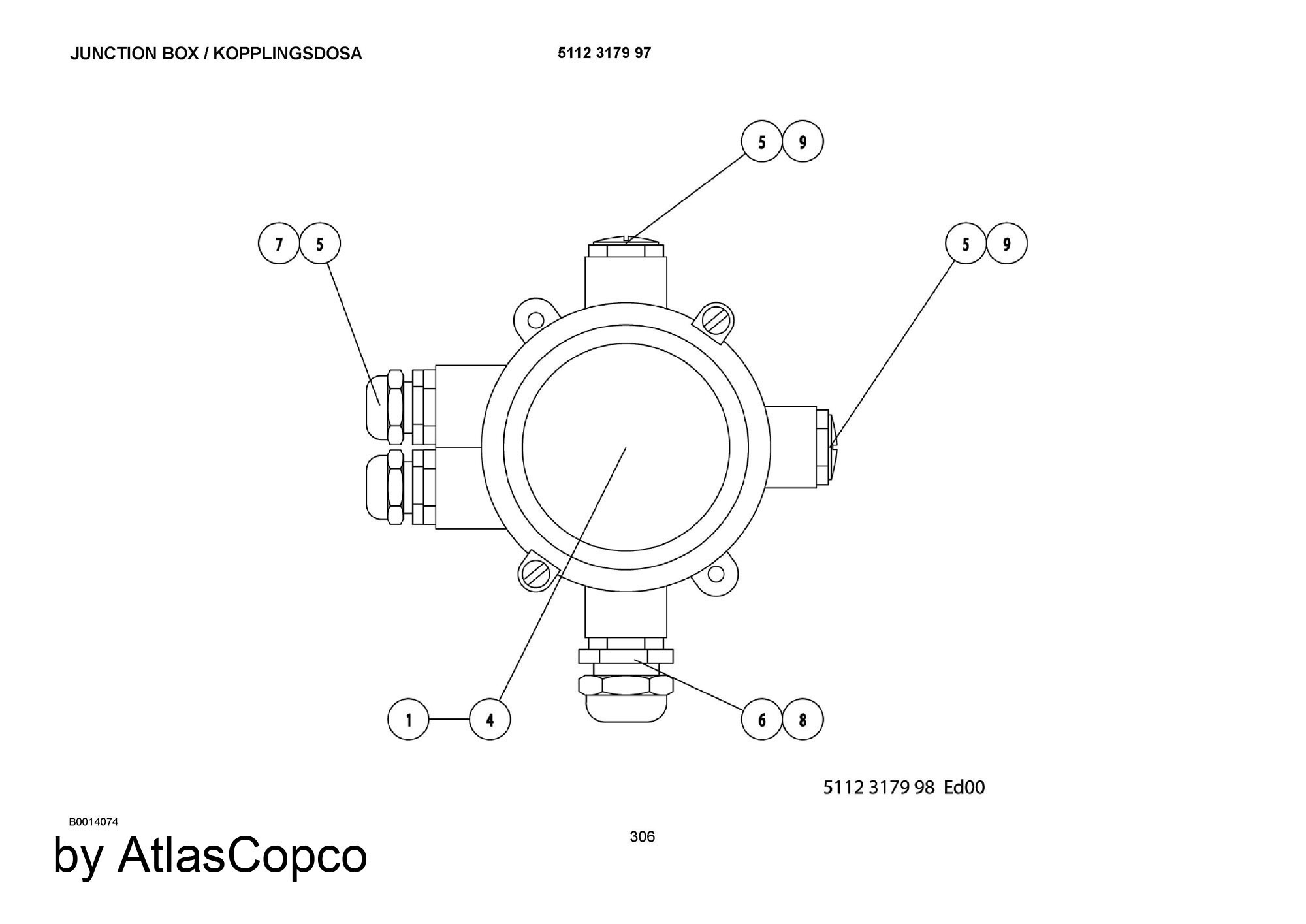

BOLTEC 235H JUNCTION BOX #14367
BOLTEC 235H JUNCTION BOX
ads
Ref
Parts Num
Name
0
5112317997
JUNCTION BOX
2
0663613900
ORING
3
5118092900
COUPLING LIST
4
0160603900
SCREW. SLOTTED
5
0697974566
ADAPTER
6
0697974531
ADAPTER
7
0698514060
CABLE GLAND
8
0698514061
CABLE GLAND
9
0697981018
END PLUG
BOLTEC 235H JUNCTION BOX #14577
BOLTEC 235H JUNCTION BOX
ads
Ref
Parts Num
Name
0
5112316914
JUNCTION BOX
1
5112316916
DRILLED BOX
2
3176436308
MOUNTING RAIL
3
0160124400
SCREW. SLOTTED
5
0147132203
SCREW. HEX HEAD
6
0301233500
PLAIN WASHER
7
3176404951
END SUPPORT
8
3176404900
TERMINAL BLOCK
9
3176404901
END PLATE
10
3176404911
TERMINAL BLOCK
11
3176404912
END PLATE
12
3176404913
BRIDGE CONN.
13
3176449102
MARKING PLATE
13
3176449101
MARKING PLATE
14
3176404961
MARKING PLATE
15
5112304310
FUSE CON. TERM.
16
5112304312
MARKING PLATE
17
5112304316
FUSE
18
0017206070
CABLE. 1CORE
20
5112221604
EARTH TERMINAL
21
0226035107
TAPPING SCREW
23
0129320700
BLIND RIVET
BOLTEC 235H JUNCTION BOX #14588
BOLTEC 235H JUNCTION BOX
ads
Ref
Parts Num
Name
0
5112317991
JUNCTION BOX
2
5118092900
COUPLING LIST
3
0301231500
PLAIN WASHER
4
0160604200
SCREW. SLOTTED
5
0698514060
CABLE GLAND
6
0698514061
CABLE GLAND
7
5112316344
ENLARGER
BOLTEC 235H JUNCTION BOX #14646
BOLTEC 235H JUNCTION BOX
ads
Ref
Parts Num
Name
0
5112317997
JUNCTION BOX
1
1089022701
JUNCTION BOX
2
0663613900
ORING
3
5118092900
COUPLING LIST
4
0160603900
SCREW. SLOTTED
5
0697974566
ADAPTER
6
0697974531
ADAPTER
7
0698514060
CABLE GLAND
8
0698514061
CABLE GLAND
9
0697981018
END PLUG

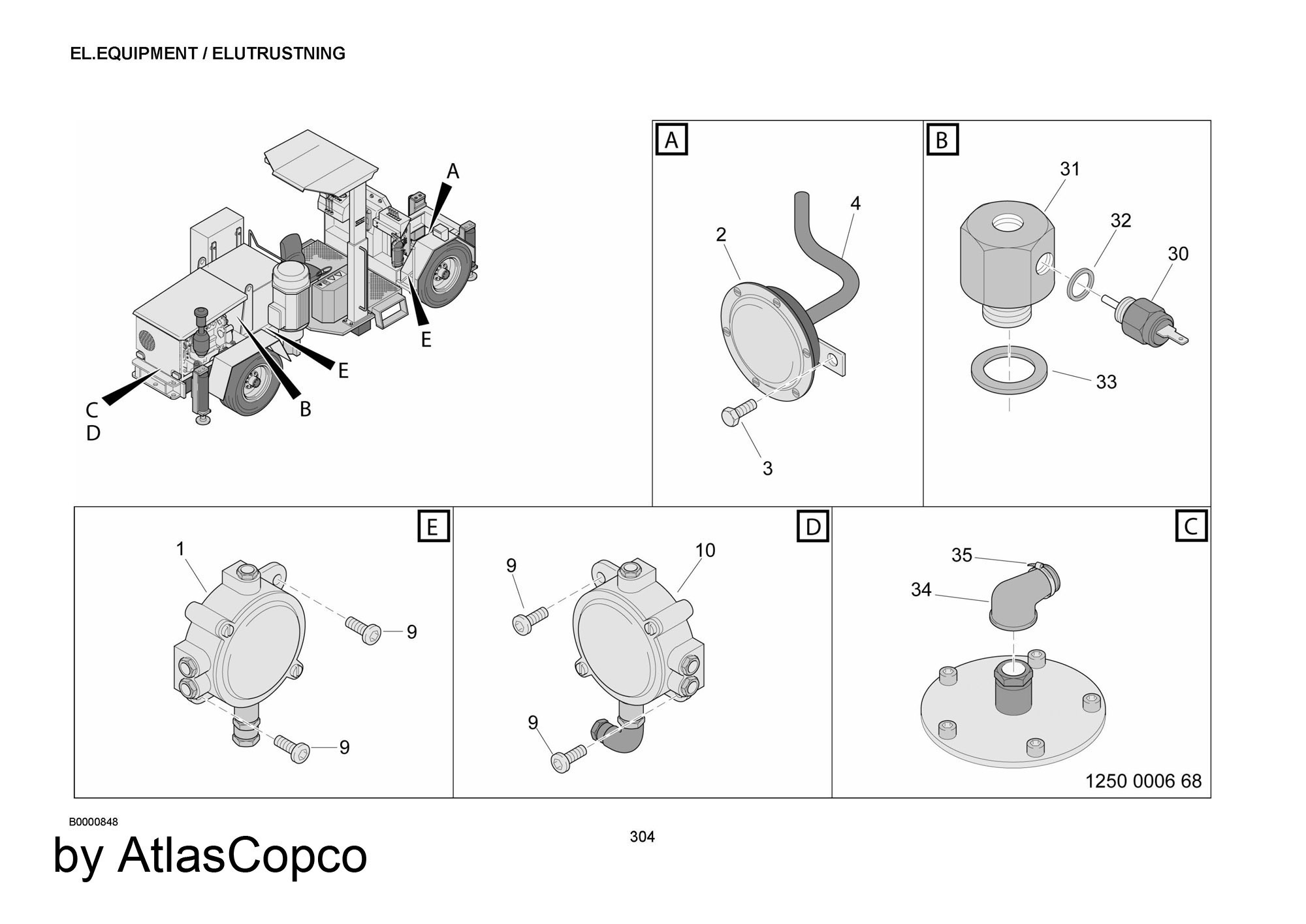

BOLTEC 235H JUNCTION BOX #14904
BOLTEC 235H JUNCTION BOX
ads
Ref
Parts Num
Name
1
5112317997
JUNCTION BOX
9
0226035101
TAPPING SCREW
10
5112317999
JUNCTION BOX
30
5112302186
THERMOSTAT
31
5112302181
NIPPLE
32
0653107000
GASKET
33
0653117400
GASKET
34
5118090400
RUBBER PROTEC
35
3176547504
CABLE TIES
BOLTEC 235H JUNCTION BOX #14912
BOLTEC 235H JUNCTION BOX
ads
Ref
Parts Num
Name
1
5112316914
JUNCTION BOX
4
5118089900
RELAY
5
0160606100
SCREW. SLOTTED
6
0291112814
LOCK NUT
7
9111389113
CABLE. 7CORE
8
5112321622
WIRING
9
9111389106
CABLE. 3CORE
10
4350165700
ASSEMBLY STRIP
11
5104088700
CABLE TIES
13
0226032600
TAPPING SCREW
14
0346100002
PIPE CLAMP
15
5112157900
PROTECTION COIL
16
0346100243
PIPE CLAMP
17
0697981019
END PLUG
18
0698514061
CABLE GLAND
19
9139600456
FLAT PIN SLEEVE
20
1088000409
FLAT PIN SLEEVE
21
5112175800
SLEEVE INSERT
22
9111002033
CABLE GEAR
23
0698612595
ADAPTER
24
0698612593
ADAPTER
26
0697980916
LOCK NUT
27
0698612600
ADAPTER
30
0697980914
LOCK NUT
31
3222300978
PROTECTION HOSE
32
3222300977
PROTECTION HOSE
33
0017206070
CABLE. 1CORE
36
5112316350
REDUCER
37
0698514060
CABLE GLAND
38
0699100000
MARKING SLEEVE
39
0699100100
MARKING SLEEVE
40
0699100200
MARKING SLEEVE
41
0699100300
MARKING SLEEVE
42
0699100400
MARKING SLEEVE
43
0699100500
MARKING SLEEVE
44
0699100600
MARKING SLEEVE
45
0699100700
MARKING SLEEVE
46
0699100800
MARKING SLEEVE
47
0699100900
MARKING SLEEVE

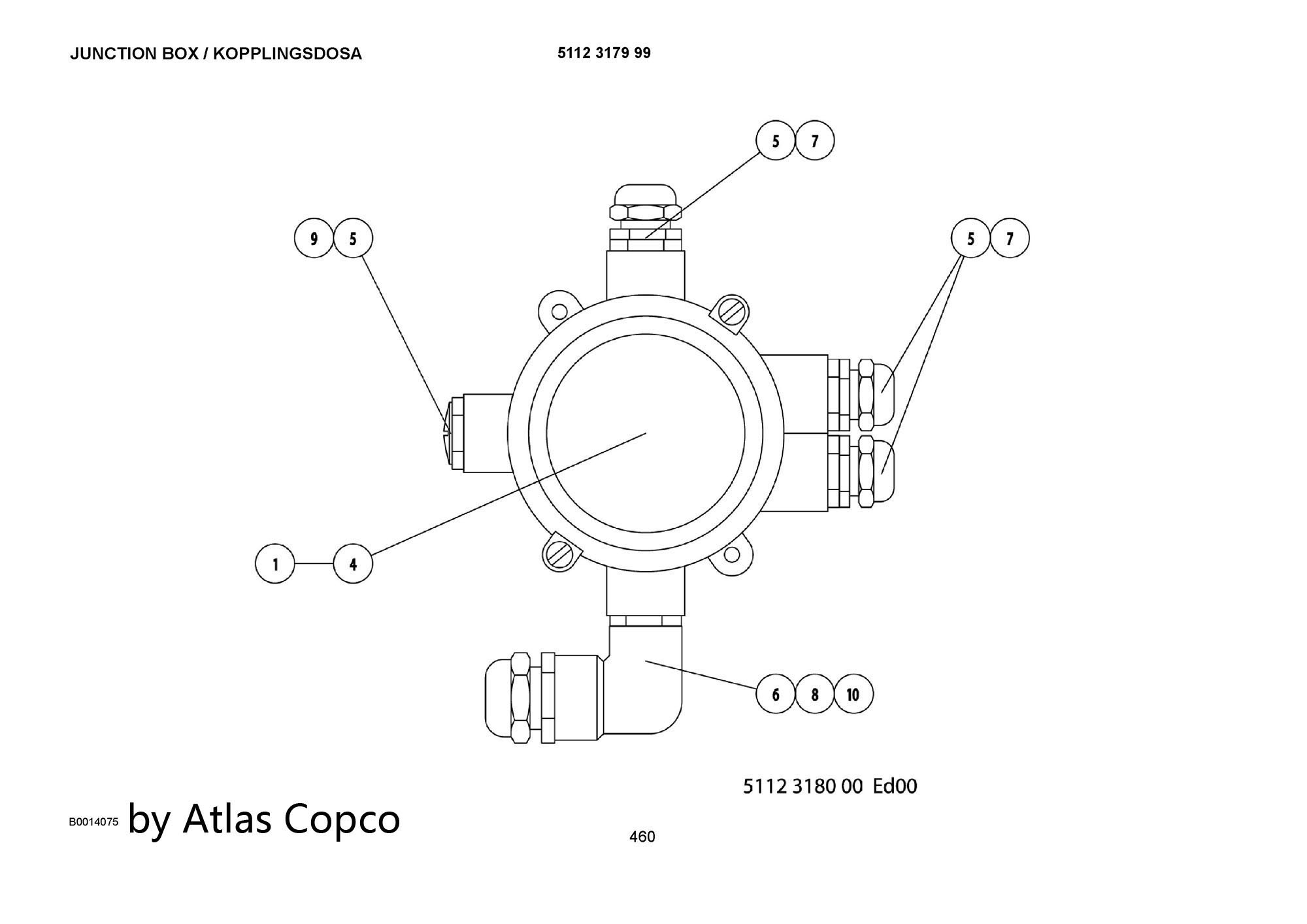

BOLTEC 235H JUNCTION BOX #14979
BOLTEC 235H JUNCTION BOX
ads
Ref
Parts Num
Name
0
5112317999
JUNCTION BOX
2
0663613900
ORING
3
5118092900
COUPLING LIST
4
0160603900
SCREW. SLOTTED
5
0697974566
ADAPTER
6
0697974531
ADAPTER
7
0698514060
CABLE GLAND
8
0698514061
CABLE GLAND
9
0697981018
END PLUG

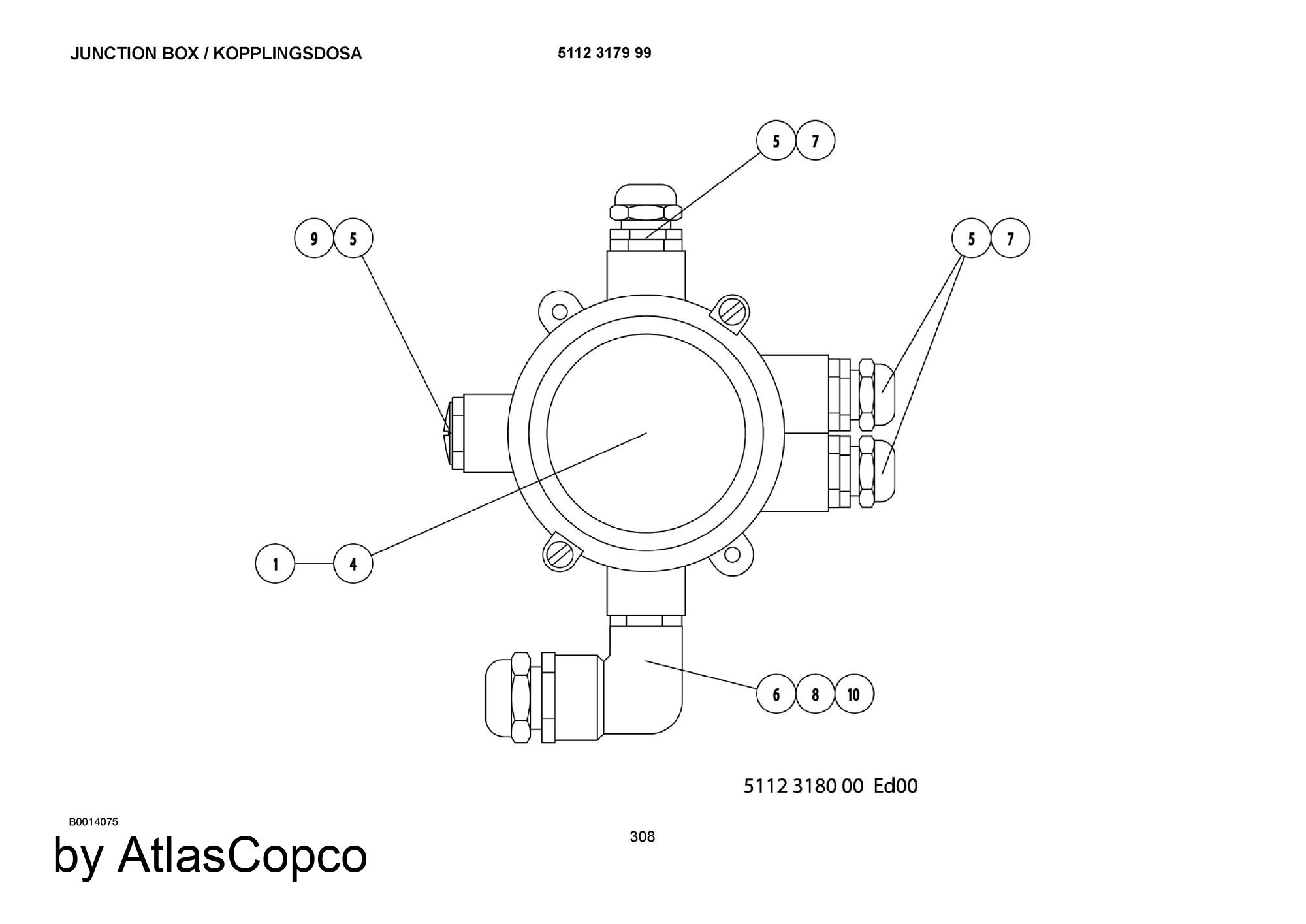

BOLTEC 235H JUNCTION BOX #15064
BOLTEC 235H JUNCTION BOX
ads
Ref
Parts Num
Name
0
5112317999
JUNCTION BOX
1
1089022701
JUNCTION BOX
2
0663613900
ORING
3
5118092900
COUPLING LIST
4
0160603900
SCREW. SLOTTED
5
0697974566
ADAPTER
6
0697974531
ADAPTER
7
0698514060
CABLE GLAND
8
0698514061
CABLE GLAND
9
0697981018
END PLUG
BOLTEC 235H JUNCTION BOX #16039
BOLTEC 235H JUNCTION BOX
ads
Ref
Parts Num
Name
1
5112317997
JUNCTION BOX
2
3176000090
LOUDWHISTLEHORN
3
0147136003
SCREW. HEX HEAD
4
9111389144
CABLE. 2CORE
9
0226035101
TAPPING SCREW
10
5112317999
JUNCTION BOX
30
5112302186
THERMOSTAT
31
5112302181
NIPPLE
32
0653107000
GASKET
33
0653117400
GASKET
34
5118090400
RUBBER PROTEC
35
3176547504
CABLE TIES
BOLTEC 235H JUNCTION BOX #19345
BOLTEC 235H JUNCTION BOX
ads
Ref
Parts Num
Name
1
0698520500
JUNCTION BOX
3
0698514060
CABLE GLAND
5
3217988204
CONNECTOR
6
3217988214
CABLE COMPLETE
7
9111389144
CABLE. 2CORE
8
0697974566
ADAPTER
BOLTEC 235H JUNCTION BOX #19712
BOLTEC 235H JUNCTION BOX
ads
Ref
Parts Num
Name
1
5112307605
JUNCTION BOX
2
3217001081
MUSHROOM PUSHB.
3
3217001072
INTERMED. PART
5
5112290900
COVER
6
0698514061
CABLE GLAND
