BOLTEC 235H EPIROC New catalogs

BOLTEC 235H Pages

1. EPIROC - BOLTEC 235H SPARE PARTS SET #14770

2. EPIROC - BOLTEC 235H SPARE PARTS SET #15550

3. EPIROC - BOLTEC 235H SPARE PARTS SET #15556

4. EPIROC - BOLTEC 235H SPARE PARTS SET #15758

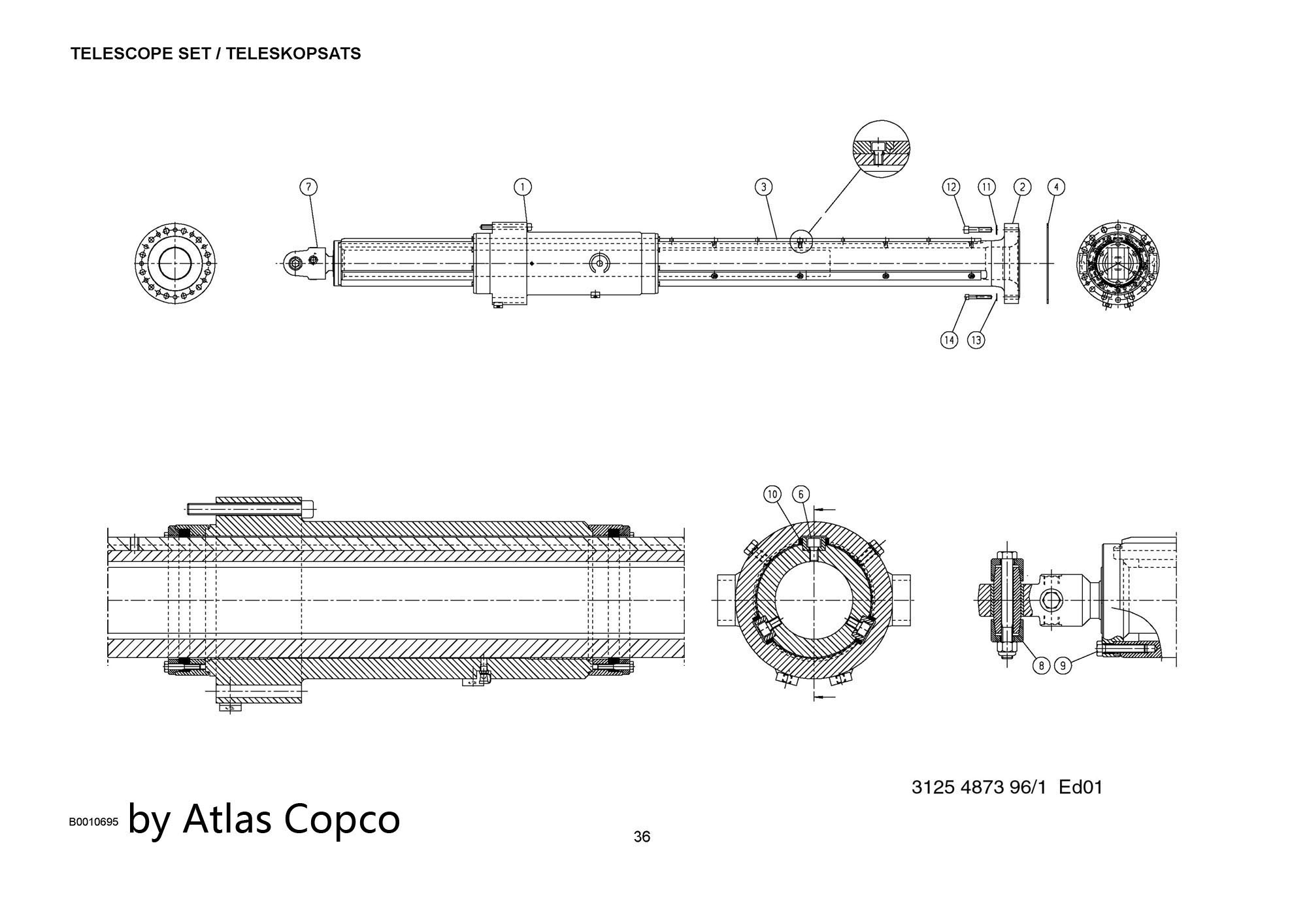

BOLTEC 235H SPARE PARTS SET #14770

BOLTEC 235H SPARE PARTS SET

ads

Ref

Parts Num

Name

0

SPARE PARTS SET

0

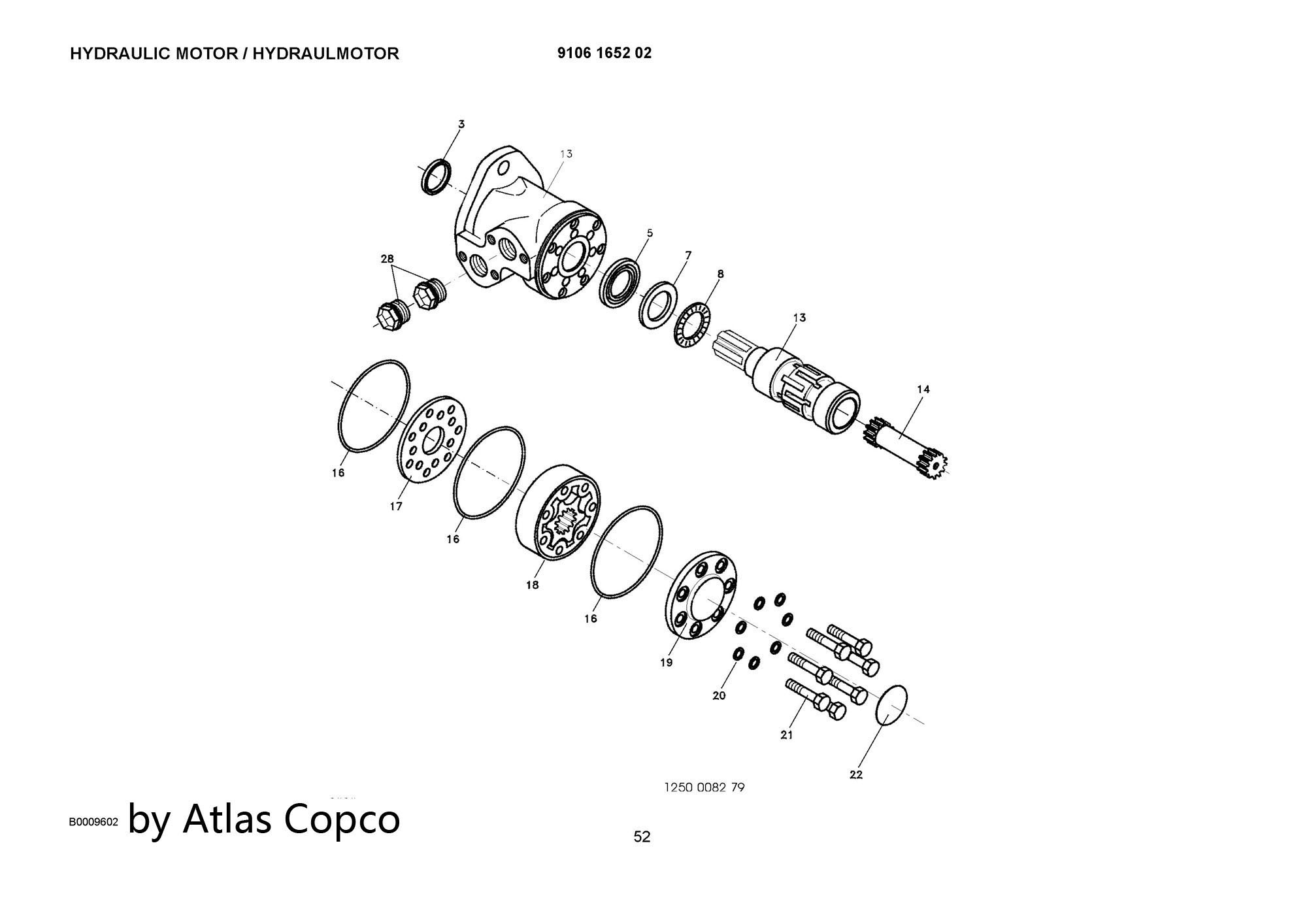

HYDRAULIC MOTOR

BOLTEC 235H SPARE PARTS SET #15550

BOLTEC 235H SPARE PARTS SET

ads

Ref

Parts Num

Name

0

SPARE PARTS SET

1

BEARING HOUSING

2

EXTENSION TUBE

4

SEAL

6

SCREW

7

HYDR. CYLINDER

8

EXPANDING SHAFT

9

SCREW. HEX HEAD

10

CRADLE

12

SCREW

14

SCREW

BOLTEC 235H SPARE PARTS SET #15556

BOLTEC 235H SPARE PARTS SET

ads

Ref

Parts Num

Name

0

SPARE PARTS SET

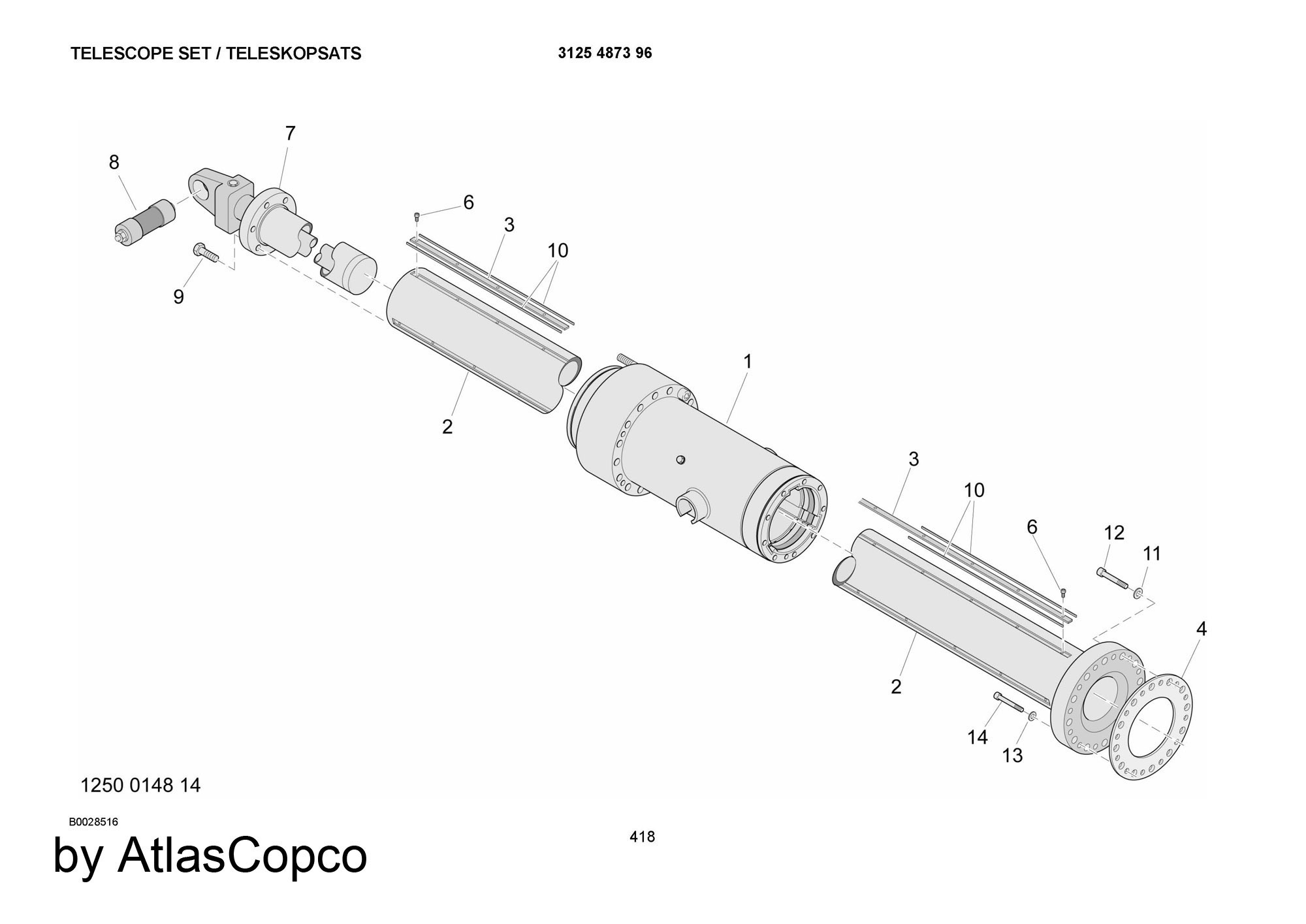

BOLTEC 235H SPARE PARTS SET #15758

BOLTEC 235H SPARE PARTS SET

ads

Ref

Parts Num

Name

0

SPARE PARTS SET

0

TELESCOPE SET

1

BEARING HOUSING

2

EXTENSION TUBE

3

KEY

4

SEAL

6

SCREW

7

HYDR. CYLINDER

8

EXPANDING SHAFT

9

SCREW. HEX HEAD

10

CRADLE

11

PLAIN WASHER

12

SCREW

13

WASHER

14

SCREW
