BOLTEC LC Pages
1. EPIROC - BOLTEC LC SEALING SET #14382
2. EPIROC - BOLTEC LC SEALING SET #14603
3. EPIROC - BOLTEC LC SEALING SET #15455
4. EPIROC - BOLTEC LC SEALING SET #15639
5. EPIROC - BOLTEC LC SEALING SET #16076
6. EPIROC - BOLTEC LC SEALING SET #19658
BOLTEC LC SEALING SET #14382
BOLTEC LC SEALING SET
ads
Ref
Parts Num
Name
0
3217390982
SEALING SET
0
3217390983
FRICTION KIT
0
3217390984
STAND FRAME
0
3217390985
BEARING SET
0
3217390980
GEAR HOUSING

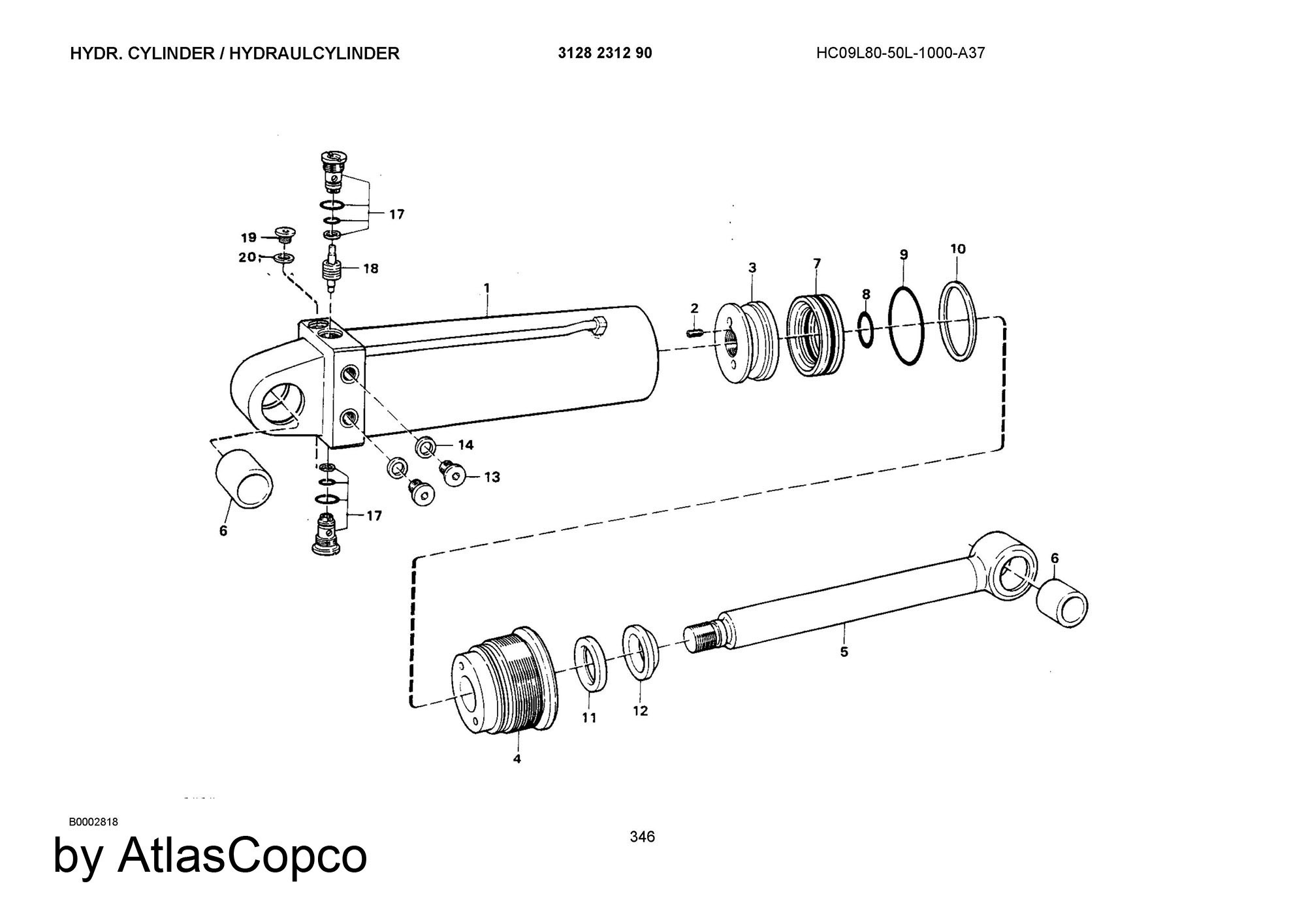

BOLTEC LC SEALING SET #14603
BOLTEC LC SEALING SET
ads
Ref
Parts Num
Name
0
9120099011
SEALING SET
0
3128231290
HYDR. CYLINDER
2
0196155210
SET SCREW
3
9124956600
PISTON
4
9123355600
CYLINDER COVER
5
3128303309
PISTON ROD
6
9124880800
BUSHING
7
0665002022
PISTON SEAL
8
0663212800
ORING
9
0663613900
ORING
10
0661150067
BACK UP RING
11
0665001016
SEAL RING
12
0665918100
WIPER
13
9125801500
PLUG
14
0661100015
SEAL WASHER
17
3128209955
CHECK VALVE
18
9128699800
SLIDE
19
9125801600
PLUG
20
0661100016
SEAL WASHER
BOLTEC LC SEALING SET #15455
BOLTEC LC SEALING SET
ads
Ref
Parts Num
Name
0
3217953501
SEALING SET
0
3217953500
HYDRAULIC MOTOR
8
0337208300
FLAT KEY
21
0211133100
SCREW

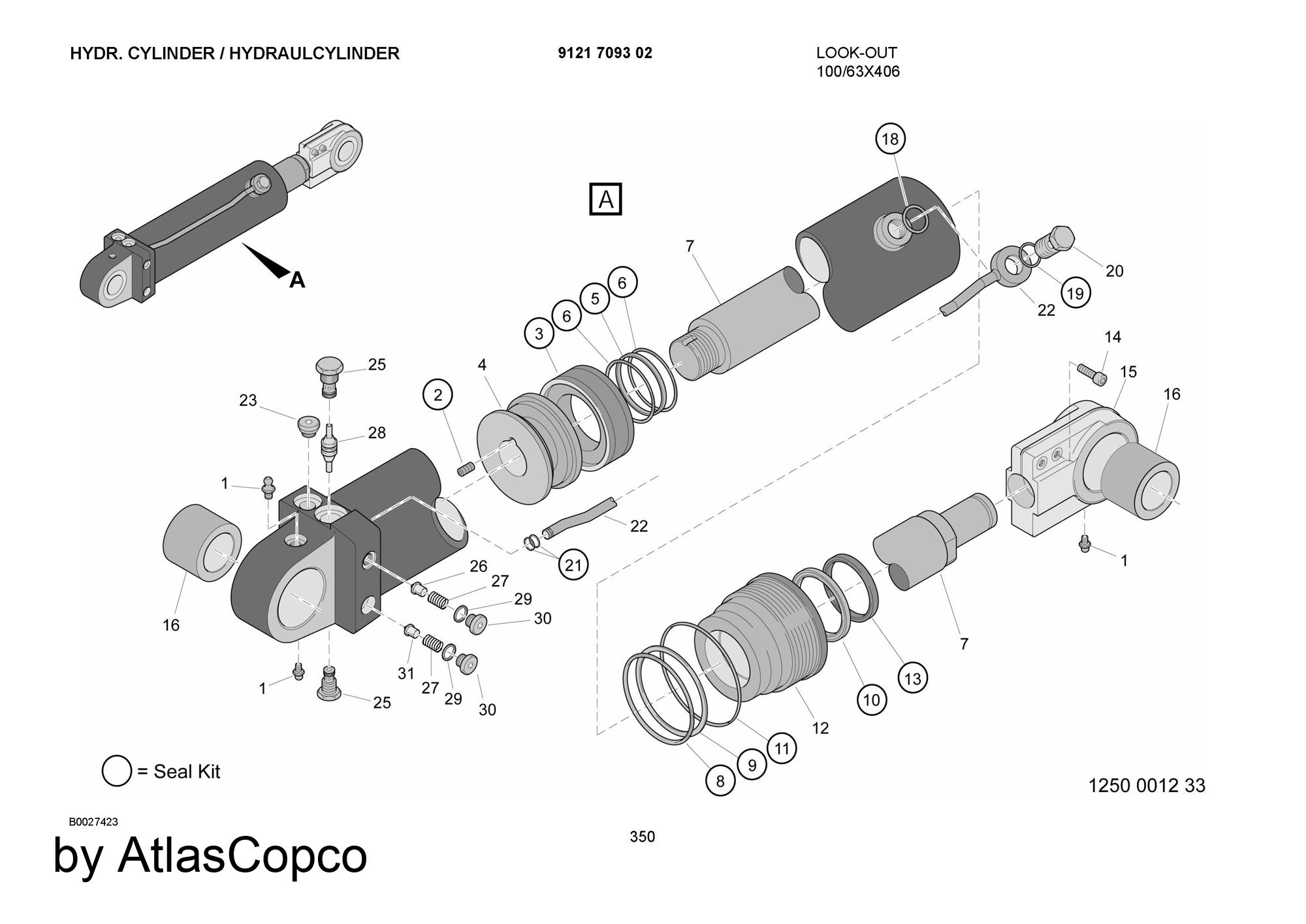

BOLTEC LC SEALING SET #15639
BOLTEC LC SEALING SET
ads
Ref
Parts Num
Name
0
9121667650
SEALING SET
0
9120099401
SEAL KIT
0
9121709302
HYDR. CYLINDER
1
0544210600
GREASE NIPPLE
2
0196155210
SET SCREW
3
0665080034
PISTON SEAL
4
9126332700
PISTON
5
0663210367
ORING
6
0661150038
BACKUP RING
7
9126332602
PISTON ROD
8
0663614300
ORING
9
0661150068
BACKUP RING
10
0665001018
PISTON ROD SEAL
11
9125605900
ORING
12
9123355800
COVER
13
0665910016
WIPER
14
0211136403
SCREW
15
9122363800
PISTON ROD EYE
16
9128734400
BUSHING
17
9127149100
WARNING SIGN
18
0661100013
SEAL WASHER
19
9125664800
SEAL WASHER
20
9127230000
SCREW
21
9125618600
ORING
22
9126461008
PIPE
23
9125801600
PLUG
24
0661100016
SEAL WASHER
25
3128209998
CHECK VALVE
26
9126457702
CONE
27
9127215400
SPRING
28
3128209034
PISTON
29
0661100015
SEAL WASHER
30
9128503400
PLUG
31
9126457704
CONE
BOLTEC LC SEALING SET #16076
BOLTEC LC SEALING SET
ads
Ref
Parts Num
Name
0
3216969441
SEALING SET
0
9106185268
HYDRAULIC MOTOR
7
9106188600
BEARING RACE
8
9106188601
NEEDLE BEARING
BOLTEC LC SEALING SET #19658
BOLTEC LC SEALING SET
ads
Ref
Parts Num
Name
0
9106188008
SEALING SET
0
9106192328
PUMP
2
9106187577
FLANGE
3
9106187578
CYLINDER
4
9106187579
PISTON
5
9106187580
HOLDER
6
9106187581
HOUSE
7
9106187582
HOUSE
8
9106187583
HOLDER
9
9106187584
BALL
10
9106187585
RING
11
9106187586
LOCK RING
12
9106187587
PISTON SEAL
13
9106187588
INTERMED. PART
15
9106187590
CYLINDER
18
9106187593
STOP
20
9106187595
SEAT
21
9106187596
RING
23
9106187598
BALL
24
9106187599
COUPLING
25
0147141703
SCREW. HEX HEAD
26
0291112822
LOCK NUT
27
0301235800
WASHER
28
9106188000
STUD
29
9106188001
PISTON ROD
30
9106188002
GUIDE STRIP
31
9106188003
PISTON SEAL
32
0663213900
O RING
33
0663214700
O RING
34
0663214100
O RING
