BOLTEC LC TRANSFORMER #14320
BOLTEC LC TRANSFORMER
ads
Ref
Parts Num
Name
T04
3176450524
TRANSFORMER
K51
3217966602
EARTHFAULTRELAY
F25
3217966610
RESIDUAL CUR.CB
0

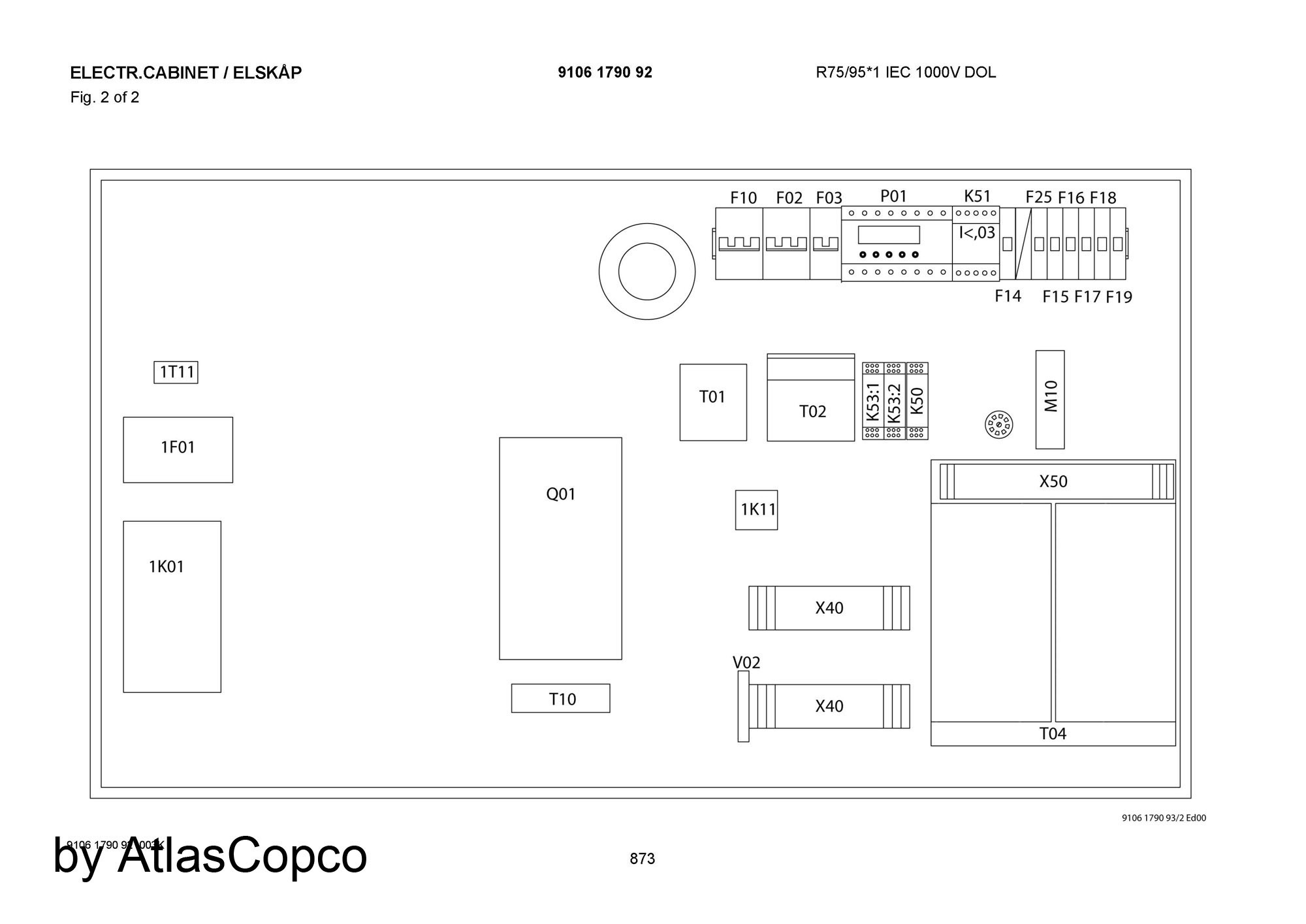

9106179092
ELECTR.CABINET
1
9106144670
ELECTR.CABINET
F14
3176449212
MIN CIRC BREAK
H02
3217000009
INDICATION LAMP
H06
3217000010
INDICATION LAMP
K50
3217970803
PHASE SEQ.RELAY
S23
3217000310
LIMIT SWITCH
T10
3217965521
TRANSFORMER
1K01
3217989605
TRANSIENT PROT.
1K01
3217990320
CONTACTOR
8
3176404935
TERMINAL BLOCK
1K11
3176426006
RELAY
K53
3217000140
SAFETYRELAY
Q01
3217000550
MAIN SWITCH
S11
3217984112
SWITCH
1K11
3217989603
TRANSIENT PROT.
F03
3176432235
MIN CIRC BREAK
F10
3176432252
MIN CIRC BREAK
T02
3217951210
TRANSFORMER
T01
3217978904
TRANSFORMER
P01
3217997838
INSTRUMENT
1F01
9106110430
OVERLOAD RELAY
9
3176404900
TERMINAL BLOCK
F15
3176449214
MIN CIRC BREAK
S03
3217000008
PUSH BUTTON
M10
9106144402
FAN SET
10
3176404901
END PLATE
1T11
3217965510
TRANSFORMER
F02
3176432265
MIN CIRC BREAK
K53
3217000141
SAFETYRELAY
BOLTEC LC TRANSFORMER #14771
BOLTEC LC TRANSFORMER
ads
Ref
Parts Num
Name
T04
3176450524
TRANSFORMER
K51
3217966602
EARTHFAULTRELAY
F25
3217966610
RESIDUAL CUR.CB
0
9106179092
ELECTR.CABINET
1
9106144670
ELECTR.CABINET
F14
3176449212
MIN CIRC BREAK
H02
3217000009
INDICATION LAMP
H06
3217000010
INDICATION LAMP
K50
3217970803
PHASE SEQ.RELAY
S23
3217000310
LIMIT SWITCH
T10
3217965521
TRANSFORMER
1K01
3217989605
TRANSIENT PROT.
1K01
3217990320
CONTACTOR
8
3176404935
TERMINAL BLOCK
1K11
3176426006
RELAY
K53
3217000140
SAFETYRELAY
Q01
3217000550
MAIN SWITCH
S11
3217984112
SWITCH
1K11
3217989603
TRANSIENT PROT.
F03
3176432235
MIN CIRC BREAK
F10
3176432252
MIN CIRC BREAK
T02
3217951210
TRANSFORMER
T01
3217978904
TRANSFORMER
P01
3217997838
INSTRUMENT
1F01
9106110430
OVERLOAD RELAY
9
3176404900
TERMINAL BLOCK
F15
3176449214
MIN CIRC BREAK
S03
3217000008
PUSH BUTTON
M10
9106144402
FAN SET
10
3176404901
END PLATE
1T11
3217965510
TRANSFORMER
F02
3176432265
MIN CIRC BREAK
K53
3217000141
SAFETYRELAY
BOLTEC LC TRANSFORMER #15022
BOLTEC LC TRANSFORMER
ads
Ref
Parts Num
Name
T04
3176450530
TRANSFORMER
0
3217853110
TRANSFORMER
2
9106144404
MODUL PLATE
3
0324180034
SPACING SCREW
4
3217000040
DISTANCE PIECE
5
3217000042
DISTANCE PIECE
6
3217000043
DISTANCE PIECE
7
5112312550
PHASE GUI.RAIL
8
3217000044
EARTH BAR
9
9106128858
TOUCH GUARD
10
3222306087
GROUND BRAID
11
3176436308
MOUNTING RAIL
12
0090140002
MOUNTING RAIL
13
3176404951
END SUPPORT
14
3176404904
TERMINAL BLOCK
F3
3176449202
MIN CIRC BREAK
F1
3176450604
EARTHFAULTRELAY
W208
0017230722
CABLE. 4 CORE
F2
3217969706
MIN CIRC BREAK
15
3176404905
END PLATE
16
3176404902
BRIDGE CONN.
17
3176404911
TERMINAL BLOCK
18
3176404912
END PLATE
19
3128307069
CABLE TRAY
23
0017206070
CABLE. 1CORE
25
9139600220
END SOCKET
