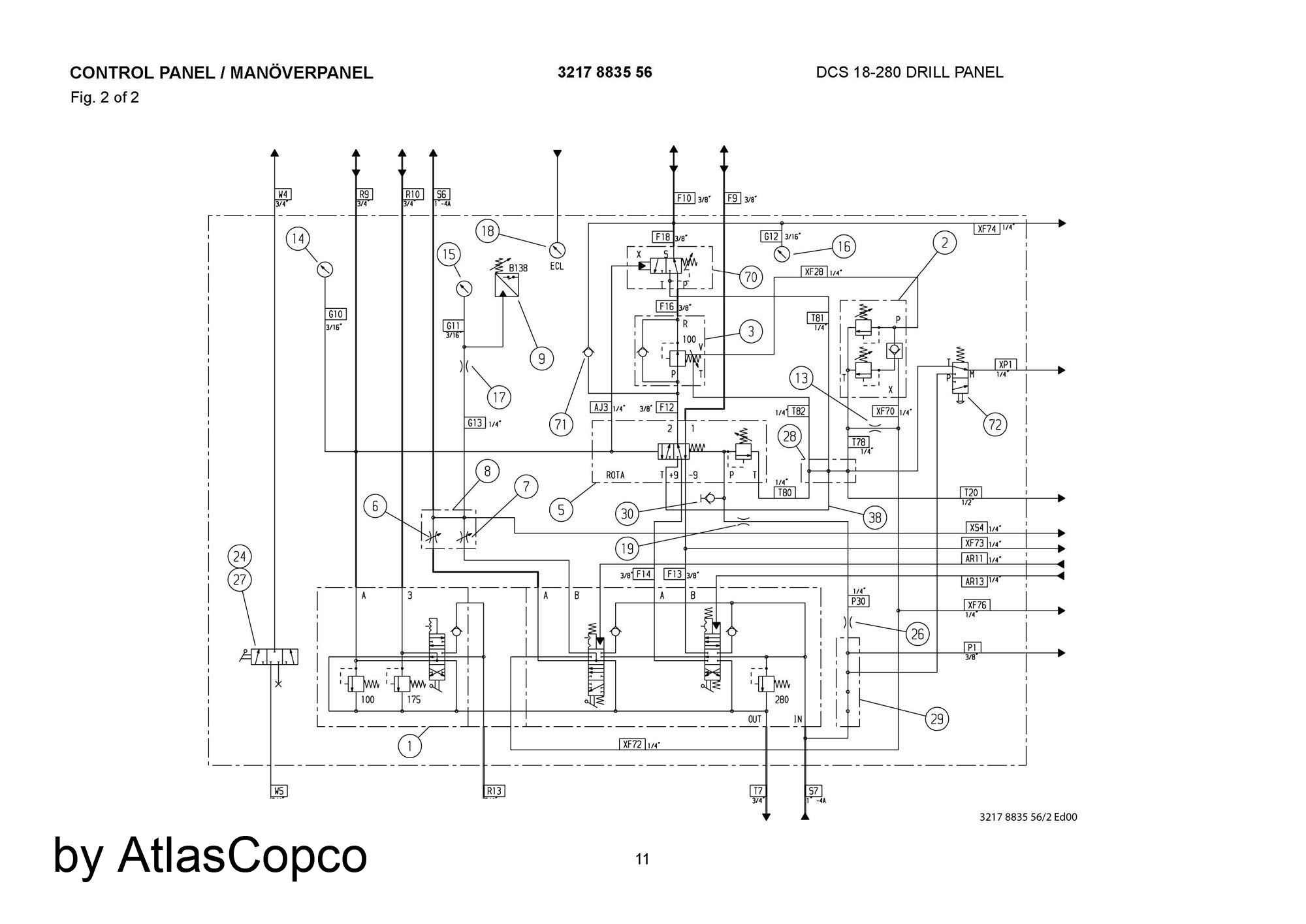

BOOMER 281 CONTROL PANEL #9159
BOOMER 281 CONTROL PANEL
ads
Ref
Parts Num
Name
0
3217883556
CONTROL PANEL
2
3217896800
VALVE BLOCK
5
3125090691
VALVE UNIT
8
3217884051
DISTRIBUT. PIPE
9
3176458905
PRESSURE SWITCH
15
3177314700
PRESSURE GAUGE
18
3176869500
PRESSURE GAUGE
21
3217001087
MUSHROOM PUSHB.
22
3217919600
LIGHTNING
23
1089028901
INDICATION LAMP
24
3177504800
BALL COCK
25
3217887040
PANEL FRAME
27
3217894610
LEVER
28
3217988100
DRAINAGE BLOCK
29
3217988110
BRANCH BLOCK
38
3217896620
PIPE
40
3217895100
PLATE
42
3217895120
PLATE
47
3217895113
PLATE
50
3217895110
PLATE
71
3177308800
CHECK VALVE
73
3217895105
PLATE
74
0686925060
CAP
75
0686925061
CAP
76
0686925062
CAP
77
0686925063
CAP
83
3217887041
ATTACHMENT
84
3217896940
REAMER SET
BOOMER 281 CONTROL PANEL #11065
BOOMER 281 CONTROL PANEL
ads
Ref
Parts Num
Name
0
3217883556
CONTROL PANEL
2
3217896800
VALVE BLOCK
3
3217893700
VALVE BLOCK
5
3125090691
VALVE UNIT
8
3217884051
DISTRIBUT. PIPE
9
3176458905
PRESSURE SWITCH
15
3177314700
PRESSURE GAUGE
18
3176869500
PRESSURE GAUGE
20
3217001073
CONTACT BLOCK
21
3217001074
CONTACT BLOCK
21
3217001087
MUSHROOM PUSHB.
22
3217919600
LIGHTNING
23
1089028901
INDICATION LAMP
24
3177504800
BALL COCK
25
3217887040
PANEL FRAME
27
3217894610
LEVER
28
3217988100
DRAINAGE BLOCK
29
3217988110
BRANCH BLOCK
38
3217896620
PIPE
40
3217895100
PLATE
42
3217895120
PLATE
47
3217895113
PLATE
50
3217895110
PLATE
70
3217801401
SEQUENCE VALVE
71
3177308800
CHECK VALVE
72
3125900502
DIRECTION VALVE
73
3217895105
PLATE
74
0686925060
CAP
75
0686925061
CAP
76
0686925062
CAP
77
0686925063
CAP
83
3217887041
ATTACHMENT
84
3217896940
REAMER SET
BOOMER 281 CONTROL PANEL #20446
BOOMER 281 CONTROL PANEL
ads
Ref
Parts Num
Name
15
3217883556
CONTROL PANEL
151
3128209059
BOOM HYD. KIT
