BOOMER 281 DIRECTION VALVE #9229
BOOMER 281 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177302300
DIRECTION VALVE
0
3177302390
SEALING SET
18
0211121400
SCREW
19
0211117400
SCREW
20
0160605400
SCREW. SLOTTED
21
0686645704
PLUG
22
9125687100
O RING
25
0663905101
O RING
27
0102032000
PARALLEL PIN
29
0108119300
SPRING PIN
32
0261211000
NUT
33
0335310800
RETAINING RING
35
3177302335
BELLOW
38
0653102600
GASKET

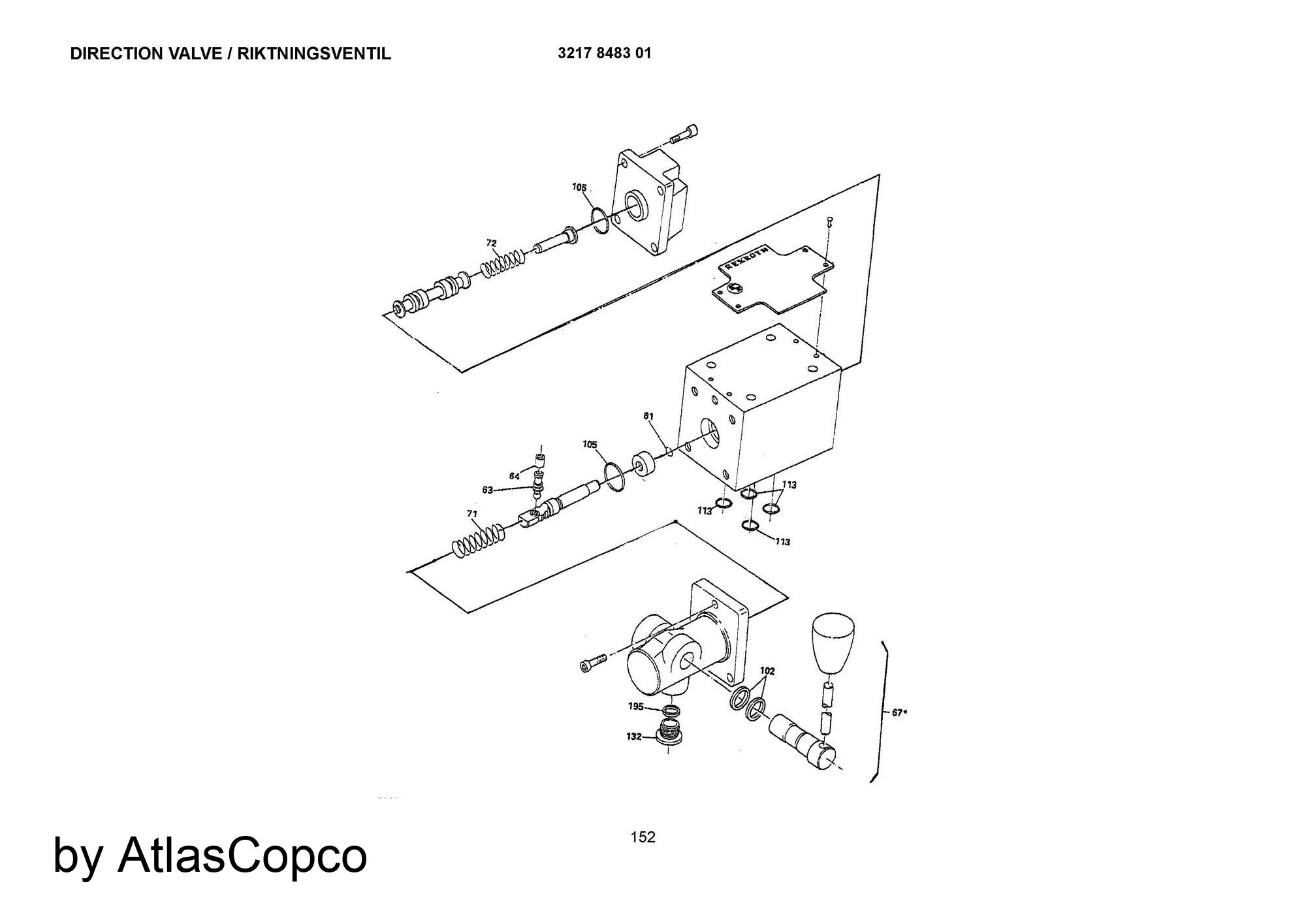

BOOMER 281 DIRECTION VALVE #9406
BOOMER 281 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3217848301
DIRECTION VALVE
0
3217848303
SEAL KIT
63
3217848304
BOLT
64
3218200775
SPACER
67
3217848306
LEVER SET
71
3217848307
SPRING
72
3217848308
SPRING
132
3217848309
PLUG
195
3217848310
SEAL

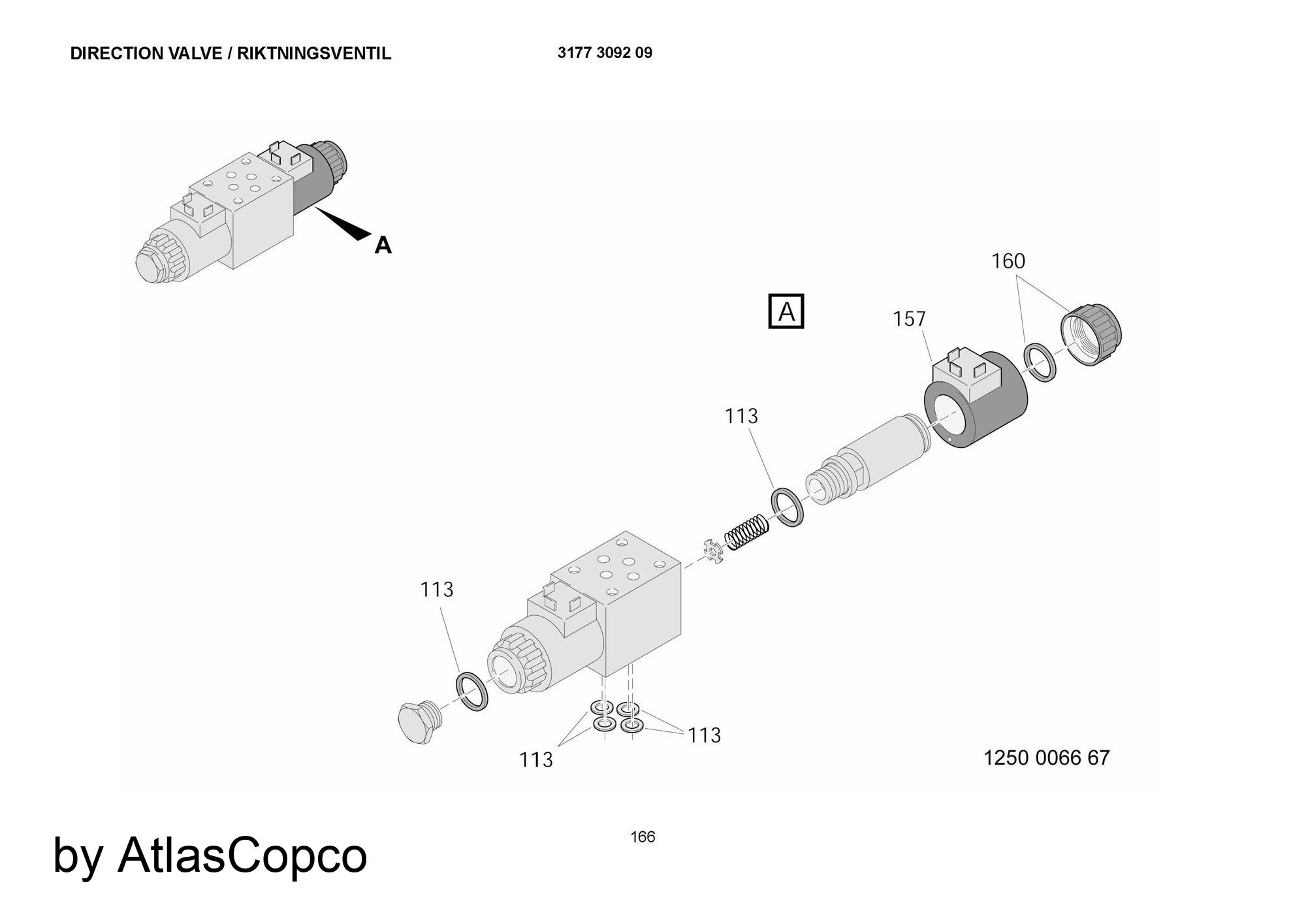

BOOMER 281 DIRECTION VALVE #9498
BOOMER 281 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309209
DIRECTION VALVE
113
3222305858
SEAL KIT
157
3177309252
COIL
160
3177309254
NUT SET

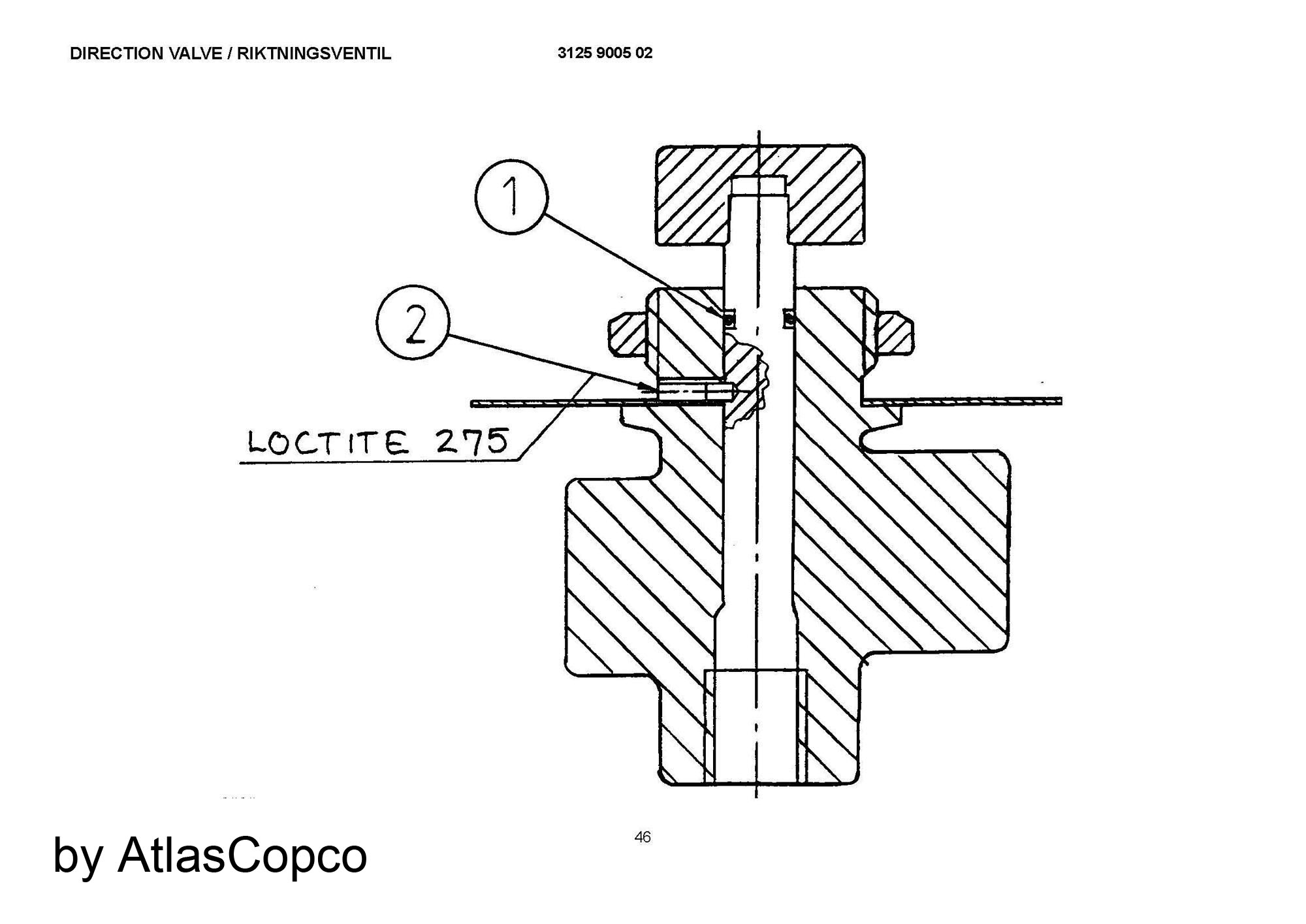

BOOMER 281 DIRECTION VALVE #9616
BOOMER 281 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3125900502
DIRECTION VALVE
1
0663210846
O RING
2
0192117000
SET SCREW

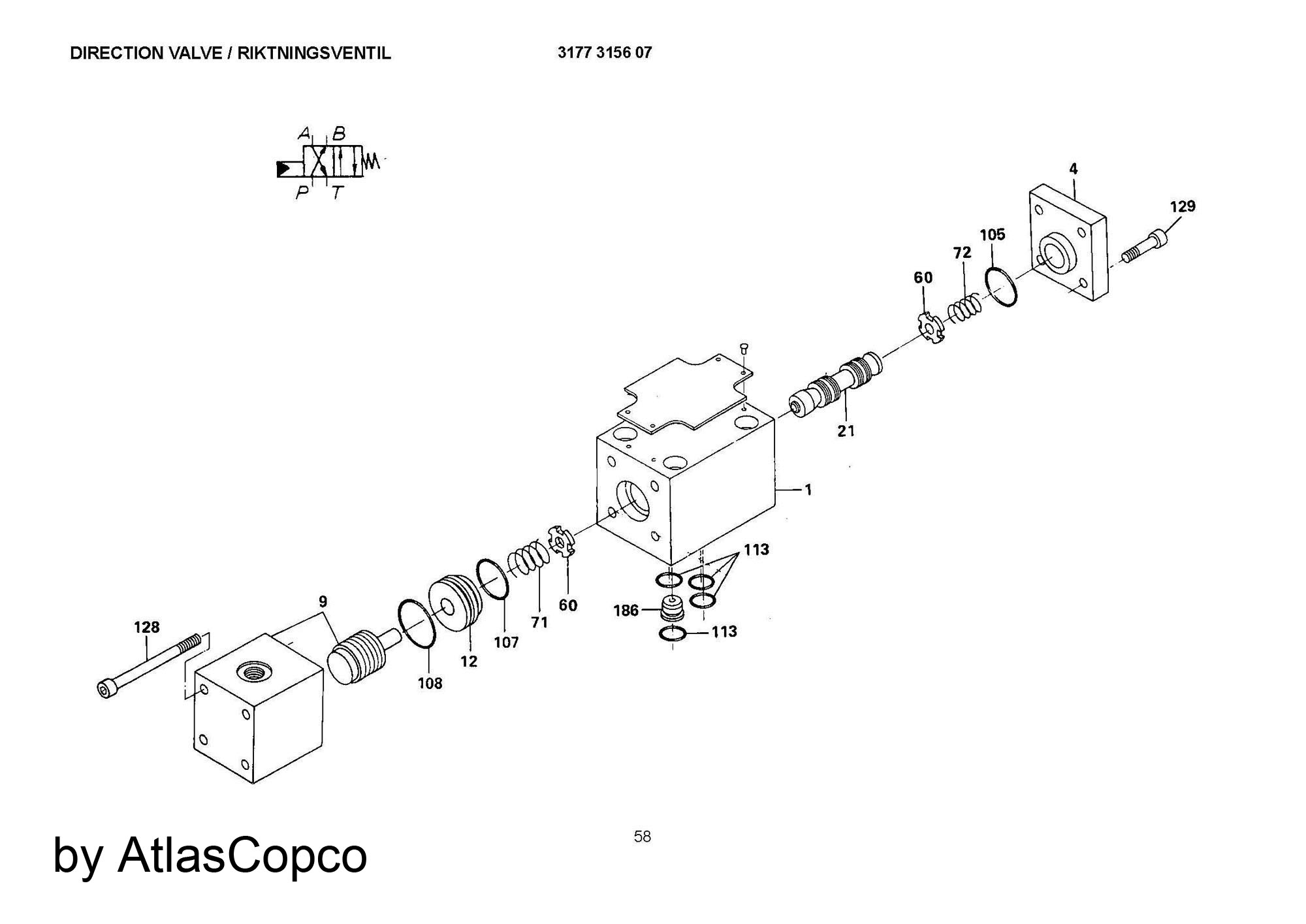

BOOMER 281 DIRECTION VALVE #9937
BOOMER 281 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177315607
DIRECTION VALVE
0
3177315790
O RING SET
4
3177315704
COVER
9
3177315709
COVER
12
3177315712
BUSHING
60
3177315740
WASHER
71
3177315741
SPRING
72
3177315742
SPRING
105
0663903201
O RING
108
9125628300
O RING
113
0663905001
ORING
128
0211117900
SCREW
129
0211117300
SCREW
186
3177315747
RESTRICTION

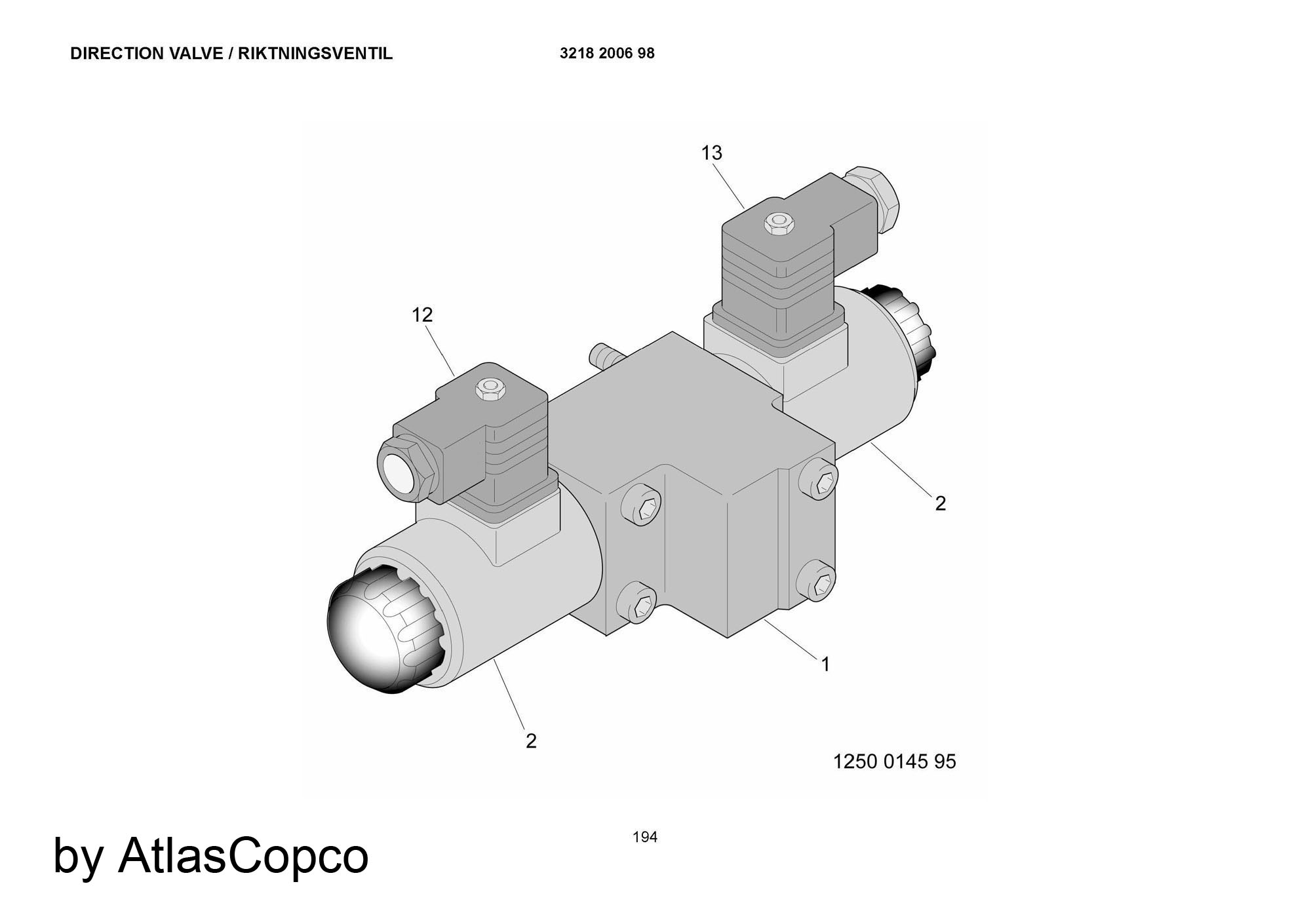

BOOMER 281 DIRECTION VALVE #17860
BOOMER 281 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3218200698
DIRECTION VALVE
1
3218200718
VALVE HOUSING
2
3218200719
SOLENOID CARTR.
12
3218200720
CONTACT
13
3218200721
CONTACT

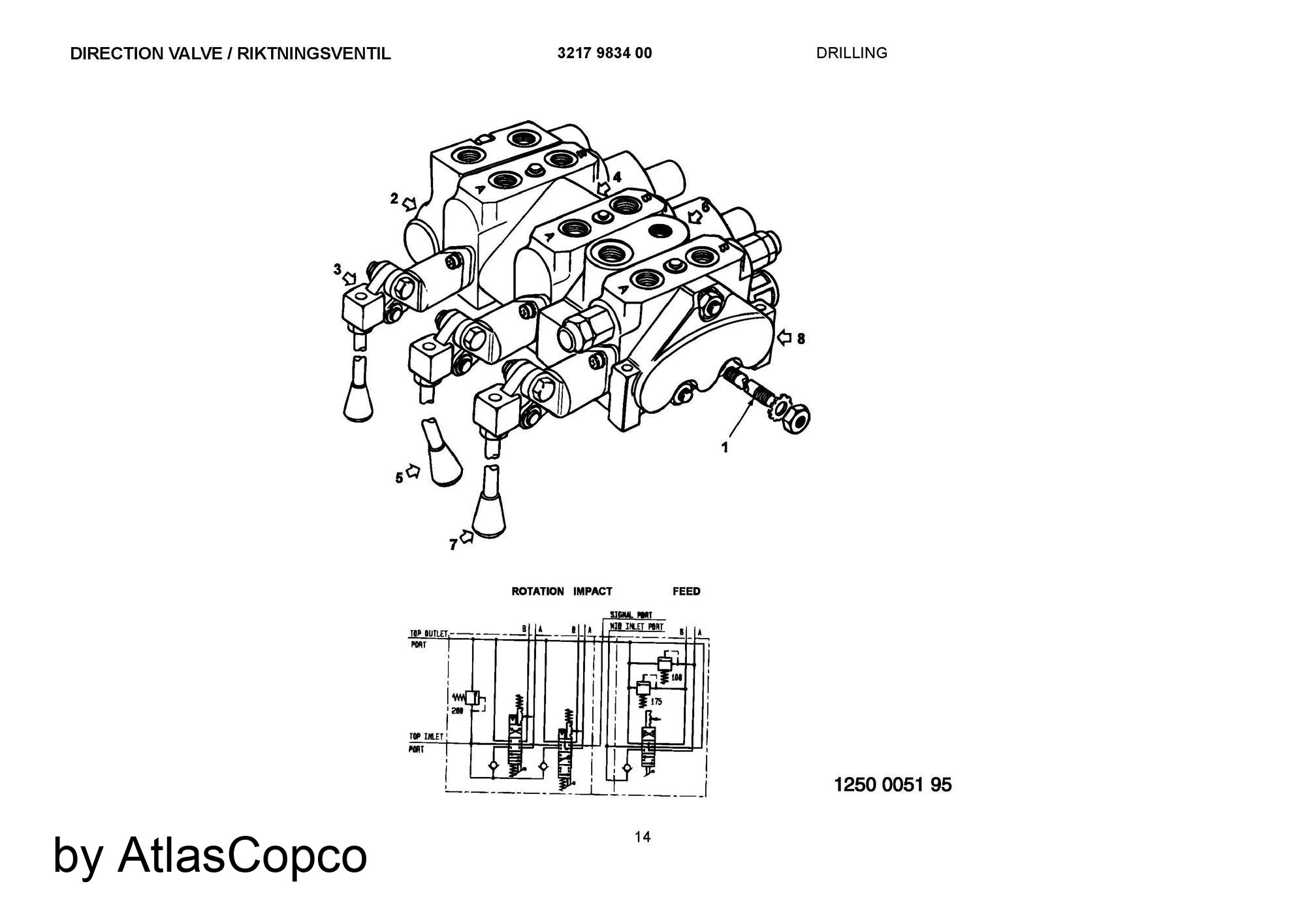

BOOMER 281 DIRECTION VALVE #18057
BOOMER 281 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3217983400
DIRECTION VALVE
1
3217983401
PULL ROD SET
2
3217983405
INLET SECTION
3
3217983410
CONTROL SET
4
3217983430
INTERMED. PART
5
3217983435
CONTROL SET
6
3217983440
INTERMED. PART
7
3217983445
CONTROL SET
8
3217983451
COVER

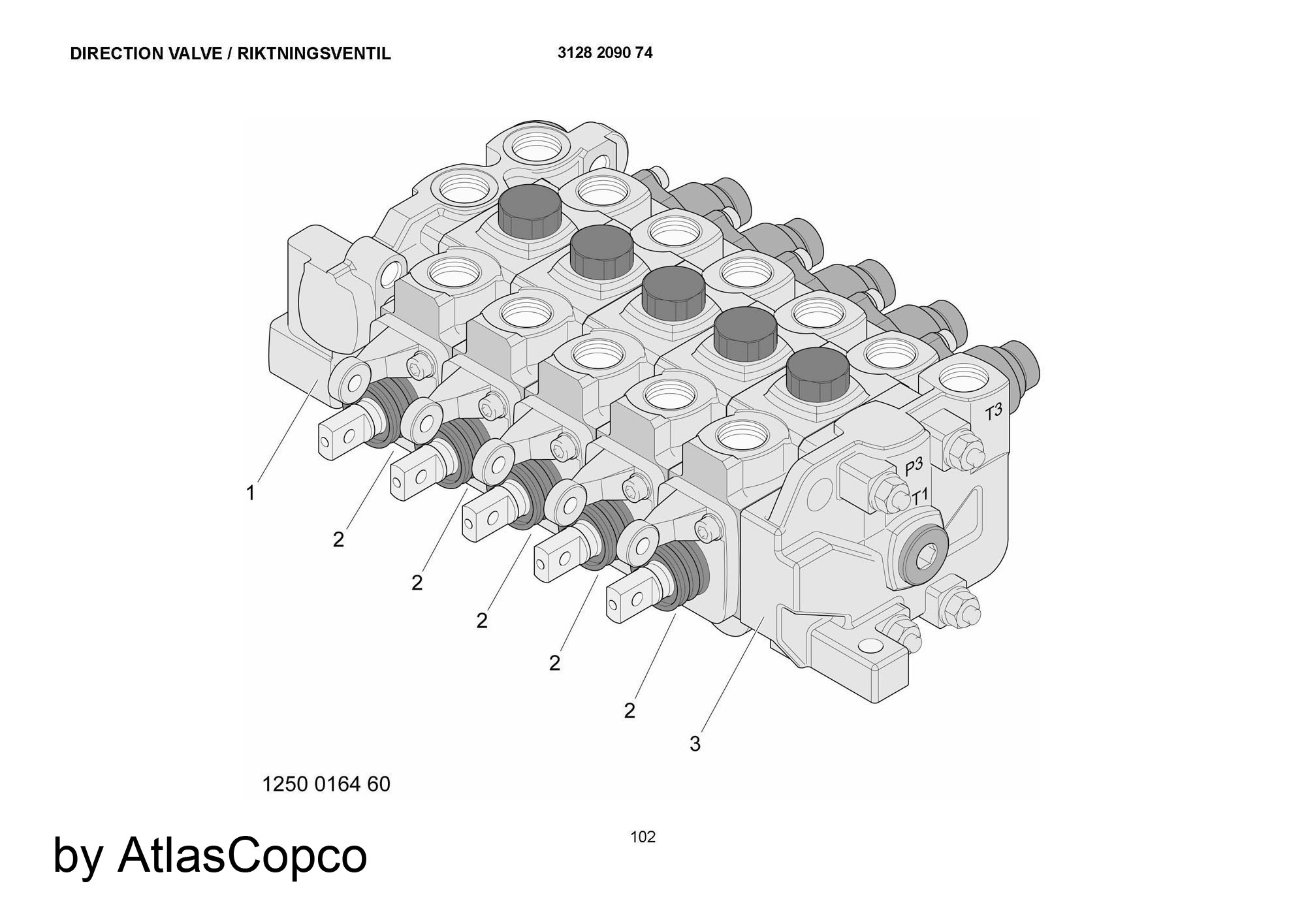

BOOMER 281 DIRECTION VALVE #20360
BOOMER 281 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209074
DIRECTION VALVE
2
3128209138
SPOOL VALVE
3
3128209139
OUTLET SECTION

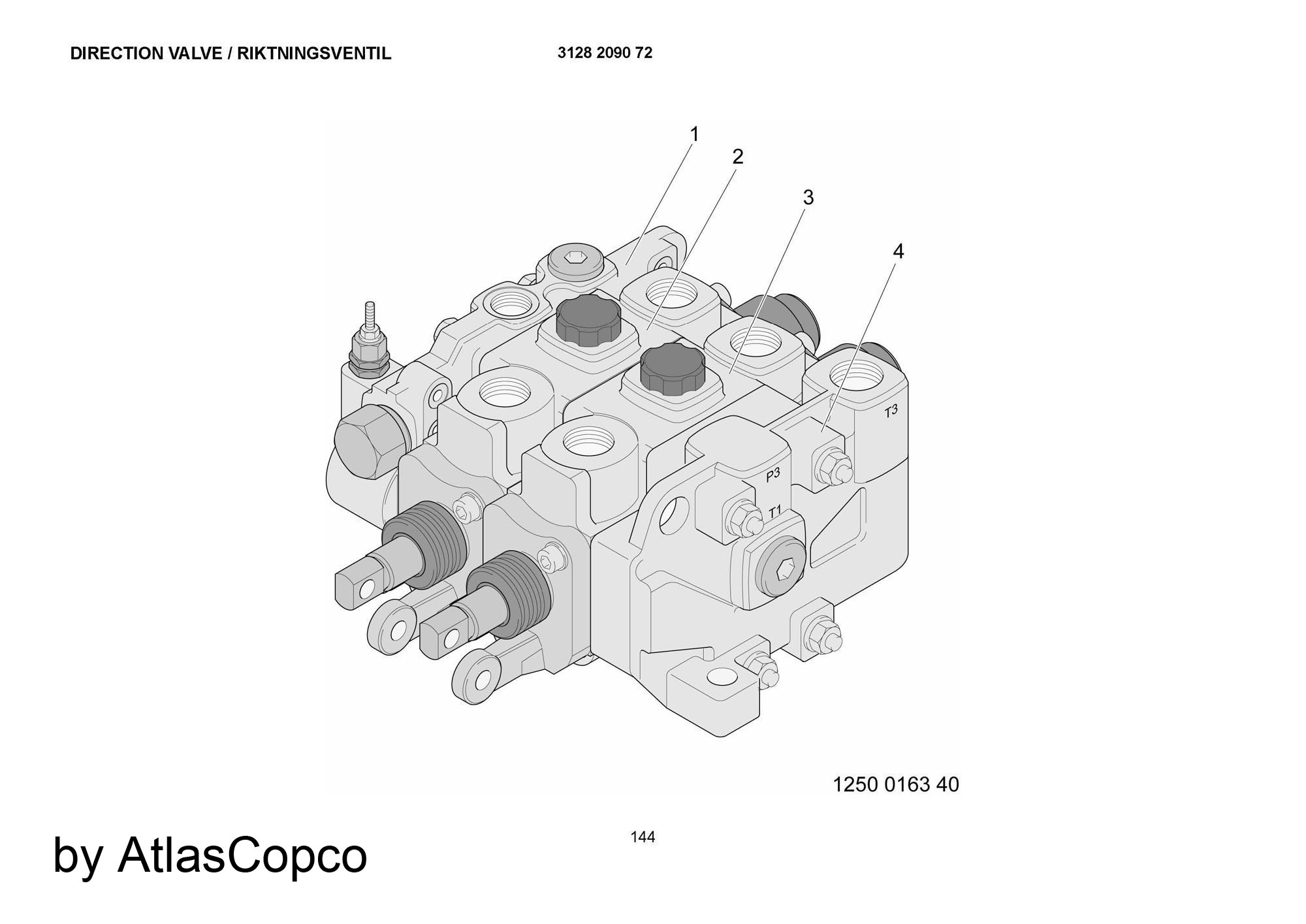

BOOMER 281 DIRECTION VALVE #20554
BOOMER 281 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209072
DIRECTION VALVE
1
3128209122
INLET SECTION
2
3128209102
VALVE SECTION
3
3128209124
OUTLET SECTION

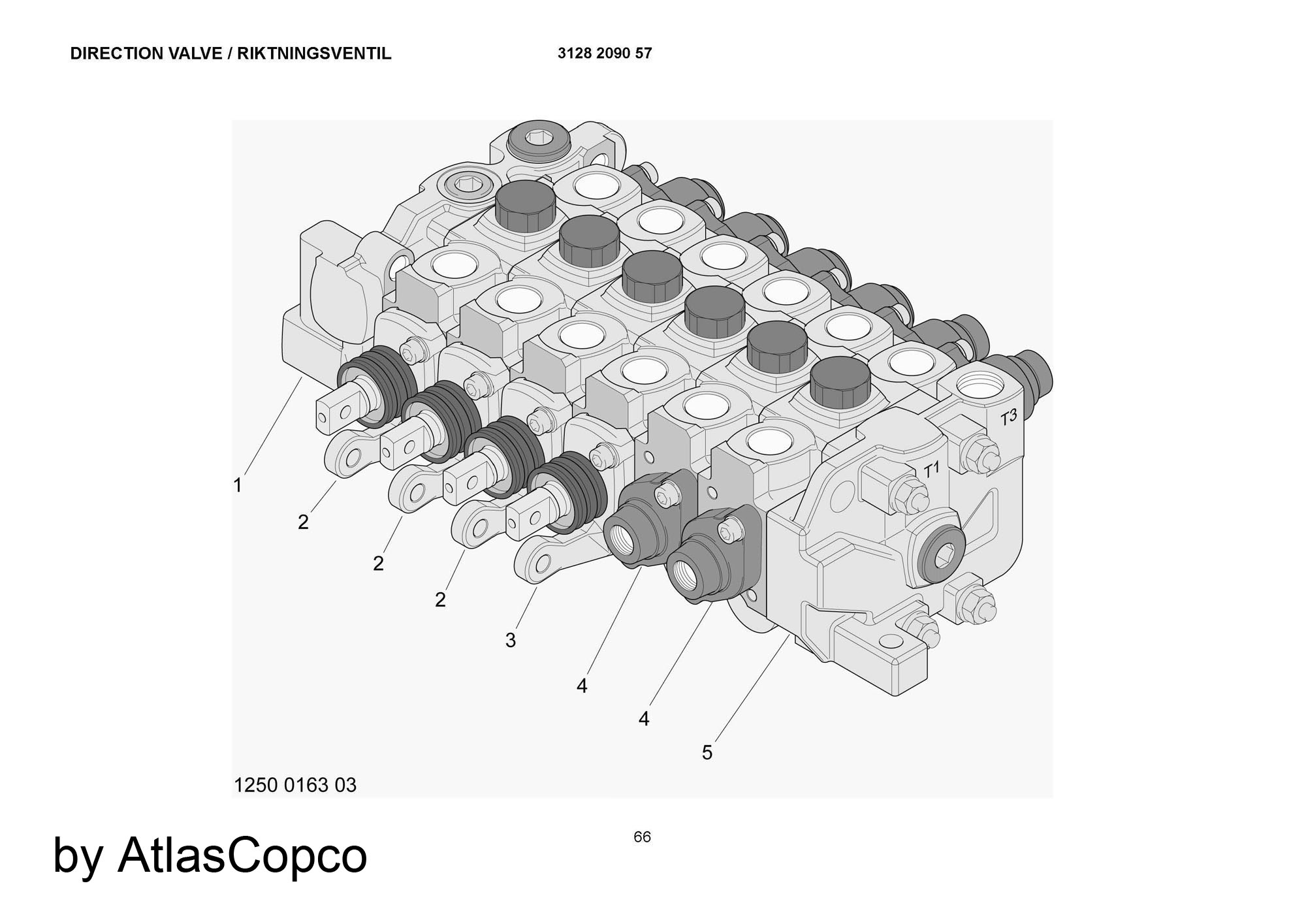

BOOMER 281 DIRECTION VALVE #20687
BOOMER 281 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209057
DIRECTION VALVE
2
3128209102
VALVE SECTION
3
3128209121
SPOOL VALVE
4
3128209103
SPOOL VALVE
5
3128209104
OUTLET SECTION
