BOOMER 281 HYDR. SYSTEM #9283
BOOMER 281 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
9106160990
HYDR. SYSTEM
78
3176746701
PUMP
79
9106083301
CHECK VALVE
81
3176844200
CHECK VALVE
82
9106160861
OIL COOLER
84
9106107776
COLLECT. BLOCK
86
3128209074
DIRECTION VALVE
87
3128209085
LEVER
90
9106065885
SUCT.CONNECTION
91
9106065852
SUCT.CONNECTION
98
3217950401
HOSE
99
3217950400
HOSE
BOOMER 281 HYDR. SYSTEM #10343
BOOMER 281 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
9106160908
HYDR. SYSTEM
1
3217955366
HYDRAULIC PUMP
2
3214440100
FLANGE CONNECT.
4
0211533100
SCREW
7
3222300100
FLANGE CONNECT.
9
0211536800
SCREW
10
3217867400
STRAINER
11
3176812200
CHECK VALVE
33
3176612600
PLATE
42
3217893740
VALVE BLOCK
91
3217958440
VALVE BLOCK

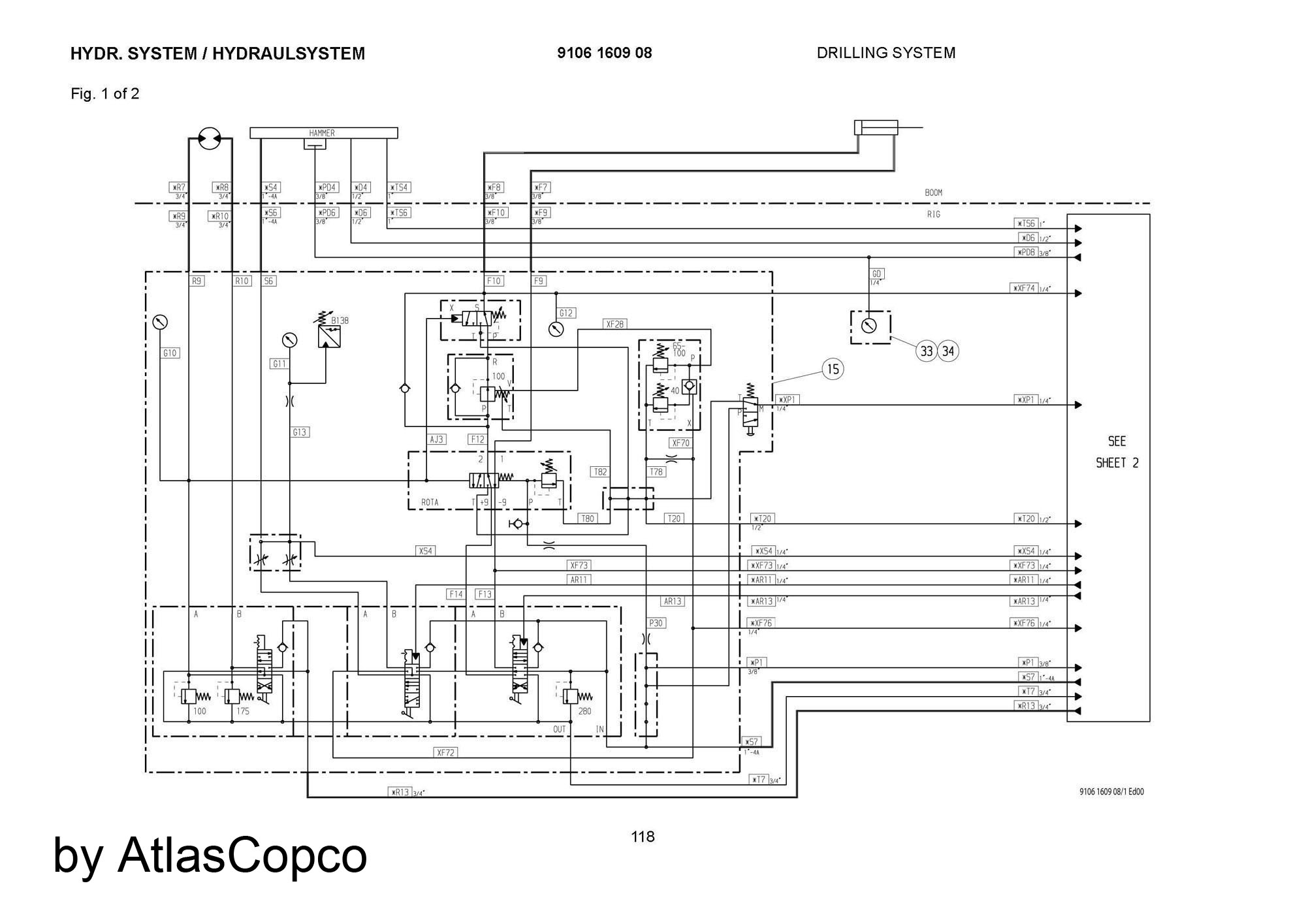

BOOMER 281 HYDR. SYSTEM #10870
BOOMER 281 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
9106160908
HYDR. SYSTEM
1
3217955366
HYDRAULIC PUMP
2
3214440100
FLANGE CONNECT.
4
0211533100
SCREW
7
3222300100
FLANGE CONNECT.
9
0211536800
SCREW
10
3217867400
STRAINER
11
3176812200
CHECK VALVE
33
3176612600
PLATE
42
3217893740
VALVE BLOCK
91
3217958440
VALVE BLOCK
BOOMER 281 HYDR. SYSTEM #11276
BOOMER 281 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
5112287785
HYDR. SYSTEM
1
5112259500
PRESSURE SWITCH
7
0686644300
PLUG
14
0570501034
NIPPLE
17
3176542800
NIPPLE
20
0570501017
NIPPLE
21
3176264400
NIPPLE
26
0653105500
GASKET
28
3176650400
NIPPLE
29
3176293000
CAP NUT
30
0638052700
FLANGE HALF
31
3176664300
NIPPLE
33
3177306800
NIPPLE
34
5112287767
SHUTTLE VALVE
38
0570501018
NIPPLE
40
0653117400
GASKET
41
5112232800
BUSHING
42
3176656600
NIPPLE
43
0570501026
NIPPLE
45
3176652100
NIPPLE
47
0570509020
NIPPLE
48
3176650500
NIPPLE
50
3176657700
NIPPLE
51
3176659100
NIPPLE
52
3176293200
NIPPLE
59
3176733700
NIPPLE
60
3176678800
CAP NUT
61
3176667500
NIPPLE
66
0663918801
ORING
67
0638057100
FLANGE HALF
69
0663918201
ORING
70
0638056500
FLANGE HALF
71
5112259780
CHECK VALVE
72
5112259180
SEQUENCE VALVE
73
5112287777
BRAKE VALVE
74
5112259380
PEDAL
75
5112292101
PRESSURE SWITCH
78
5112262200
PRESS.TAKE OFF
90
5112315100
HYDRAULIC PUMP
91
5112287742
HYDRAULIC MOTOR
92
5112300849
HYDRAULIC PUMP
93
5112257080
HYDR. CYLINDER
96
5112294900
PROTECT. COVER
98
5112302343
PRESSURE SWITCH
105
5112291500
ACCUMULATOR
106
5112302450
ACCUMULAT.BLOCK
108
0603422500
HEXAGON NIPPLE
