1. EPIROC - BOOMER 281DH DETAIL SET #15199

2. EPIROC - BOOMER 281DH DETAIL SET #15501

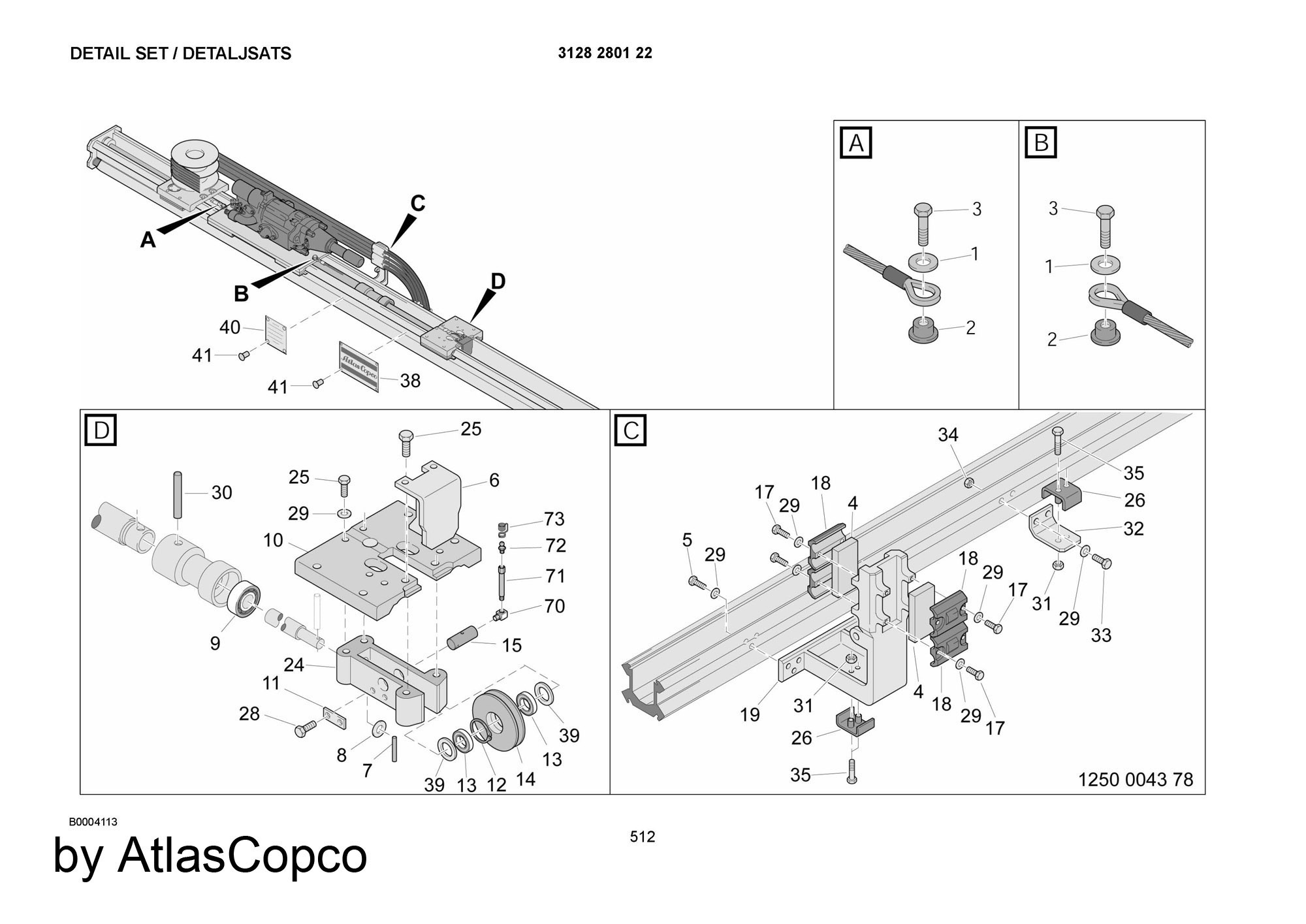

BOOMER 281DH DETAIL SET #15199

BOOMER 281DH DETAIL SET

ads

Ref

Parts Num

Name

0

DETAIL SET

1

SCREW. HEX HEAD

2

COVER

3

RADIAL LIP SEAL

6

PIPE

7

PULLEY WHEEL

8

AXIAL SEAL

9

PLATE

10

SCREW. HEX HEAD

12

HOLDER SET

13

HOLDER SET

15

SCREW. HEX HEAD

16

PLAIN WASHER

17

SCREW. HEX HEAD

18

LOCK NUT

19

PLAIN WASHER

20

PLATE

21

WASHER

22

SPLIT PIN

23

BUFFER

24

SCREW. HEX HEAD

25

BACK HEAD

26

END PIECE

27

SCREW. HEX HEAD

28

WASHER

29

SCREW. HEX HEAD

30

ROPE TENSION

31

CRADLE PLATE

32

BOLT

33

SPACER

34

SPACER

35

SCREW. HEX HEAD

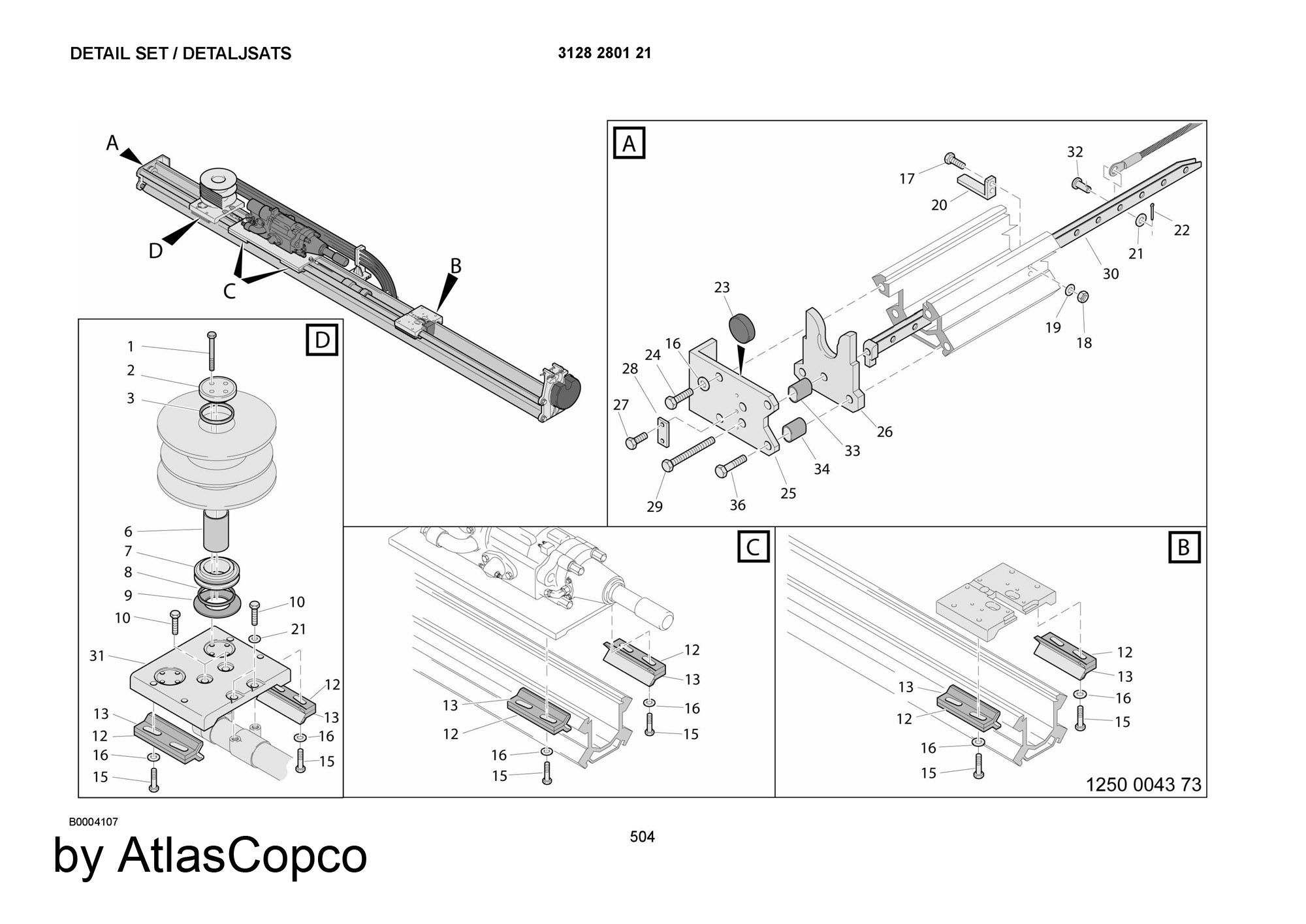

BOOMER 281DH DETAIL SET #15501

BOOMER 281DH DETAIL SET

ads

Ref

Parts Num

Name

0

DETAIL SET

1

WASHER

2

ATTACHMENT

3

SCREW. HEX HEAD

4

PLATE

5

SCREW. HEX HEAD

6

WIPER

7

SPRING PIN

8

PLAIN WASHER

9

CLAMPING HUB

10

CRADLE PLATE

11

WASHER

12

CIRCLIP

13

BALL BEARING

14

PULLEY WHEEL

15

SHAFT

17

SCREW. HEX HEAD

18

CLAMP

19

HOSE ATTACHMENT

20

NUT

24

PROFILE

25

SCREW. HEX HEAD

26

CLAMP

28

SCREW. HEX HEAD

29

WASHER

30

SPRING PIN

31

LOCK NUT

32

ATTACHMENT

33

SCREW. HEX HEAD

34

LOCK NUT

35

SCREW. HEX HEAD

38

SIGN

39

WASHER

40

DATA PLATE

41

BLIND RIVET

70

NIPPLE

71

EXTENDER

72

GREASE NIPPLE

73

PROTECTION CAP
