BOOMER 282 EPIROC New catalogs

BOOMER 282 Pages

1. EPIROC - BOOMER 282 ASSEMBLY SET #15180

2. EPIROC - BOOMER 282 ASSEMBLY SET #16356

3. EPIROC - BOOMER 282 ASSEMBLY SET #19056

4. EPIROC - BOOMER 282 ASSEMBLY SET #19255

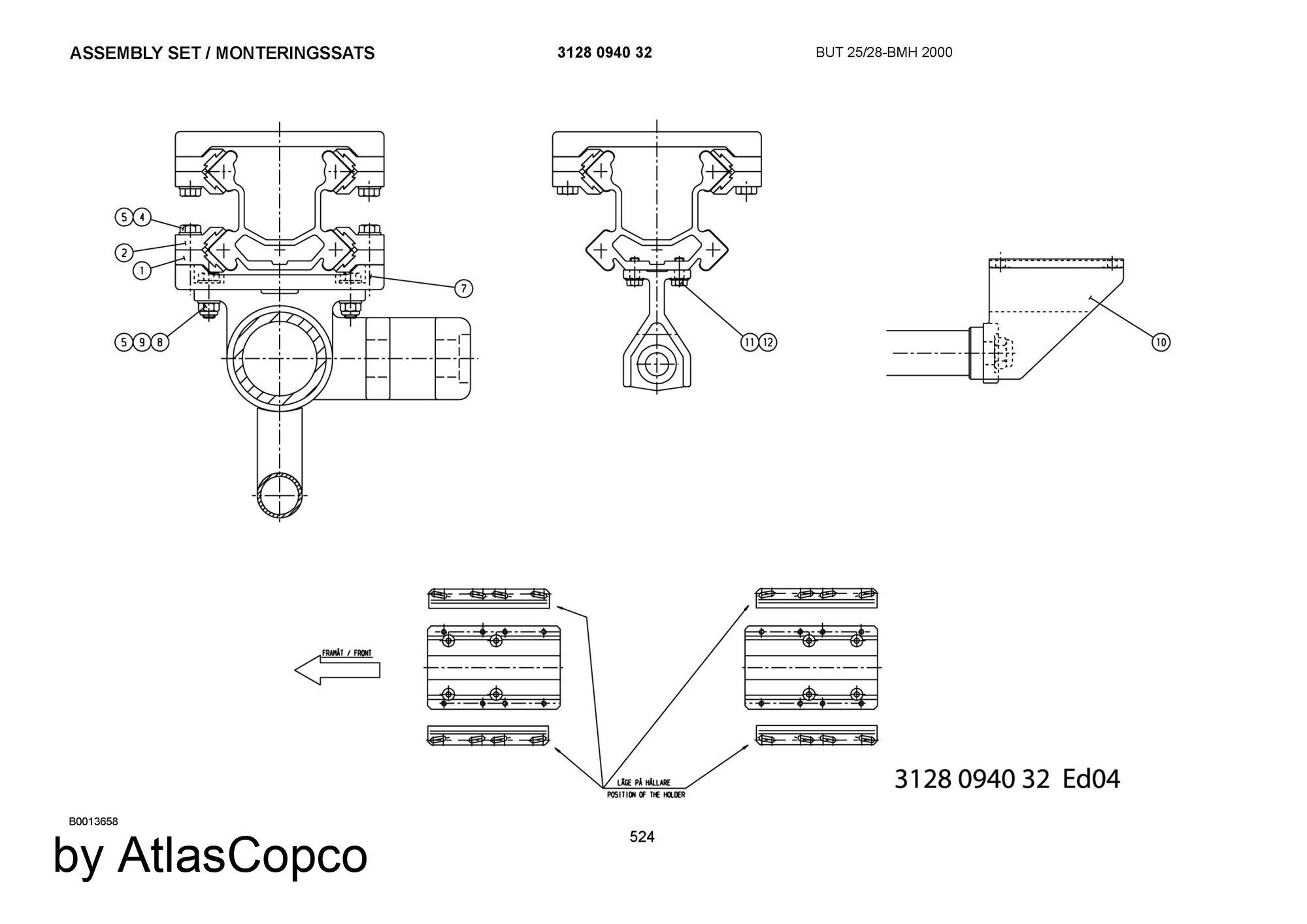

BOOMER 282 ASSEMBLY SET #15180

BOOMER 282 ASSEMBLY SET

ads

Ref

Parts Num

Name

0

ASSEMBLY SET

1

HOLDER

2

HOLDER

4

SCREW. HEX HEAD

5

PLAIN WASHER

7

ATTACHM. PLATE

8

SCREW. HEX HEAD

9

LOCK NUT

10

HOLDER

11

SCREW. HEX HEAD

12

LOCK WASHER

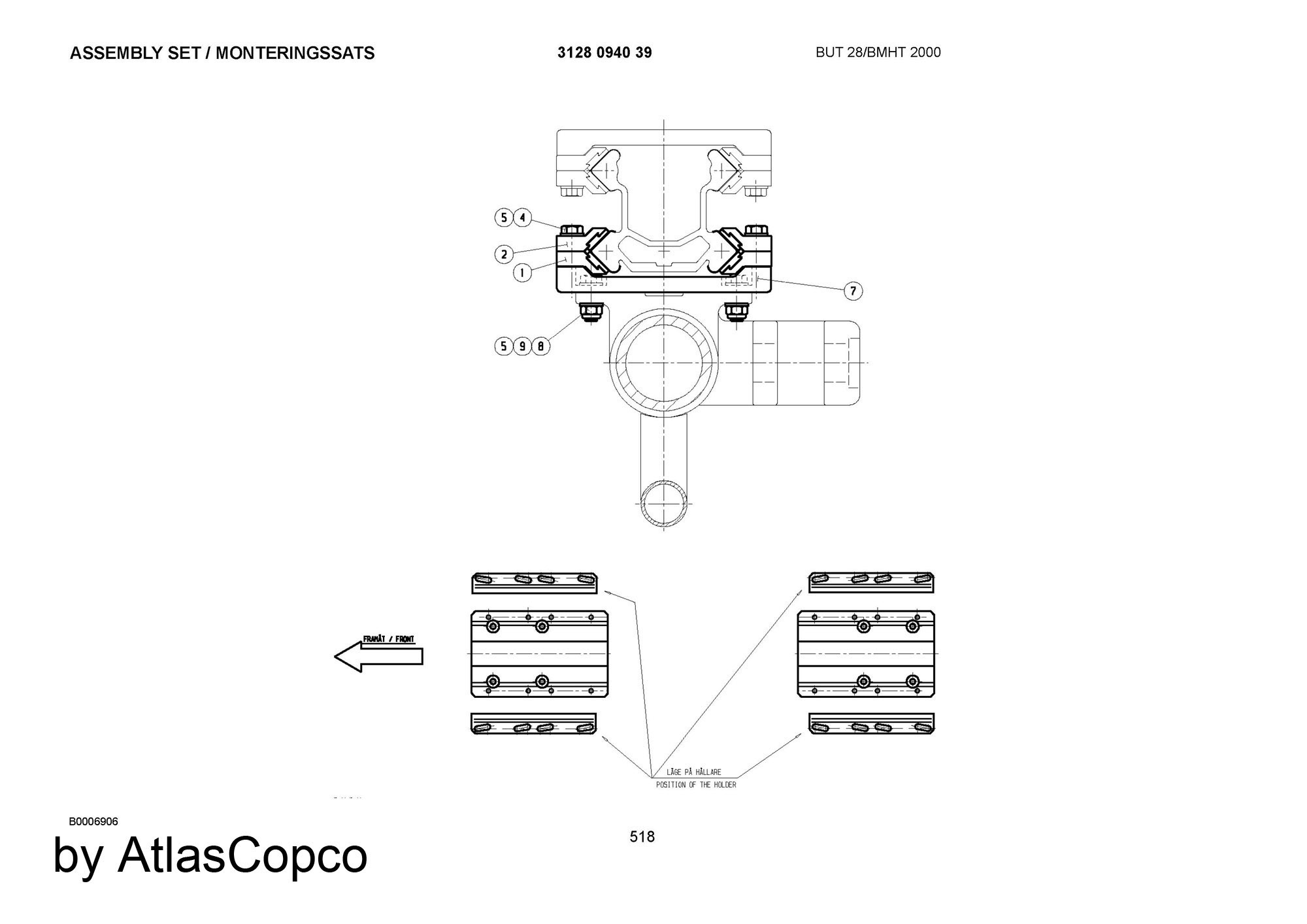

BOOMER 282 ASSEMBLY SET #16356

BOOMER 282 ASSEMBLY SET

ads

Ref

Parts Num

Name

0

ASSEMBLY SET

1

HOLDER

2

HOLDER

4

SCREW. HEX HEAD

5

PLAIN WASHER

7

ATTACHM. PLATE

8

SCREW. HEX HEAD

9

LOCK NUT

BOOMER 282 ASSEMBLY SET #19056

BOOMER 282 ASSEMBLY SET

ads

Ref

Parts Num

Name

0

ASSEMBLY SET

1

SPERIC WASHER

2

WHEEL NUT

BOOMER 282 ASSEMBLY SET #19255

BOOMER 282 ASSEMBLY SET

ads

Ref

Parts Num

Name

0

ASSEMBLY SET

1

CABLE TRAY

2

PLATE

3

SCREW. HEX HEAD

4

PLAIN WASHER

5

CLAMP BAR

6

PIPE CLAMP

7

SCREW. HEX HEAD

8

STRAP

9

PIPE CLAMP

10

TAPPING SCREW

11

PLATE

12

SENSOR PROTECT.
