1. EPIROC - BOOMER 282 DETAIL SET #14107

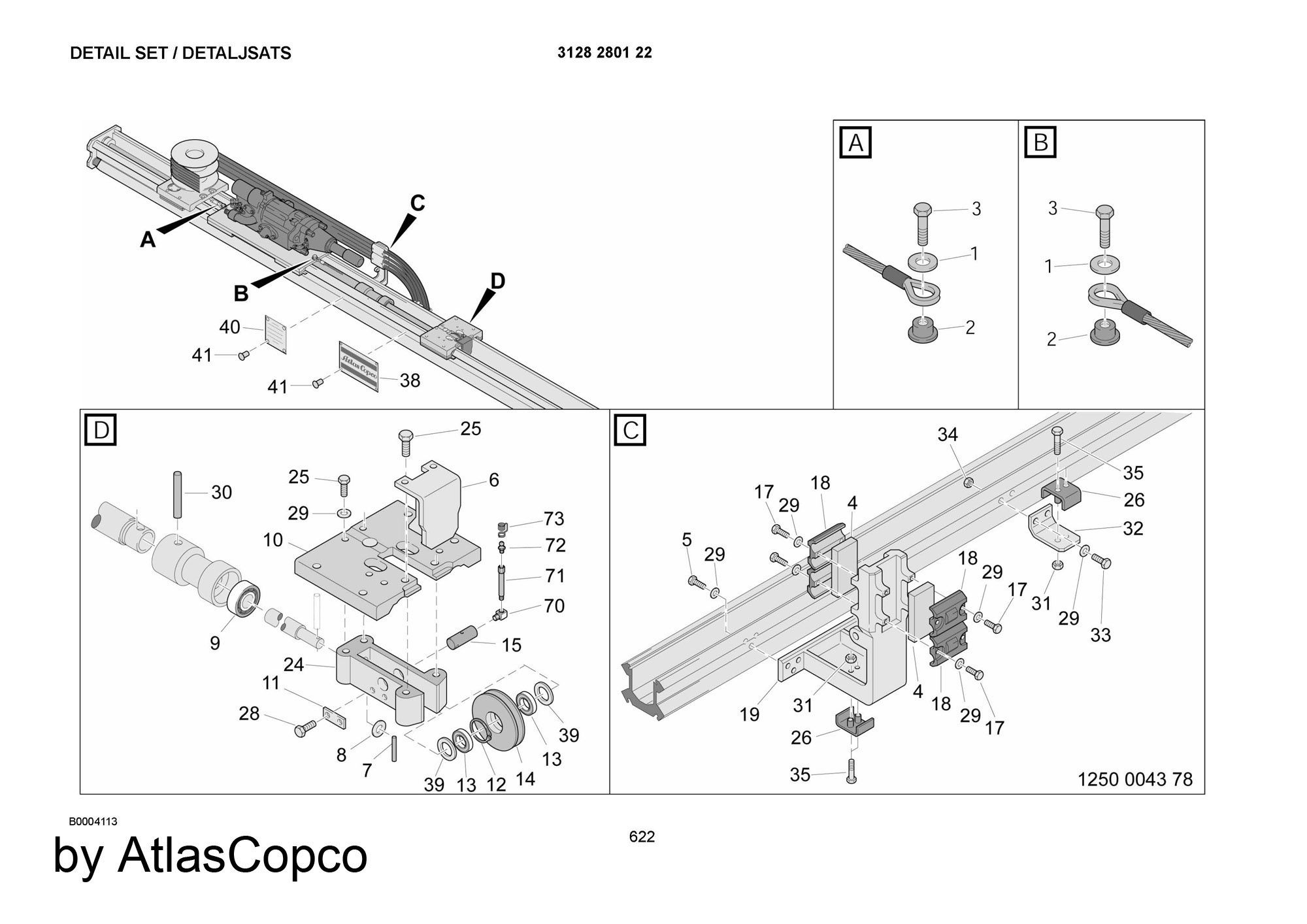

BOOMER 282 DETAIL SET #14107

BOOMER 282 DETAIL SET

ads

Ref

Parts Num

Name

0

DETAIL SET

1

WASHER

2

ATTACHMENT

3

SCREW. HEX HEAD

4

PLATE

5

SCREW. HEX HEAD

6

WIPER

7

SPRING PIN

8

PLAIN WASHER

9

CLAMPING HUB

10

CRADLE PLATE

11

WASHER

12

CIRCLIP

13

BALL BEARING

14

PULLEY WHEEL

15

SHAFT

17

SCREW. HEX HEAD

18

CLAMP

19

HOSE ATTACHMENT

20

NUT

24

PROFILE

25

SCREW. HEX HEAD

26

CLAMP

28

SCREW. HEX HEAD

29

WASHER

30

SPRING PIN

31

LOCK NUT

32

ATTACHMENT

33

SCREW. HEX HEAD

34

LOCK NUT

35

SCREW. HEX HEAD

38

SIGN

39

WASHER

40

DATA PLATE

41

BLIND RIVET

70

NIPPLE

71

EXTENDER

72

GREASE NIPPLE

73

PROTECTION CAP
