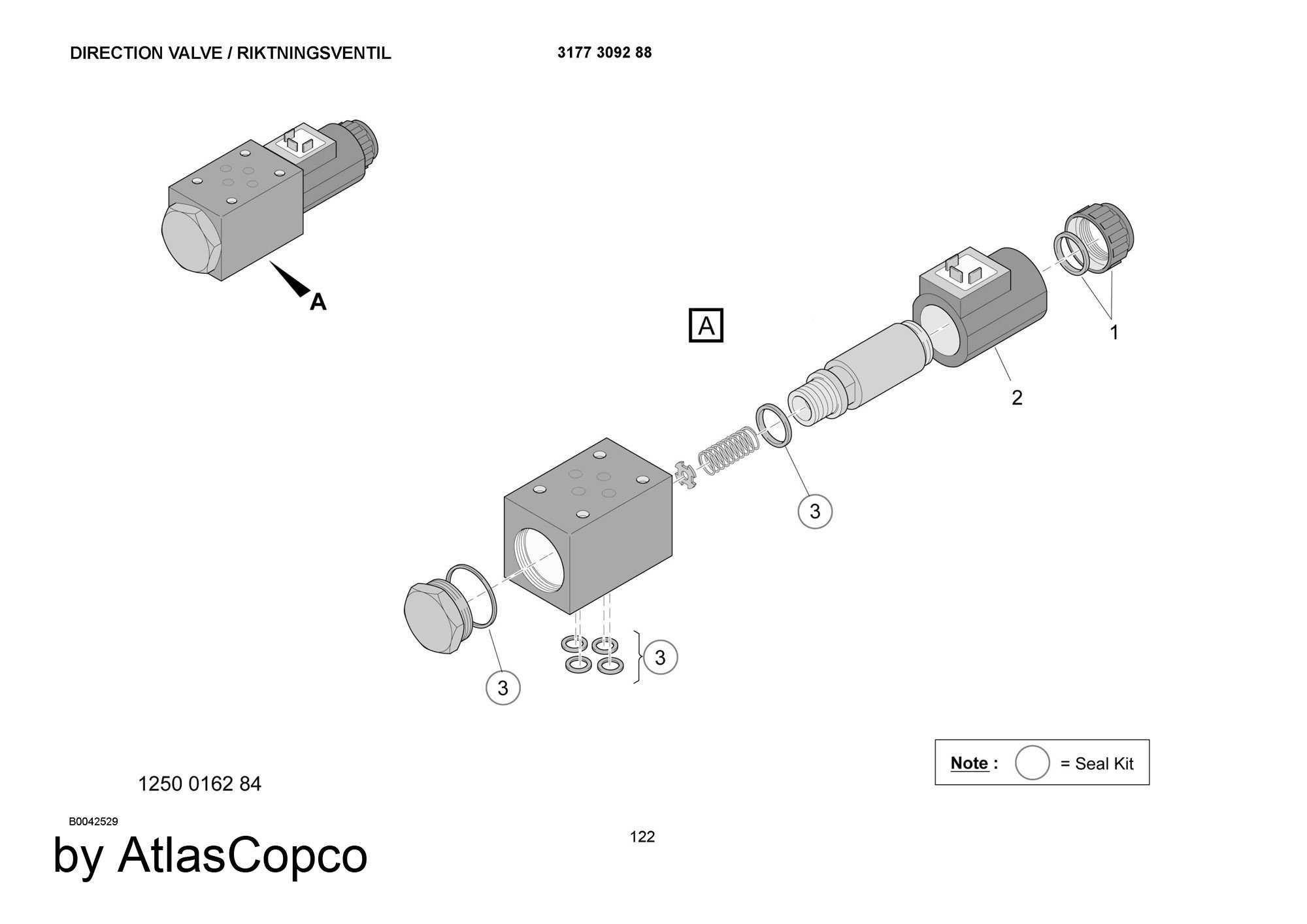

BOOMER 282 DIRECTION VALVE #14150
BOOMER 282 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309288
DIRECTION VALVE
1
3177309257
NUT SET
2
3177309255
COIL
3
3177309256
SEAL KIT

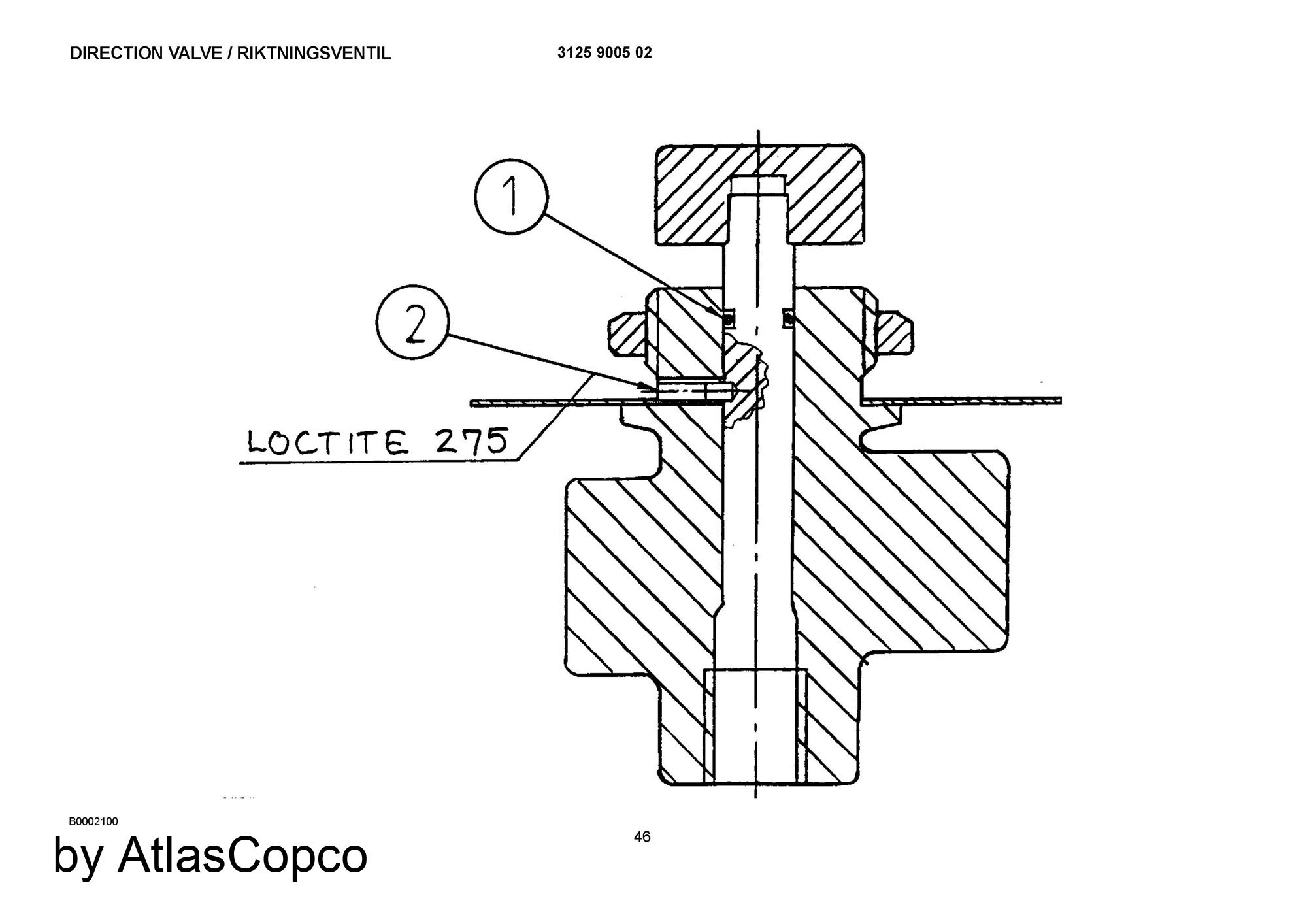

BOOMER 282 DIRECTION VALVE #14699
BOOMER 282 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3125900502
DIRECTION VALVE
1
0663210846
O RING
2
0192117000
SET SCREW

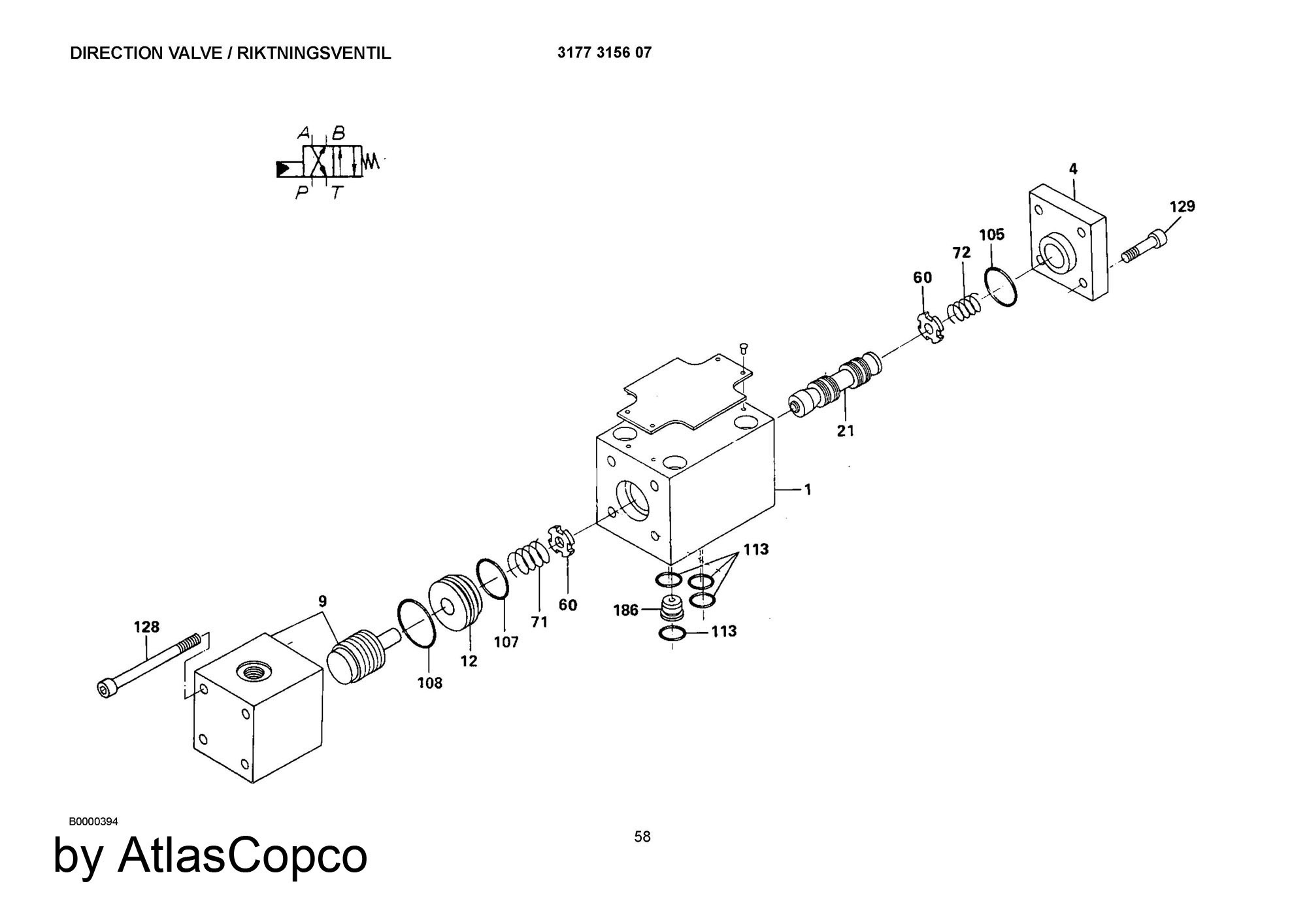

BOOMER 282 DIRECTION VALVE #15939
BOOMER 282 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177315607
DIRECTION VALVE
0
3177315790
O RING SET
4
3177315704
COVER
9
3177315709
COVER
12
3177315712
BUSHING
60
3177315740
WASHER
71
3177315741
SPRING
72
3177315742
SPRING
105
0663903201
O RING
108
9125628300
O RING
113
0663905001
ORING
128
0211117900
SCREW
129
0211117300
SCREW
186
3177315747
RESTRICTION
BOOMER 282 DIRECTION VALVE #21280
BOOMER 282 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209070
DIRECTION VALVE
1
3128209136
INLET SECTION
2
3128209102
VALVE SECTION
3
3128209137
OUTLET SECTION

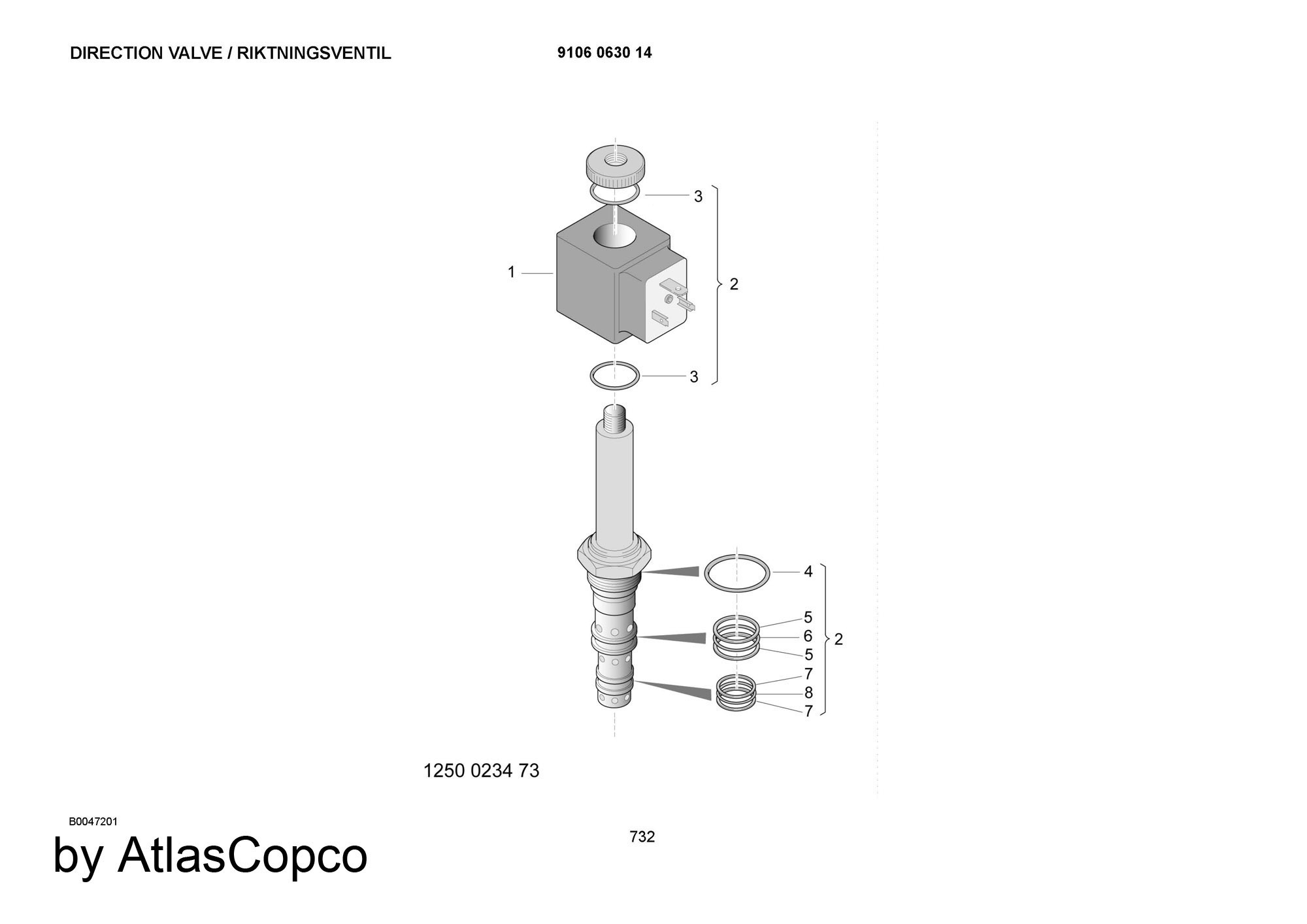

BOOMER 282 DIRECTION VALVE #21296
BOOMER 282 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
9106063014
DIRECTION VALVE
1
3222310610
SOLENOID
2
3128308731
SEAL KIT

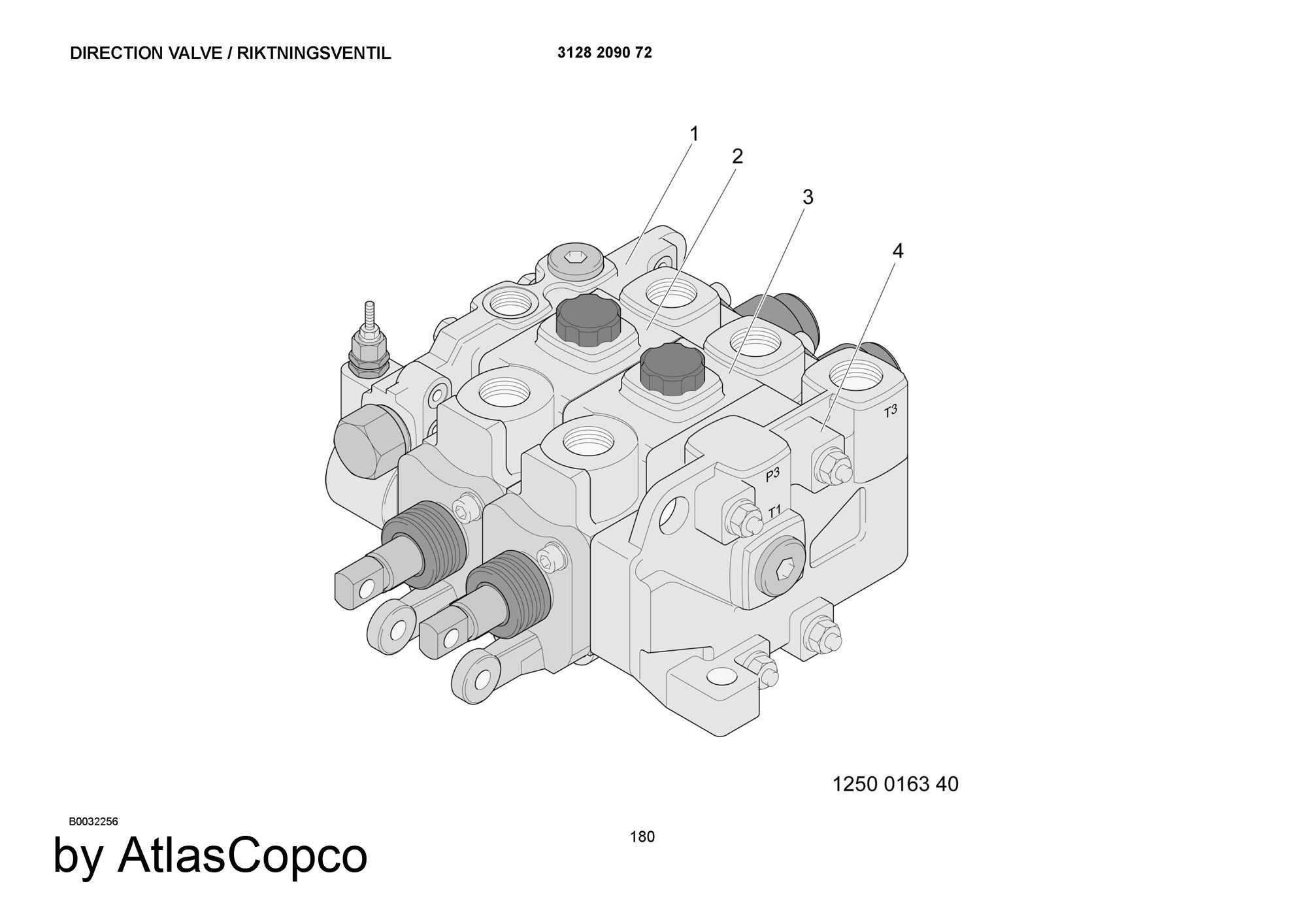

BOOMER 282 DIRECTION VALVE #21321
BOOMER 282 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209072
DIRECTION VALVE
1
3128209122
INLET SECTION
2
3128209102
VALVE SECTION
3
3128209124
OUTLET SECTION

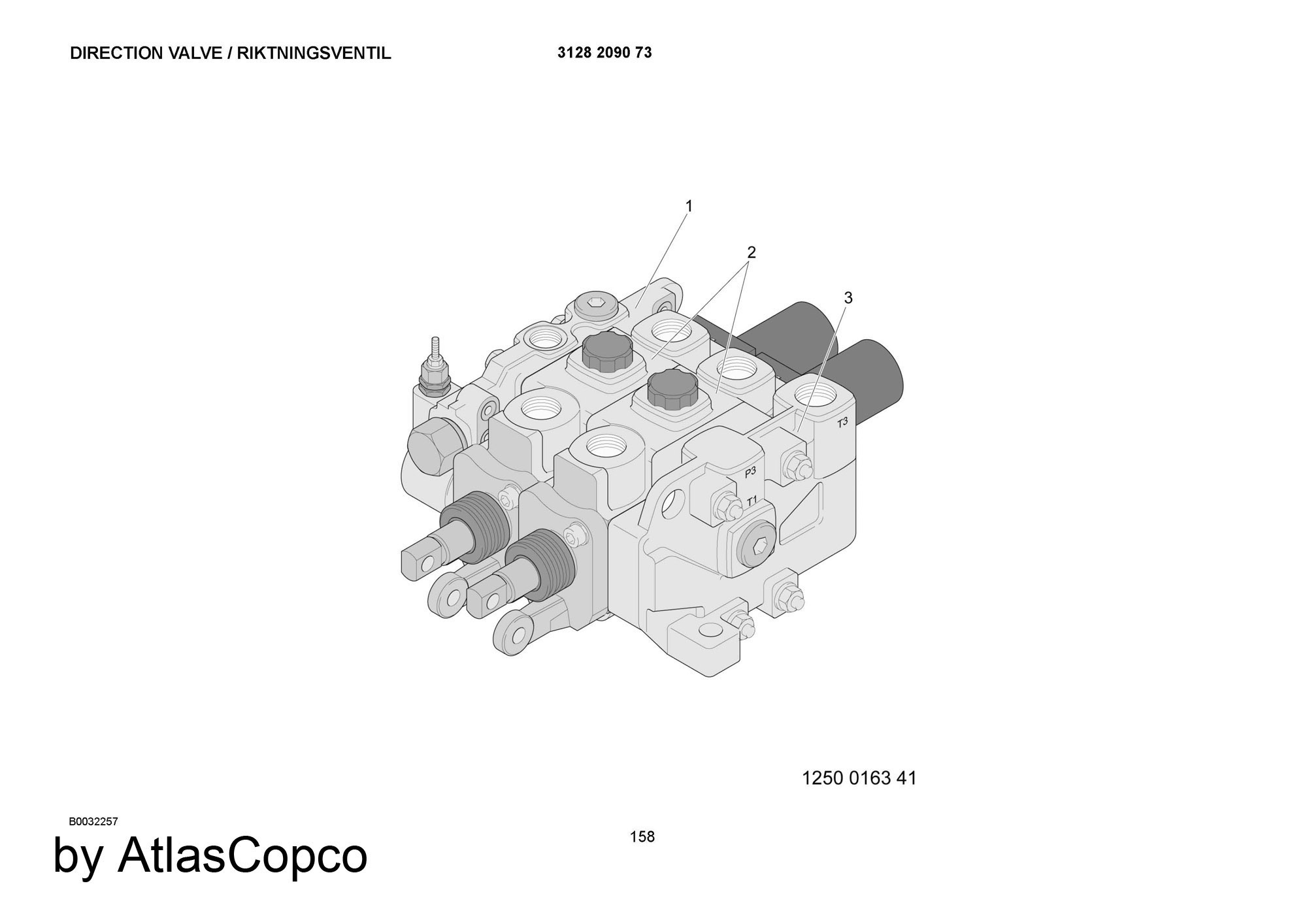

BOOMER 282 DIRECTION VALVE #21447
BOOMER 282 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209073
DIRECTION VALVE
1
3128209122
INLET SECTION
2
3128209127
SPOOL VALVE
3
3128209124
OUTLET SECTION

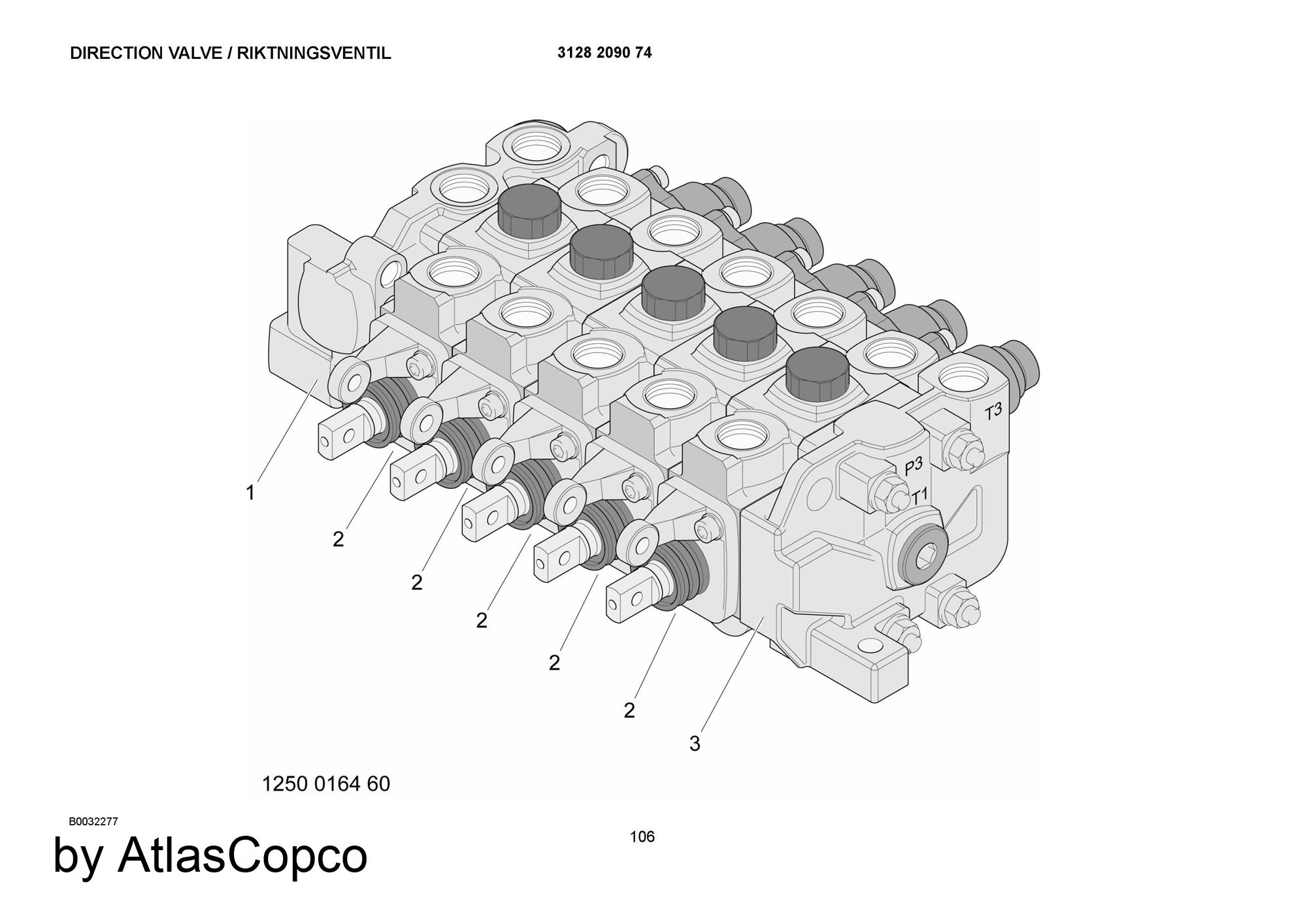

BOOMER 282 DIRECTION VALVE #21471
BOOMER 282 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209074
DIRECTION VALVE
1
3128209101
INLET SECTION
2
3128209138
SPOOL VALVE
3
3128209139
OUTLET SECTION
BOOMER 282 DIRECTION VALVE #21473
BOOMER 282 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
9106063014
DIRECTION VALVE
1
3222310610
SOLENOID
2
3128308731
SEAL KIT

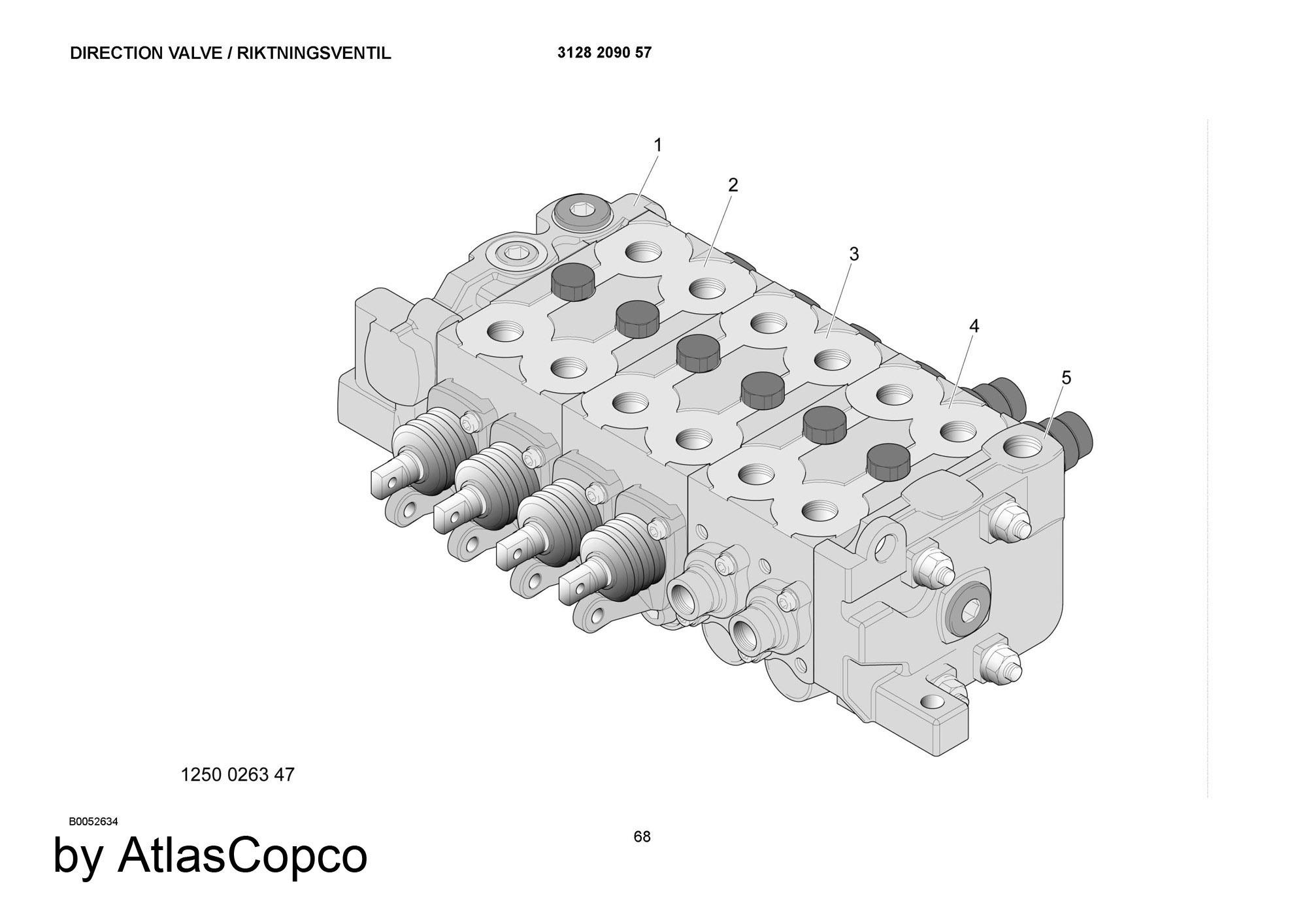

BOOMER 282 DIRECTION VALVE #21520
BOOMER 282 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209057
DIRECTION VALVE
