BOOMER 353 CONTROL PANEL #12454
BOOMER 353 CONTROL PANEL
ads
Ref
Parts Num
Name
0
3217883538
CONTROL PANEL
1
3217983400
DIRECTION VALVE
2
3217896800
VALVE BLOCK
3
3217893700
VALVE BLOCK
5
3125090691
VALVE UNIT
6
3217884005
THROTTLE VALVE
8
3217884051
DISTRIBUT. PIPE
9
3176458905
PRESSURE SWITCH
15
3177314700
PRESSURE GAUGE
18
3176869500
PRESSURE GAUGE
20
3217001075
SEALING COVER
20
3217001002
TRIGGER
21
3217001087
MUSHROOM PUSHB.
22
3217919600
LIGHTNING
23
1089028901
INDICATION LAMP
24
3177504800
BALL COCK
25
3217887040
PANEL FRAME
27
3217894610
LEVER
28
3217988100
DRAINAGE BLOCK
29
3217988110
BRANCH BLOCK
31
3177700105
PRESSURE SWITCH
38
3217896620
PIPE
40
3217895100
PLATE
42
3217895120
PLATE
47
3217895113
PLATE
50
3217895110
PLATE
70
3217801401
SEQUENCE VALVE
71
3177308800
CHECK VALVE
72
3125900502
DIRECTION VALVE
73
3217895105
PLATE
83
3217887041
ATTACHMENT
BOOMER 353 CONTROL PANEL #12691
BOOMER 353 CONTROL PANEL
ads
Ref
Parts Num
Name
0
3217883538
CONTROL PANEL
1
3217983400
DIRECTION VALVE
2
3217896800
VALVE BLOCK
3
3217893700
VALVE BLOCK
5
3125090691
VALVE UNIT
6
3217884005
THROTTLE VALVE
8
3217884051
DISTRIBUT. PIPE
9
3176458905
PRESSURE SWITCH
15
3177314700
PRESSURE GAUGE
18
3176869500
PRESSURE GAUGE
20
3217001075
SEALING COVER
20
3217001002
TRIGGER
21
3217001087
MUSHROOM PUSHB.
22
3217919600
LIGHTNING
23
1089028901
INDICATION LAMP
24
3177504800
BALL COCK
25
3217887040
PANEL FRAME
27
3217894610
LEVER
28
3217988100
DRAINAGE BLOCK
29
3217988110
BRANCH BLOCK
31
3177700105
PRESSURE SWITCH
38
3217896620
PIPE
40
3217895100
PLATE
42
3217895120
PLATE
47
3217895113
PLATE
50
3217895110
PLATE
70
3217801401
SEQUENCE VALVE
71
3177308800
CHECK VALVE
72
3125900502
DIRECTION VALVE
73
3217895105
PLATE
83
3217887041
ATTACHMENT
BOOMER 353 CONTROL PANEL #18713
BOOMER 353 CONTROL PANEL
ads
Ref
Parts Num
Name
1
5112302520
CONTROL PANEL
2
5112302514
STEERING SYSTEM
3
0147132703
SCREW. HEX HEAD
11
0147125203
SCREW. HEX HEAD
12
5112302499
ANGLE POINTER

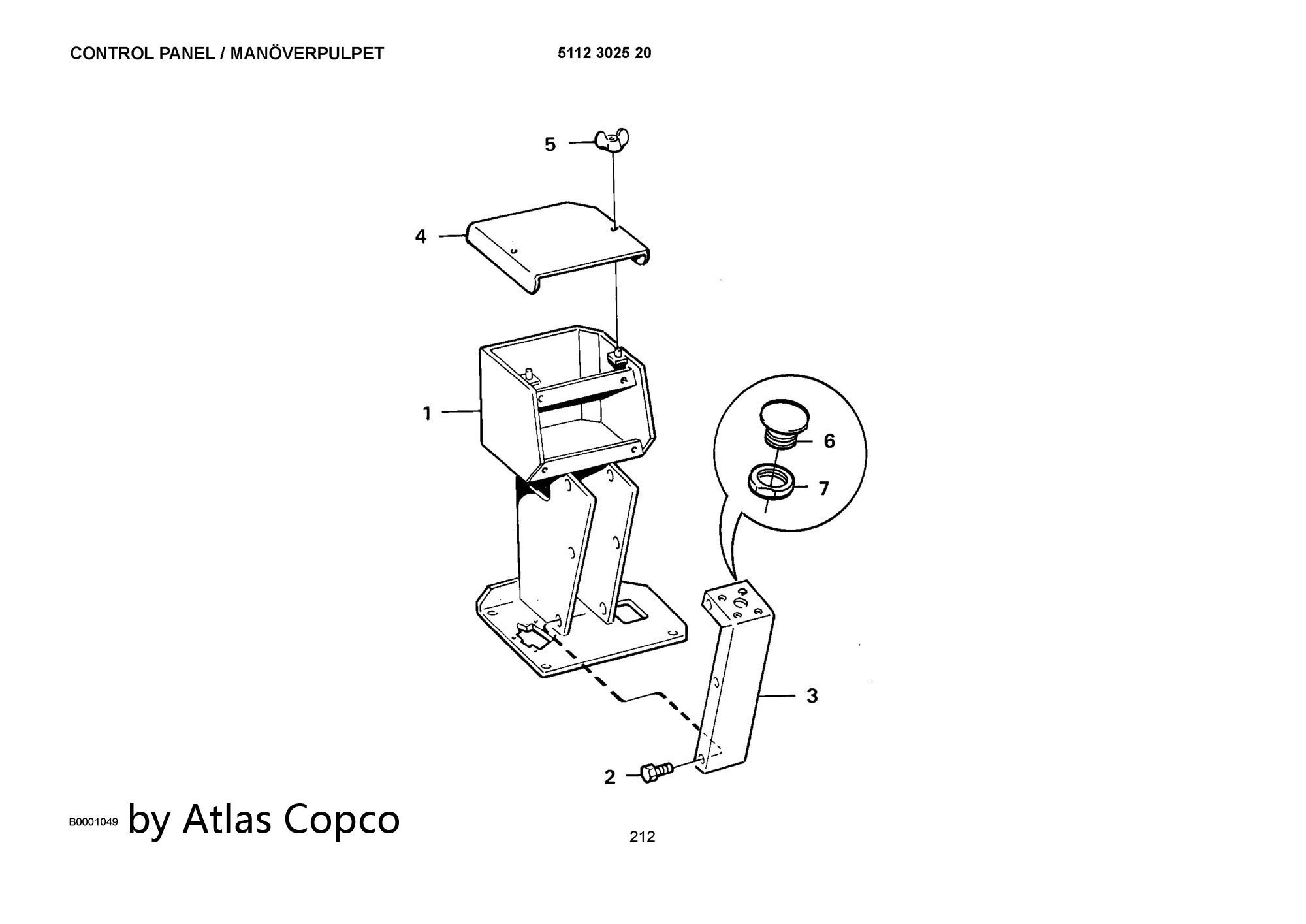

BOOMER 353 CONTROL PANEL #18733
BOOMER 353 CONTROL PANEL
ads
Ref
Parts Num
Name
0
5112302520
CONTROL PANEL
1
5112302433
CONTROL PANEL
4
5112302107
COVER
5
0296111000
WING NUT
7
0697980913
LOCK NUT
