BOOMER 353 EPIROC New catalogs

BOOMER 353 Pages

1. EPIROC - BOOMER 353 SEALING SET #12300

2. EPIROC - BOOMER 353 SEALING SET #14052

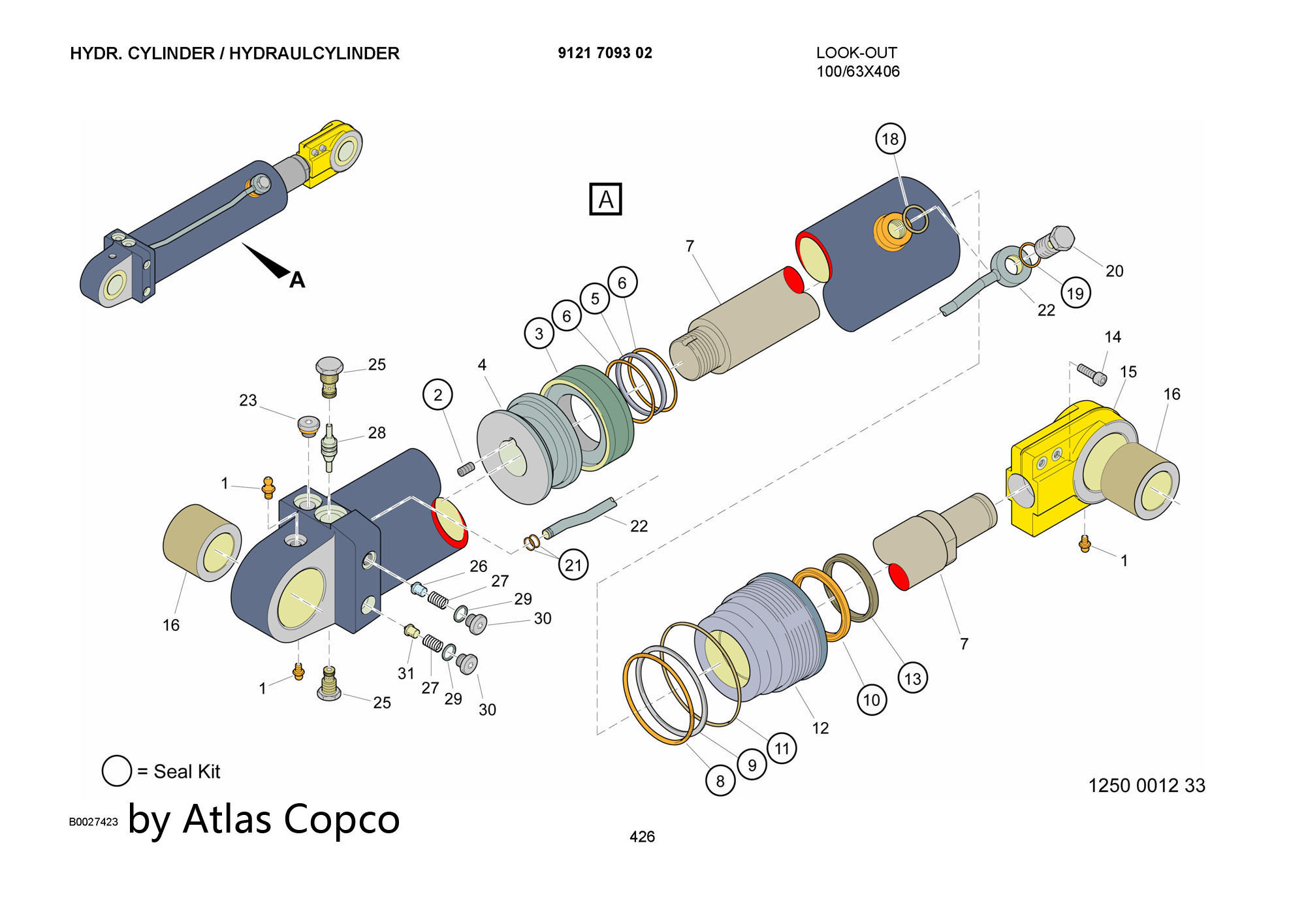

BOOMER 353 SEALING SET #12300

BOOMER 353 SEALING SET

ads

Ref

Parts Num

Name

0

SEALING SET

0

SEAL KIT

0

HYDR. CYLINDER

2

SET SCREW

3

PISTON SEAL

4

PISTON

5

ORING

6

BACKUP RING

7

PISTON ROD

8

ORING

9

BACKUP RING

10

PISTON ROD SEAL

11

ORING

12

COVER

13

WIPER

14

SCREW

15

PISTON ROD EYE

16

BUSHING

17

WARNING SIGN

18

SEAL WASHER

19

SEAL WASHER

20

SCREW

21

ORING

22

PIPE

23

PLUG

24

SEAL WASHER

25

CHECK VALVE

26

CONE

27

SPRING

28

PISTON

29

SEAL WASHER

30

PLUG

31

CONE

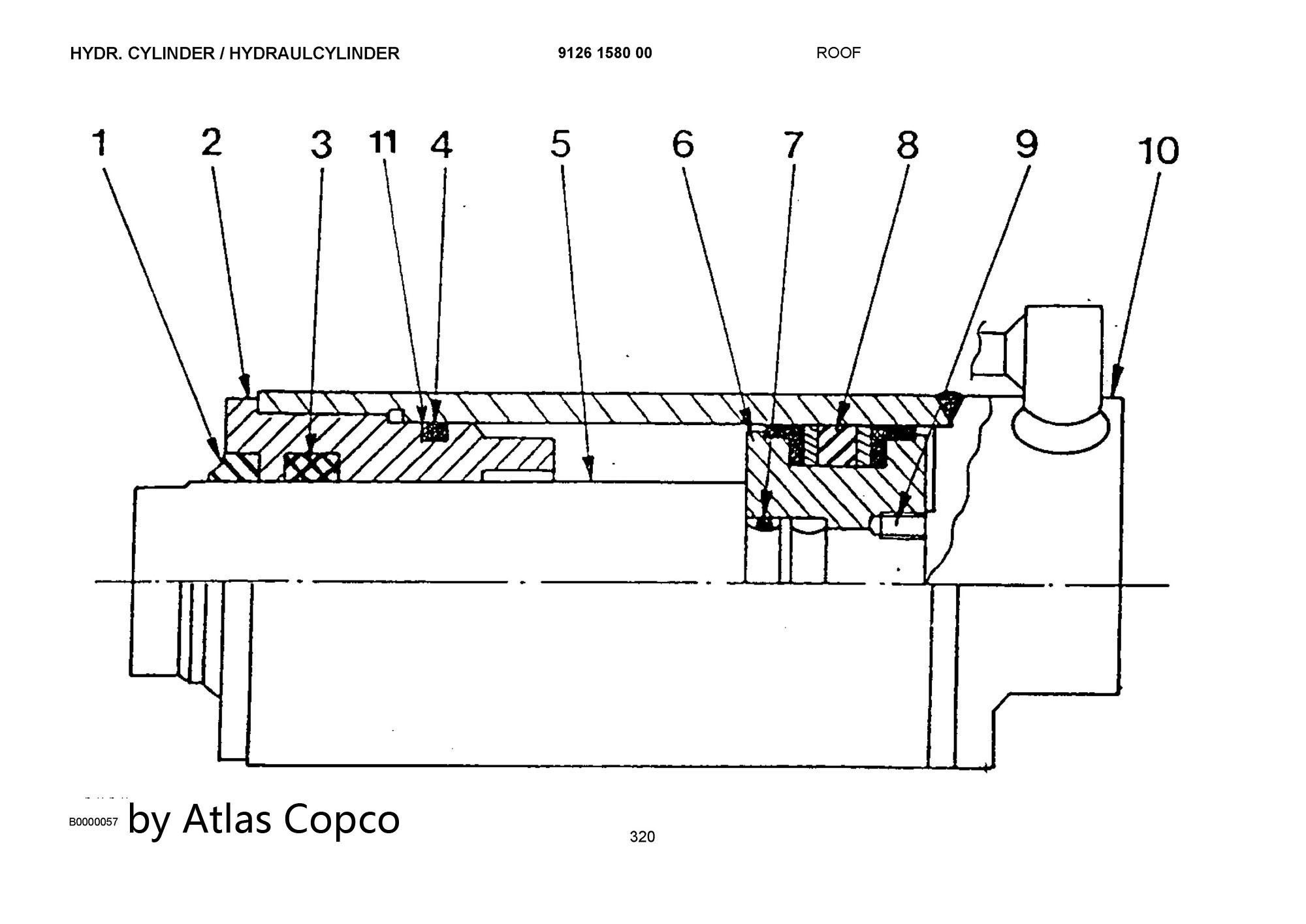

BOOMER 353 SEALING SET #14052

BOOMER 353 SEALING SET

ads

Ref

Parts Num

Name

0

SEALING SET

0

HYDR. CYLINDER

1

WIPER

2

COVER

3

SEAL RING

4

ORING

5

PISTON ROD

6

PISTON

7

ORING

8

PISTON SEAL

9

SET SCREW

11

BACK UP RING
