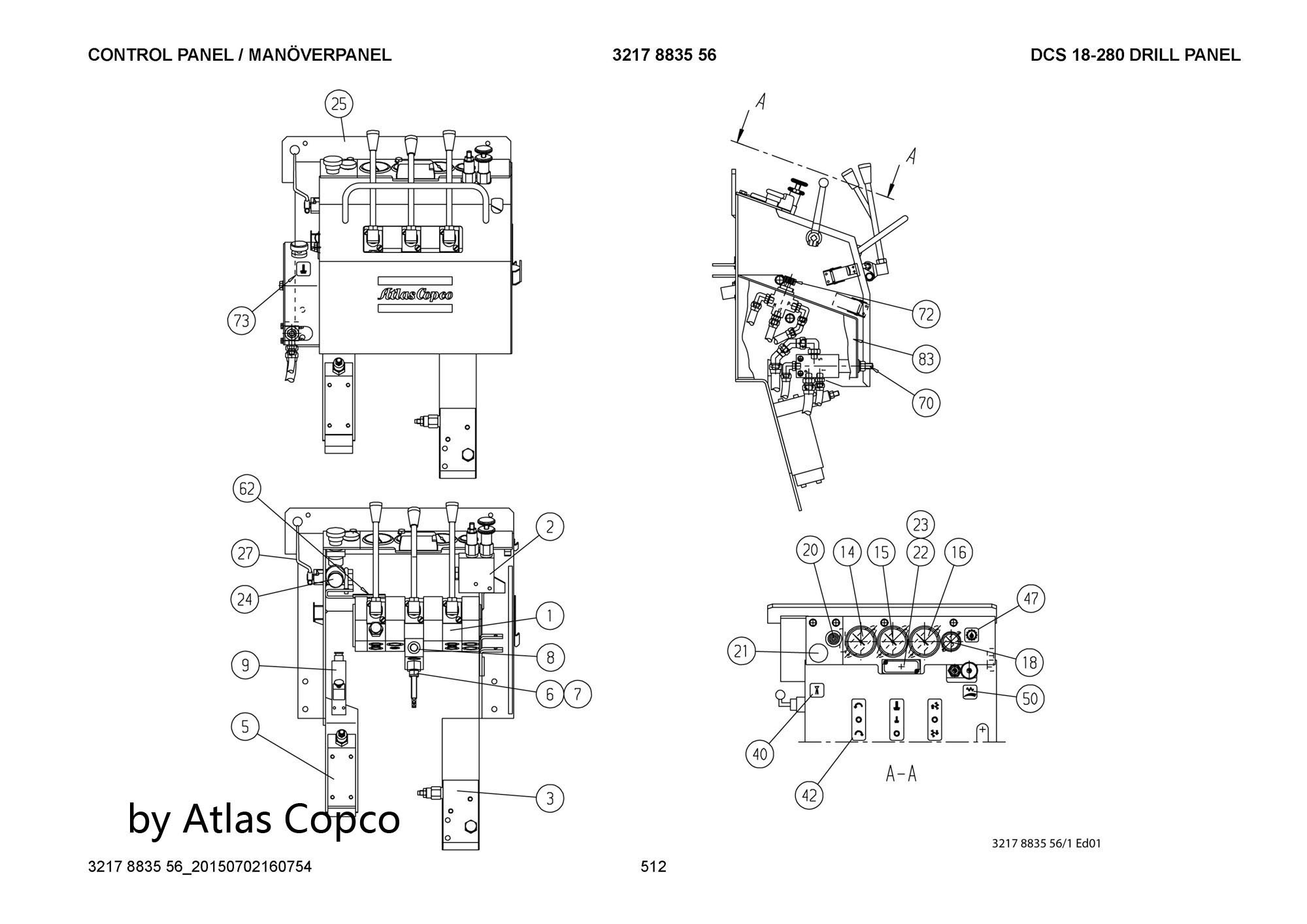

BOOMER K111 CONTROL PANEL #14006
BOOMER K111 CONTROL PANEL
ads
Ref
Parts Num
Name
0
3217883556
CONTROL PANEL
1
3217983400
DIRECTION VALVE
2
3217896800
VALVE BLOCK
3
3217893701
VALVE BLOCK
5
3125090691
VALVE UNIT
6
3217884005
THROTTLE VALVE
8
3217884051
DISTRIBUT. PIPE
9
3176458905
PRESSURE SWITCH
13
3217651302
RESTRICTION
14
3177303200
PRESSURE GAUGE
15
3177314700
PRESSURE GAUGE
18
3176869500
PRESSURE GAUGE
20
3217001072
INTERMED. PART
20
3217001002
TRIGGER
20
3217001075
SEALING COVER
21
3217001087
MUSHROOM PUSHB.
22
3217919600
LIGHTNING
23
1089028901
INDICATION LAMP
24
3177504800
BALL COCK
25
3217887040
PANEL FRAME
27
3217894610
LEVER
28
3217988100
DRAINAGE BLOCK
29
3217988110
BRANCH BLOCK
38
3217896620
PIPE
40
3217895100
PLATE
42
3217895120
PLATE
47
3217895113
PLATE
50
3217895110
PLATE
62
3217887014
ATTACHM. PLATE
70
3217801401
SEQUENCE VALVE
71
0823005017
CHECK VALVE
72
3125900502
DIRECTION VALVE
73
3217895105
PLATE
74
0686925060
CAP
75
0686925061
CAP
76
0686925062
CAP
77
0686925063
CAP
83
3217887041
ATTACHMENT
84
3217896940
REAMER SET

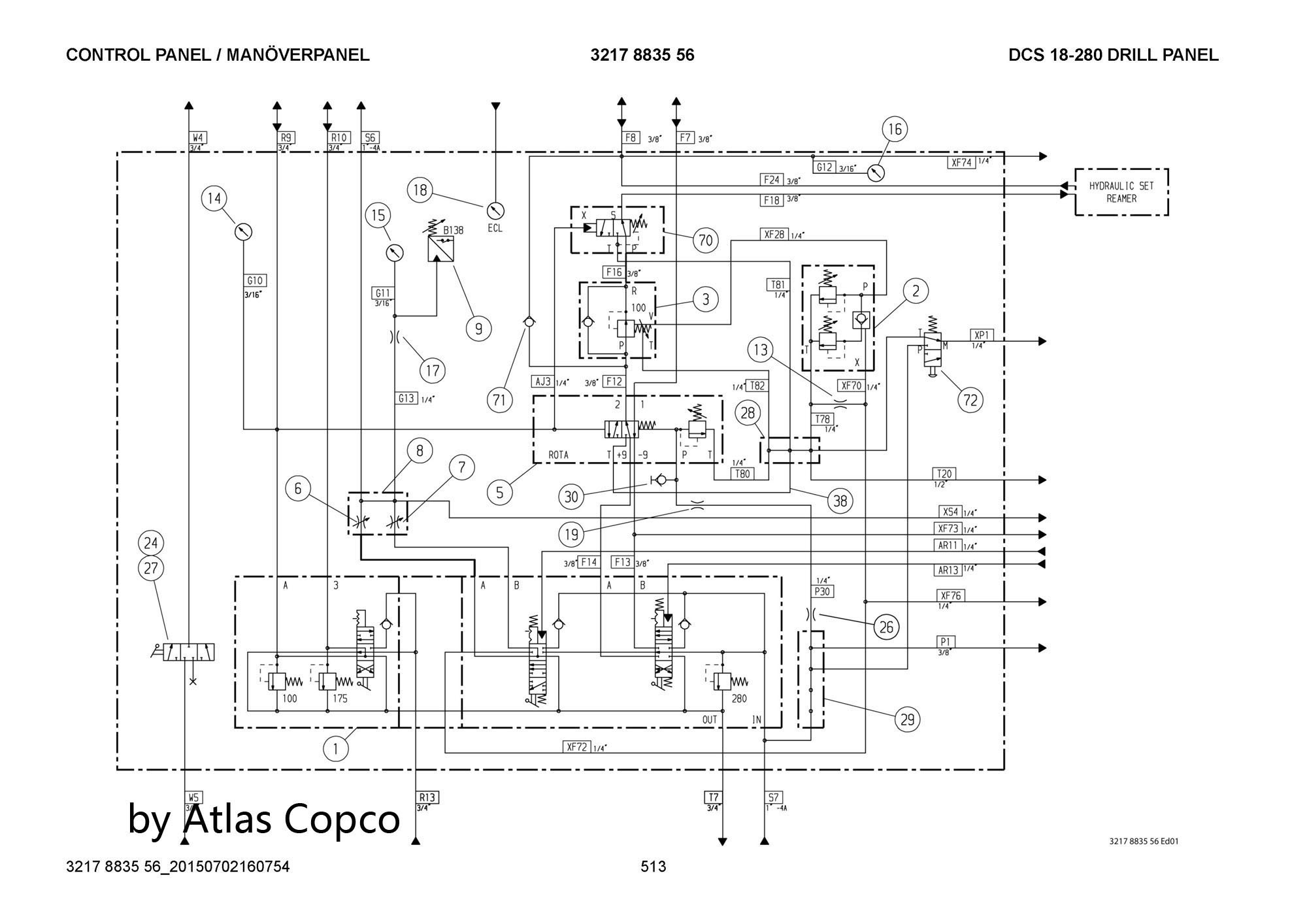

BOOMER K111 CONTROL PANEL #14011
BOOMER K111 CONTROL PANEL
ads
Ref
Parts Num
Name
0
3217883556
CONTROL PANEL
1
3217983400
DIRECTION VALVE
2
3217896800
VALVE BLOCK
3
3217893701
VALVE BLOCK
5
3125090691
VALVE UNIT
6
3217884005
THROTTLE VALVE
8
3217884051
DISTRIBUT. PIPE
9
3176458905
PRESSURE SWITCH
13
3217651302
RESTRICTION
14
3177303200
PRESSURE GAUGE
15
3177314700
PRESSURE GAUGE
18
3176869500
PRESSURE GAUGE
20
3217001075
SEALING COVER
20
3217001002
TRIGGER
21
3217001087
MUSHROOM PUSHB.
21
3217001072
INTERMED. PART
22
3217919600
LIGHTNING
23
1089028901
INDICATION LAMP
24
3177504800
BALL COCK
25
3217887040
PANEL FRAME
27
3217894610
LEVER
28
3217988100
DRAINAGE BLOCK
29
3217988110
BRANCH BLOCK
38
3217896620
PIPE
40
3217895100
PLATE
42
3217895120
PLATE
47
3217895113
PLATE
50
3217895110
PLATE
62
3217887014
ATTACHM. PLATE
70
3217801401
SEQUENCE VALVE
71
0823005017
CHECK VALVE
72
3125900502
DIRECTION VALVE
73
3217895105
PLATE
74
0686925060
CAP
75
0686925061
CAP
76
0686925062
CAP
77
0686925063
CAP
83
3217887041
ATTACHMENT
84
3217896940
REAMER SET
BOOMER K111 CONTROL PANEL #18405
BOOMER K111 CONTROL PANEL
ads
Ref
Parts Num
Name
2
5112255000
CONTROL PANEL
5
5112261600
PROTECTION RACK
8
0147155203
SCREW. HEX HEAD
9
5724007813
PLATFORM
10
0147135903
SCREW. HEX HEAD
11
5112267600
COVER
12
5112314668
YOKE
13
0147132403
SCREW. HEX HEAD
14
5112302499
ANGLE POINTER
15
5112310266
PROTECT. PLATE
18
0300027413
PLAIN WASHER
