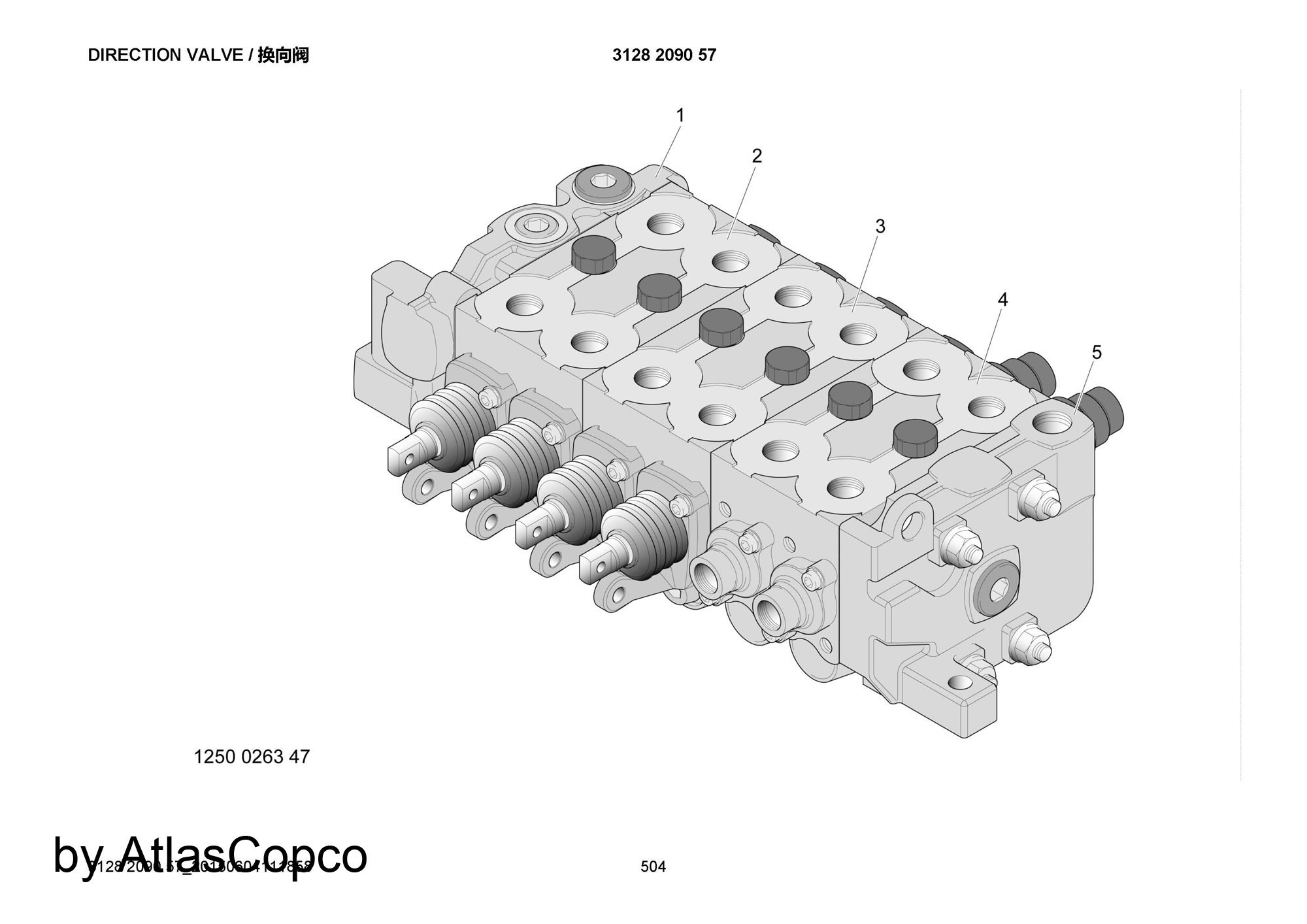

BOOMER K111 DIRECTION VALVE #11500
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
1
3128209057
DIRECTION VALVE
2
3128209169
LEVER SET
17
3128201949
GUIDE PLATE
18
3128201950
ATTACHM. PLATE
21
3125252500
COLLECT. BLOCK
27
3176850500
RESTRICTION
29
9106063014
DIRECTION VALVE
30
8234020037
PR.CONTR.VALVE
38
9122435200
VALVE
40
3128202015
PRESS.RED.VALVE
42
3125425700
ATTACHMENT
50
3128228101
FLOW REGULATOR
51
3125318890
SIGN SET
102
5724002866
PUSH BUTTON
103
5724002867
ADAPTOR
104
3217988204
CONNECTOR

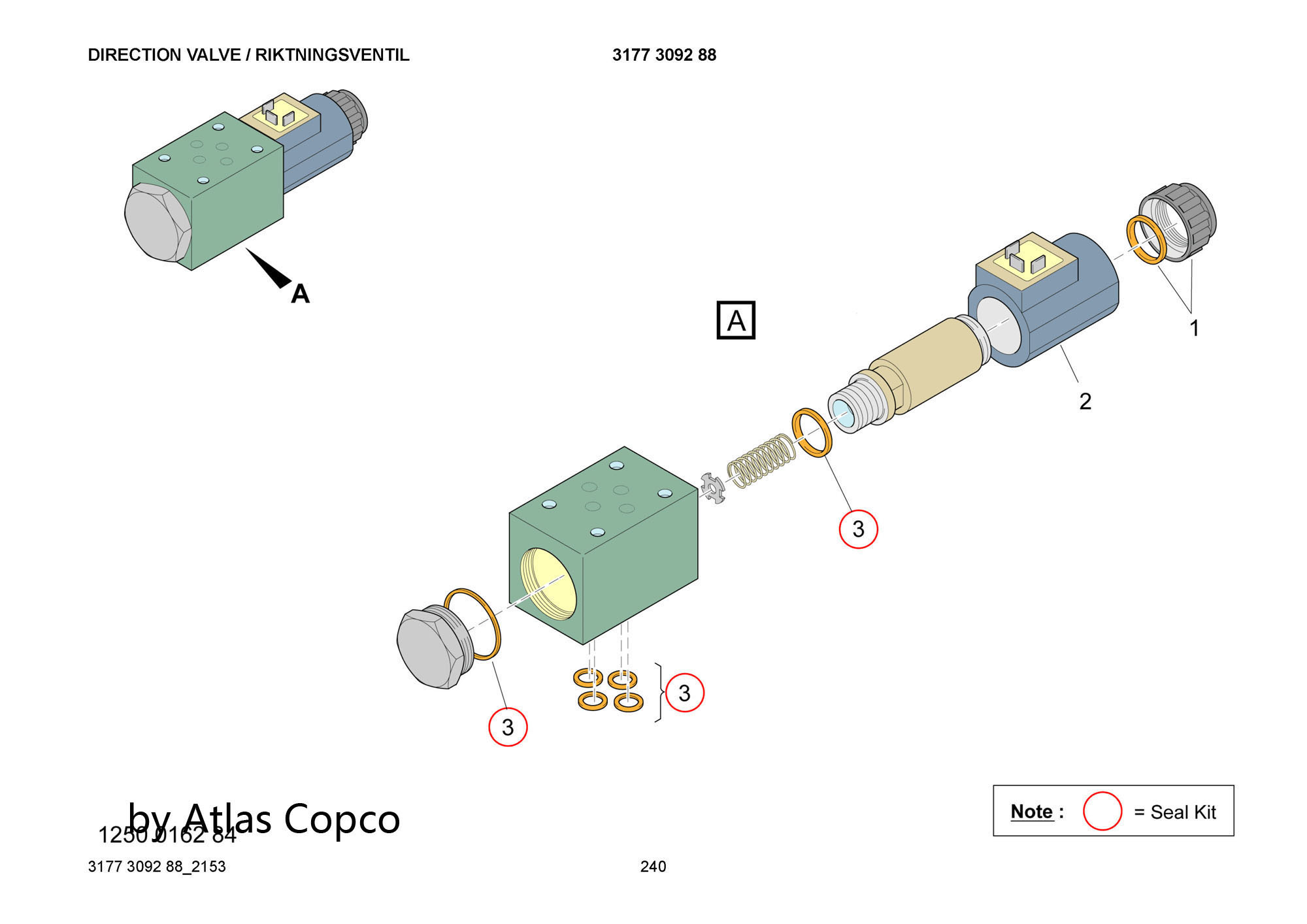

BOOMER K111 DIRECTION VALVE #11593
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309288
DIRECTION VALVE
1
3177309257
NUT SET
2
3177309255
COIL
3
3177309256
SEAL KIT

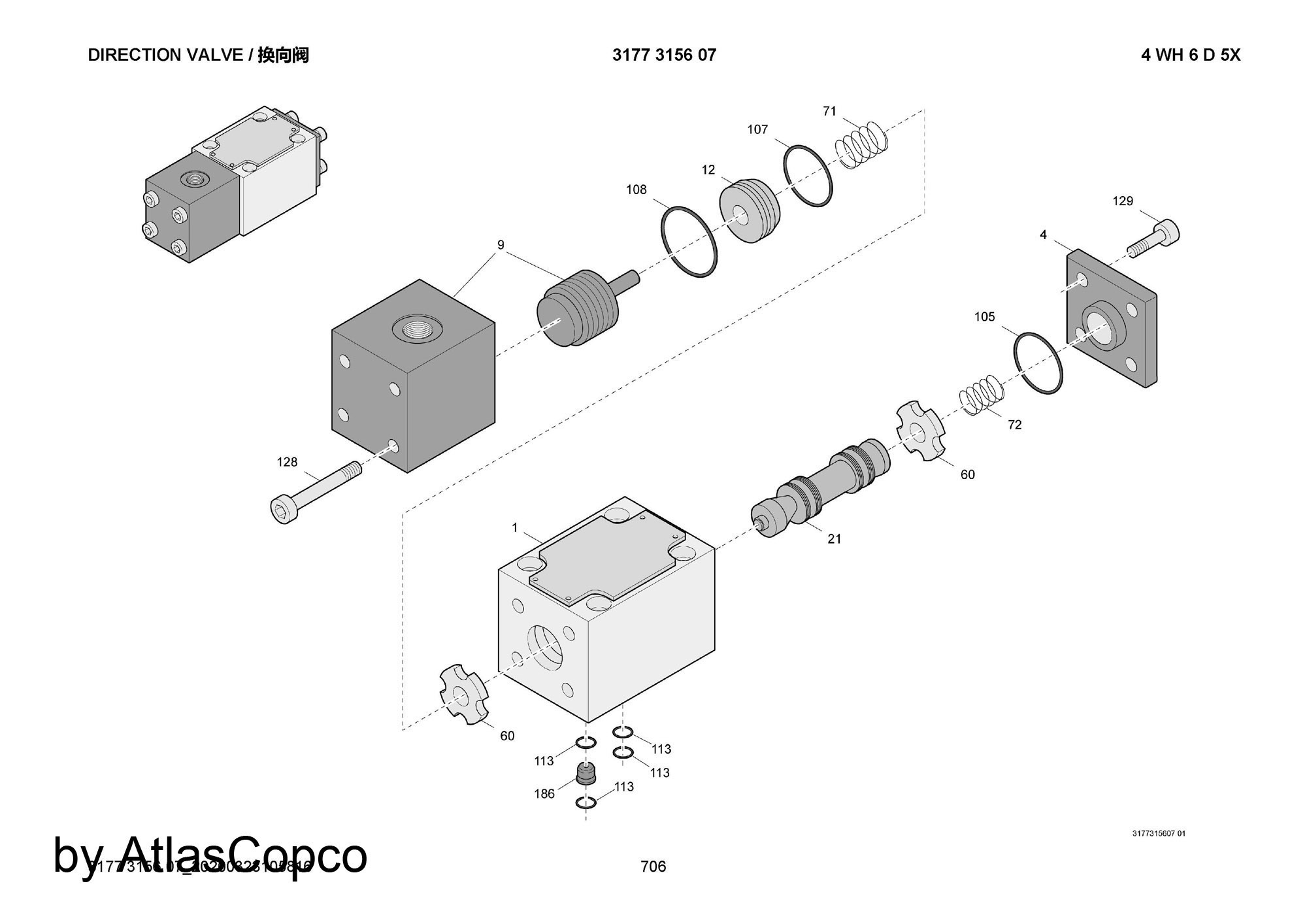

BOOMER K111 DIRECTION VALVE #11770
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177315607
DIRECTION VALVE
0
3177315790
O RING SET
4
3177315704
COVER
9
3177315709
COVER
12
3177315712
BUSHING
60
3177315740
WASHER
71
3177315741
SPRING
105
0663903201
O RING
108
9125628300
O RING
113
0663905001
ORING
128
0211117900
SCREW
129
0211117300
SCREW
186
3177315747
RESTRICTION
BOOMER K111 DIRECTION VALVE #11935
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309288
DIRECTION VALVE
2
3177309255
COIL
3
6060013566
SEAL KIT

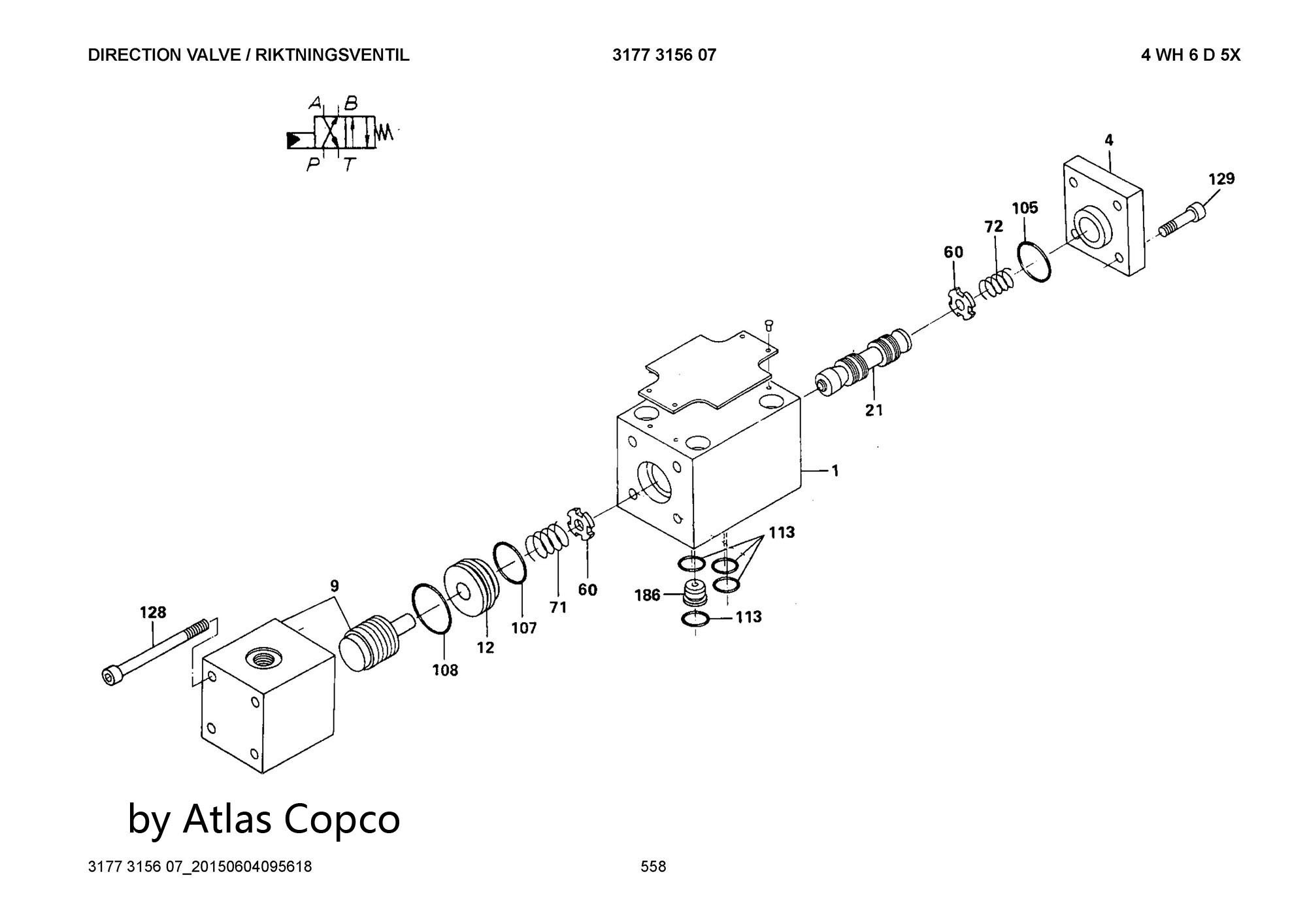

BOOMER K111 DIRECTION VALVE #12133
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177315607
DIRECTION VALVE
0
3177315790
O RING SET
4
3177315704
COVER
9
3177315709
COVER
12
3177315712
BUSHING
60
3177315740
WASHER
71
3177315741
SPRING
105
0663903201
O RING
108
9125628300
O RING
113
0663905001
ORING
128
0211117900
SCREW
129
0211117300
SCREW
186
3177315747
RESTRICTION

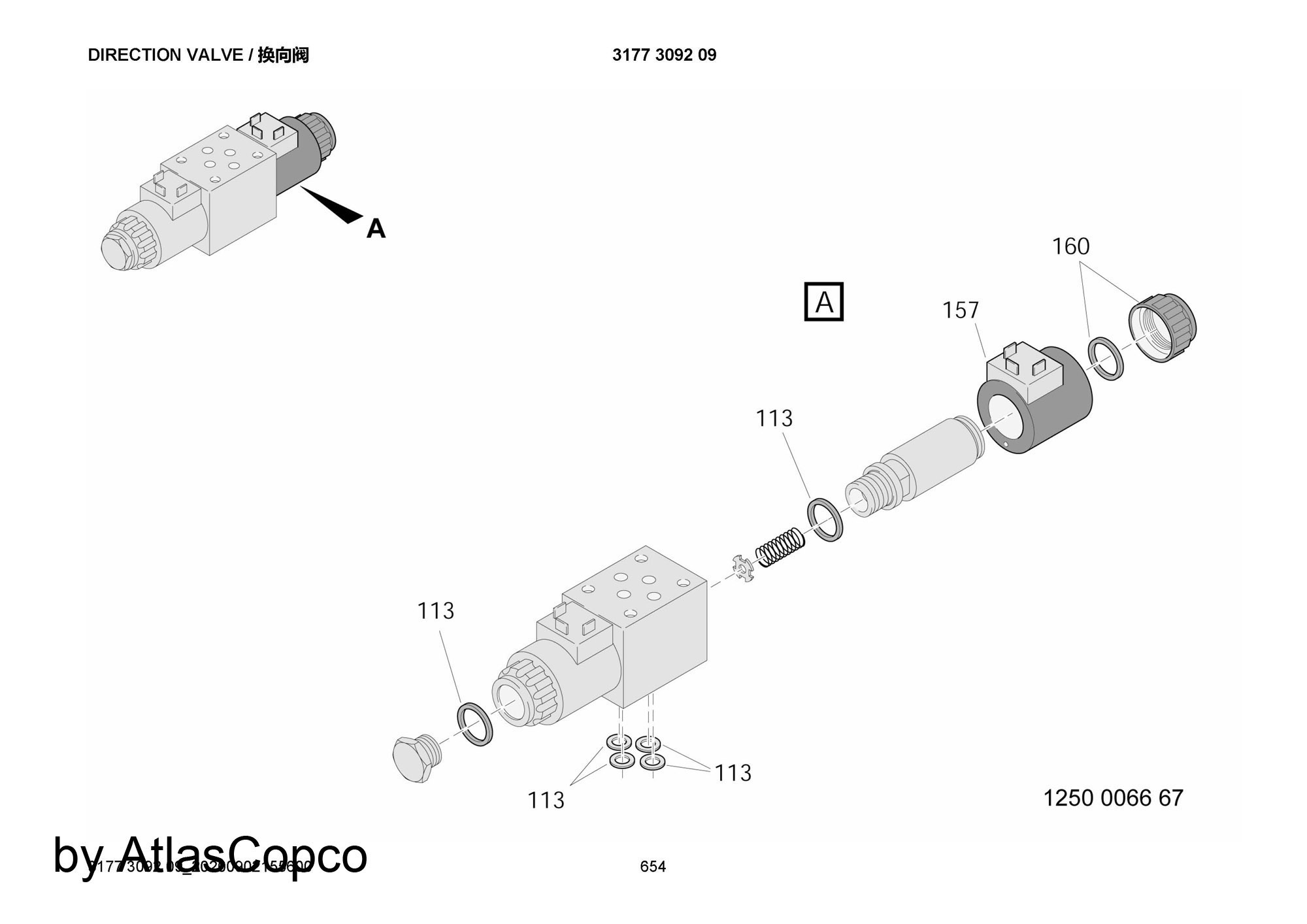

BOOMER K111 DIRECTION VALVE #12747
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309209
DIRECTION VALVE
113
3222305858
SEAL KIT
157
6060002411
COIL
160
3177309254
NUT SET
BOOMER K111 DIRECTION VALVE #13315
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309209
DIRECTION VALVE
113
3222305858
SEAL KIT
157
6060002411
COIL
160
3177309254
NUT SET

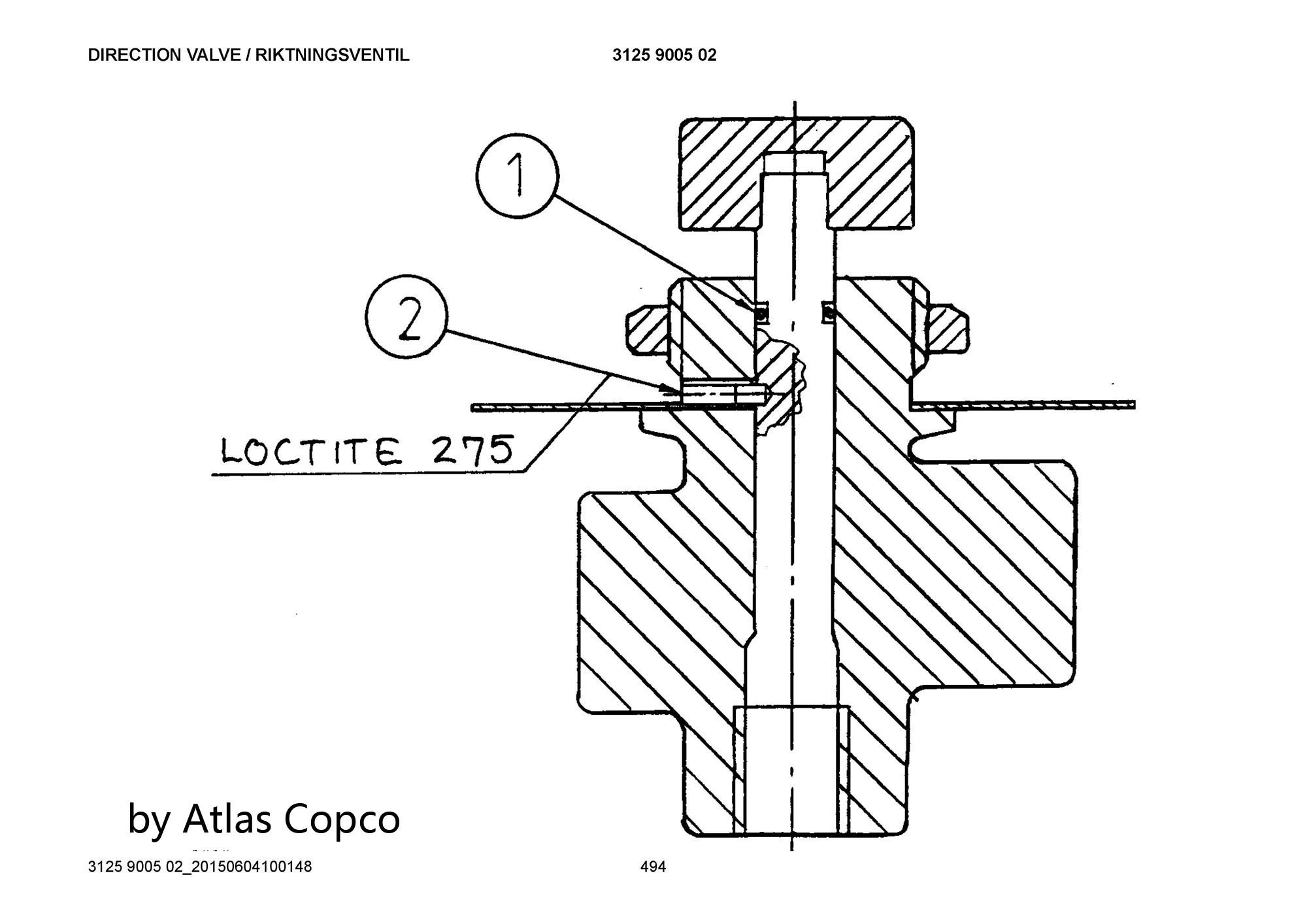

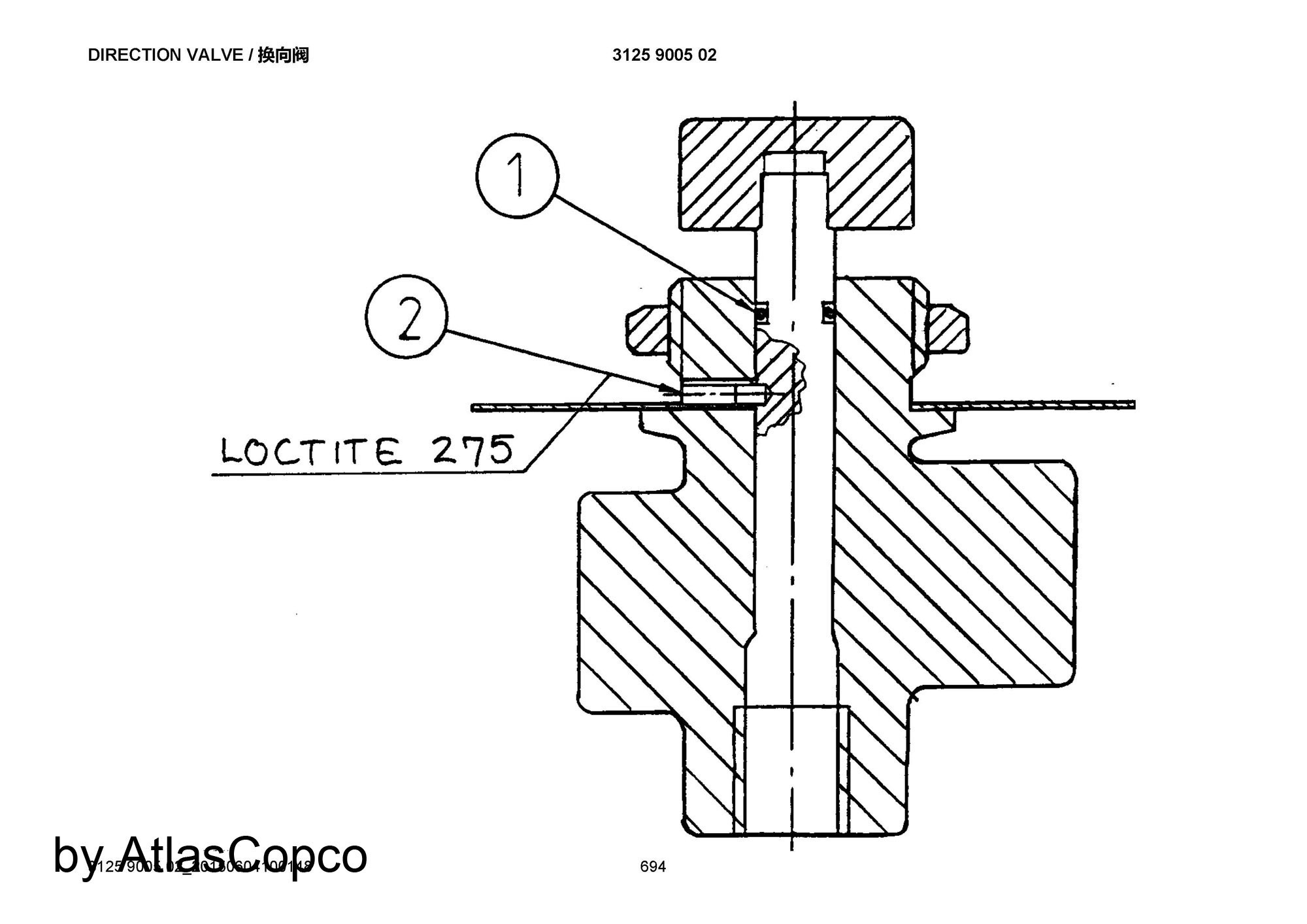

BOOMER K111 DIRECTION VALVE #13417
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3125900502
DIRECTION VALVE
1
0663210846
O RING
2
0192117000
SET SCREW
BOOMER K111 DIRECTION VALVE #13426
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3125900502
DIRECTION VALVE
1
0663210846
O RING
2
0192117000
SET SCREW
BOOMER K111 DIRECTION VALVE #13629
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
2
3177309209
DIRECTION VALVE
3
0211122300
SCREW
4
3217908207
PRESS.REL.VALVE
5
0570519105
TEST CONNECTION
7
3177307700
CONNECT. PLATE
8
5112317988
VALVE ATTM.
BOOMER K111 DIRECTION VALVE #13979
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
2
3177309209
DIRECTION VALVE
3
0211122300
SCREW
4
3217908207
PRESS.REL.VALVE
5
0570519105
TEST CONNECTION
6
3177301600
COUPLING
7
3177307700
CONNECT. PLATE
8
5112317988
VALVE ATTM.

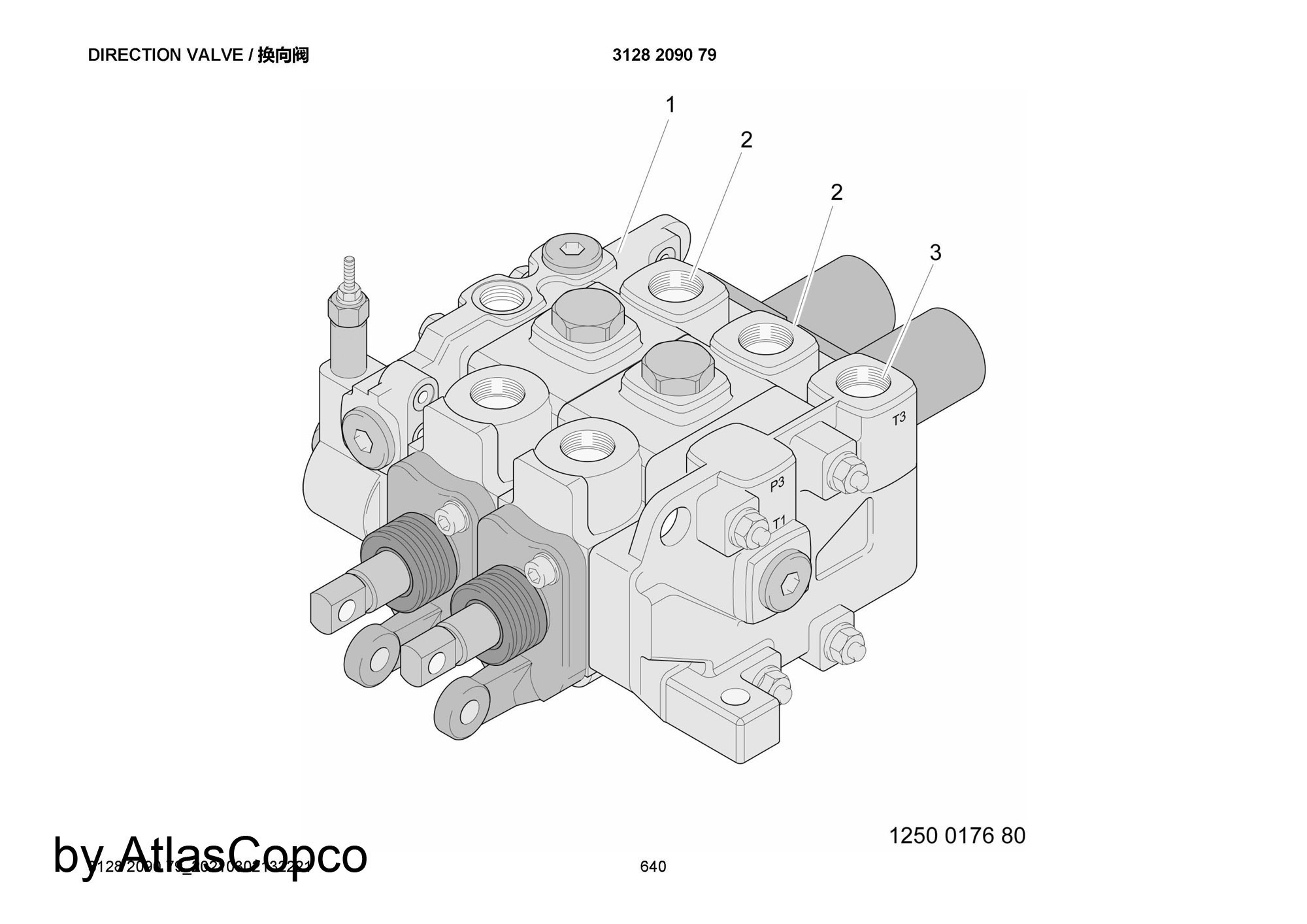

BOOMER K111 DIRECTION VALVE #20774
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209079
DIRECTION VALVE

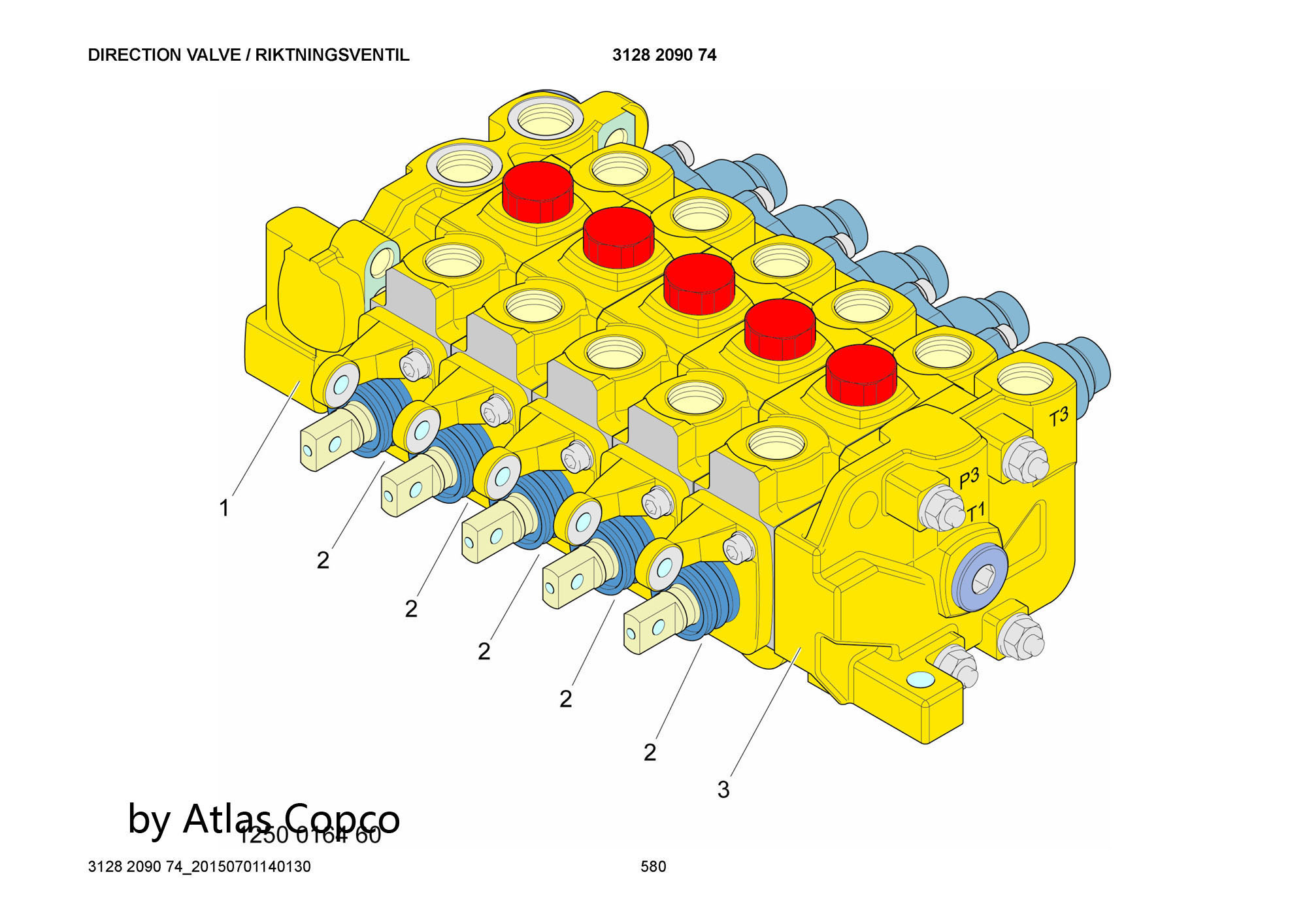

BOOMER K111 DIRECTION VALVE #20782
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209074
DIRECTION VALVE
1
3128209101
INLET SECTION
2
3128209138
SPOOL VALVE

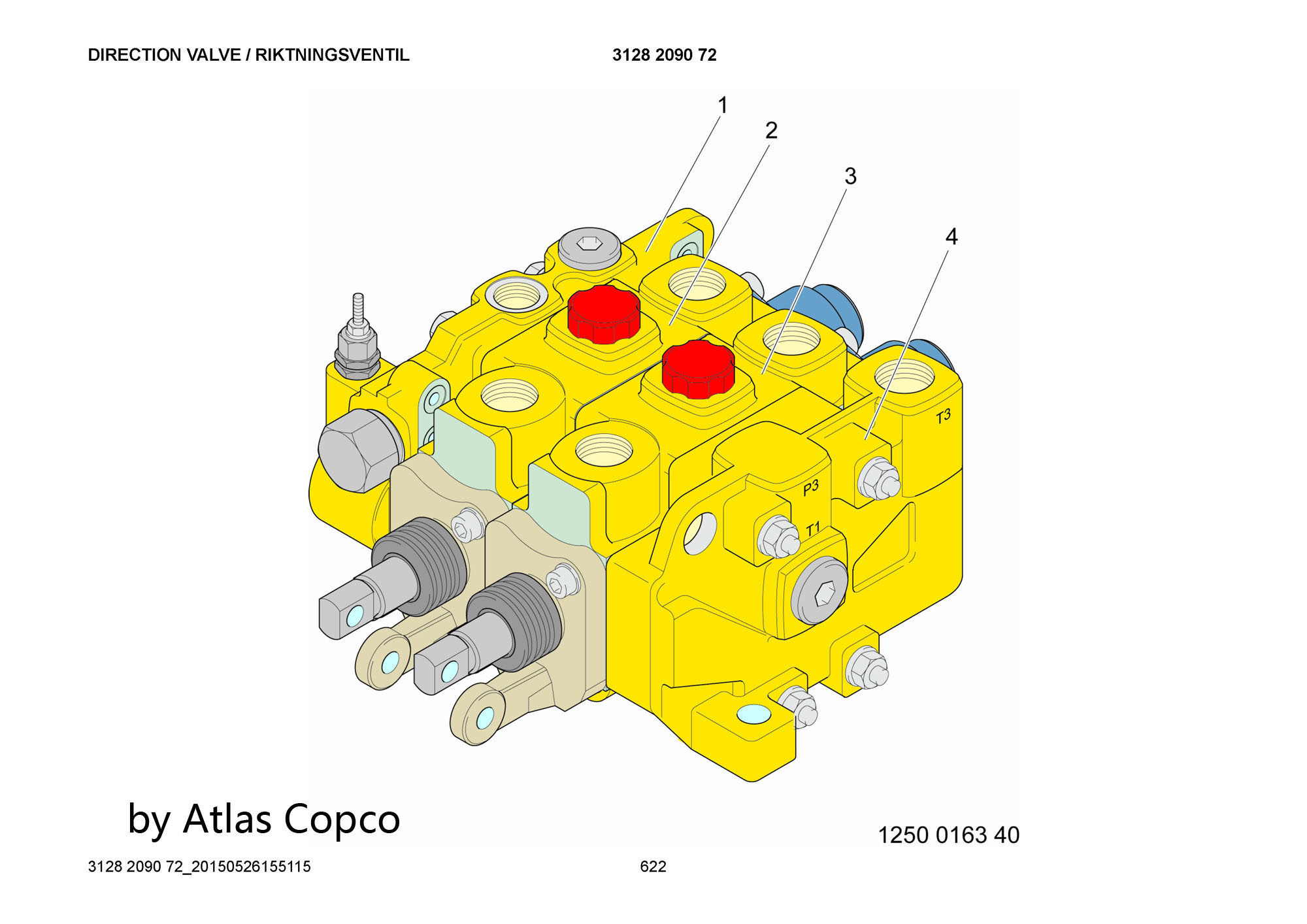

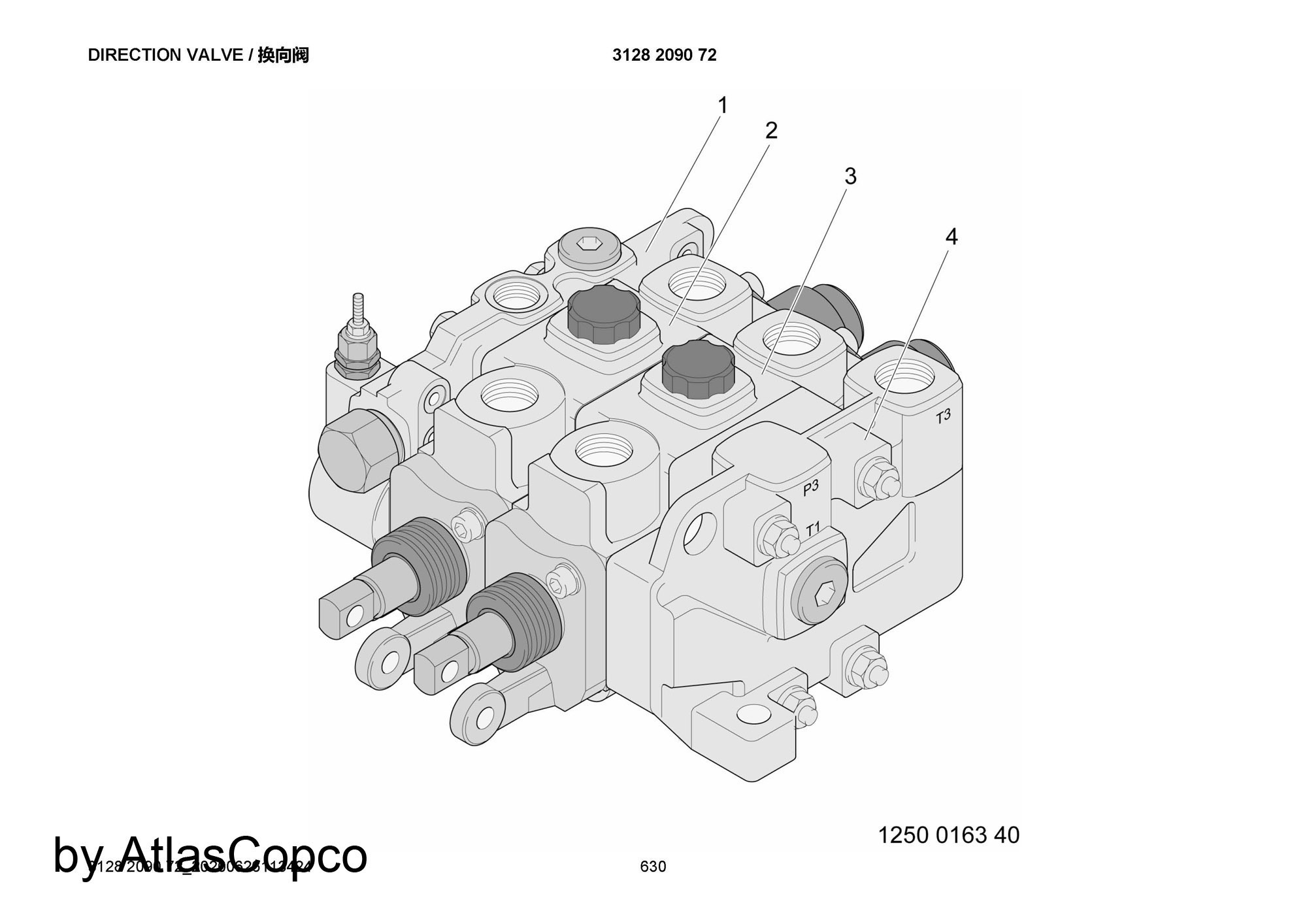

BOOMER K111 DIRECTION VALVE #20847
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209072
DIRECTION VALVE
1
3128209122
INLET SECTION
2
3128209102
VALVE SECTION
BOOMER K111 DIRECTION VALVE #20962
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209057
DIRECTION VALVE
BOOMER K111 DIRECTION VALVE #21030
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209072
DIRECTION VALVE
1
3128209122
INLET SECTION
2
3128209102
VALVE SECTION

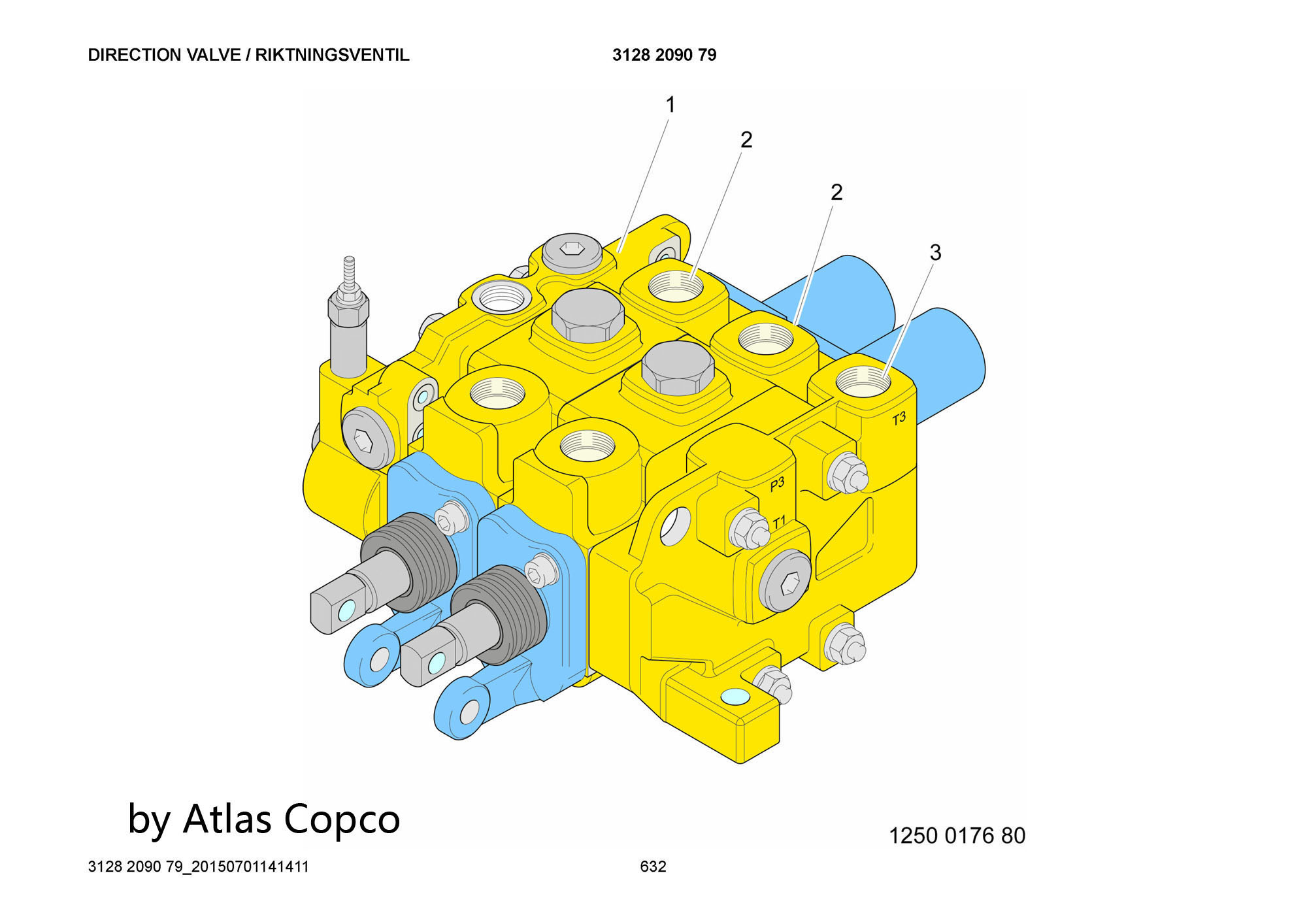

BOOMER K111 DIRECTION VALVE #21046
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209079
DIRECTION VALVE
1
3128209122
INLET SECTION
3
3128209124
OUTLET SECTION

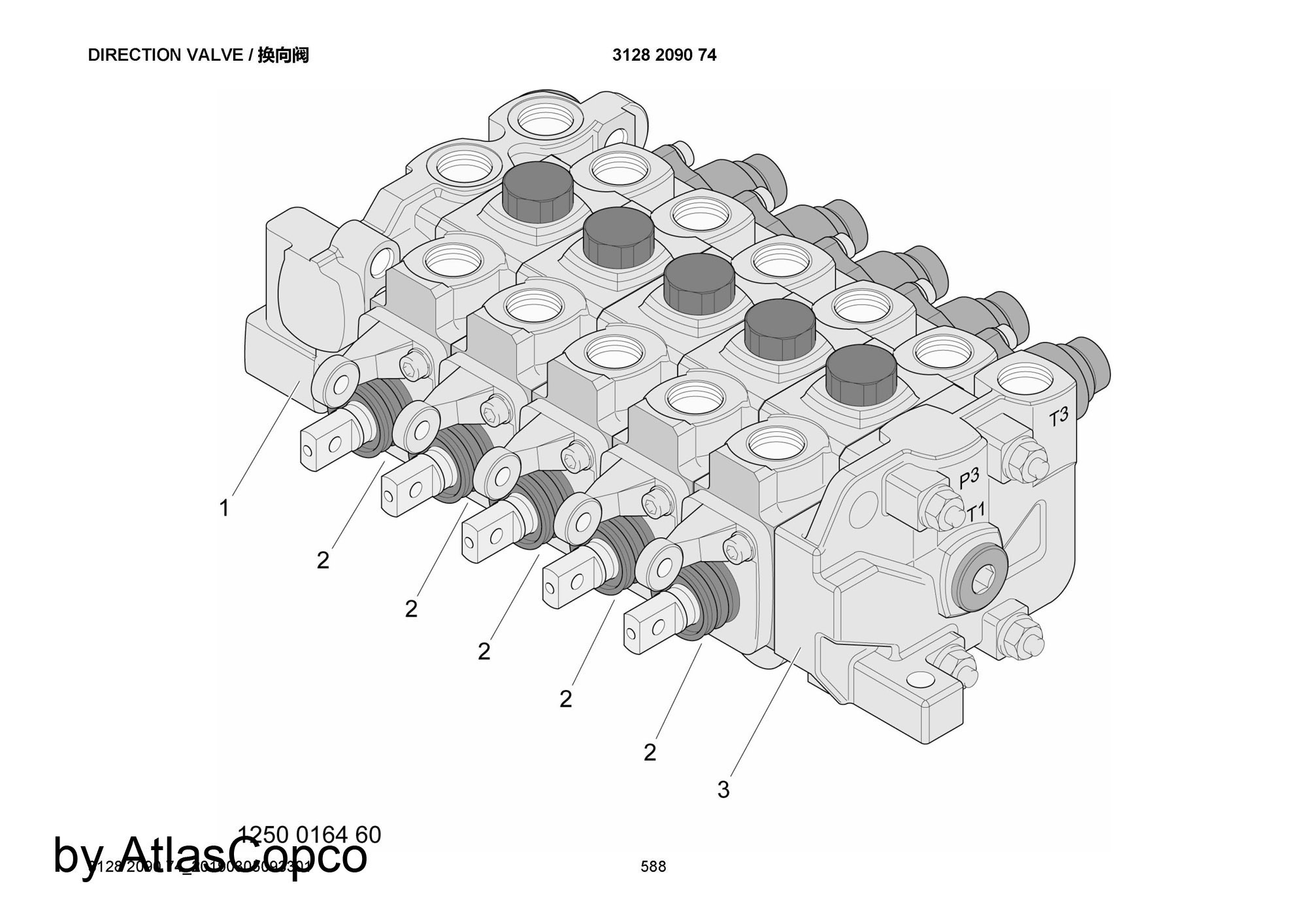

BOOMER K111 DIRECTION VALVE #21122
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209074
DIRECTION VALVE
1
3128209101
INLET SECTION
2
3128209138
SPOOL VALVE

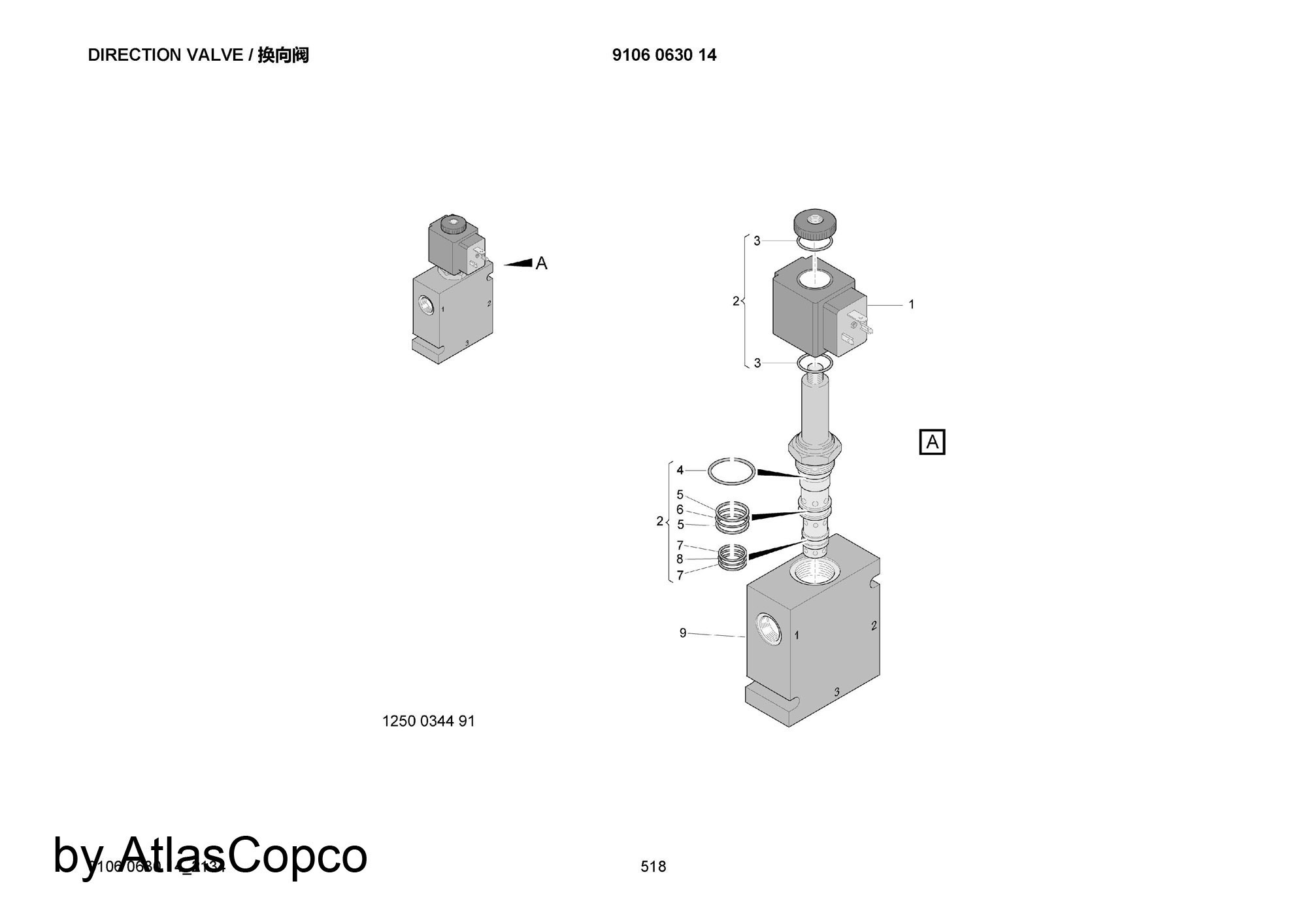

BOOMER K111 DIRECTION VALVE #21129
BOOMER K111 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
9106063014
DIRECTION VALVE
1
3222310610
SOLENOID
2
3128308731
SEAL KIT
