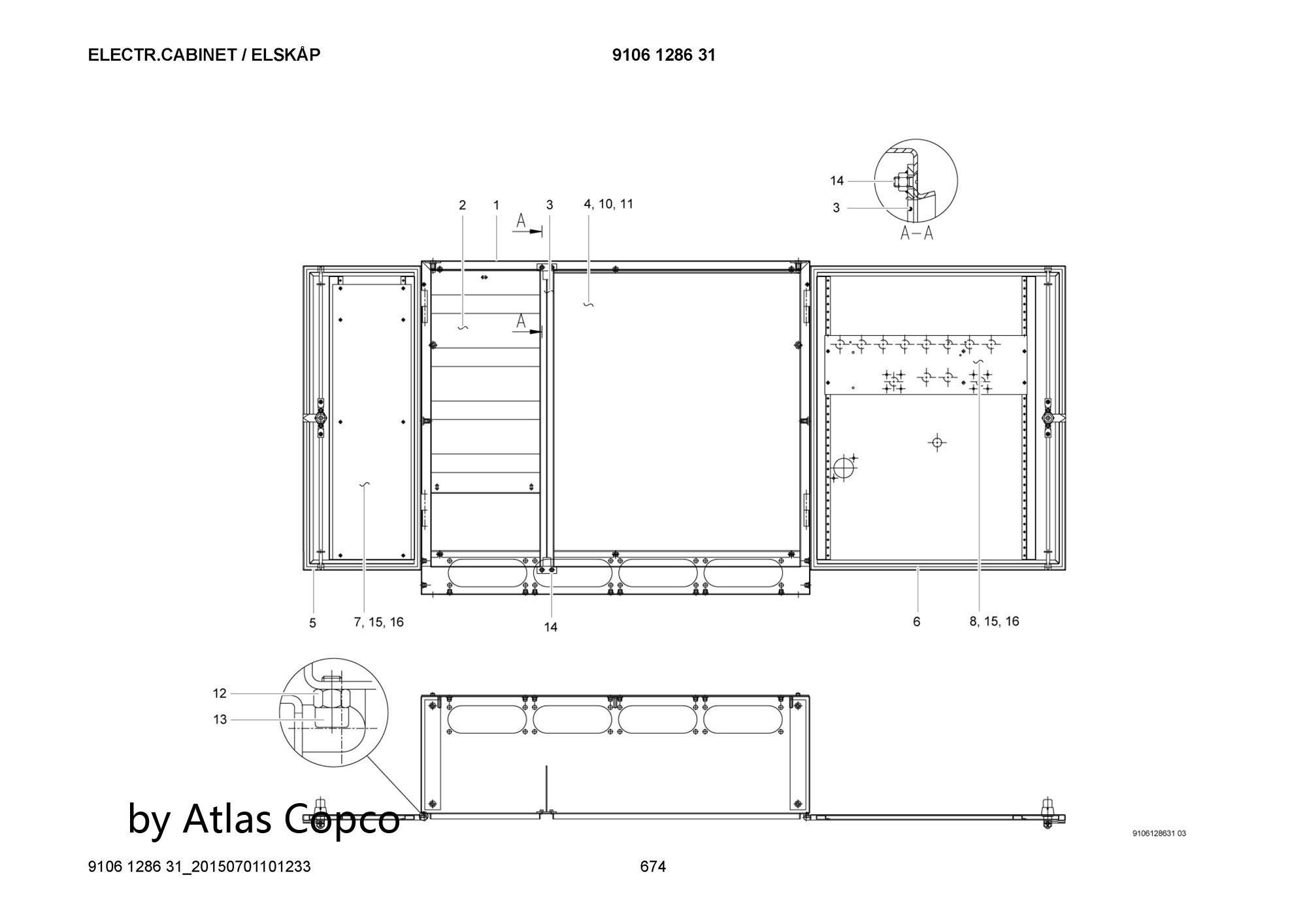

BOOMER K111 ELECTR.CABINET #11768
BOOMER K111 ELECTR.CABINET
ads
Ref
Parts Num
Name
0
9106128631
ELECTR.CABINET
1
9106128640
CABINET
2
9106128644
TOUCH GUARD
3
9106128647
SLIDE
4
9106128662
MOUNTING PLATE
5
9106128642
DOOR
6
9106128641
DOOR
7
9106128663
MOUNTING PLATE
8
9106128664
MOUNTING PLATE
10
0301233500
PLAIN WASHER
11
0266211000
NUT
12
0266210700
NUT
13
0211120503
HEX SOCK. SCREW
14
0162420500
SCREW. SLOTTED
15
0226035005
TAPPING SCREW
16
0301231800
PLAIN WASHER
BOOMER K111 ELECTR.CABINET #12155
BOOMER K111 ELECTR.CABINET
ads
Ref
Parts Num
Name
1
5724002381
ELECTR.CABINET
2
0392111002
DAMPER
3
0147136003
SCREW. HEX HEAD
4
0147135903
SCREW. HEX HEAD
5
0301234400
PLAIN WASHER
9
6060012002
EMERGENCY SWIT.
10
3176422132
CABLE GLAND
11
9106106939
PROTECTION ROOF

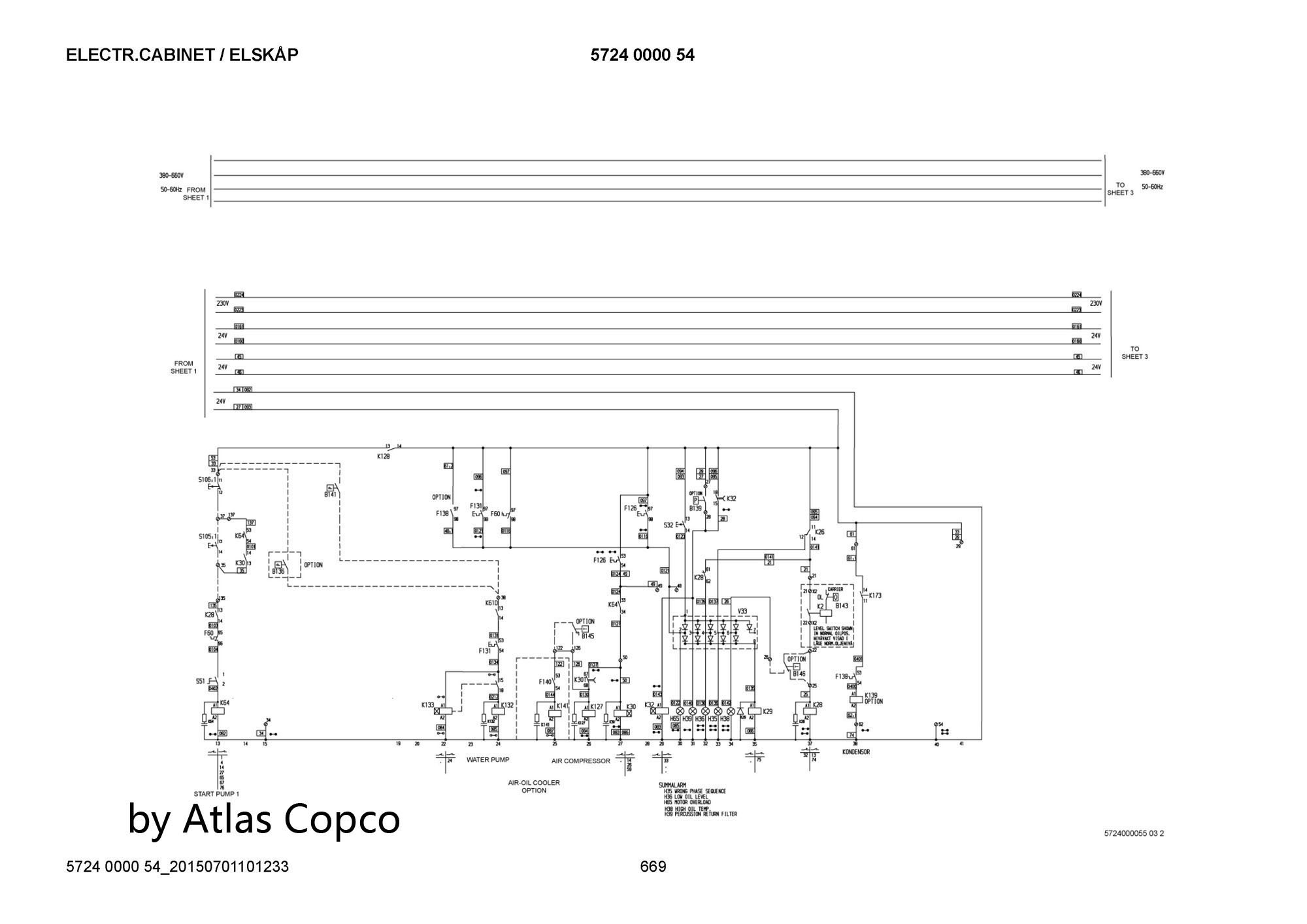

BOOMER K111 ELECTR.CABINET #12838
BOOMER K111 ELECTR.CABINET
ads
Ref
Parts Num
Name
0
5724000054
ELECTR.CABINET
K127
9111373431
TRANSIENT PROT.
K61Y
5724007855
CONTACTOR
16
3176404911
TERMINAL BLOCK
20
3176404912
END PLATE
17
3176404940
TERMINAL BLOCK
K29
3176410800
DIODE
F66
3176425801
MIN CIRC BREAK
K29
3176426101
RELAY
K29
3176432402
RELAY SOCKET
21
3176449103
MARKING PLATE
22
3176449104
MARKING PLATE
S32
3217001002
TRIGGER
H53
3217001045
LAMP CALOTTE
H3
3217001047
LAMP CALOTTE
H35
3217001059
LAMP INSERT
H53
3217001061
LAMP INSERT
F6
3217931155
MOTORPROTECTOR
F19
3217931166
MOTORPROTECTOR
F20
3217931180
MOTORPROTECTOR
K28
3217978753
RELAY
1
9106128631
ELECTR.CABINET
5
9106128644
TOUCH GUARD
K128
9111373410
RELAY
K128
9111373430
TRANSIENT PROT.
K133
3176003527
TIMING RELAY
X1
3176404903
TERMINAL BLOCK
P12
3217927739
VOLT METER
F18
3217931165
MOTORPROTECTOR
T10
5724007840
TRANSFORMER
T62
5724007841
TRANSFORMER
K163
5724007839
RELAY
V33
5724007847
DIODE UNIT
S51
5724007849
SWITCH
K30T
5724007854
TIMING RELAY
K61
9106115763
CONTACTOR
14
3176404902
BRIDGE CONN.
18
3176404951
END SUPPORT
F49
3176449202
MIN CIRC BREAK
F91
3217987302
EARTHFAULTRELAY
12
3176404900
TERMINAL BLOCK
13
3176404901
END PLATE
15
3176404904
TERMINAL BLOCK
Q7
9106112500
MAIN SWITCH
T11
3217951202
TRANSFORMER
T16
3217965615
TRANSFORMER
T50
3217978903
TRANSFORMER
P66
3217965802
HOUR METER
K61
9111373432
TRANSIENT PROT.
ECL
5724007837
RELAY
K28
3035331373
AUX. CONTACT
F17
3176449201
MIN CIRC BREAK
F22
3176449203
MIN CIRC BREAK
F67
3176449204
MIN CIRC BREAK
H35
3217001072
INTERMED. PART
K26
3217970806
PHASE SEQ.RELAY
K10
5724007836
EARTHFAULTRELAY
ECL
5724007838
RELAY
U180
5724007844
POWER SUPPLY
U68
5724007845
RECTIFIER
C69
5724007846
CONDENSER
K127
9106115702
CONTACTOR
U158
5724007843
BATTERY CHARGER
BOOMER K111 ELECTR.CABINET #12926
BOOMER K111 ELECTR.CABINET
ads
Ref
Parts Num
Name
0
5724000054
ELECTR.CABINET
K127
9111373431
TRANSIENT PROT.
K61Y
5724007855
CONTACTOR
16
3176404911
TERMINAL BLOCK
20
3176404912
END PLATE
17
3176404940
TERMINAL BLOCK
K29
3176410800
DIODE
F66
3176425801
MIN CIRC BREAK
K29
3176426101
RELAY
K29
3176432402
RELAY SOCKET
21
3176449103
MARKING PLATE
22
3176449104
MARKING PLATE
S32
3217001002
TRIGGER
H53
3217001045
LAMP CALOTTE
H35
3217001047
LAMP CALOTTE
H36
3217001059
LAMP INSERT
H53
3217001061
LAMP INSERT
F6
3217931155
MOTORPROTECTOR
F19
3217931166
MOTORPROTECTOR
F20
3217931180
MOTORPROTECTOR
K28
3217978753
RELAY
1
9106128631
ELECTR.CABINET
5
9106128644
TOUCH GUARD
K128
9111373410
RELAY
K128
9111373430
TRANSIENT PROT.
K133
3176003527
TIMING RELAY
X1
3176404903
TERMINAL BLOCK
P12
3217927739
VOLT METER
F18
3217931165
MOTORPROTECTOR
T10
5724007840
TRANSFORMER
T62
5724007841
TRANSFORMER
K163
5724007839
RELAY
V33
5724007847
DIODE UNIT
S51
5724007849
SWITCH
K30T
5724007854
TIMING RELAY
K61
9106115763
CONTACTOR
14
3176404902
BRIDGE CONN.
18
3176404951
END SUPPORT
F49
3176449202
MIN CIRC BREAK
F91
3217987302
EARTHFAULTRELAY
12
3176404900
TERMINAL BLOCK
13
3176404901
END PLATE
15
3176404904
TERMINAL BLOCK
Q7
9106112500
MAIN SWITCH
T11
3217951202
TRANSFORMER
T16
3217965615
TRANSFORMER
T50
3217978903
TRANSFORMER
P66
3217965802
HOUR METER
K61
9111373432
TRANSIENT PROT.
ECL
5724007837
RELAY
K28
3035331373
AUX. CONTACT
F17
3176449201
MIN CIRC BREAK
F22
3176449203
MIN CIRC BREAK
F67
3176449204
MIN CIRC BREAK
H37
3217001072
INTERMED. PART
K26
3217970806
PHASE SEQ.RELAY
K10
5724007836
EARTHFAULTRELAY
ECL
5724007838
RELAY
U180
5724007844
POWER SUPPLY
U68
5724007845
RECTIFIER
C69
5724007846
CONDENSER
K127
9106115702
CONTACTOR
U158
5724007843
BATTERY CHARGER
BOOMER K111 ELECTR.CABINET #13320
BOOMER K111 ELECTR.CABINET
ads
Ref
Parts Num
Name
0
5724000054
ELECTR.CABINET
K127
9111373431
TRANSIENT PROT.
K61Y
5724007855
CONTACTOR
16
3176404911
TERMINAL BLOCK
20
3176404912
END PLATE
17
3176404940
TERMINAL BLOCK
K29
3176410800
DIODE
F66
3176425801
MIN CIRC BREAK
K29
3176426101
RELAY
K29
3176432402
RELAY SOCKET
21
3176449103
MARKING PLATE
22
3176449104
MARKING PLATE
S32
3217001002
TRIGGER
H53
3217001045
LAMP CALOTTE
H35
3217001047
LAMP CALOTTE
H35
3217001059
LAMP INSERT
H53
3217001061
LAMP INSERT
F6
3217931155
MOTORPROTECTOR
F19
3217931166
MOTORPROTECTOR
F20
3217931180
MOTORPROTECTOR
K28
3217978753
RELAY
1
9106128631
ELECTR.CABINET
5
9106128644
TOUCH GUARD
K128
9111373410
RELAY
K128
9111373430
TRANSIENT PROT.
K133
3176003527
TIMING RELAY
X1
3176404903
TERMINAL BLOCK
P12
3217927739
VOLT METER
F18
3217931165
MOTORPROTECTOR
T10
5724007840
TRANSFORMER
T62
5724007841
TRANSFORMER
K163
5724007839
RELAY
V33
5724007847
DIODE UNIT
S51
5724007849
SWITCH
K30T
5724007854
TIMING RELAY
K61
9106115763
CONTACTOR
14
3176404902
BRIDGE CONN.
18
3176404951
END SUPPORT
F49
3176449202
MIN CIRC BREAK
F91
3217987302
EARTHFAULTRELAY
12
3176404900
TERMINAL BLOCK
13
3176404901
END PLATE
15
3176404904
TERMINAL BLOCK
Q7
9106112500
MAIN SWITCH
T11
3217951202
TRANSFORMER
T16
3217965615
TRANSFORMER
T50
3217978903
TRANSFORMER
P66
3217965802
HOUR METER
K61
9111373432
TRANSIENT PROT.
ECL
5724007837
RELAY
K28
3035331373
AUX. CONTACT
F17
3176449201
MIN CIRC BREAK
F22
3176449203
MIN CIRC BREAK
F67
3176449204
MIN CIRC BREAK
H35
3217001072
INTERMED. PART
K26
3217970806
PHASE SEQ.RELAY
K10
5724007836
EARTHFAULTRELAY
ECL
5724007838
RELAY
U180
5724007844
POWER SUPPLY
U68
5724007845
RECTIFIER
C69
5724007846
CONDENSER
K127
9106115702
CONTACTOR
U158
5724007843
BATTERY CHARGER
BOOMER K111 ELECTR.CABINET #13510
BOOMER K111 ELECTR.CABINET
ads
Ref
Parts Num
Name
0
9106128631
ELECTR.CABINET
1
9106128640
CABINET
2
9106128644
TOUCH GUARD
3
9106128647
SLIDE
5
9106128642
DOOR
6
9106128641
DOOR
7
9106128663
MOUNTING PLATE
8
9106128664
MOUNTING PLATE
11
0266211000
NUT
12
0266210700
NUT
13
0211120503
HEX SOCK. SCREW
14
0162420500
SCREW. SLOTTED
15
0226035005
TAPPING SCREW
16
0301231800
PLAIN WASHER
