BOOMER K41 Pages
1. EPIROC - BOOMER K41 DIRECTION VALVE #15087
2. EPIROC - BOOMER K41 DIRECTION VALVE #15235
3. EPIROC - BOOMER K41 DIRECTION VALVE #16110
4. EPIROC - BOOMER K41 DIRECTION VALVE #16219
5. EPIROC - BOOMER K41 DIRECTION VALVE #16264
6. EPIROC - BOOMER K41 DIRECTION VALVE #16306
7. EPIROC - BOOMER K41 DIRECTION VALVE #21193
8. EPIROC - BOOMER K41 DIRECTION VALVE #21242
9. EPIROC - BOOMER K41 DIRECTION VALVE #21247
10. EPIROC - BOOMER K41 DIRECTION VALVE #21254
11. EPIROC - BOOMER K41 DIRECTION VALVE #21400
12. EPIROC - BOOMER K41 DIRECTION VALVE #21436

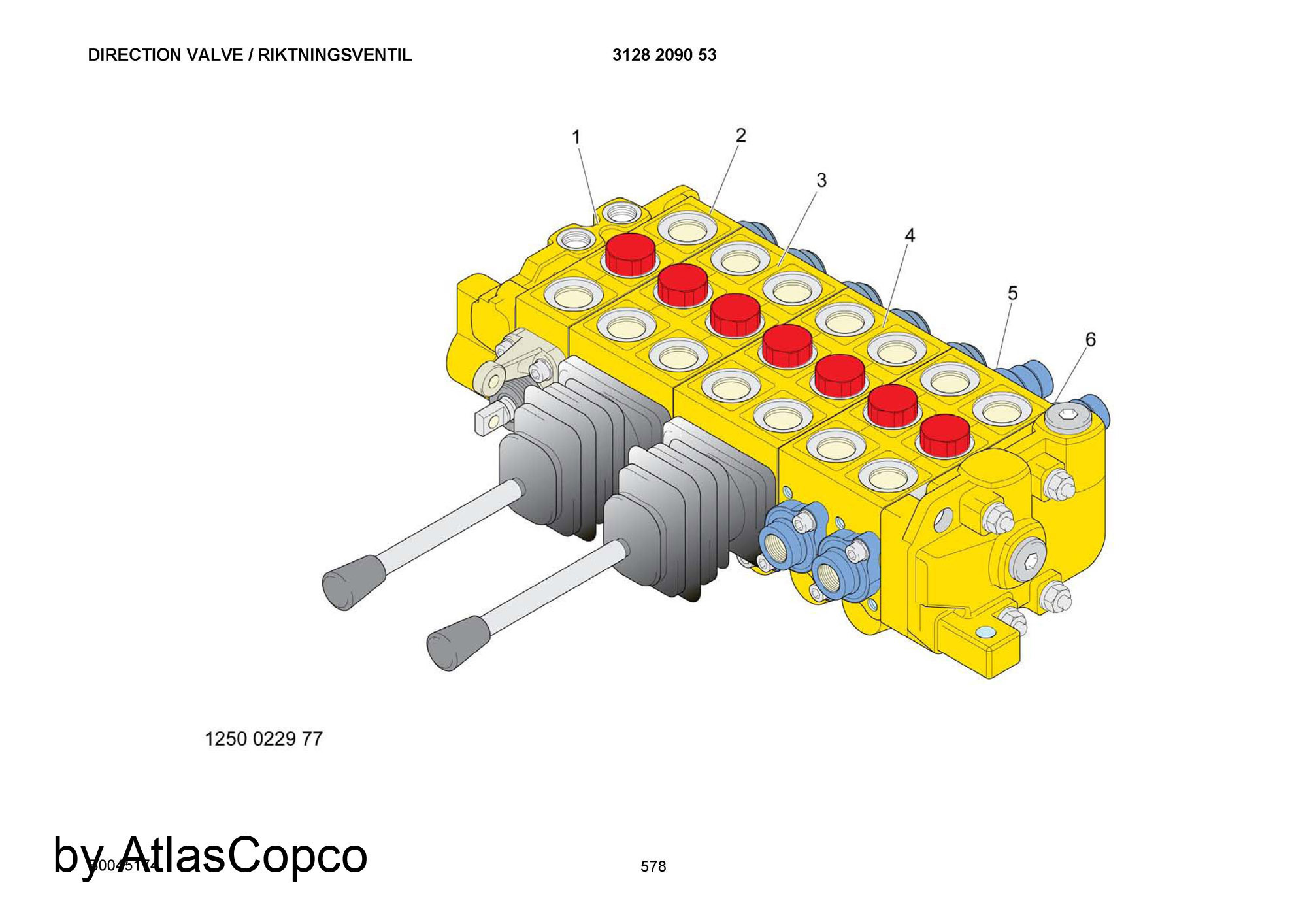

BOOMER K41 DIRECTION VALVE #15087
BOOMER K41 DIRECTION VALVE
ads
Ref
Parts Num
Name
1
3128209053
DIRECTION VALVE
2
8234020037
PR.CONTR.VALVE
3
0147124903
SCREW. HEX HEAD
4
0291112815
LOCK NUT
5
3176651300
NIPPLE
6
3715634400
NIPPLE
7
3176850500
RESTRICTION
8
3128228101
FLOW REGULATOR
9
0147137103
SCREW. HEX HEAD
10
0291112820
LOCK NUT
11
3176659500
NIPPLE
12
3222317276
HAND LEVER
13
3222318594
LEVER
20
9110995652
HOSE SET
BOOMER K41 DIRECTION VALVE #15235
BOOMER K41 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209094
DIRECTION VALVE
0
3128209152
SEAL KIT
6
3128209153
O-RING
7
3128209154
O-RING
12
3128209155
O-RING
15
3128209156
PRESS.REL.VALVE
16
6060000901
RESTRICT SCREW
17
6060000902
RESTRICT SCREW
30
3128209157
COVER
35
3128209158
O-RING
36
3128209159
SHOCK VALVE
43
3128209160
HOUSE

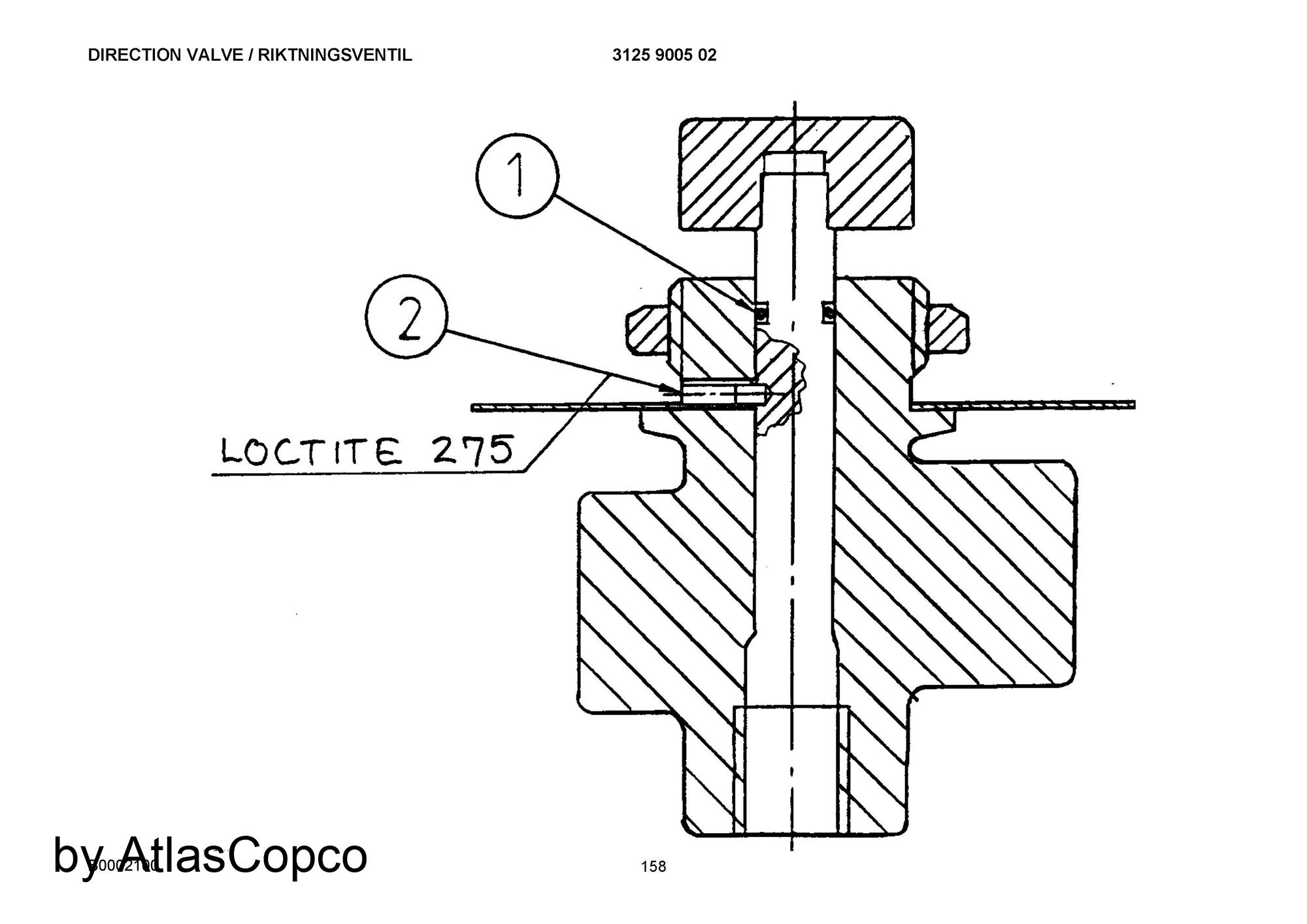

BOOMER K41 DIRECTION VALVE #16110
BOOMER K41 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3125900502
DIRECTION VALVE
1
0663210846
O RING
2
0192117000
SET SCREW

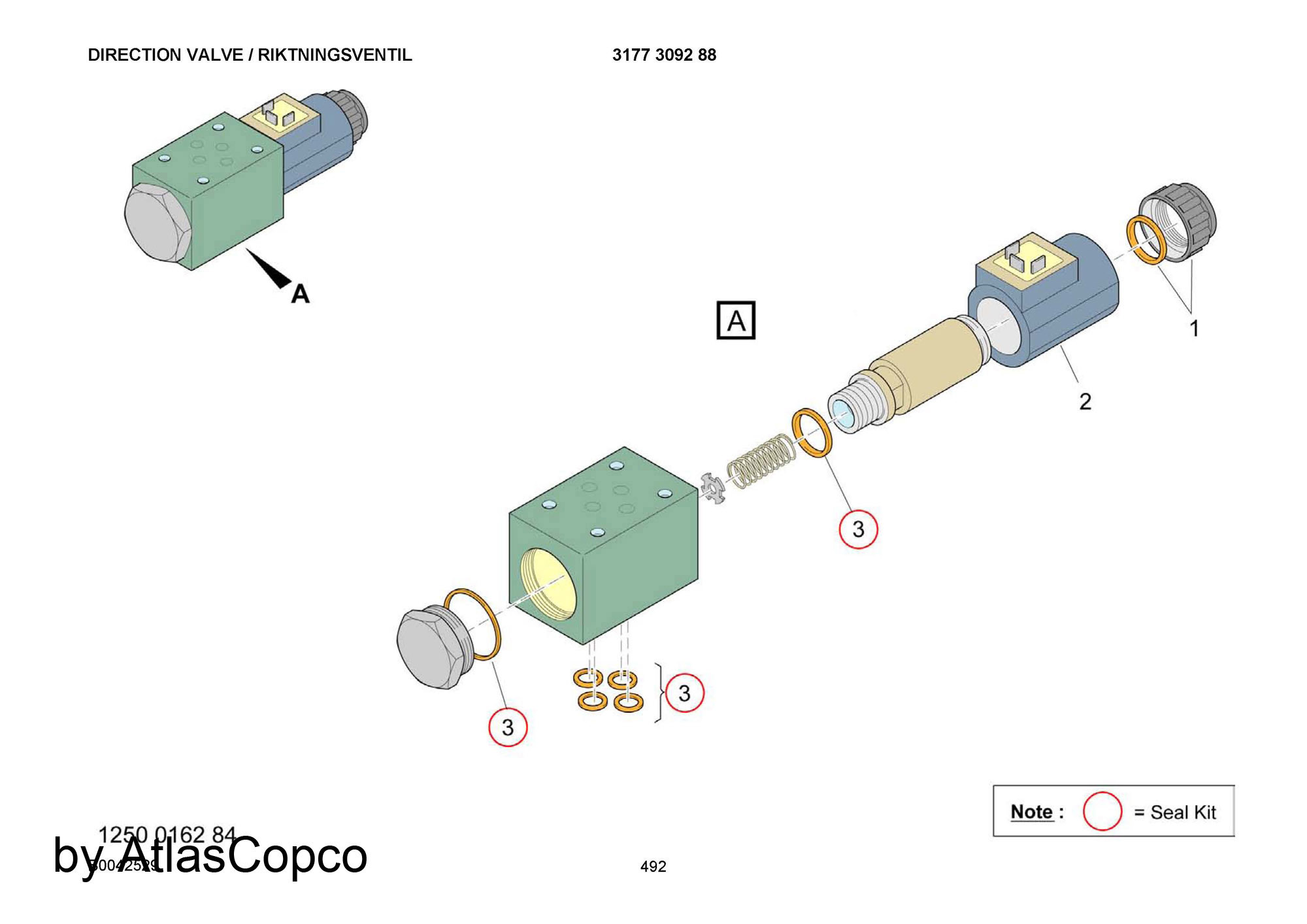

BOOMER K41 DIRECTION VALVE #16219
BOOMER K41 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309288
DIRECTION VALVE
1
3177309257
NUT SET
2
3177309255
COIL
3
3177309256
SEAL KIT
BOOMER K41 DIRECTION VALVE #16264
BOOMER K41 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309209
DIRECTION VALVE
113
3222305858
SEAL KIT
157
3177309252
COIL
160
3177309254
NUT SET
BOOMER K41 DIRECTION VALVE #16306
BOOMER K41 DIRECTION VALVE
ads
Ref
Parts Num
Name
2
3177309209
DIRECTION VALVE
3
4090063000
HEX SOCK. SCREW
4
3217908207
PRESS.REL.VALVE
5
0570519105
TEST CONNECTION
6
3177301600
COUPLING
7
3177307700
CONNECT. PLATE
8
5112317988
VALVE ATTM.
BOOMER K41 DIRECTION VALVE #21193
BOOMER K41 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3214897280
DIRECTION VALVE
0
6060002049
LEVER SET
0
3217848303
SEAL KIT

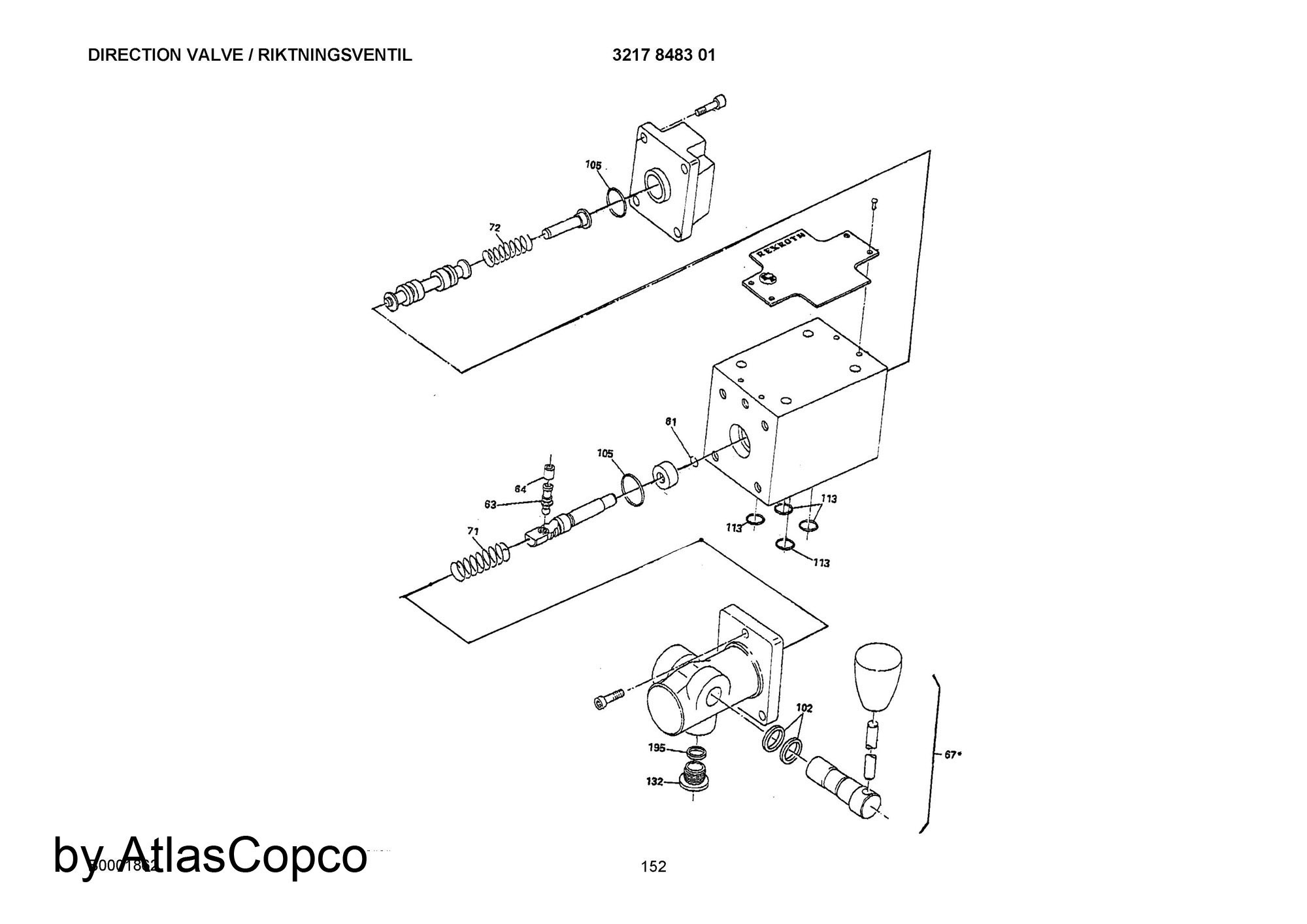

BOOMER K41 DIRECTION VALVE #21242
BOOMER K41 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3217848301
DIRECTION VALVE
0
6060002049
LEVER SET
0
3217848303
SEAL KIT

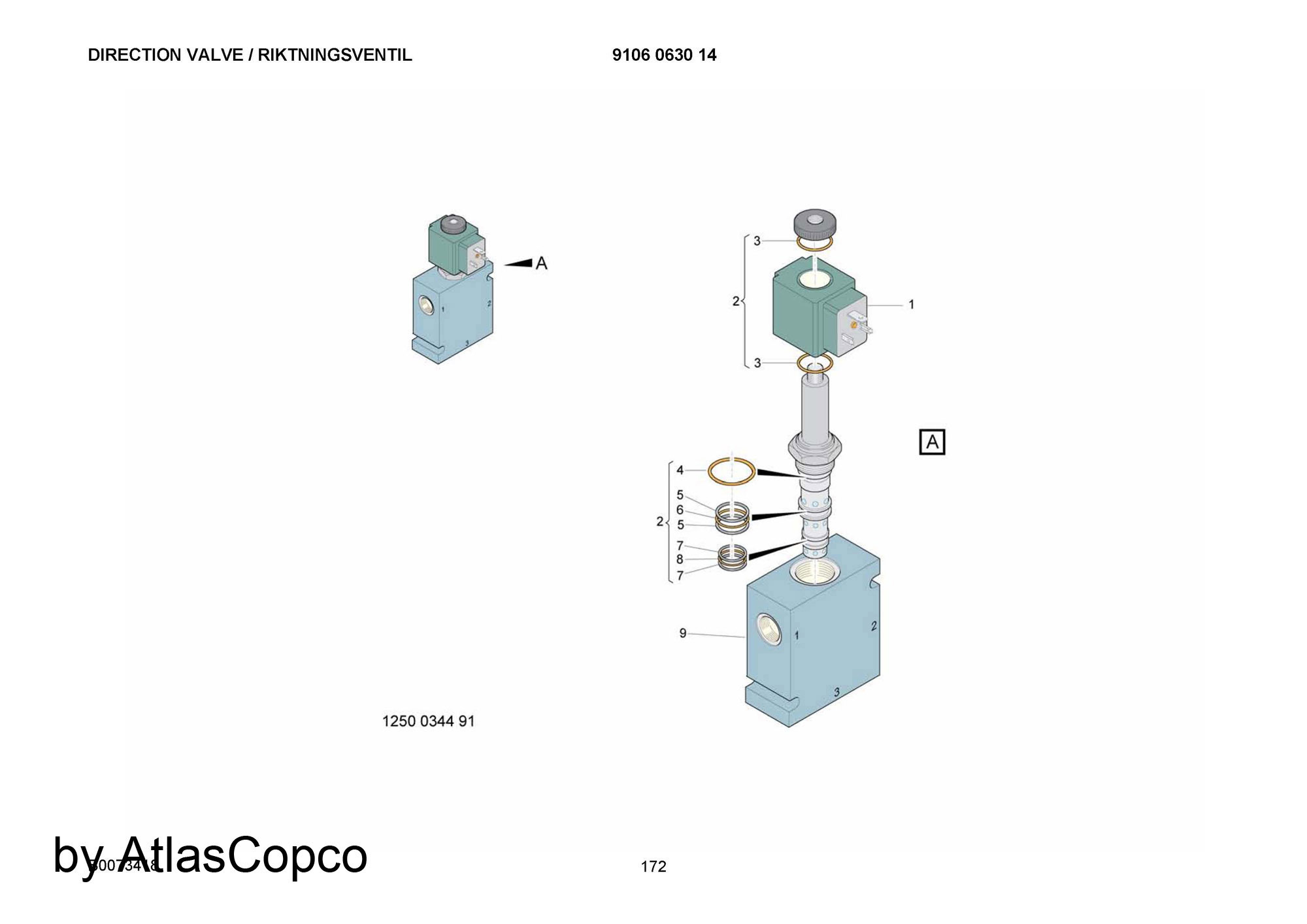

BOOMER K41 DIRECTION VALVE #21247
BOOMER K41 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
9106063014
DIRECTION VALVE
1
3222310610
SOLENOID
2
3128308731
SEAL KIT
BOOMER K41 DIRECTION VALVE #21254
BOOMER K41 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209053
DIRECTION VALVE
BOOMER K41 DIRECTION VALVE #21400
BOOMER K41 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
9106063014
DIRECTION VALVE
1
3222310610
SOLENOID
2
3128308731
SEAL KIT
BOOMER K41 DIRECTION VALVE #21436
BOOMER K41 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
9106063014
DIRECTION VALVE
1
3222310610
SOLENOID
2
3128308731
SEAL KIT
