BOOMER K41 SEAL KIT #14185
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
9106161159
SEAL KIT
0
3222330934
KIT
0
3222326498
LEVER HOLDER
4
9120029202
PRESS.REL.VALVE
10
3128209105
CHECK VALVE
13
3222326501
SPRING
16
9120029206
PRESS.REL.VALVE
BOOMER K41 SEAL KIT #14346
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
5112287866
SEAL KIT
9
5112310222
QUAD RING
10
5112287868
O RING
11
5112287869
O RING
12
5112287773
PRESS.REL.VALVE
13
5112310959
VALVE
14
5112287872
VALVE
15
5112287873
VALVE

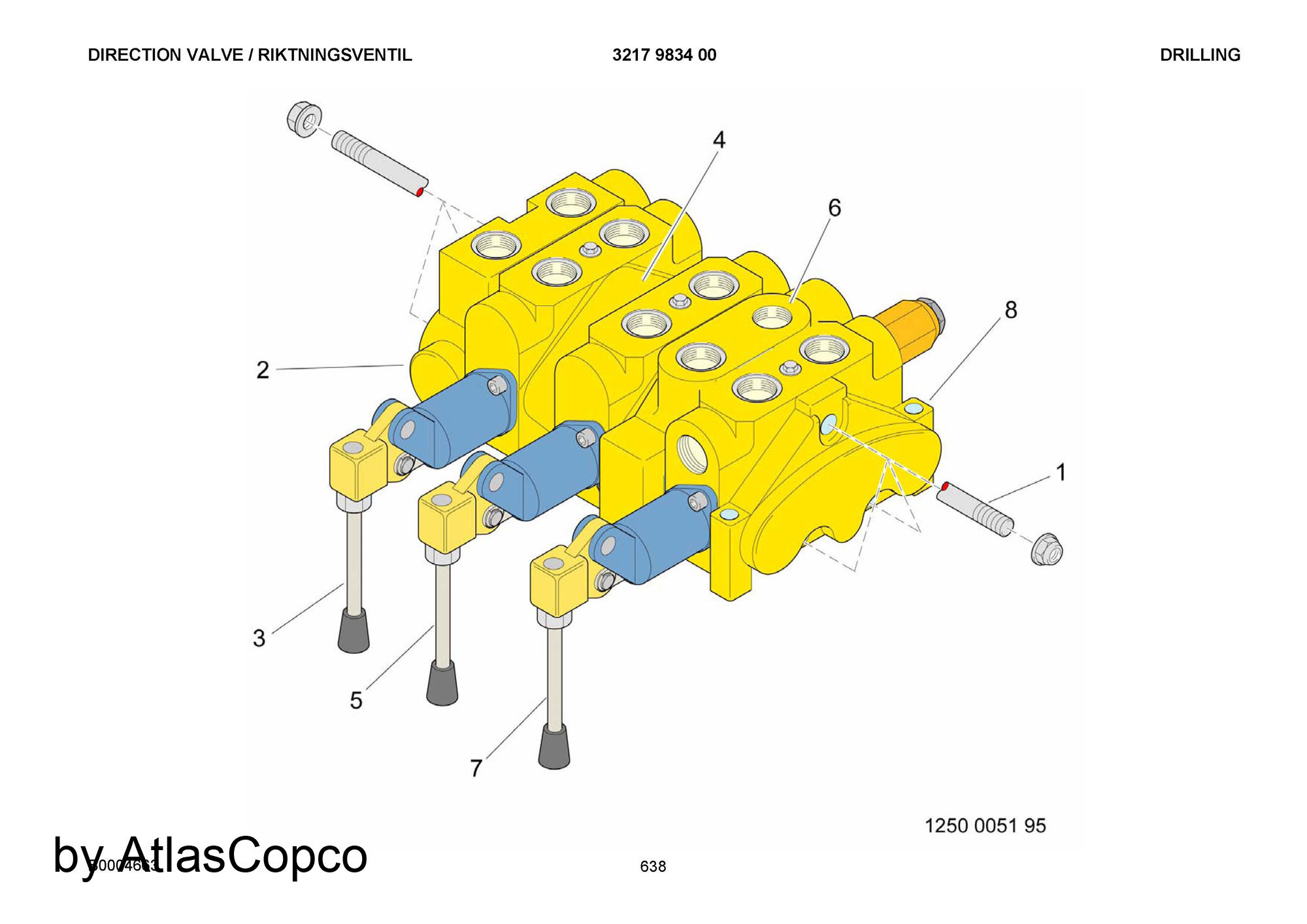

BOOMER K41 SEAL KIT #14503
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
3217983409
SEAL KIT
0
3217983400
DIRECTION VALVE
1
3217983401
PULL ROD SET
2
3217983405
INLET SECTION
3
3217983410
CONTROL SET
4
3217983430
INTERMED. PART
5
3217983435
CONTROL SET
6
3217983440
INTERMED. PART
7
3217983445
CONTROL SET
8
3217983451
COVER

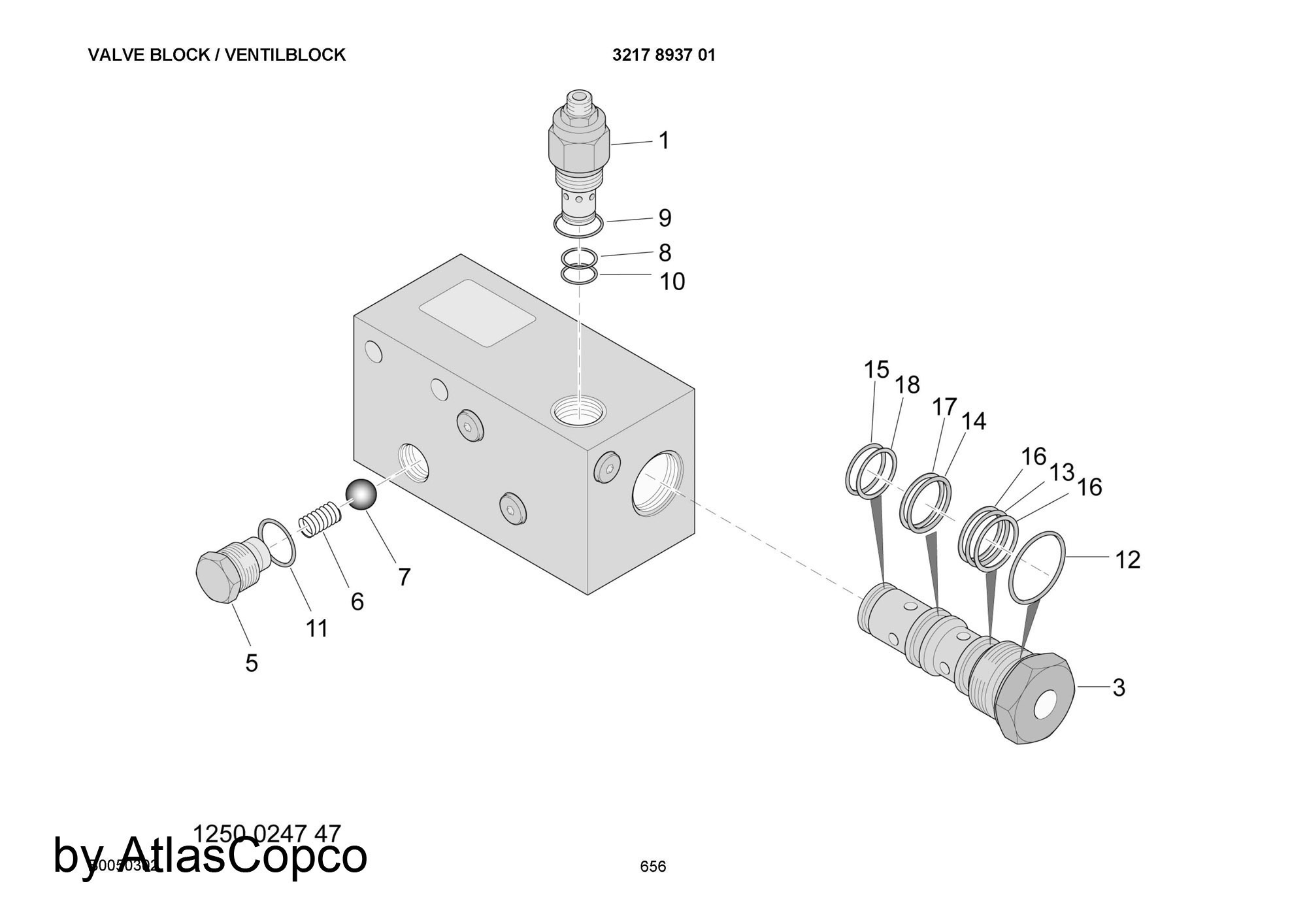

BOOMER K41 SEAL KIT #14704
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
3217893711
SEAL KIT
0
9106149204
SEAL KIT
0
3128302428
CHECK VALVE
0
3217893701
VALVE BLOCK
1
3217893713
PRESS.REL.CART.
3
9111377004
PRESS.REGULATOR
11
3128304311
ORING
BOOMER K41 SEAL KIT #14992
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
3222314398
SEAL KIT
0
3222314014
HYDR CYLINDER
1
3222326475
PISTON ROD
3
3222326476
STEERING
4
3222326477
CIRCLIP
6
3222326478
LOCK RING
16
3128317089
PISTON

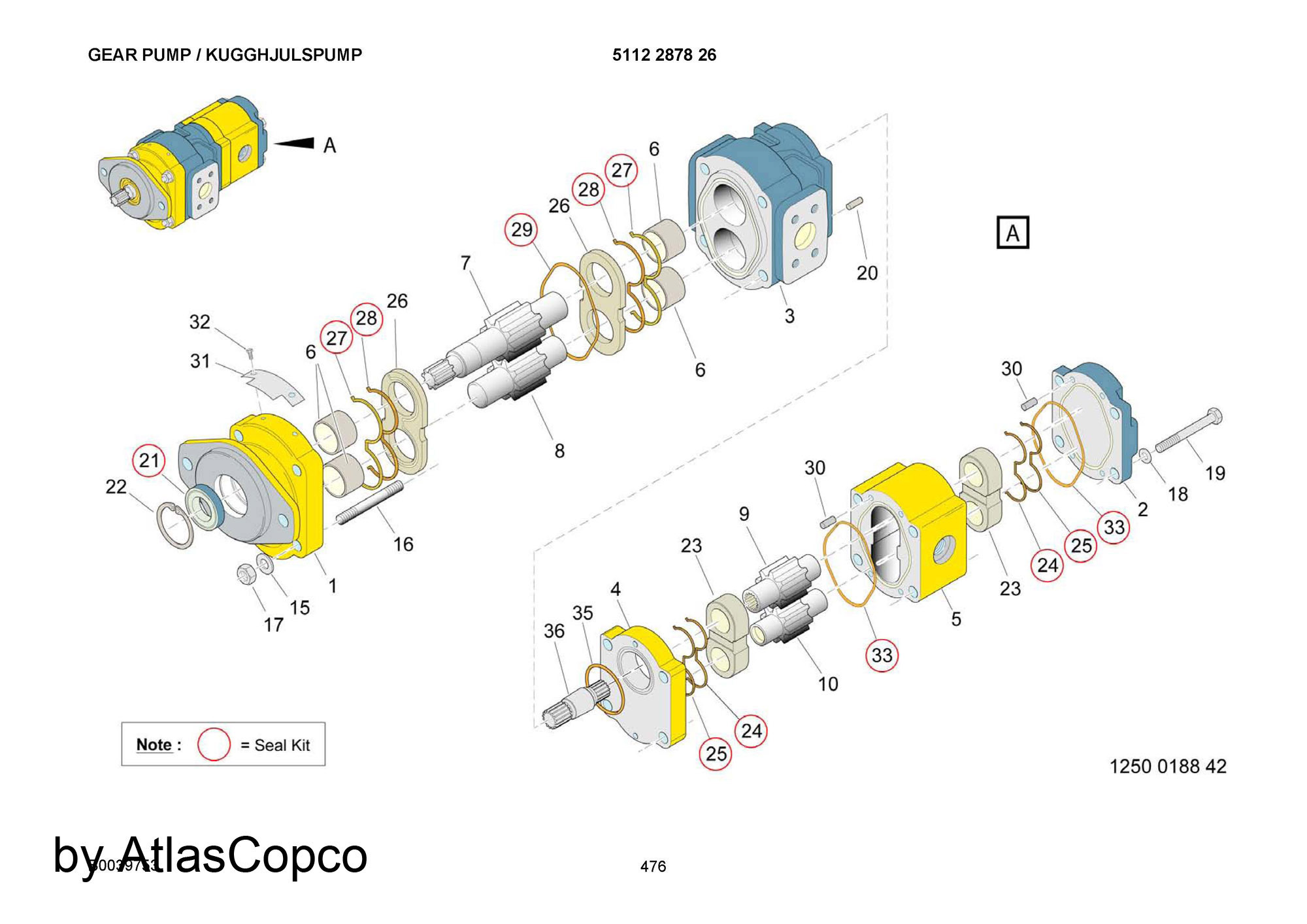

BOOMER K41 SEAL KIT #15054
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
5112287884
SEAL KIT
0
5112287826
GEAR PUMP

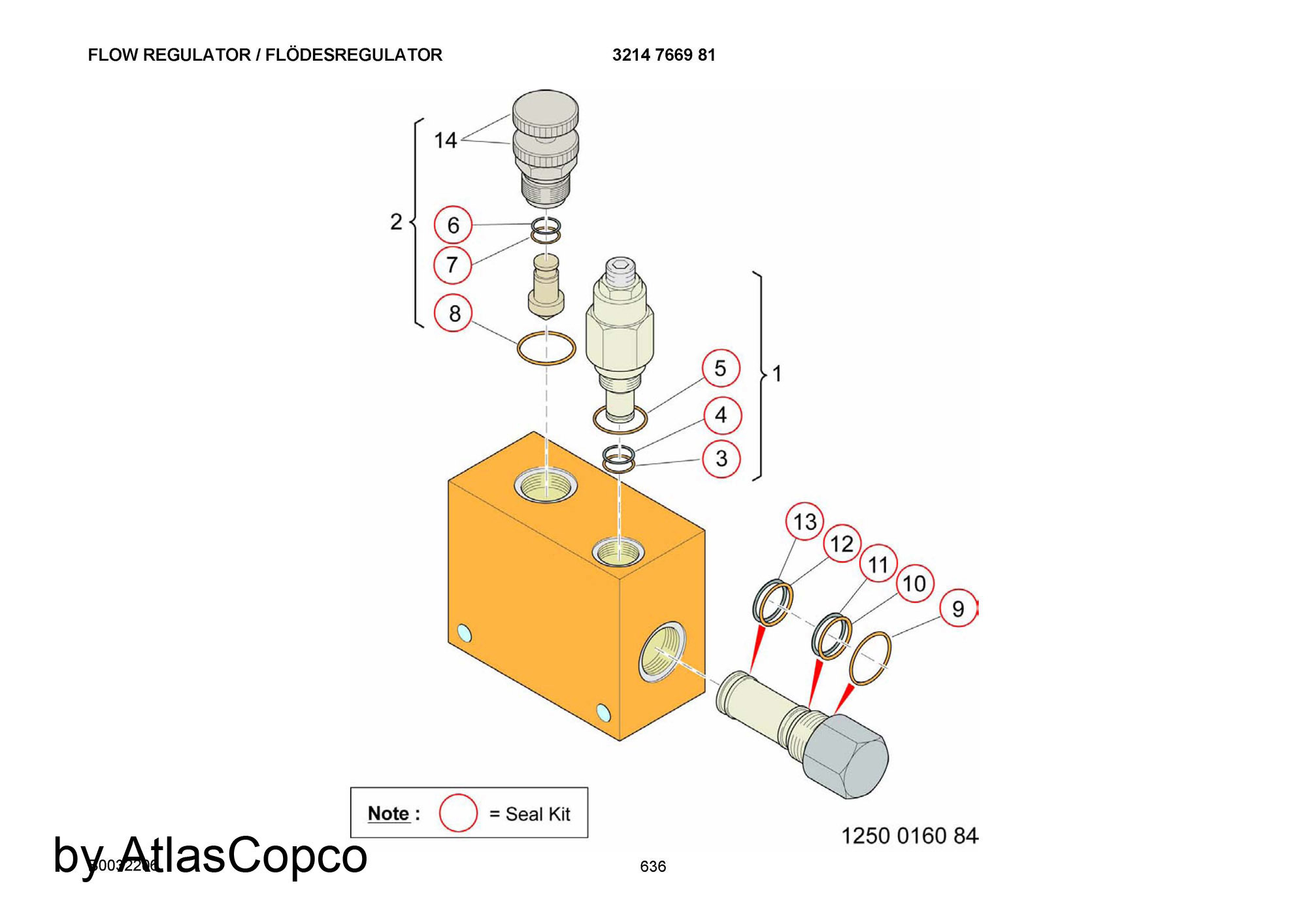

BOOMER K41 SEAL KIT #15113
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
3222302648
SEAL KIT
0
3222326676
SEAL KIT
0
9106149204
SEAL KIT
0
3214766981
FLOW REGULATOR
1
3217893713
PRESS.REL.CART.
2
3222326677
FLOW REGULATOR
14
3222326678
STEERING WH.SET
BOOMER K41 SEAL KIT #15171
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
3128312566
SEAL KIT
0
3128312567
BEARING SET
0
3128312568
ASSEMB. DETAILS
0
3128312643
TURNING DEVICE
0
3128312690
TUBE KIT
2
3177000096
SHAFT
3
3177000095
PISTON SET
4
3128312569
END CAP
6
3128312570
OVERCENT.VALVE
10
3218200938
VALVE

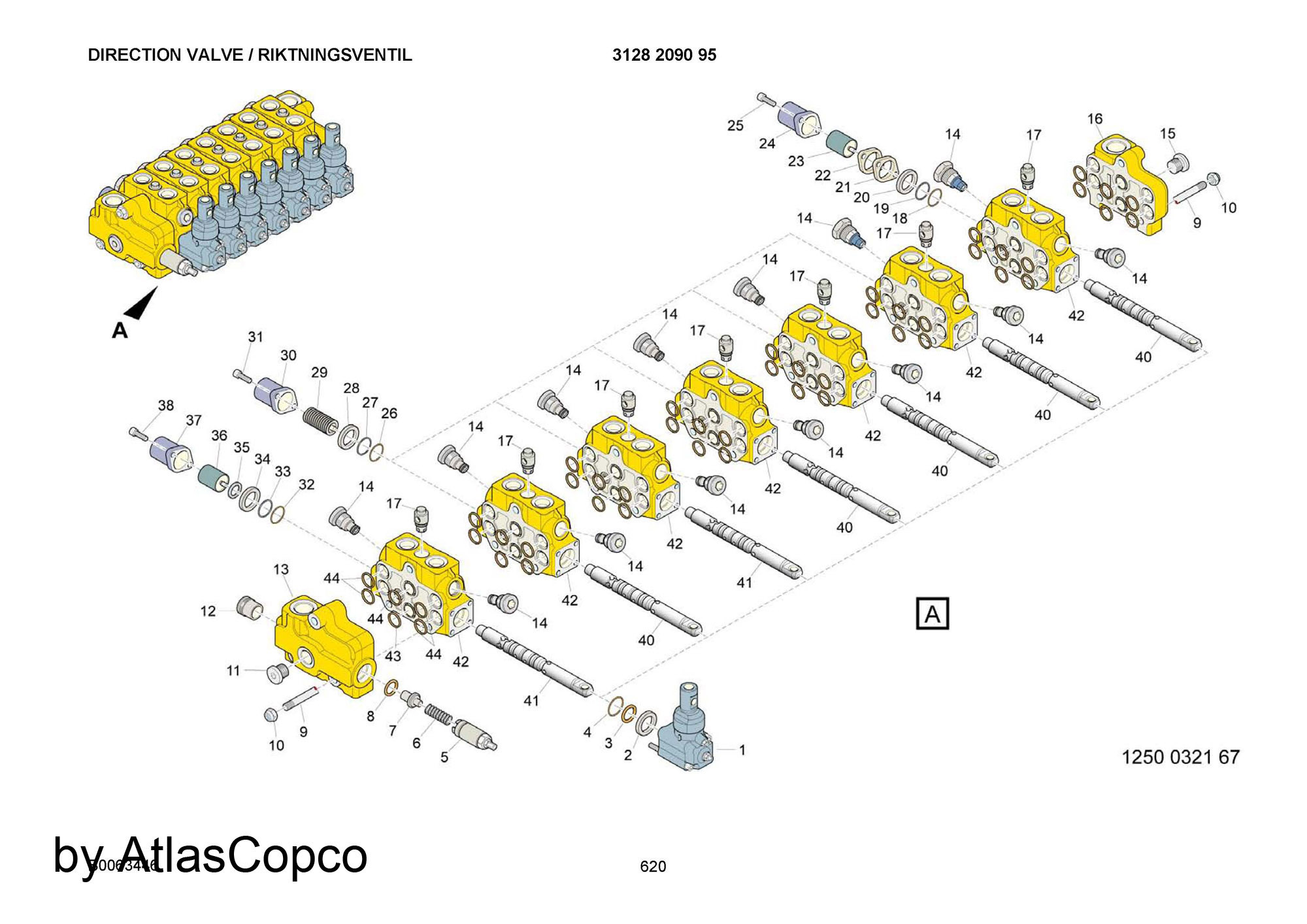

BOOMER K41 SEAL KIT #15215
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
3128209152
SEAL KIT
0
3128209161
KIT
0
3128209163
KIT
0
3128209165
PULL ROD SET
0
3128209095
DIRECTION VALVE
0
3128209162
KIT
0
3128209164
PRESS.REL.VALVE

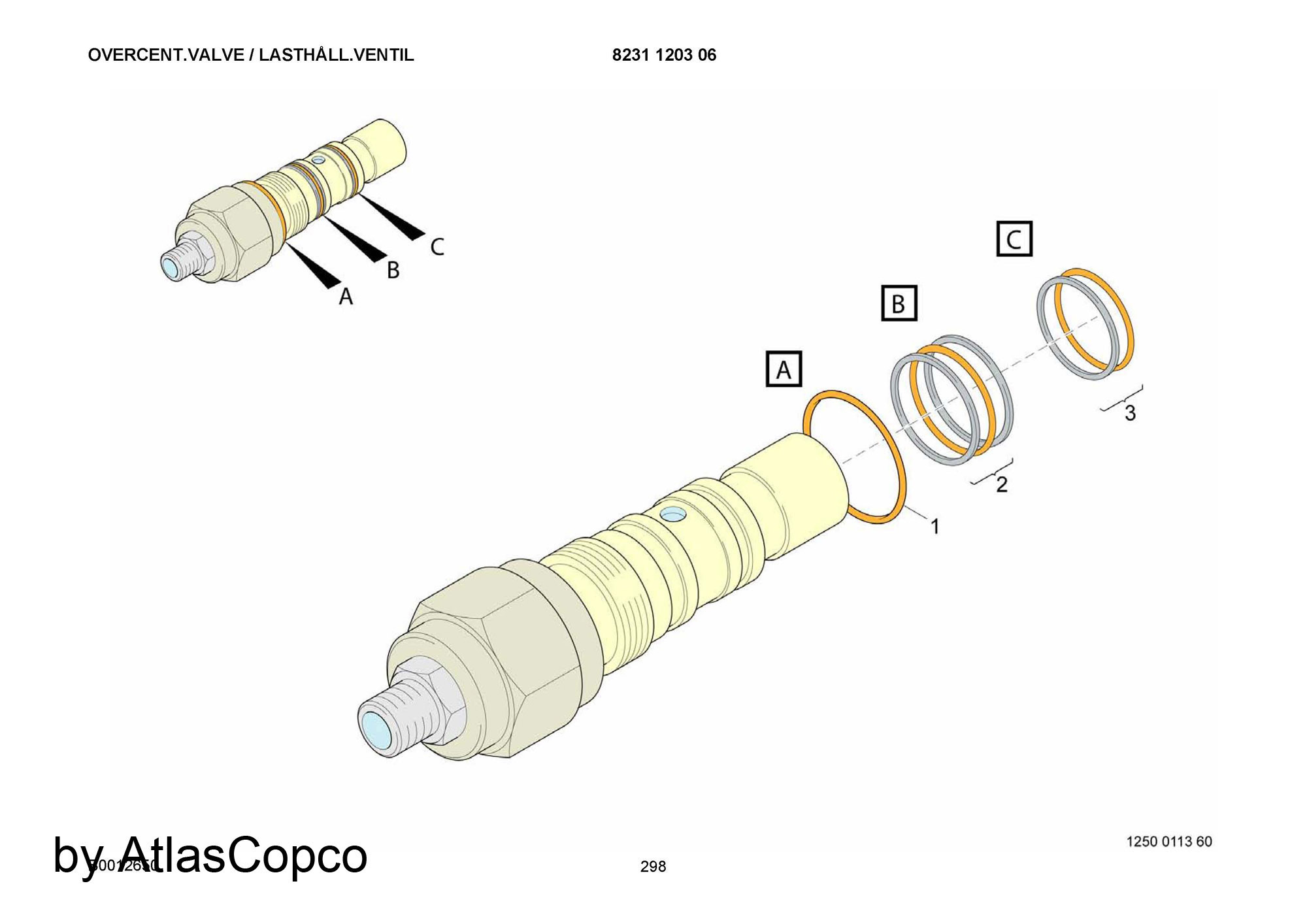

BOOMER K41 SEAL KIT #15632
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
8231120698
SEAL KIT
0
8231120306
OVERCENT.VALVE
BOOMER K41 SEAL KIT #15713
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
3128315263
SEAL KIT
0
3128311605
HYDR CYLINDER
3
3128317088
STEERING
7
3128317092
CYL.TUBE ASSY
8
3128317091
PIST ROD COMPL
12
3128317089
PISTON

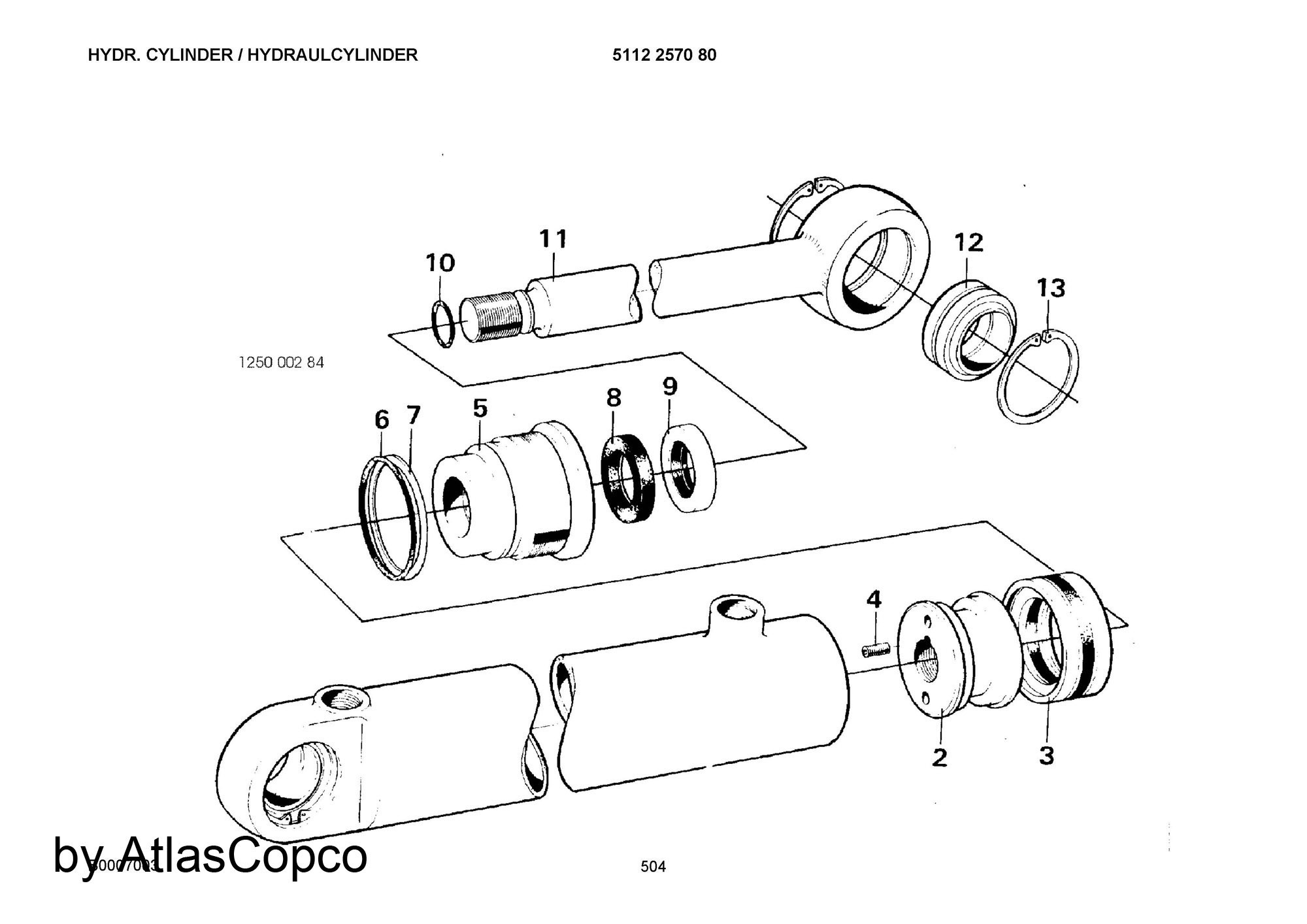

BOOMER K41 SEAL KIT #15786
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
9120099010
SEAL KIT
0
0544210600
GREASE NIPPLE
0
5112257080
HYDR. CYLINDER
2
9124956600
PISTON
4
0196155210
SET SCREW
5
9123650709
COVER
6
0663613900
ORING
7
0661153600
BACKUP RING
8
9125658300
SEALRING
9
0665917000
WIPER
10
0663212800
ORING
11
9123435900
PISTON ROD
12
0501001500
BEARING.SP.PL.
13
0335214700
CIRCLIP

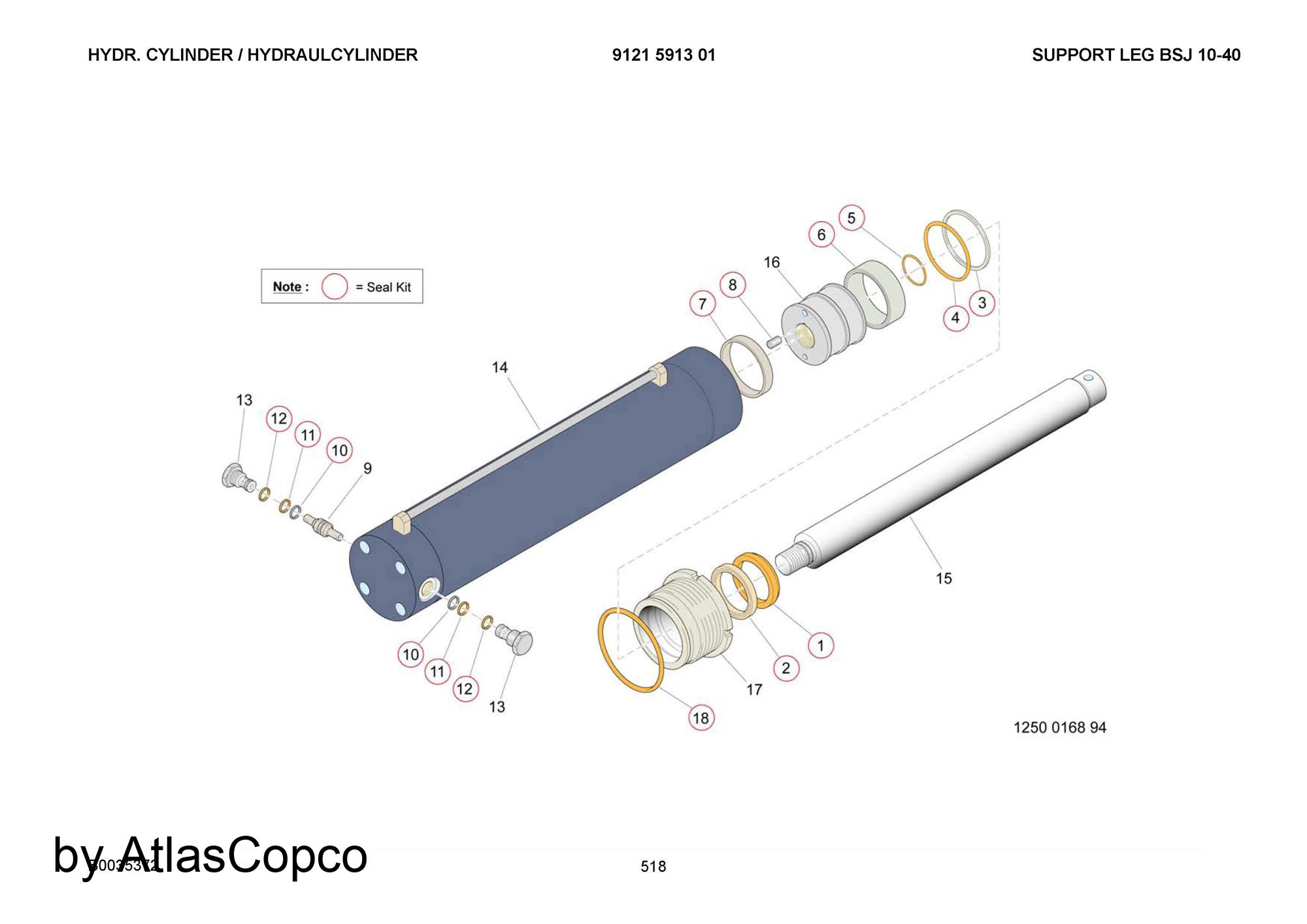

BOOMER K41 SEAL KIT #15827
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
9120099020
SEAL KIT
0
9121591301
HYDR. CYLINDER
0
9121591350
SEAL KIT
1
0665921400
WIPER
2
0665100046
SEAL
3
0661154000
BACKUP RING
4
0663614300
ORING
5
0663213400
ORING
6
0665080021
PISTON SEAL
7
0665930046
GUIDE RING. EXT
8
0194132000
SET SCREW
9
9128707600
PISTON
10
0661151000
BACKUP RING
11
0663211801
ORING
12
0663909900
ORING
13
3128209955
CHECK VALVE
15
9126201001
PISTON ROD
16
9126201200
PISTON
17
9126201100
COVER

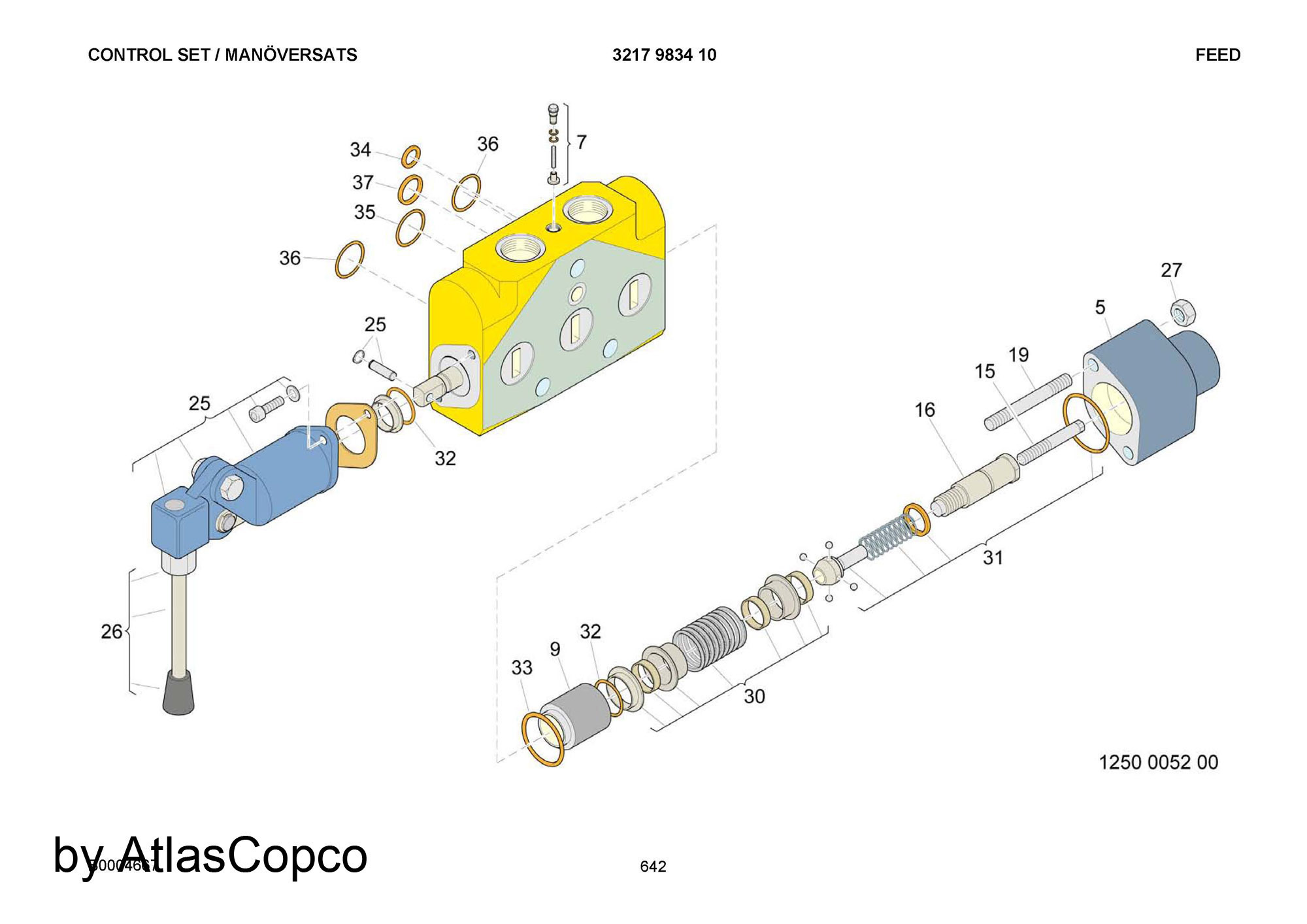

BOOMER K41 SEAL KIT #15900
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
3217983412
SEAL KIT
0
3217983409
SEAL KIT
0
3217983410
CONTROL SET
3
3217983411
SEAL HOLDER
5
3217983413
COVER
7
3217983414
CHECK VALVE
9
3217983415
HOLDER
15
3217983416
SCREW
16
3217983417
SCREW
19
3217983418
STUD
25
3217983423
LEVER HOLDER
26
3217983422
LEVER SET
27
3217983419
NUT
30
3217983420
CENTERING SET
31
3217983421
CATCH
32
0663909600
O RING
33
0663911200
O RING
35
3217903809
O RING
36
9125688900
O RING
37
0663210464
O RING
BOOMER K41 SEAL KIT #19201
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
5112287860
SEAL KIT
0
5112287861
SEAL KIT
6
3218200719
SOLENOID CARTR.
7
5112287862
O-RING
8
5112287863
O RING
9
5112287864
O RING
10
5112287865
GASKET

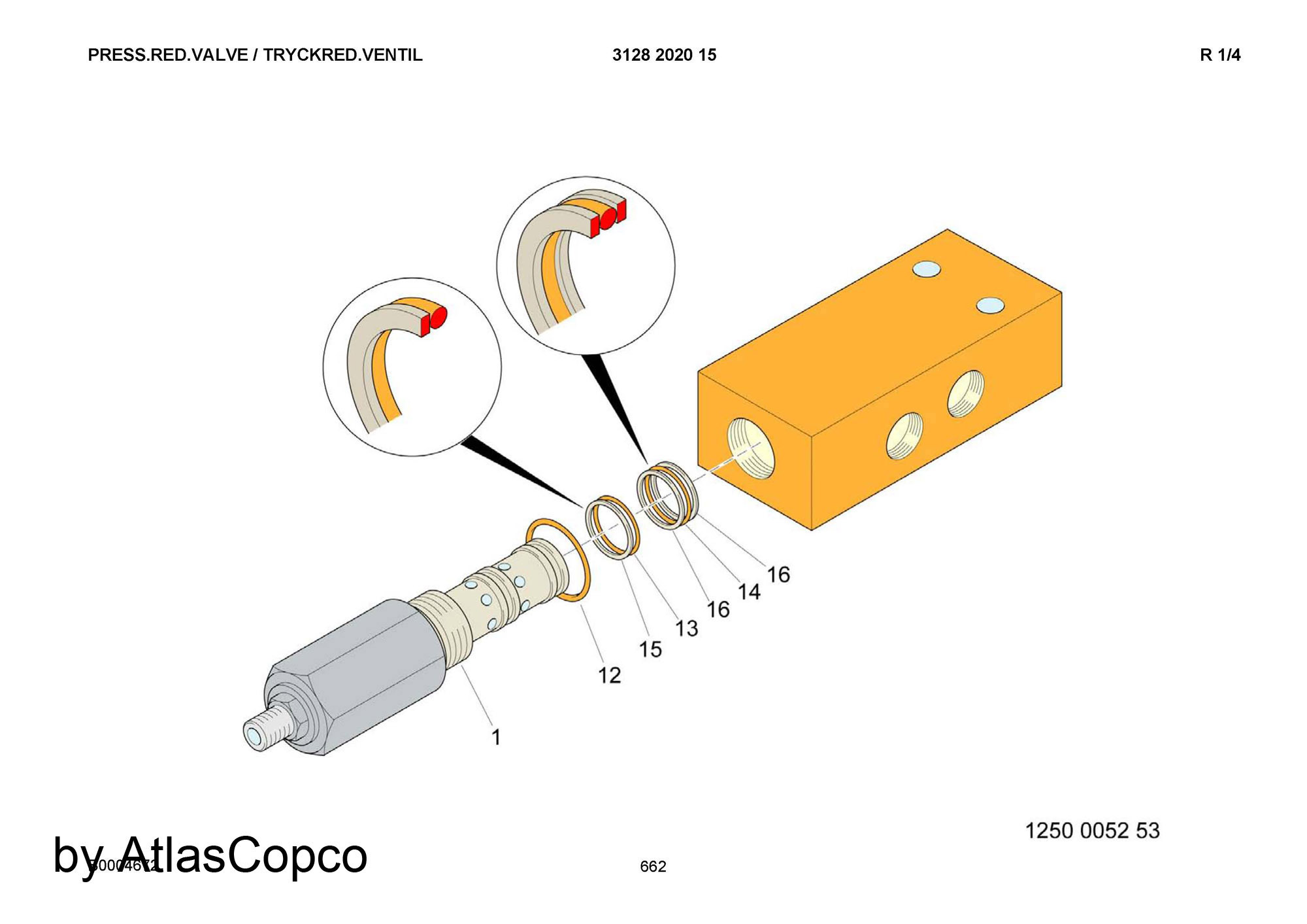

BOOMER K41 SEAL KIT #19590
BOOMER K41 SEAL KIT
ads
Ref
Parts Num
Name
0
3128302372
SEAL KIT
0
3128202015
PRESS.RED.VALVE
