1. EPIROC - BOOMER K41X JUNCTION BOX #10109

2. EPIROC - BOOMER K41X JUNCTION BOX #10560

3. EPIROC - BOOMER K41X JUNCTION BOX #10588

4. EPIROC - BOOMER K41X JUNCTION BOX #10592

5. EPIROC - BOOMER K41X JUNCTION BOX #10748

6. EPIROC - BOOMER K41X JUNCTION BOX #11114

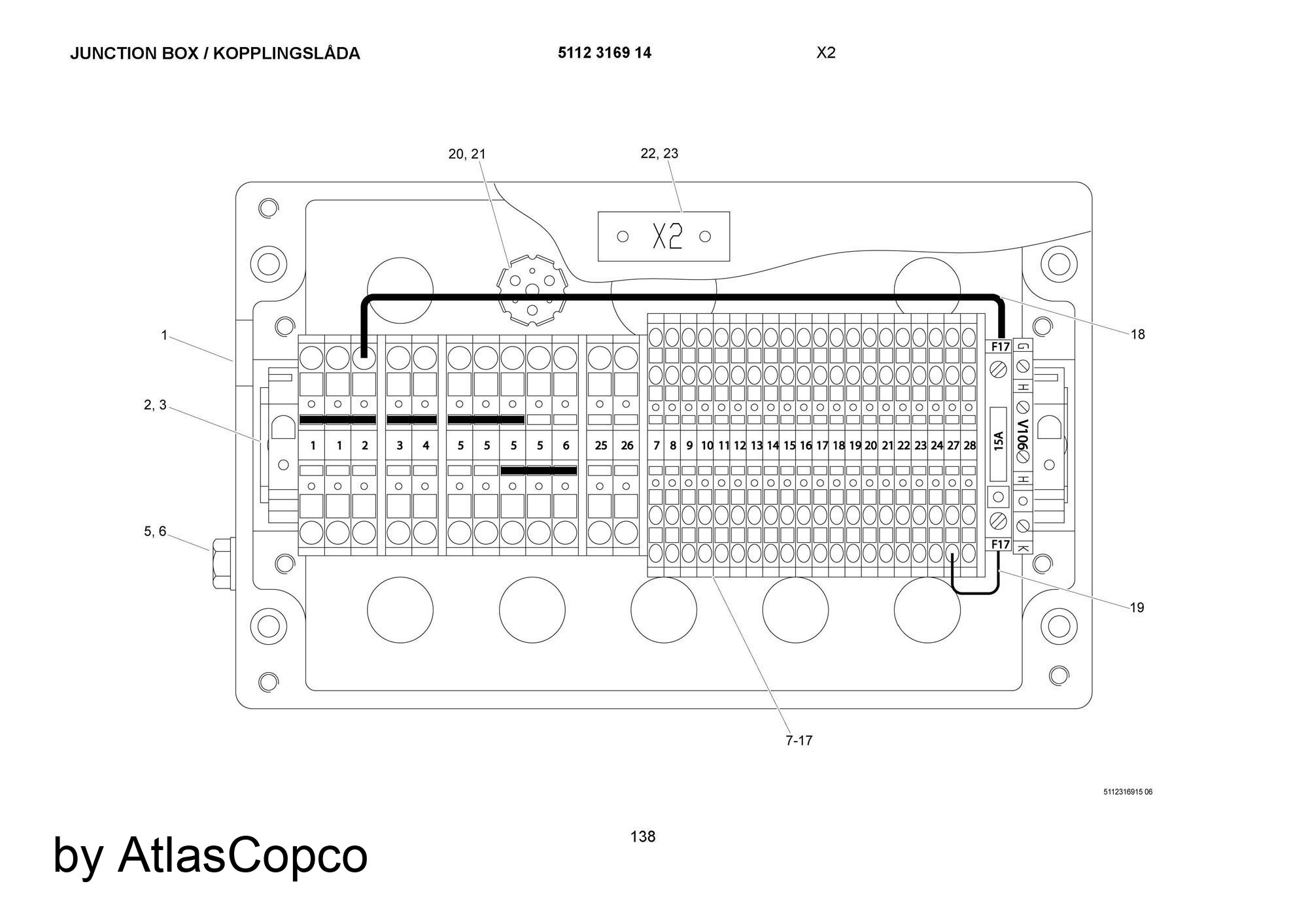

BOOMER K41X JUNCTION BOX #10109

BOOMER K41X JUNCTION BOX

ads

Ref

Parts Num

Name

0

JUNCTION BOX

1

DRILLED BOX

3

SCREW. SLOTTED

4

TERMINAL BLOCK

5

END PLATE

13

CABLE.12CORE

16

MARKING PLATE

17

MARKING PLATE

18

MARKING PLATE

19

MARKING PLATE

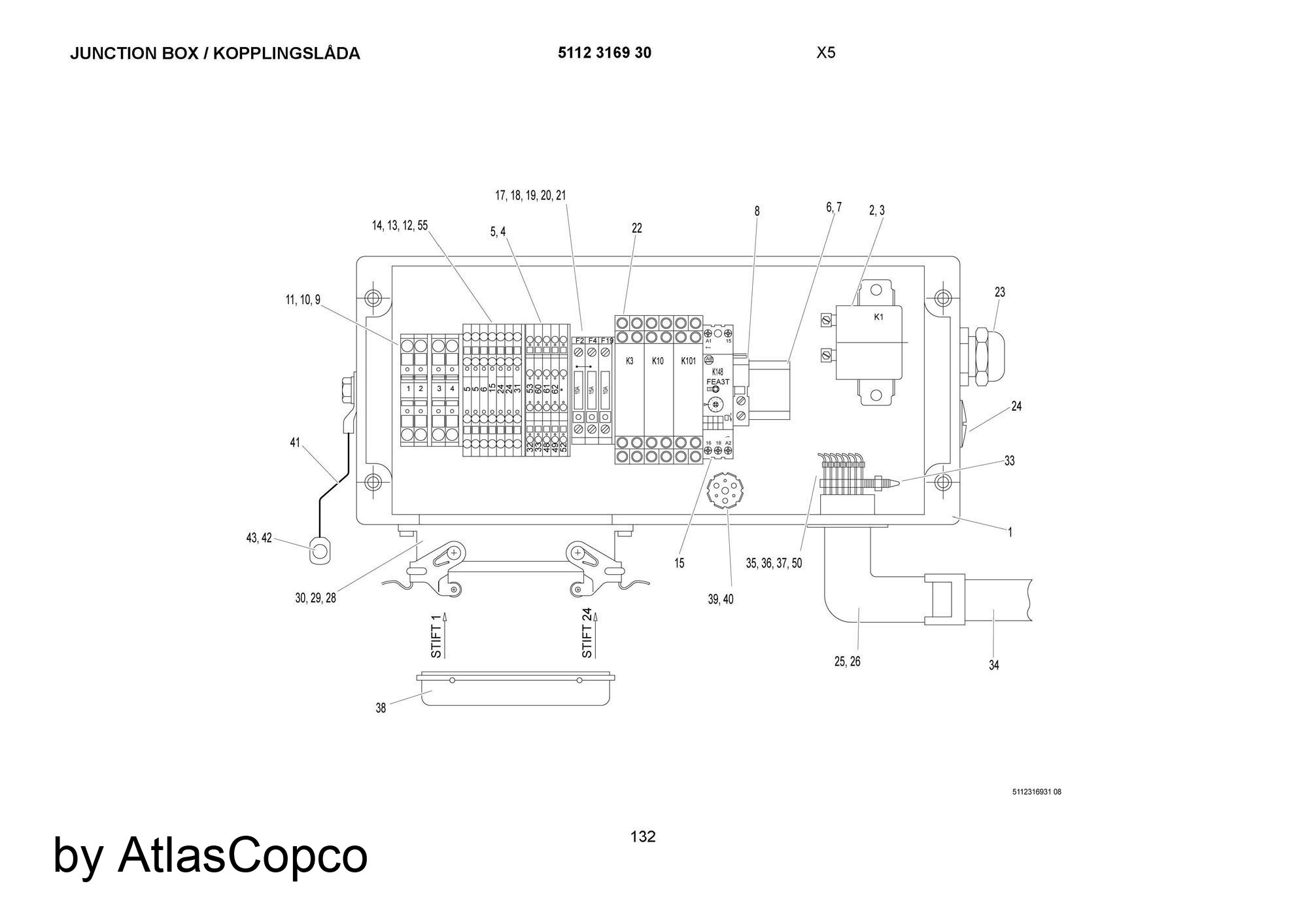

BOOMER K41X JUNCTION BOX #10560

BOOMER K41X JUNCTION BOX

ads

Ref

Parts Num

Name

0

JUNCTION BOX

2

RELAY

3

SCREW. SLOTTED

4

TERMINAL BLOCK

5

END PLATE

9

TERMINAL BLOCK

10

END PLATE

11

BRIDGE CONN.

15

TIMING RELAY

17

END PLATE

18

MARKING PLATE

19

BRIDGE CONN.

24

END PLUG

26

LOCK NUT

28

PIN INSERT

29

HOUSING

34

PROTECTION HOSE

36

CABLE. 1CORE

38

COVER

50

MARKING SLEEVE

50

MARKING SLEEVE

50

MARKING SLEEVE

50

MARKING SLEEVE

50

MARKING SLEEVE

50

MARKING SLEEVE

50

MARKING SLEEVE

50

MARKING SLEEVE

50

MARKING SLEEVE

50

MARKING SLEEVE

55

MARKING PLATE

55

MARKING PLATE

55

MARKING PLATE

55

MARKING PLATE

55

MARKING PLATE

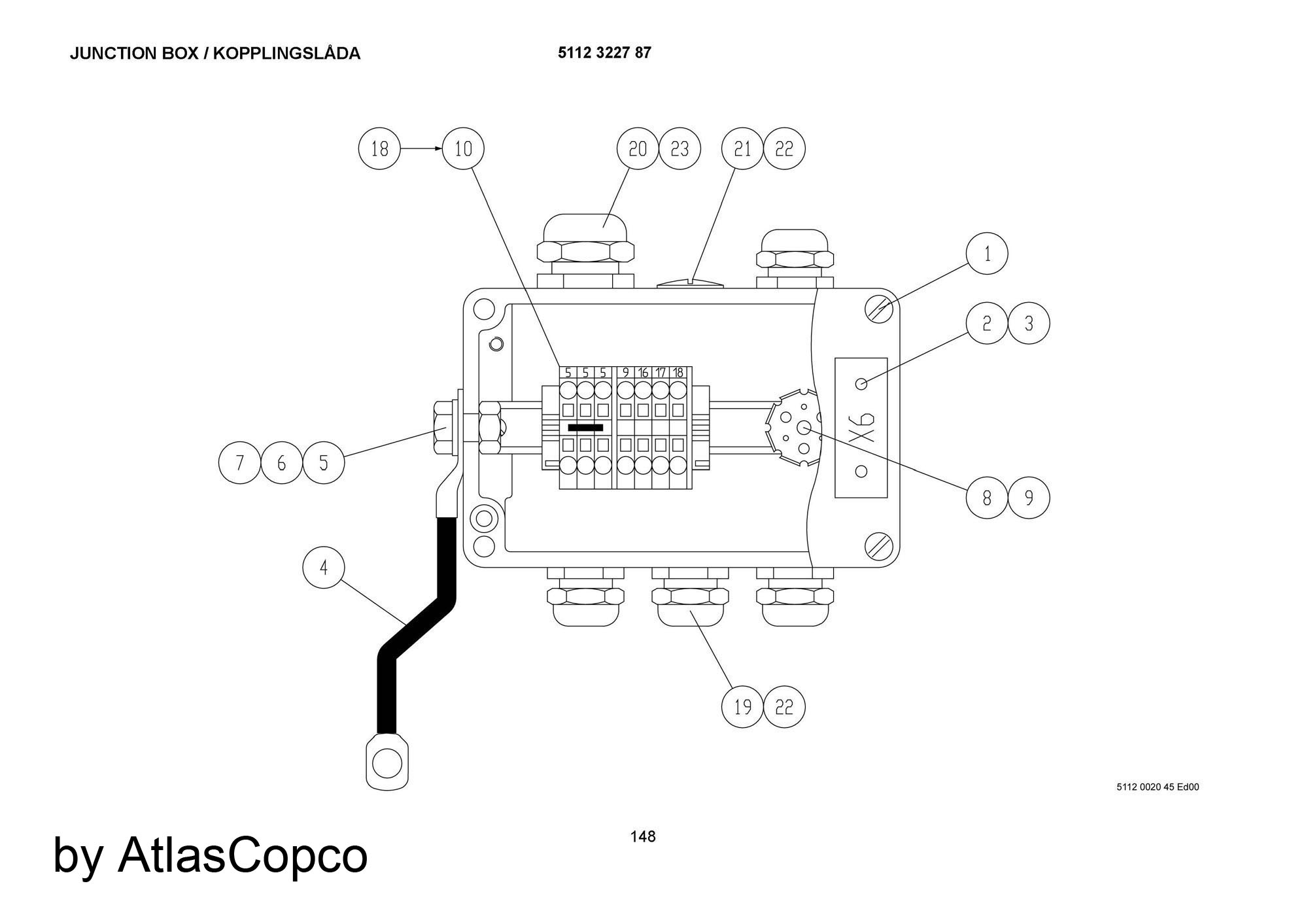

BOOMER K41X JUNCTION BOX #10588

BOOMER K41X JUNCTION BOX

ads

Ref

Parts Num

Name

0

JUNCTION BOX

8

SCREW. SLOTTED

10

TERMINAL BLOCK

11

END PLATE

13

MARKING PLATE

14

MARKING PLATE

15

MARKING PLATE

16

MARKING PLATE

17

MARKING PLATE

18

MARKING PLATE

19

MARKING PLATE

20

CABLE.25CORE

22

CABLE.12CORE

30

CABLE GLAND

31

ENLARGER

34

END PLUG

36

CABLE GLAND

37

CABLE GLAND

39

END PLUG

40

CABLE GEAR

41

PIN INSERT

42

COVER

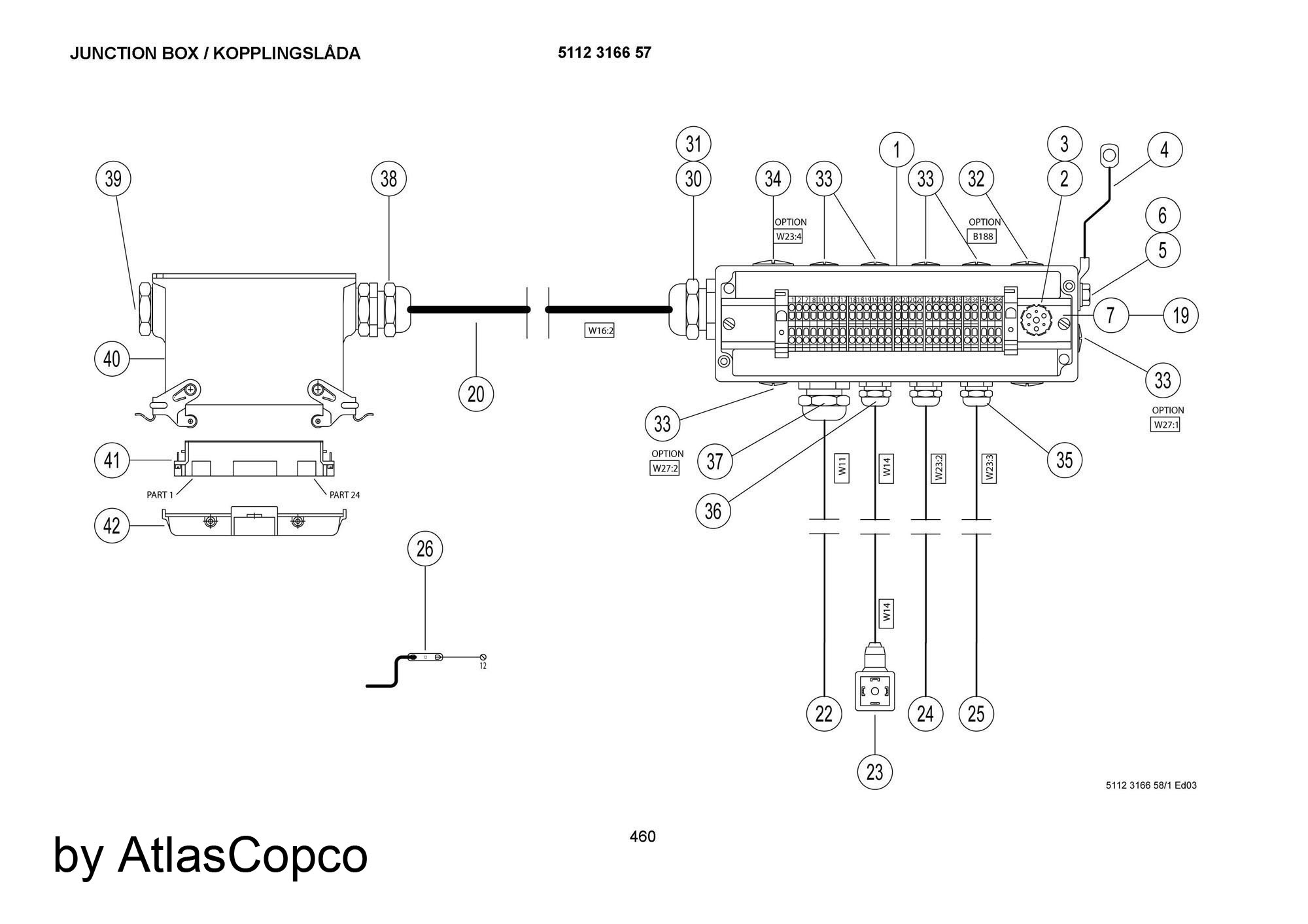

BOOMER K41X JUNCTION BOX #10592

BOOMER K41X JUNCTION BOX

ads

Ref

Parts Num

Name

0

JUNCTION BOX

1

DRILLED BOX

3

SCREW. SLOTTED

10

TERMINAL BLOCK

11

END PLATE

12

BRIDGE CONN.

13

MARKING PLATE

14

MARKING PLATE

16

MARKING PLATE

24

DIODE UNIT

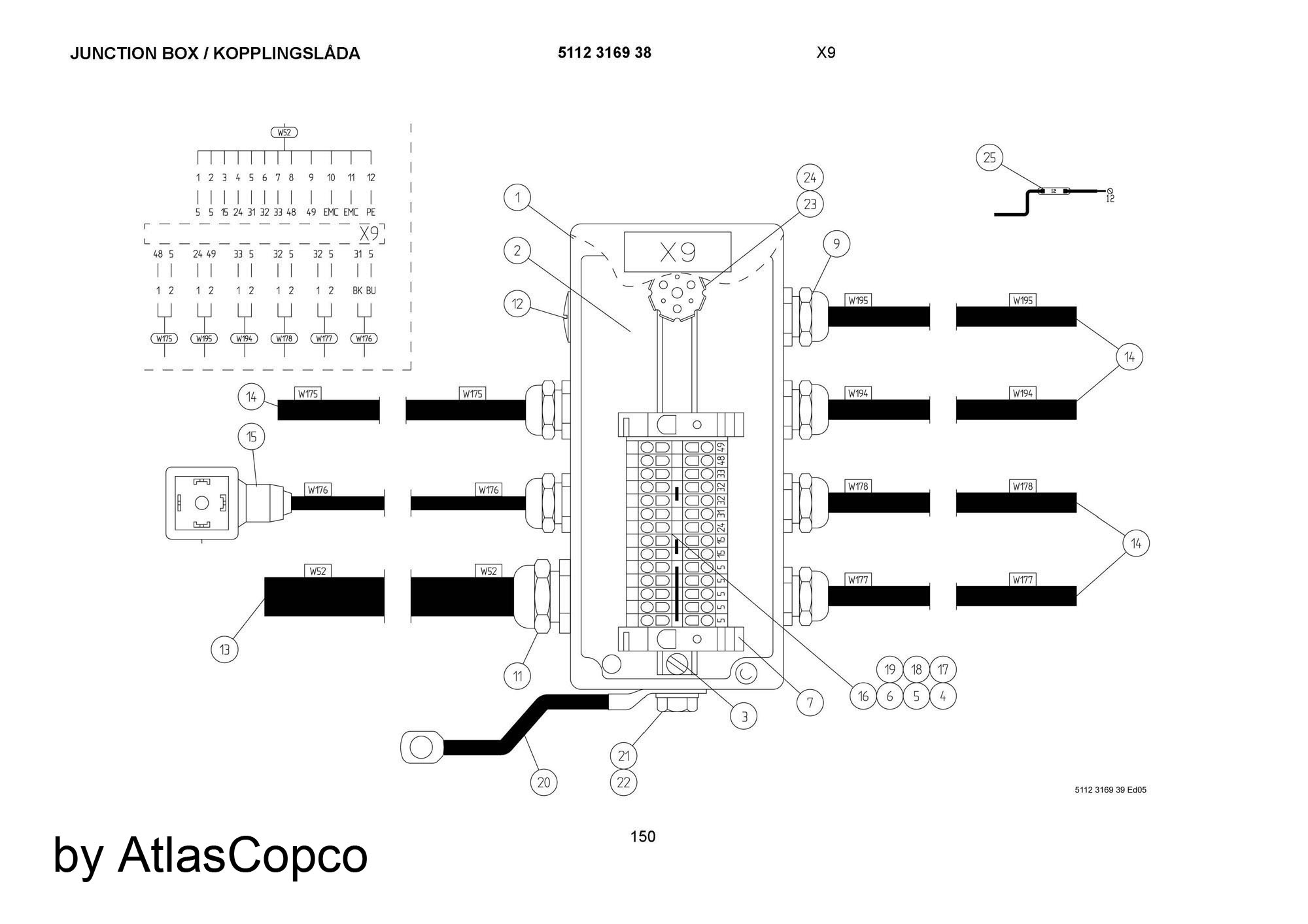

BOOMER K41X JUNCTION BOX #10748

BOOMER K41X JUNCTION BOX

ads

Ref

Parts Num

Name

0

JUNCTION BOX

1

DRILLED BOX

2

PLATE

12

TERMINAL BLOCK

13

END PLATE

15

MARKING PLATE

16

MARKING PLATE

BOOMER K41X JUNCTION BOX #11114

BOOMER K41X JUNCTION BOX

ads

Ref

Parts Num

Name

0

JUNCTION BOX

1

JUNCTION BOX

2

SCREW

4

SCREW. SLOTTED

6

HOSE COUPLING

7

HOSE COUPLING

8

HOSE COUPLING

11

LOCK NUT

16

REDUCER

20

PROTECTION HOSE

23

PROTECTION HOSE

24

CABLE GEAR

25

SLEEVE INSERT

26

COVER

28

CABLE. 1CORE

31

BRIDGE CONN.
