BOOMER M2C EPIROC New catalogs

BOOMER M2C Pages

1. EPIROC - BOOMER M2C COMPRESSOR #14277

2. EPIROC - BOOMER M2C COMPRESSOR #14476

3. EPIROC - BOOMER M2C COMPRESSOR #15513

4. EPIROC - BOOMER M2C COMPRESSOR #15967

5. EPIROC - BOOMER M2C COMPRESSOR #16260

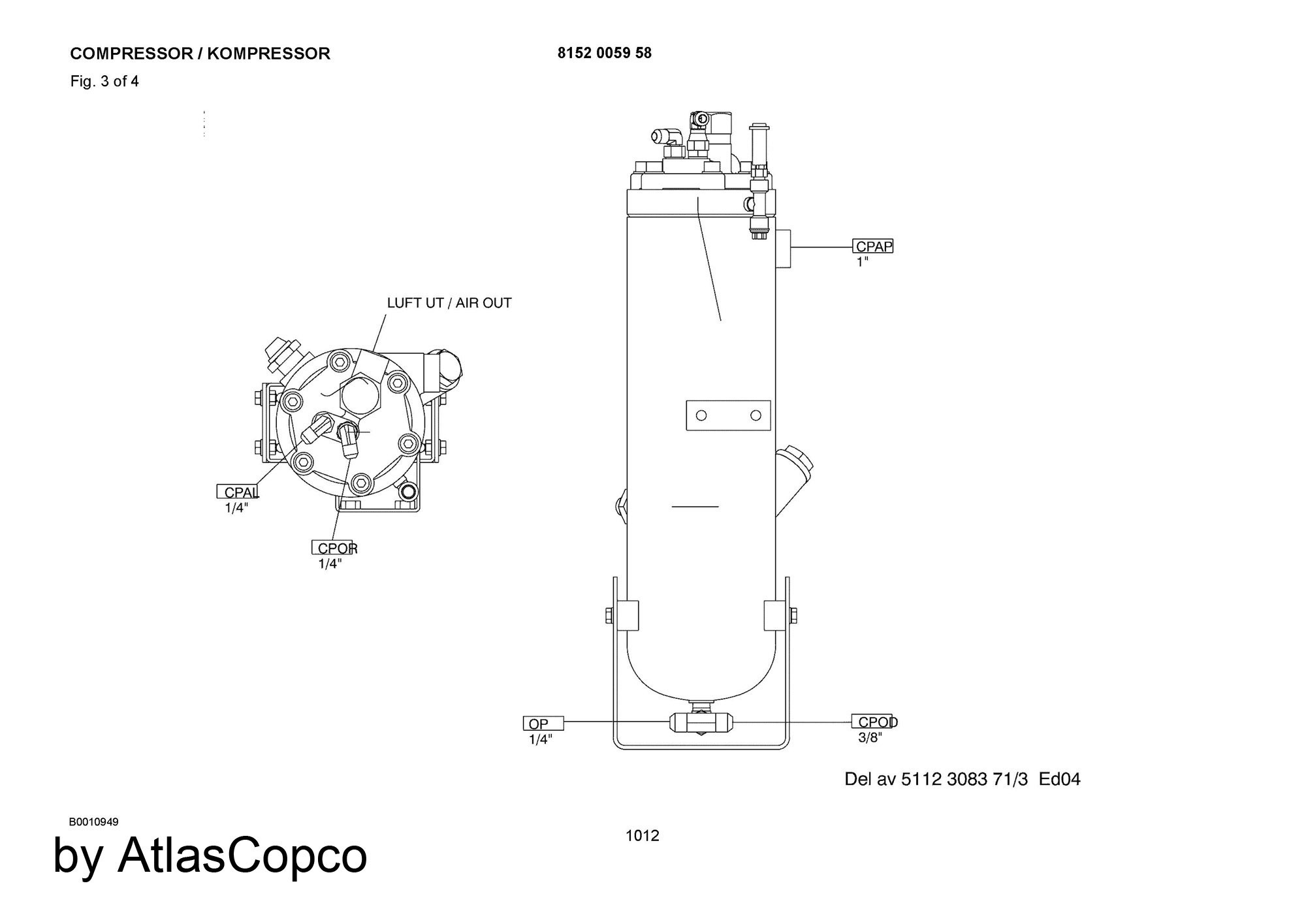

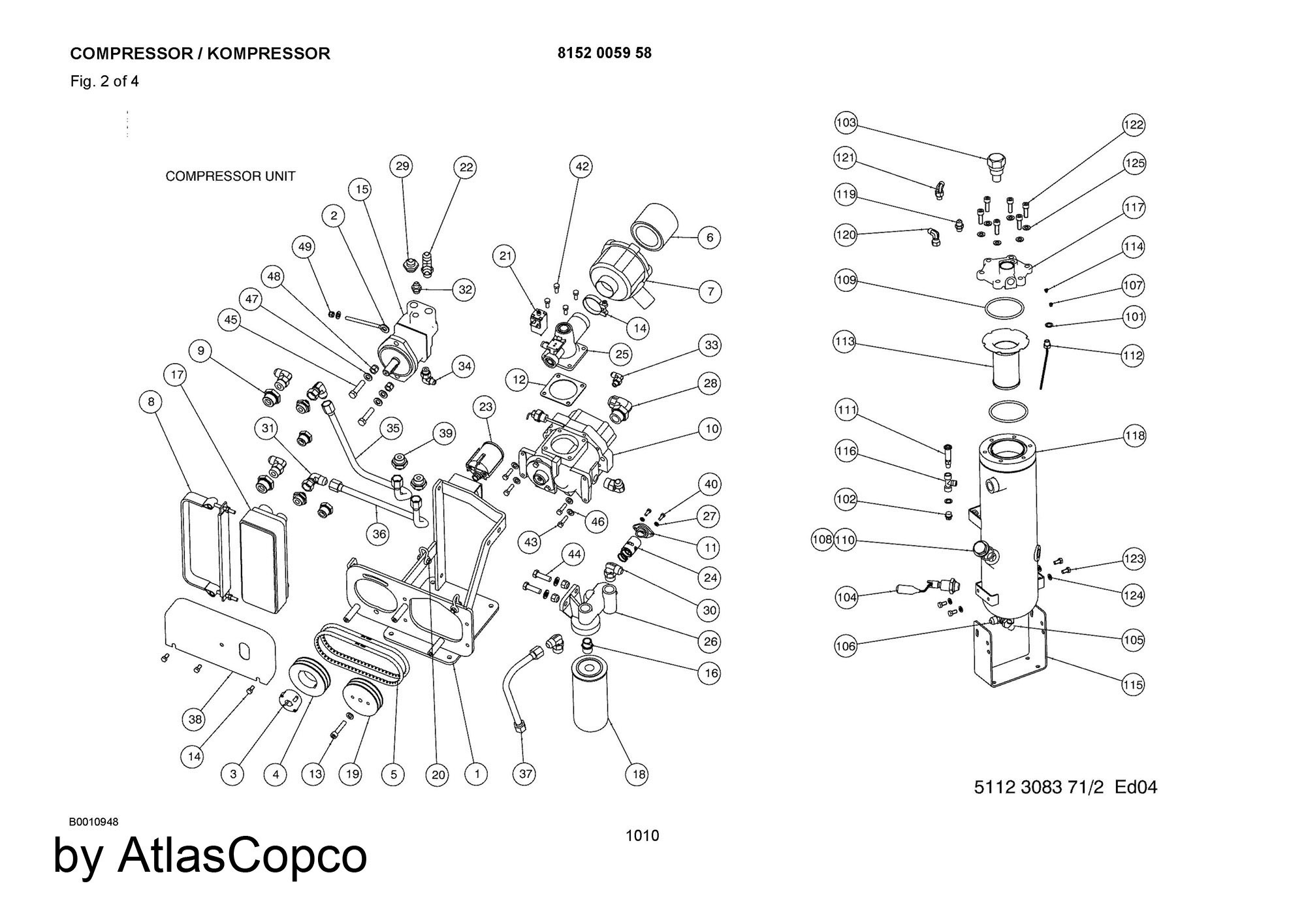

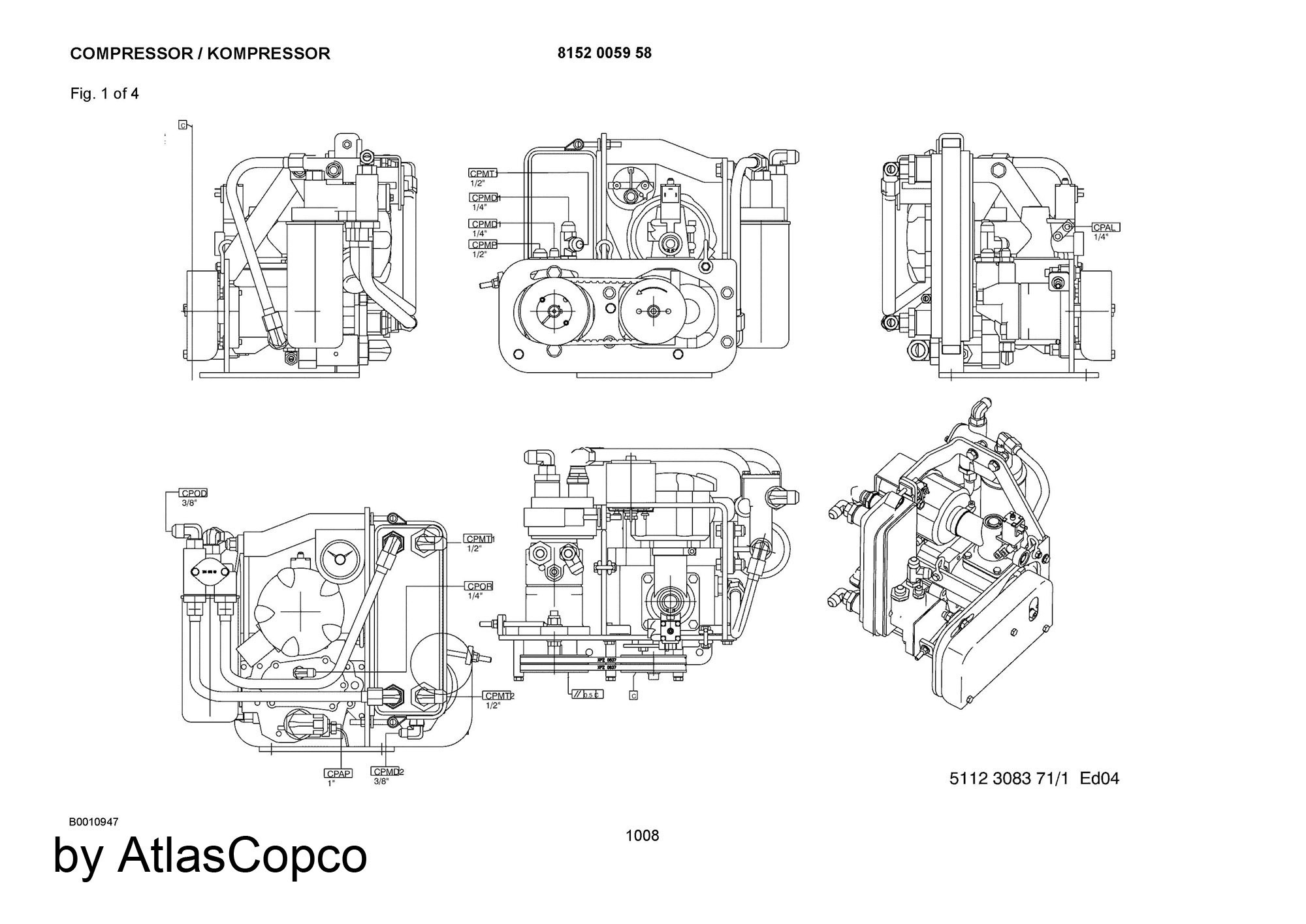

BOOMER M2C COMPRESSOR #14277

BOOMER M2C COMPRESSOR

ads

Ref

Parts Num

Name

0

COMPRESSOR

1

ATTACHMENT

2

ADJUSTING SCREW

3

EXPAND. BUSH

4

PULLEY

5

VBELT

6

AIR FILTER

7

FILTER HOUSING

8

COOLER SUPPORT

9

BUSHING

10

COMPRESSOR

11

FLANGE

12

GASKET

13

HEX SOCK. SCREW

14

HOSE CLIP

15

HYDRAULIC MOTOR

16

NIPPLE

17

OIL COOLER

18

FILTER ELEMENT

19

PULLEY

20

SHACKLE

21

SOLENOID VALVE

22

NIPPLE

23

TEMP. GAUGE

24

THERMOSTAT

25

UNLOADING VALVE

27

PLAIN WASHER

28

NIPPLE

29

NIPPLE

30

NIPPLE

31

NIPPLE

32

NIPPLE

33

NIPPLE

34

NIPPLE

35

STEEL PIPE

36

STEEL PIPE

37

STEEL PIPE

38

BELT PROTECTION

39

NIPPLE

40

SCREW. HEX HEAD

41

SCREW. HEX HEAD

42

SCREW. HEX HEAD

43

SCREW. HEX HEAD

44

SCREW. HEX HEAD

45

SCREW. HEX HEAD

46

PLAIN WASHER

47

WASHER

48

LOCK NUT

49

LOCK NUT

50

BUSHING

101

GASKET

102

PLUG

103

PRESSURE VALVE

104

LEVEL METER

105

NIPPLE

106

NIPPLE

107

CHECK VALVE

108

O RING

109

ORING

110

PLUG

111

SAFETY VALVE

112

FLUSHING TUBE

113

OILSEPARAT ELEM

114

SPRING

115

SUPPORT

119

NIPPLE

121

ELBOW NIPPLE

122

SCREW

124

PLAIN WASHER

BOOMER M2C COMPRESSOR #14476

BOOMER M2C COMPRESSOR

ads

Ref

Parts Num

Name

0

COMPRESSOR

1

ATTACHMENT

2

ADJUSTING SCREW

3

EXPAND. BUSH

4

PULLEY

5

VBELT

6

AIR FILTER

7

FILTER HOUSING

8

COOLER SUPPORT

9

BUSHING

10

COMPRESSOR

11

FLANGE

12

GASKET

13

HEX SOCK. SCREW

14

HOSE CLIP

15

HYDRAULIC MOTOR

16

NIPPLE

17

OIL COOLER

18

FILTER ELEMENT

19

PULLEY

20

SHACKLE

21

SOLENOID VALVE

22

NIPPLE

23

TEMP. GAUGE

24

THERMOSTAT

25

UNLOADING VALVE

27

PLAIN WASHER

28

NIPPLE

29

NIPPLE

30

NIPPLE

31

NIPPLE

32

NIPPLE

33

NIPPLE

34

NIPPLE

35

STEEL PIPE

36

STEEL PIPE

37

STEEL PIPE

38

BELT PROTECTION

39

NIPPLE

40

SCREW. HEX HEAD

41

SCREW. HEX HEAD

42

SCREW. HEX HEAD

43

SCREW. HEX HEAD

44

SCREW. HEX HEAD

45

SCREW. HEX HEAD

46

PLAIN WASHER

47

WASHER

48

LOCK NUT

49

LOCK NUT

50

BUSHING

101

GASKET

102

PLUG

103

PRESSURE VALVE

104

LEVEL METER

105

NIPPLE

106

NIPPLE

107

CHECK VALVE

108

O RING

109

ORING

110

PLUG

111

SAFETY VALVE

112

FLUSHING TUBE

113

OILSEPARAT ELEM

114

SPRING

115

SUPPORT

119

NIPPLE

121

ELBOW NIPPLE

122

SCREW

124

PLAIN WASHER

BOOMER M2C COMPRESSOR #15513

BOOMER M2C COMPRESSOR

ads

Ref

Parts Num

Name

0

COMPRESSOR

1

PULLEY

2

SOLENOID

BOOMER M2C COMPRESSOR #15967

BOOMER M2C COMPRESSOR

ads

Ref

Parts Num

Name

0

COMPRESSOR

1

ATTACHMENT

2

ADJUSTING SCREW

3

EXPAND. BUSH

4

PULLEY

5

VBELT

6

AIR FILTER

7

FILTER HOUSING

8

COOLER SUPPORT

9

BUSHING

10

COMPRESSOR

11

FLANGE

12

GASKET

13

HEX SOCK. SCREW

14

HOSE CLIP

15

HYDRAULIC MOTOR

16

NIPPLE

17

OIL COOLER

18

FILTER ELEMENT

19

PULLEY

20

SHACKLE

21

SOLENOID VALVE

22

NIPPLE

23

TEMP. GAUGE

24

THERMOSTAT

25

UNLOADING VALVE

27

PLAIN WASHER

28

NIPPLE

29

NIPPLE

30

NIPPLE

31

NIPPLE

32

NIPPLE

33

NIPPLE

34

NIPPLE

35

STEEL PIPE

36

STEEL PIPE

37

STEEL PIPE

38

BELT PROTECTION

39

NIPPLE

40

SCREW. HEX HEAD

41

SCREW. HEX HEAD

42

SCREW. HEX HEAD

43

SCREW. HEX HEAD

44

SCREW. HEX HEAD

45

SCREW. HEX HEAD

46

PLAIN WASHER

47

WASHER

48

LOCK NUT

49

LOCK NUT

50

BUSHING

101

GASKET

102

PLUG

103

PRESSURE VALVE

104

LEVEL METER

105

NIPPLE

106

NIPPLE

107

CHECK VALVE

108

O RING

109

ORING

110

PLUG

111

SAFETY VALVE

112

FLUSHING TUBE

113

OILSEPARAT ELEM

114

SPRING

115

SUPPORT

119

NIPPLE

121

ELBOW NIPPLE

122

SCREW

124

PLAIN WASHER

BOOMER M2C COMPRESSOR #16260

BOOMER M2C COMPRESSOR

ads

Ref

Parts Num

Name

0

COMPRESSOR

1

ATTACHMENT

2

ADJUSTING SCREW

3

EXPAND. BUSH

4

PULLEY

5

VBELT

6

AIR FILTER

7

FILTER HOUSING

8

COOLER SUPPORT

9

BUSHING

10

COMPRESSOR

11

FLANGE

12

GASKET

13

HEX SOCK. SCREW

14

HOSE CLIP

15

HYDRAULIC MOTOR

16

NIPPLE

17

OIL COOLER

18

FILTER ELEMENT

19

PULLEY

20

SHACKLE

21

SOLENOID VALVE

22

NIPPLE

23

TEMP. GAUGE

24

THERMOSTAT

25

UNLOADING VALVE

27

PLAIN WASHER

28

NIPPLE

29

NIPPLE

30

NIPPLE

31

NIPPLE

32

NIPPLE

33

NIPPLE

34

NIPPLE

35

STEEL PIPE

36

STEEL PIPE

37

STEEL PIPE

38

BELT PROTECTION

39

NIPPLE

40

SCREW. HEX HEAD

41

SCREW. HEX HEAD

42

SCREW. HEX HEAD

43

SCREW. HEX HEAD

44

SCREW. HEX HEAD

45

SCREW. HEX HEAD

46

PLAIN WASHER

47

WASHER

48

LOCK NUT

49

LOCK NUT

50

BUSHING

101

GASKET

102

PLUG

103

PRESSURE VALVE

104

LEVEL METER

105

NIPPLE

106

NIPPLE

107

CHECK VALVE

108

O RING

109

ORING

110

PLUG

111

SAFETY VALVE

112

FLUSHING TUBE

113

OILSEPARAT ELEM

114

SPRING

115

SUPPORT

119

NIPPLE

121

ELBOW NIPPLE

122

SCREW

124

PLAIN WASHER
