BOOMER M2C Pages
1. EPIROC - BOOMER M2C HYDRAULIC PUMP #14275
2. EPIROC - BOOMER M2C HYDRAULIC PUMP #14710
3. EPIROC - BOOMER M2C HYDRAULIC PUMP #14737
4. EPIROC - BOOMER M2C HYDRAULIC PUMP #15410
5. EPIROC - BOOMER M2C HYDRAULIC PUMP #15431
6. EPIROC - BOOMER M2C HYDRAULIC PUMP #15517
7. EPIROC - BOOMER M2C HYDRAULIC PUMP #15871
8. EPIROC - BOOMER M2C HYDRAULIC PUMP #15983
9. EPIROC - BOOMER M2C HYDRAULIC PUMP #16358

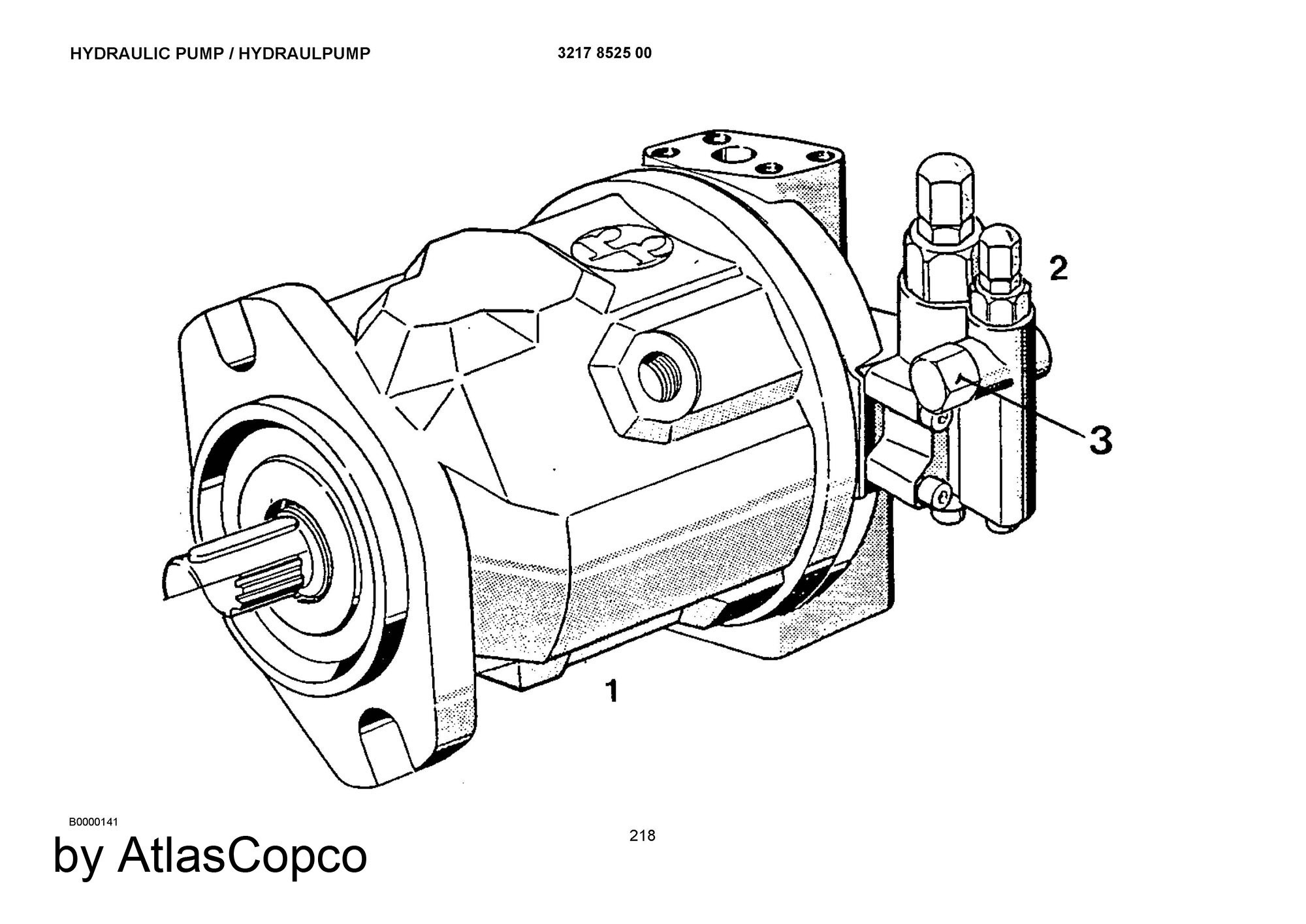

BOOMER M2C HYDRAULIC PUMP #14275
BOOMER M2C HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
3217852500
HYDRAULIC PUMP
1
3217920301
PUMP
2
3217920302
PILOT VALVE
BOOMER M2C HYDRAULIC PUMP #14710
BOOMER M2C HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
3217882245
HYDRAULIC PUMP
4
3217882253
GEAR SHAFT SET
5
3217882254
STUD
6
3217882255
NUT
7
3217882215
WASHER
11
3217882256
HOUSE
12
3217882257
HOUSE
13
3217882258
GEAR SHAFT SET
14
3217882259
SCREW
15
3217882315
WASHER
21
3217882221
SEAL
22
3217882222
PLUG
23
3217882260
BALL BEARING
24
3217882261
LOCK RING
26
3217882226
PRESS. PLATE
27
3217882227
AXIAL SEAL
29
3217882229
SEAL
30
3217882230
GUIDE PIN
33
3217882330
GUIDE PIN
34
3217882326
PRESS. PLATE
35
3217882327
AXIAL SEAL
36
3217882262
COUPLING
37
3217882329
SEAL

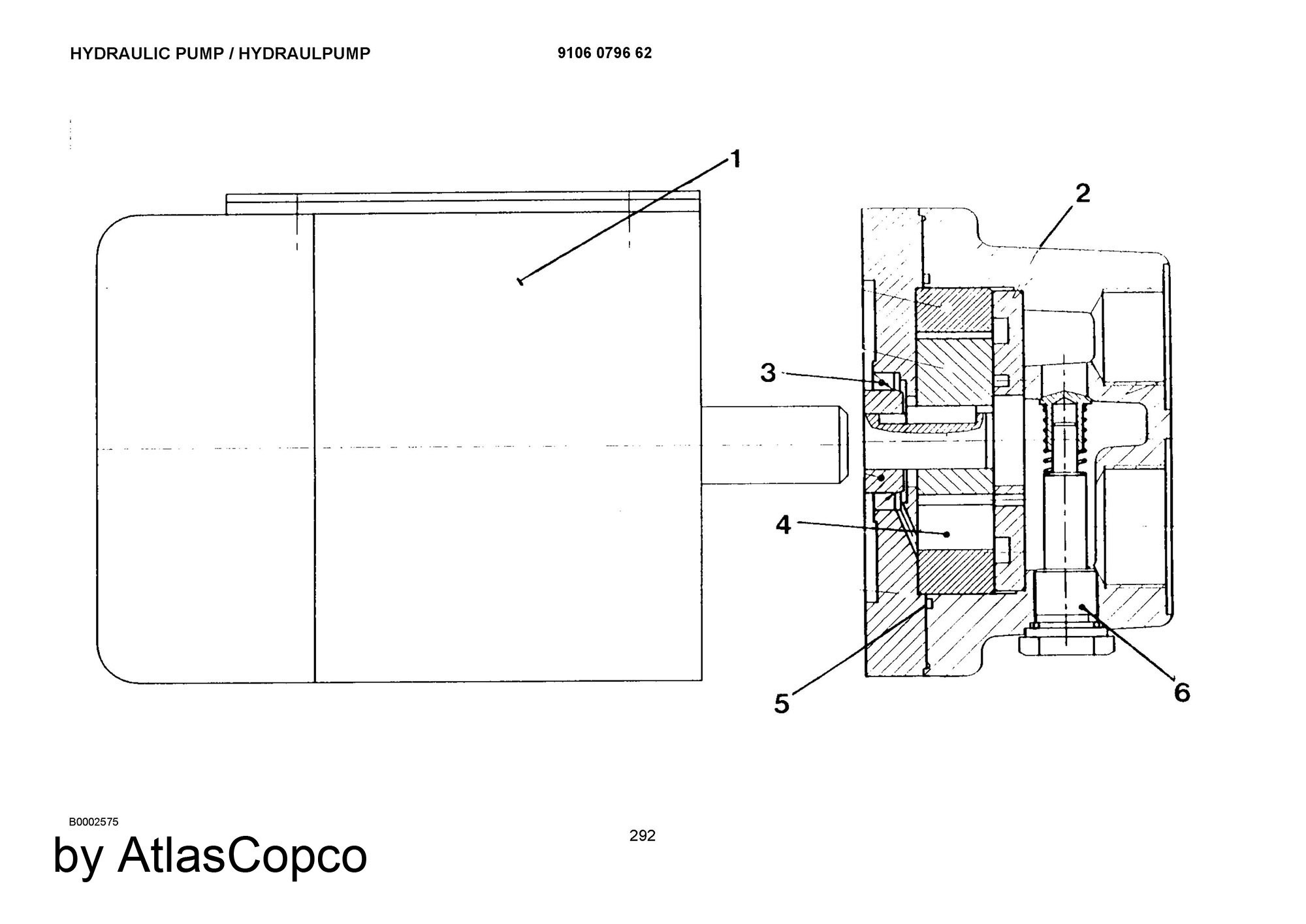

BOOMER M2C HYDRAULIC PUMP #14737
BOOMER M2C HYDRAULIC PUMP
ads
Ref
Parts Num
Name
1
9106079662
HYDRAULIC PUMP
2
9106083300
CHECK VALVE
6
0823009006
CHECK VALVE
BOOMER M2C HYDRAULIC PUMP #15410
BOOMER M2C HYDRAULIC PUMP
ads
Ref
Parts Num
Name
1
3150000041
HYDRAULIC PUMP
2
9106077960
CONVERSION KIT
4
3177309248
DIRECTION VALVE
5
9111382102
CHECK VALVE
6
3177301600
COUPLING
7
3217988204
CONNECTOR
8
0211122200
SCREW
9
3217919302
REGULATOR
10
3177308800
CHECK VALVE

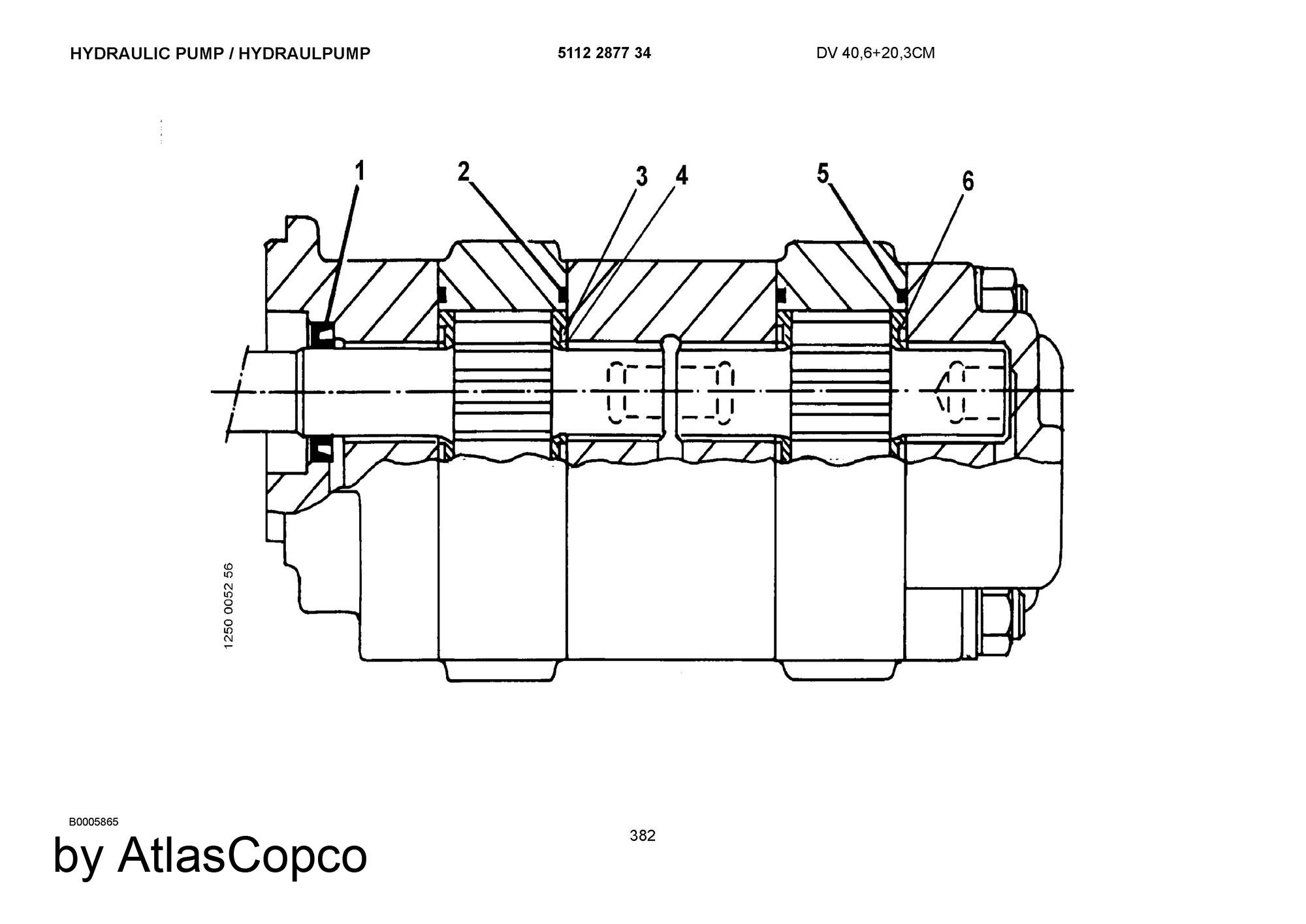

BOOMER M2C HYDRAULIC PUMP #15431
BOOMER M2C HYDRAULIC PUMP
ads
Ref
Parts Num
Name
1
5112287734
HYDRAULIC PUMP
2
5112287765
BRAKE VALVE
3
5112283780
GUIDE UNIT
4
5112283880
VALVE BLOCK
5
5112283980
VALVE
6
3128209013
VALVE BLOCK
8
5112259500
PRESSURE SWITCH
9
5112294900
PROTECT. COVER
10
5112292101
PRESSURE SWITCH
11
5112302450
ACCUMULAT.BLOCK
12
5112291500
ACCUMULATOR
13
3128306056
HYDR. CYLINDER
13
3128308129
HYDR. CYLINDER
14
5112294901
PROTECT. COVER
15
5112302343
PRESSURE SWITCH
16
3176850500
RESTRICTION
BOOMER M2C HYDRAULIC PUMP #15517
BOOMER M2C HYDRAULIC PUMP
ads
Ref
Parts Num
Name
1
5112287734
HYDRAULIC PUMP
2
5112287765
BRAKE VALVE
3
5112283780
GUIDE UNIT
4
5112283880
VALVE BLOCK
5
5112283980
VALVE
6
8231112786
SOLENOID VALVE
7
3128202015
PRESS.RED.VALVE
8
5112259500
PRESSURE SWITCH
9
5112294900
PROTECT. COVER
10
5112292101
PRESSURE SWITCH
11
5112302450
ACCUMULAT.BLOCK
12
5112291500
ACCUMULATOR
13
3128306056
HYDR. CYLINDER
13
3128308129
HYDR. CYLINDER
14
5112294901
PROTECT. COVER
15
5112302343
PRESSURE SWITCH
16
3176850500
RESTRICTION
BOOMER M2C HYDRAULIC PUMP #15871
BOOMER M2C HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
9106079662
HYDRAULIC PUMP
0
9106108007
REPAIR SET
1
9106108005
MOTOR
2
9106108006
PUMP

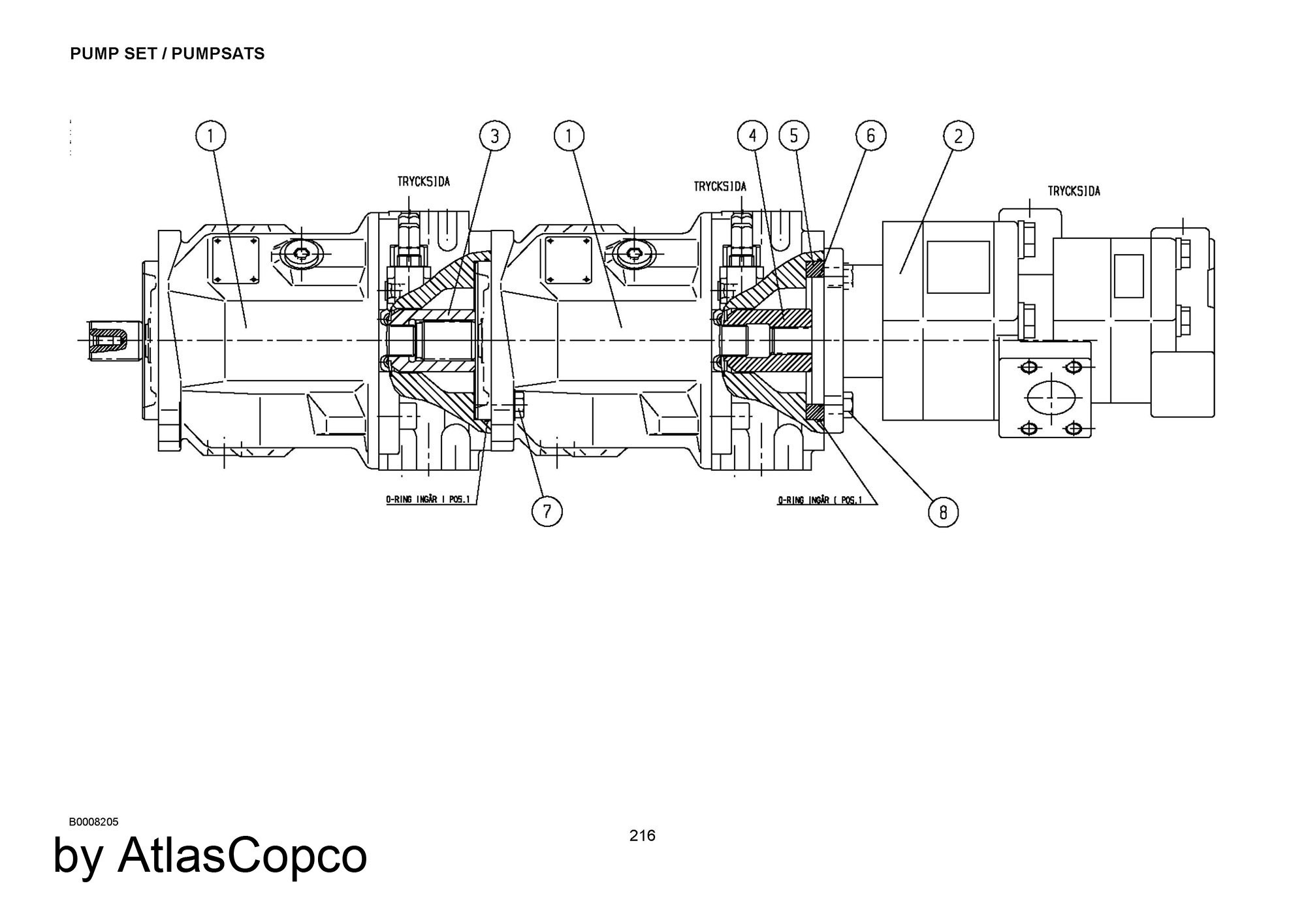

BOOMER M2C HYDRAULIC PUMP #15983
BOOMER M2C HYDRAULIC PUMP
ads
Ref
Parts Num
Name
1
3217852500
HYDRAULIC PUMP
2
3217882245
HYDRAULIC PUMP
3
3217852503
SHAFT COUPLING
4
3217852504
SHAFT COUPLING
5
3217852502
INTERM. RING
6
0663210356
ORING
7
0147147503
SCREW. HEX HEAD
8
0147140103
SCREW. HEX HEAD
BOOMER M2C HYDRAULIC PUMP #16358
BOOMER M2C HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
5112287734
HYDRAULIC PUMP
0
5112310056
SEAL KIT
