BOOMER M2C SCREW. HEX HEAD #14723
BOOMER M2C SCREW. HEX HEAD
ads
Ref
Parts Num
Name
1
0147150003
SCREW. HEX HEAD
2
3128049700
COVER
3
0666671800
RADIAL LIP SEAL
5
0147195720
SCREW. HEX HEAD
6
3128048600
PIPE
7
3128078430
PULLEY WHEEL
8
0666800704
AXIAL SEAL
9
3128048500
PLATE
10
0147147803
SCREW. HEX HEAD
11
3128061900
KEY
12
3128078549
HOLDER
13
3128078548
HOLDER
14
3128303930
SLIDING PIECE
15
0147148303
SCREW. HEX HEAD
16
0301237800
PLAIN WASHER
17
0147132603
SCREW. HEX HEAD
18
0291112818
LOCK NUT
19
0301233500
PLAIN WASHER
20
3128078576
HOLDER
21
3128305175
PIPE
22
0111130700
SPLIT PIN
23
3125063900
BUFFER
24
0147148503
SCREW. HEX HEAD
25
3128305184
BACK HEAD
26
3128305171
END PIECE
27
0147135903
SCREW. HEX HEAD
28
3128047600
WASHER
29
0147195829
SCREW. HEX HEAD
30
3222309750
ROPE TENSION
31
3128078445
CRADLE PLATE
32
0113323800
BOLT

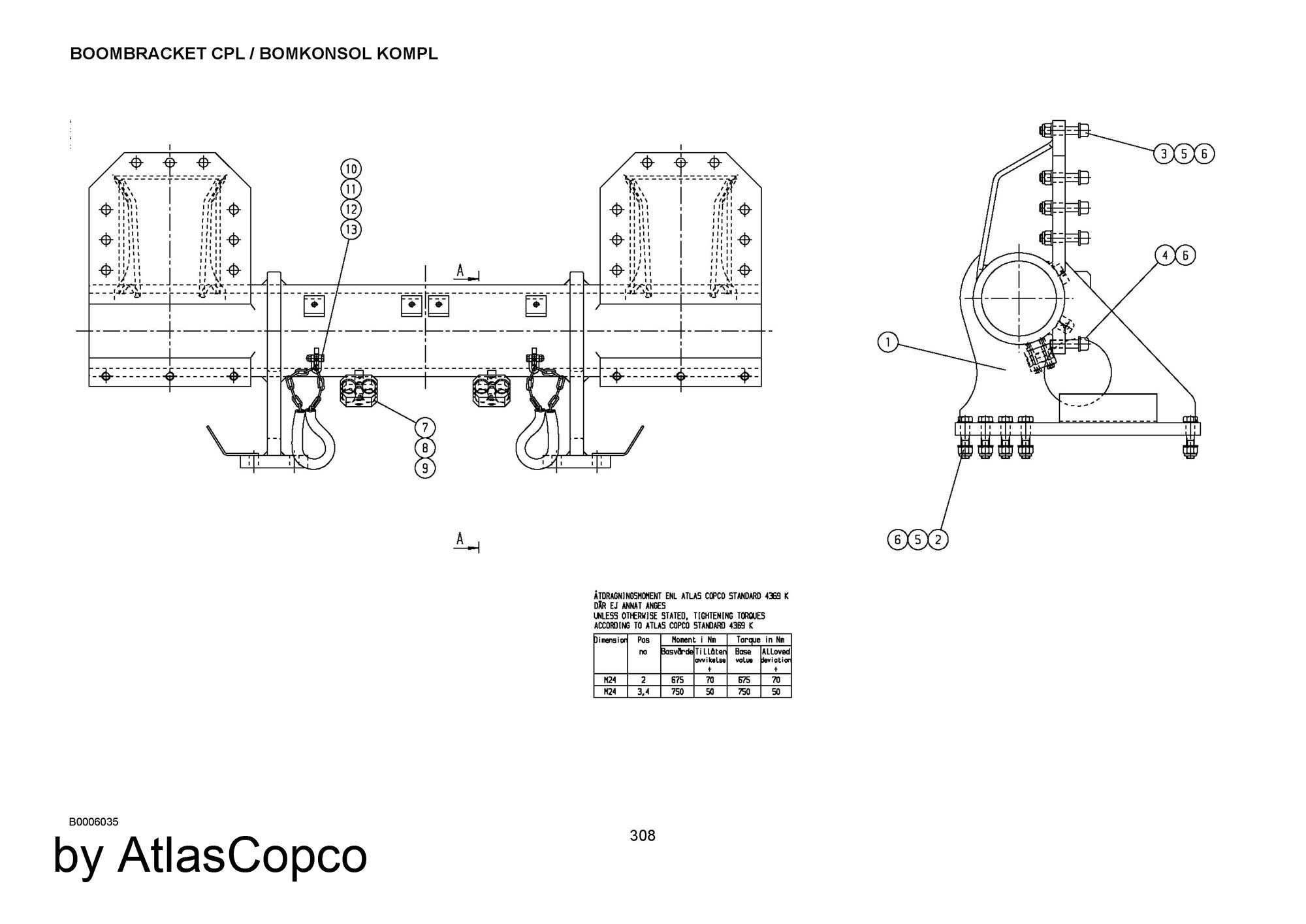

BOOMER M2C SCREW. HEX HEAD #15115
BOOMER M2C SCREW. HEX HEAD
ads
Ref
Parts Num
Name
2
0147164203
SCREW. HEX HEAD
3
0211196402
HEX SOCK. SCREW
4
0211196336
HEX SOCK. SCREW
5
0291112830
LOCK NUT
6
0301240500
PLAIN WASHER
8
0147140903
SCREW. HEX HEAD
9
0301235800
WASHER
10
3217312400
SHACKLE
11
0291112820
LOCK NUT
12
3217385000
CHAIN

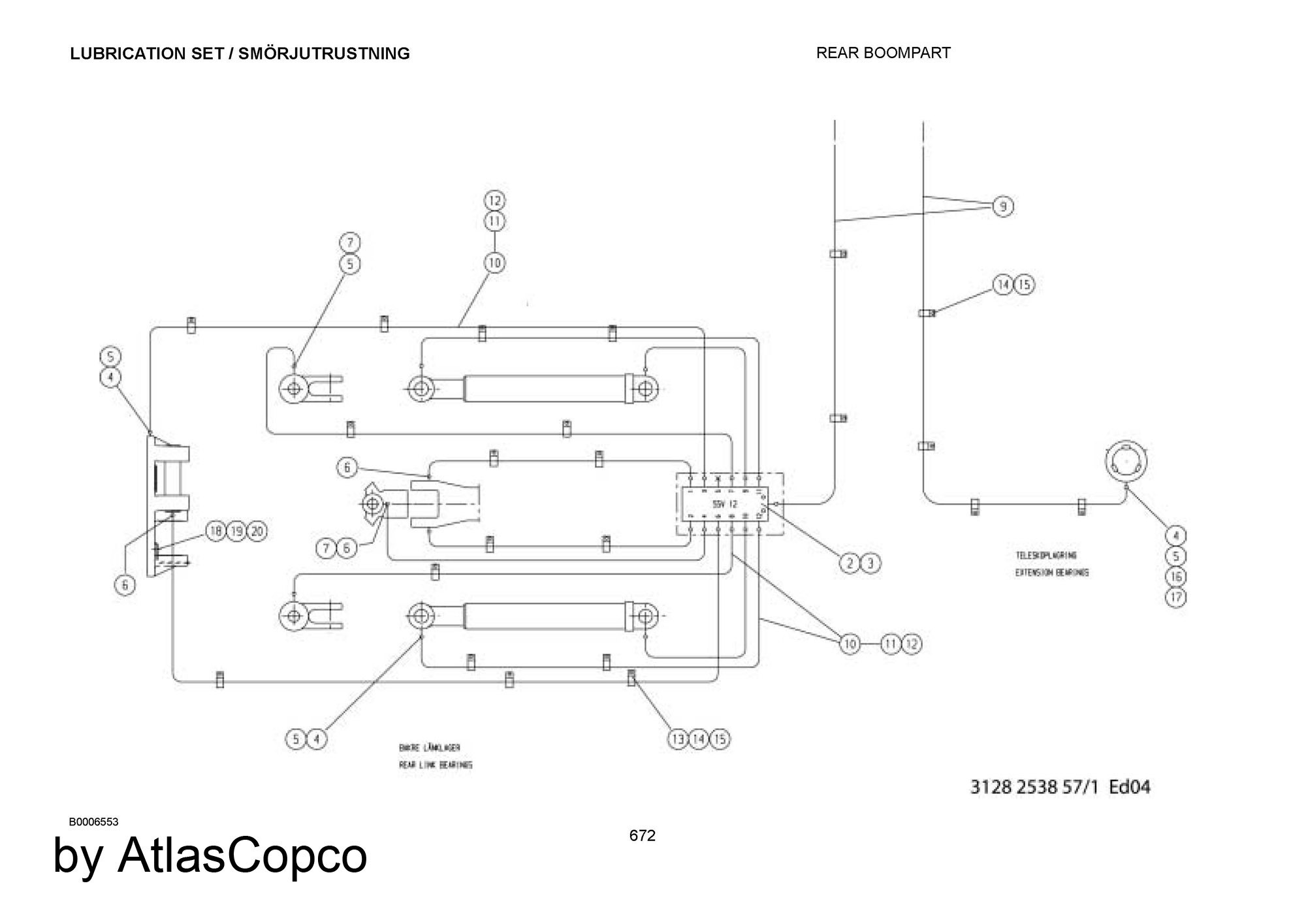

BOOMER M2C SCREW. HEX HEAD #15801
BOOMER M2C SCREW. HEX HEAD
ads
Ref
Parts Num
Name
3
0147125103
SCREW. HEX HEAD
4
3128253806
EXTENDER
5
0580220200
PIPE COUPLING
6
0580000200
PIPE COUPLING
7
0605830100
BUSHING
9
3128253810
HIGH POWER PIPE
10
5112216400
HIGH POWER PIPE
11
5112157900
PROTECTION COIL
12
5112157800
PROTECTION COIL
13
0346100201
PIPE CLAMP
14
0346100203
PIPE CLAMP
15
0226032600
TAPPING SCREW
16
3128253809
HOSE ADAPTER
17
3128253808
THREADED SLEEVE
19
0147140103
SCREW. HEX HEAD
20
0301235800
WASHER

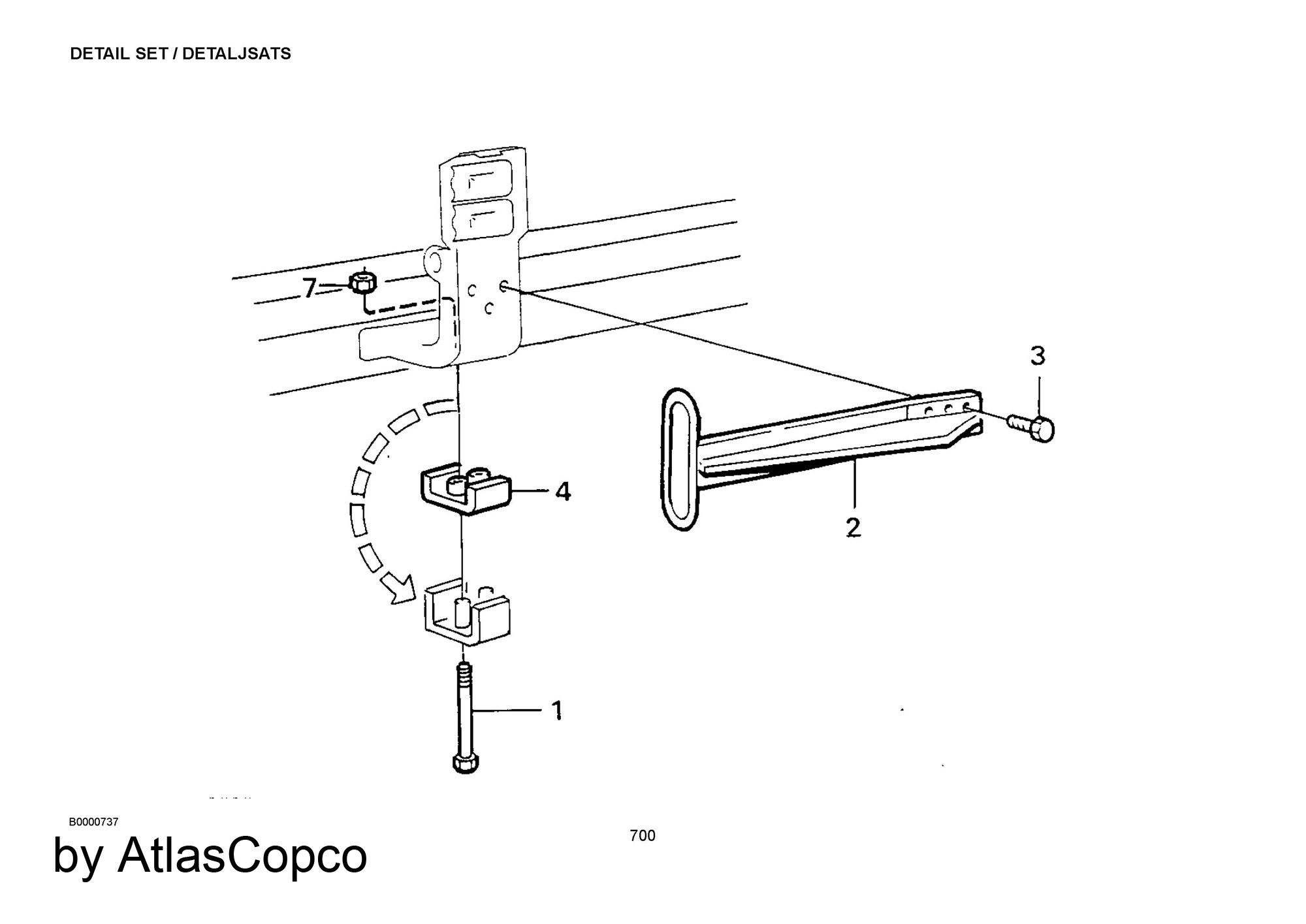

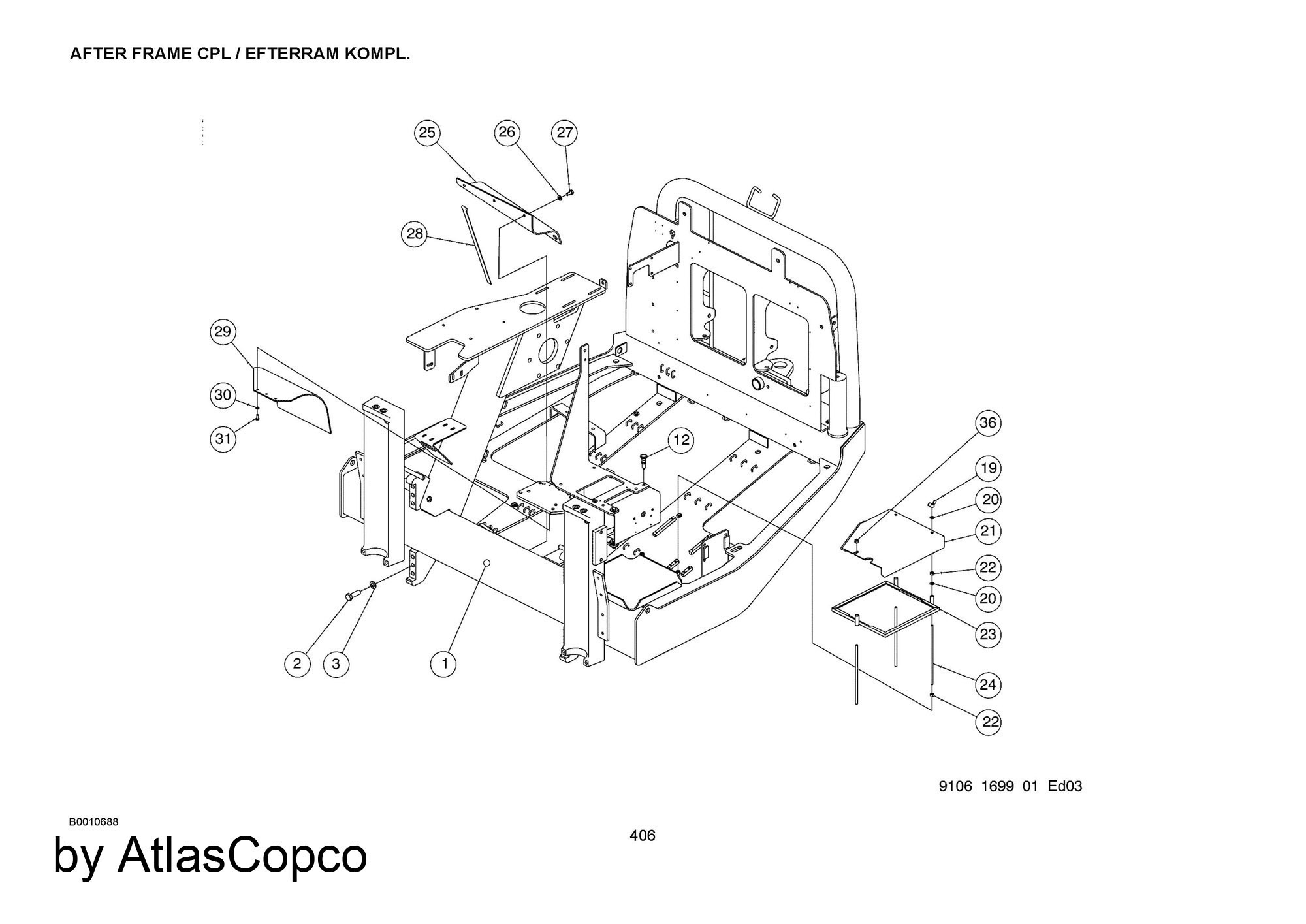

BOOMER M2C SCREW. HEX HEAD #19049
BOOMER M2C SCREW. HEX HEAD
ads
Ref
Parts Num
Name
2
0147155303
SCREW. HEX HEAD
3
0301239400
PLAIN WASHER
12
5112300733
CATCH PISTON
19
0296111100
WING NUT
20
0301234400
PLAIN WASHER
21
5112307161
COVER W SEALING
22
0266211100
NUT
26
0301235800
WASHER
27
0147140003
SCREW. HEX HEAD
28
3176368100
STRAP
30
0301233500
PLAIN WASHER
31
0147132303
SCREW. HEX HEAD
36
0291112820
LOCK NUT

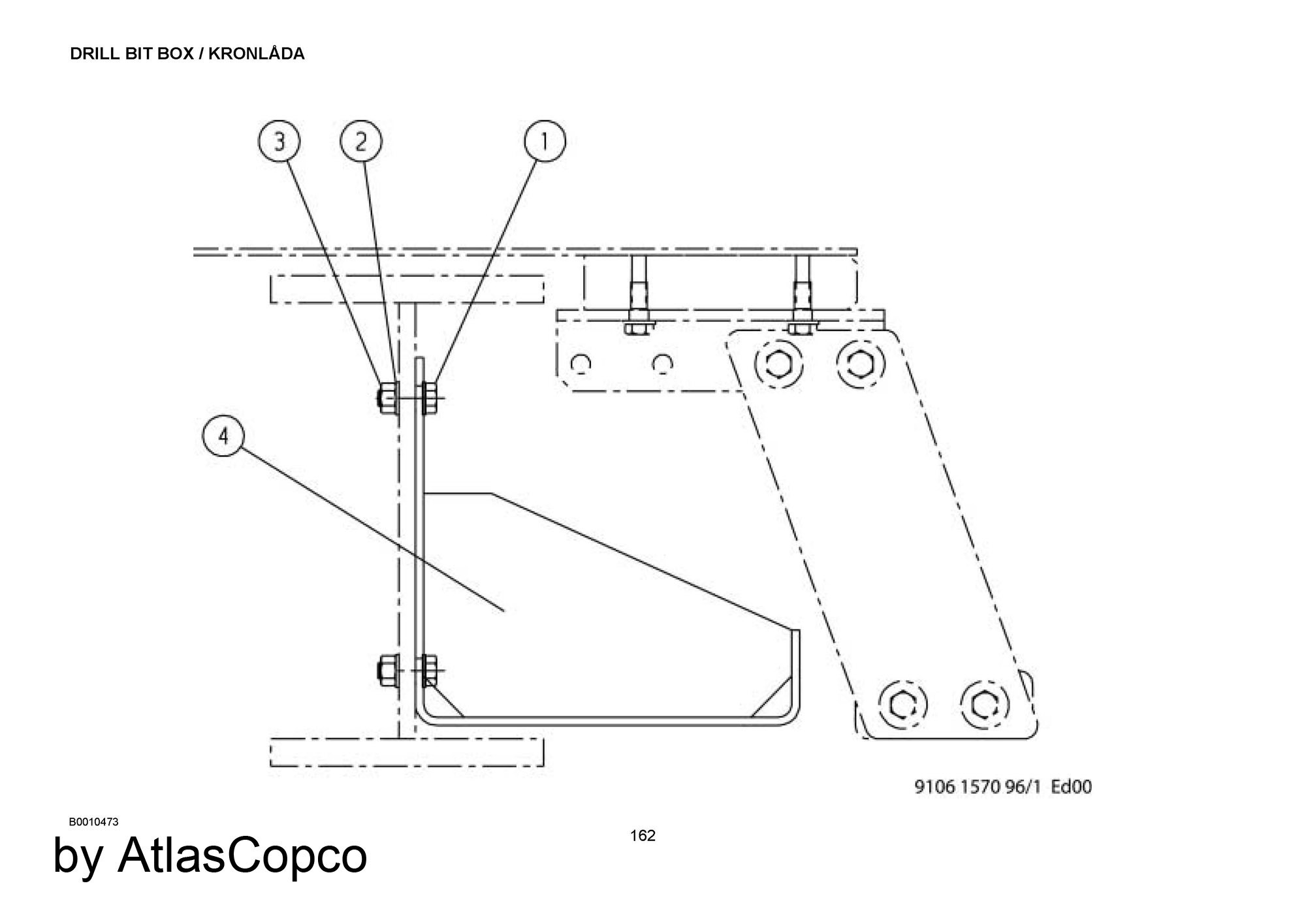

BOOMER M2C SCREW. HEX HEAD #19264
BOOMER M2C SCREW. HEX HEAD
ads
Ref
Parts Num
Name
1
0147140003
SCREW. HEX HEAD
2
0301235800
WASHER
3
0266211200
NUT
4
5112307170
BITCONTAINER
BOOMER M2C SCREW. HEX HEAD #19469
BOOMER M2C SCREW. HEX HEAD
ads
Ref
Parts Num
Name
1
0147133503
SCREW. HEX HEAD
2
3128071500
HOSE GUIDE
3
0147140103
SCREW. HEX HEAD
4
3128305561
CLAMP
7
0291112818
LOCK NUT
BOOMER M2C SCREW. HEX HEAD #19935
BOOMER M2C SCREW. HEX HEAD
ads
Ref
Parts Num
Name
1
0147124403
SCREW. HEX HEAD
2
5112314287
APPARATUS PANEL
5
5112317206
GROUND CABLE
6
5112317207
GROUND CABLE
7
5112317208
GROUND CABLE
12
0694528501
FLAT PIN SLEEVE
13
5112221604
EARTH TERMINAL
14
0226035107
TAPPING SCREW
