BOOMER M2C SENSOR SET #14426
BOOMER M2C SENSOR SET
ads
Ref
Parts Num
Name
0
3128307012
SENSOR SET
1
0147132703
SCREW. HEX HEAD
2
0301233500
PLAIN WASHER
5
9106169608
ANGLE SENSOR
6
3128305989
BELLOWS COUP.
BOOMER M2C SENSOR SET #14594
BOOMER M2C SENSOR SET
ads
Ref
Parts Num
Name
0
3128307016
SENSOR SET
1
3128307893
LINEAR SENSOR
3
3216747503
CLAMP
5
3128307816
SENSOR PROTECT.
6
0147139903
SCREW. HEX HEAD
7
0301235800
WASHER
9
0147132503
SCREW. HEX HEAD
10
0301233500
PLAIN WASHER
11
3128307915
CHAIN CATCH
BOOMER M2C SENSOR SET #14862
BOOMER M2C SENSOR SET
ads
Ref
Parts Num
Name
0
3128307017
SENSOR SET
1
3128307893
LINEAR SENSOR
3
3216747503
CLAMP
5
3128307816
SENSOR PROTECT.
6
0147140203
SCREW. HEX HEAD
7
0301235800
WASHER
8
0291112822
LOCK NUT
9
0147132503
SCREW. HEX HEAD
10
0301233500
PLAIN WASHER
11
3128306556
ATTACHMENT
12
3176558800
U BOLT
13
0291112818
LOCK NUT
14
3128304024
GUIDE SLEEVE
15
3128290035
CLAMP IRON
16
3128307777
ATTACHMENT
17
0147140103
SCREW. HEX HEAD
18
3128307915
CHAIN CATCH
BOOMER M2C SENSOR SET #14878
BOOMER M2C SENSOR SET
ads
Ref
Parts Num
Name
0
3128307018
SENSOR SET
1
3128307889
LINEAR SENSOR
2
3215990800
TENSION SPRING
3
3216747503
CLAMP
4
3128307030
WIRE
5
3128308068
WIRE ATTACHMENT
6
3128307045
GASKET
7
0147132903
SCREW. HEX HEAD
8
0291112818
LOCK NUT
9
0301237800
PLAIN WASHER
10
3128308067
WIRE ATTACHMENT
BOOMER M2C SENSOR SET #15167
BOOMER M2C SENSOR SET
ads
Ref
Parts Num
Name
0
3128307015
SENSOR SET
1
0211196307
SCREW
2
3128307050
COVER
4
9106169608
ANGLE SENSOR
6
3128305989
BELLOWS COUP.

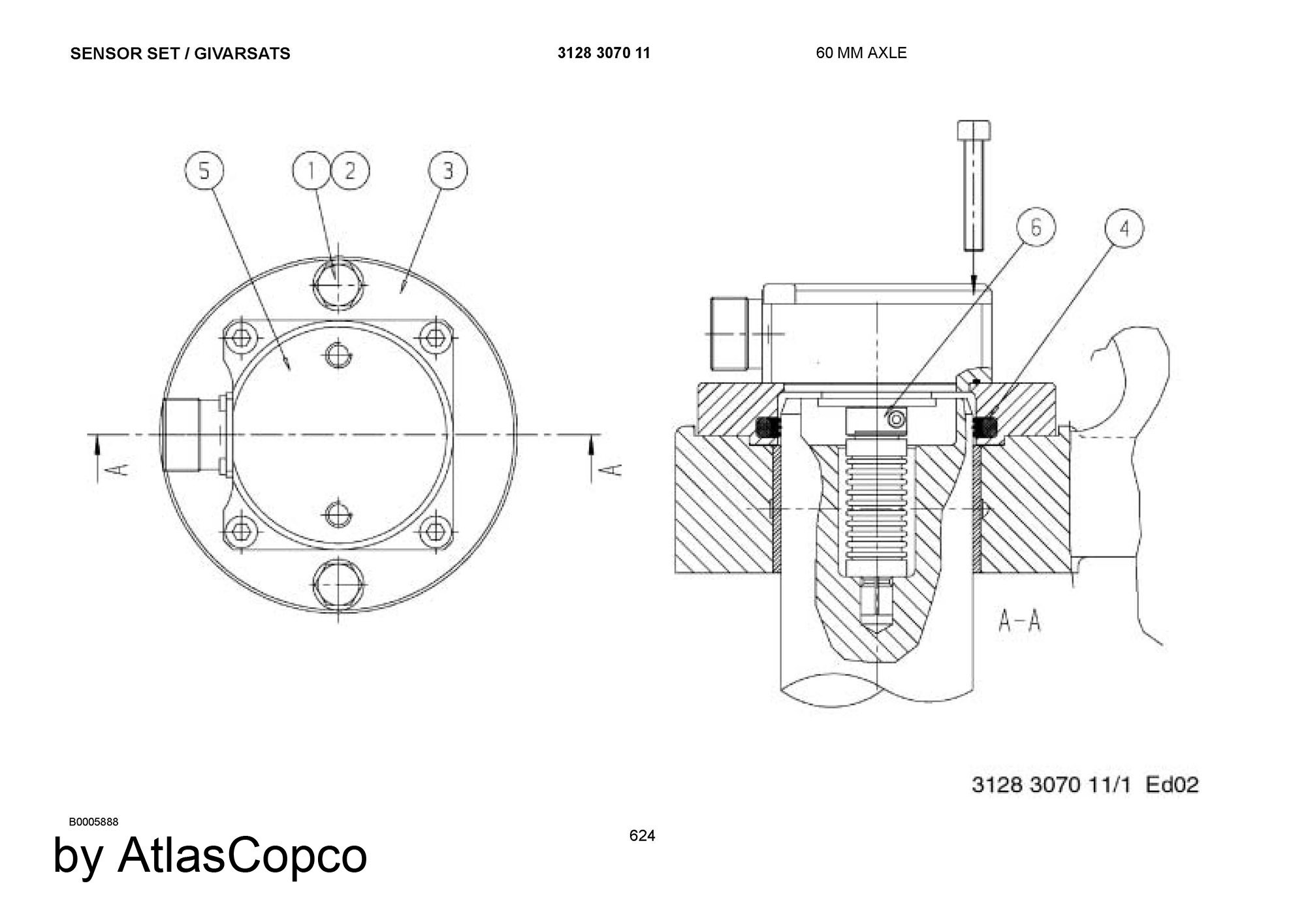

BOOMER M2C SENSOR SET #15574
BOOMER M2C SENSOR SET
ads
Ref
Parts Num
Name
0
3128307011
SENSOR SET
1
0147132603
SCREW. HEX HEAD
2
0301233500
PLAIN WASHER
5
9106169608
ANGLE SENSOR
6
3128305989
BELLOWS COUP.
BOOMER M2C SENSOR SET #15697
BOOMER M2C SENSOR SET
ads
Ref
Parts Num
Name
0
3128307014
SENSOR SET
3
0211196316
SCREW
5
9106169608
ANGLE SENSOR
6
0211196289
SCREW
7
3128307368
SHAFT COMPL.
BOOMER M2C SENSOR SET #19230
BOOMER M2C SENSOR SET
ads
Ref
Parts Num
Name
0
3128307019
SENSOR SET
1
3128290021
COVER
2
3128290020
COVER
4
0147132603
SCREW. HEX HEAD
5
0301233500
PLAIN WASHER
6
3128307011
SENSOR SET
7
3128307012
SENSOR SET
10
3128307014
SENSOR SET
11
3128307015
SENSOR SET
12
3128307016
SENSOR SET
13
3128307017
SENSOR SET
14
3128307018
SENSOR SET
16
3128307774
ASSEMBLY SET
BOOMER M2C SENSOR SET #21501
BOOMER M2C SENSOR SET
ads
Ref
Parts Num
Name
L40
3128307019
SENSOR SET
L45
9106143085
CABLE SET
