BOOMER M2D COMPRESSOR #10570
BOOMER M2D COMPRESSOR
ads
Ref
Parts Num
Name
0
8152007186
COMPRESSOR
1
5112308360
ATTACHMENT
2
5112308375
ADJUSTING SCREW
3
5112308376
EXPAND. BUSH
4
5112308377
PULLEY
5
5112308378
VBELT
6
1619581400
FILTER HOUSING
7
1619622000
AIR FILTER
8
9106077425
COOLER SUPPORT
9
0605883205
BUSHING
10
2989016400
COMPRESSOR
12
1613901000
GASKET
13
0211196400
HEX SOCK. SCREW
14
5112308385
CLIP
15
3177307800
HYDRAULIC MOTOR
16
1619377000
NIPPLE
17
9106077580
OIL COOLER
18
1613610500
FILTER ELEMENT
19
1613903103
PULLEY
20
3217312400
SHACKLE
21
1089062117
SOLENOID VALVE
22
3176659500
NIPPLE
23
1089037646
TEMP. GAUGE
24
1619759600
THERMOSTAT
25
1613900886
UNLOADING VALVE
26
1613688303
THEMOST. HOUSE
27
0301232100
PLAIN WASHER
28
5112308386
ATTACHMENT
29
3176213100
NIPPLE
30
3176656500
NIPPLE
31
3715058500
NIPPLE
32
3176634900
NIPPLE
33
3176635100
NIPPLE
34
5112308384
REDUCING SOCKET
35
8092230195
TUBE KIT
36
8092230203
TUBE KIT
37
8092230187
TUBE KIT
38
5112308379
BELT PROTECTION
39
2235410313
COUPLING
40
0147124603
SCREW. HEX HEAD
41
0147132203
SCREW. HEX HEAD
42
0147132303
SCREW. HEX HEAD
43
0147132603
SCREW. HEX HEAD
44
0147140303
SCREW. HEX HEAD
45
0147140503
SCREW. HEX HEAD
46
0301234400
PLAIN WASHER
47
0301235800
WASHER
48
0291112822
LOCK NUT
49
0291112818
LOCK NUT
50
0605882300
BUSHING
51
0147140103
SCREW. HEX HEAD
101
0653106200
GASKET
102
0686371601
PLUG
103
1513040081
PRESSURE VALVE
104
1613902000
LEVEL METER
105
3176006200
NIPPLE
106
3176657600
NIPPLE
107
1613900500
CHECK VALVE
109
0663210750
ORING
111
0830100776
SAFETY VALVE
112
1613900600
FLUSHING TUBE
113
1613901400
OILSEPARAT ELEM
114
1613900400
SPRING
115
1613904300
SUPPORT
117
1613901300
COVER
118
1613907200
VESSEL
119
3176634800
NIPPLE
121
3715058400
ELBOW NIPPLE
122
0211196081
SCREW
124
0301233500
PLAIN WASHER
126
3176655500
NIPPLE
127
9106171538
FILLER PIPE
128
0661104900
SEAL WASHER
129
0686420800
PLUG
BOOMER M2D COMPRESSOR #10817
BOOMER M2D COMPRESSOR
ads
Ref
Parts Num
Name
0
8152007186
COMPRESSOR
1
5112308360
ATTACHMENT
2
5112308375
ADJUSTING SCREW
3
5112308376
EXPAND. BUSH
4
5112308377
PULLEY
5
5112308378
VBELT
6
1619581400
FILTER HOUSING
7
1619622000
AIR FILTER
8
9106077425
COOLER SUPPORT
9
0605883205
BUSHING
10
2989016400
COMPRESSOR
12
1613901000
GASKET
13
0211196400
HEX SOCK. SCREW
14
5112308385
CLIP
15
3177307800
HYDRAULIC MOTOR
16
1619377000
NIPPLE
17
9106077580
OIL COOLER
18
1613610500
FILTER ELEMENT
19
1613903103
PULLEY
20
3217312400
SHACKLE
21
1089062117
SOLENOID VALVE
22
3176659500
NIPPLE
23
1089037646
TEMP. GAUGE
24
1619759600
THERMOSTAT
25
1613900886
UNLOADING VALVE
26
1613688303
THEMOST. HOUSE
27
0301232100
PLAIN WASHER
28
5112308386
ATTACHMENT
29
3176213100
NIPPLE
30
3176656500
NIPPLE
31
3715058500
NIPPLE
32
3176634900
NIPPLE
33
3176635100
NIPPLE
34
5112308384
REDUCING SOCKET
35
8092230195
TUBE KIT
36
8092230203
TUBE KIT
37
8092230187
TUBE KIT
38
5112308379
BELT PROTECTION
39
2235410313
COUPLING
40
0147124603
SCREW. HEX HEAD
41
0147132203
SCREW. HEX HEAD
42
0147132303
SCREW. HEX HEAD
43
0147132603
SCREW. HEX HEAD
44
0147140303
SCREW. HEX HEAD
45
0147140503
SCREW. HEX HEAD
46
0301234400
PLAIN WASHER
47
0301235800
WASHER
48
0291112822
LOCK NUT
49
0291112818
LOCK NUT
50
0605882300
BUSHING
51
0147140103
SCREW. HEX HEAD
101
0653106200
GASKET
102
0686371601
PLUG
103
1513040081
PRESSURE VALVE
104
1613902000
LEVEL METER
105
3176006200
NIPPLE
106
3176657600
NIPPLE
107
1613900500
CHECK VALVE
109
0663210750
ORING
111
0830100776
SAFETY VALVE
112
1613900600
FLUSHING TUBE
113
1613901400
OILSEPARAT ELEM
114
1613900400
SPRING
115
1613904300
SUPPORT
117
1613901300
COVER
118
1613907200
VESSEL
119
3176634800
NIPPLE
121
3715058400
ELBOW NIPPLE
122
0211196081
SCREW
124
0301233500
PLAIN WASHER
126
3176655500
NIPPLE
127
9106171538
FILLER PIPE
128
0661104900
SEAL WASHER
129
0686420800
PLUG

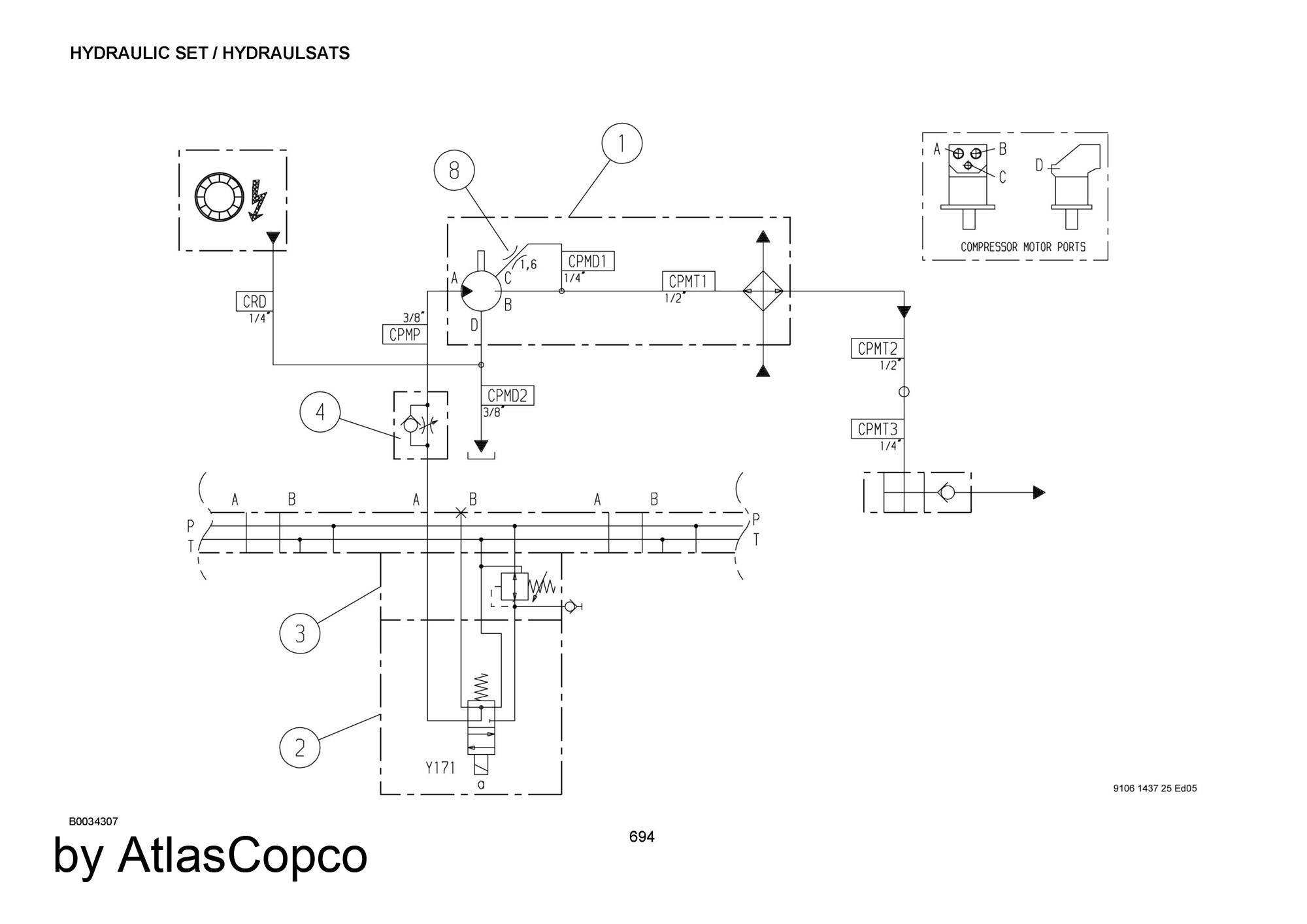

BOOMER M2D COMPRESSOR #11331
BOOMER M2D COMPRESSOR
ads
Ref
Parts Num
Name
1
8152007186
COMPRESSOR
2
3177309209
DIRECTION VALVE
3
3214871280
PRESS.RED.VALVE
4
3217919303
REGULATOR
8
3217651303
RESTRICTION
