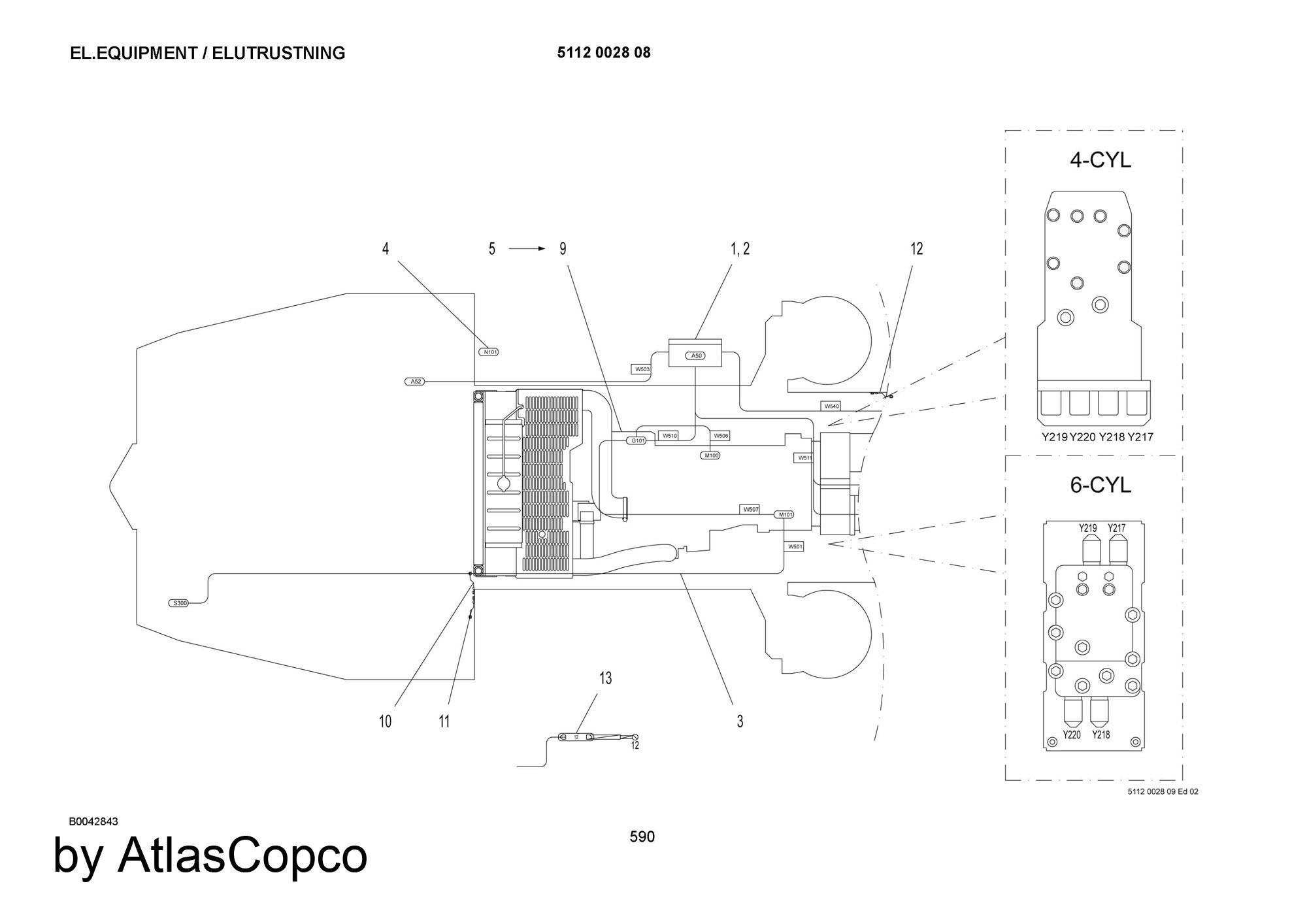

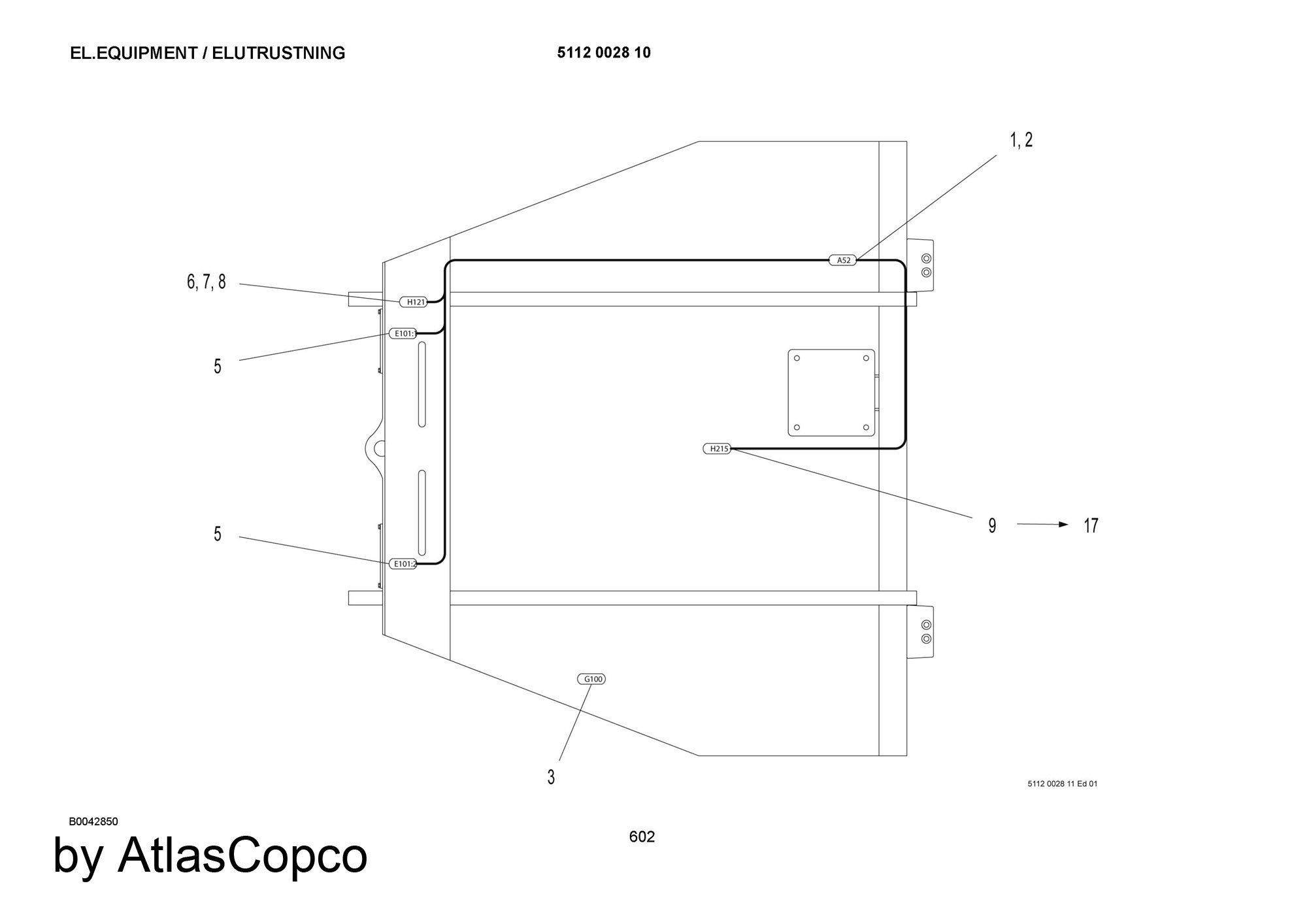

BOOMER M2D EL.EQUIPMENT #10011
BOOMER M2D EL.EQUIPMENT
ads
Ref
Parts Num
Name
0
5112002810
EL.EQUIPMENT
1
5112002824
JUNCTION BOX
2
0211124603
SCREW
3
5112002827
BATTERY MODULE
5
9106212796
HEADLIGHT
6
3176000156
REVERSE ALARM
8
1088000301
FLAT PIN SLEEVE
9
5112313905
FLASH LIGHT
10
5112306022
COVER
11
0147136503
SCREW. HEX HEAD
12
0301234400
PLAIN WASHER
13
0291112820
LOCK NUT
14
3217973121
CONNECTOR
15
3217973123
CONNECTOR
16
3217973124
FLAT PIN
17
3176000103
FLAT PIN SLEEVE

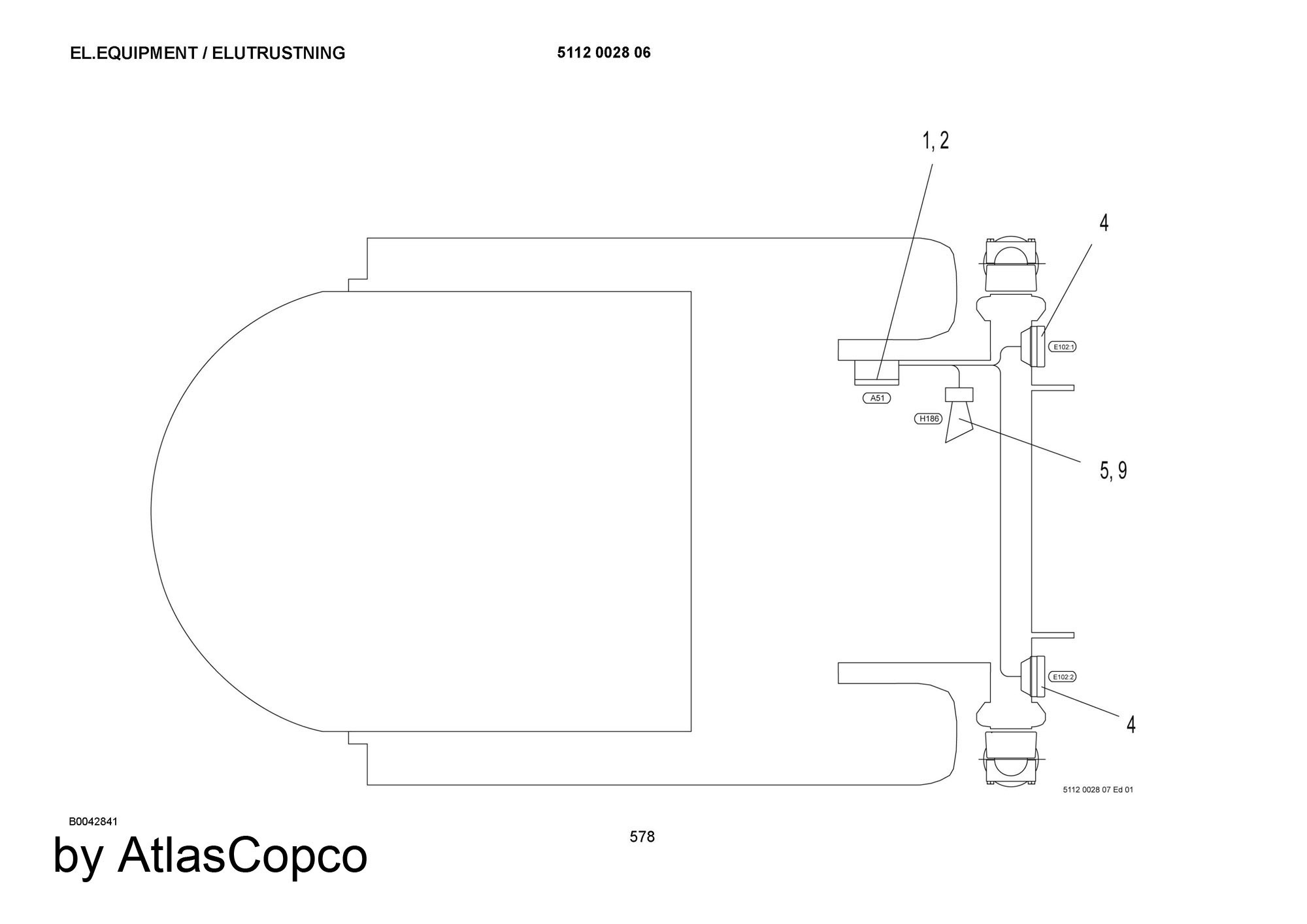

BOOMER M2D EL.EQUIPMENT #10607
BOOMER M2D EL.EQUIPMENT
ads
Ref
Parts Num
Name
0
5112002806
EL.EQUIPMENT
1
5112002815
JUNCTION BOX
2
0211124603
SCREW
4
9106212796
HEADLIGHT
5
3176000090
LOUDWHISTLEHORN
6
0147133303
SCREW. HEX HEAD
7
0301233500
PLAIN WASHER
9
9139600456
FLAT PIN SLEEVE
BOOMER M2D EL.EQUIPMENT #10924
BOOMER M2D EL.EQUIPMENT
ads
Ref
Parts Num
Name
0
5112002864
EL.EQUIPMENT
1
5112002836
JUNCTION BOX
2
0226035101
TAPPING SCREW
3
5112002848
EL.EQUIPMENT
4
3222311292
SCREW
5
5112002850
HYDRAULIC PANEL
7
5112002866
JUNCTION BOX
9
5112002868
JUNCTION BOX
11
5112002843
PLINTH MODULE
12
0301232100
PLAIN WASHER
13
0291112815
LOCK NUT
14
9106107300
ELECTRIC. SHOCK
15
5112002857
PANEL
17
5112002870
CABLE SET
18
3217000177
COVER COMPL.
19
0147132203
SCREW. HEX HEAD
21
3217900510
COVER
23
5112304340
HEADLIGHT
24
5112304341
HEADLIGHT
25
5112306100
CLAMP
26
1088000301
FLAT PIN SLEEVE
27
3176001234
LIGHT EMIT. DIO
28
3217001085
EMERG. STOP BOX
29
0698514141
CABLE GLAND
30
0697980914
LOCK NUT
31
0160604200
SCREW. SLOTTED
32
3217001222
SWITCH
33
5112316653
VOLTAGE CONVERT
34
3186149800
BOX CASING
35
3186115200
RECEPTACLE
36
3186145001
COVER
37
0216124703
SCREW
38
1088026005
CABLE GLAND
39
0697980915
LOCK NUT
40
0698514062
CABLE GLAND
41
0698514063
CABLE GLAND
42
0697974563
ENLARGER
43
0697981019
END PLUG
44
0698514061
CABLE GLAND
46
0698514064
CABLE GLAND
47
3217000180
CABLE STR.-WAY
48
3217000181
CABLE SEAL

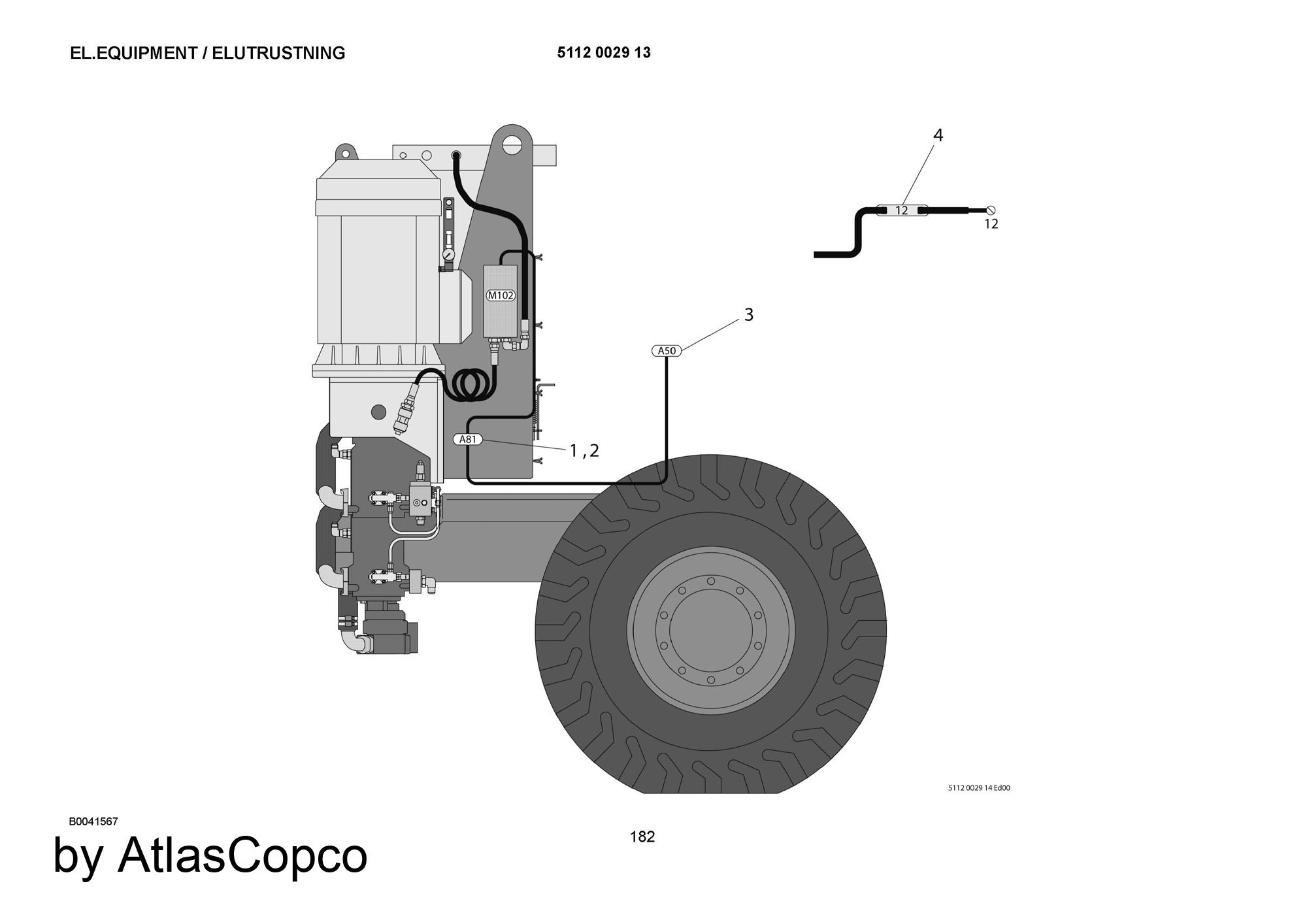

BOOMER M2D EL.EQUIPMENT #11354
BOOMER M2D EL.EQUIPMENT
ads
Ref
Parts Num
Name
0
5112002913
EL.EQUIPMENT
M102
9111389190
CABLE. 4CORE
1
3176000614
PUSHBUTTONBOX
2
0160604200
SCREW. SLOTTED
3
0698514061
CABLE GLAND
BOOMER M2D EL.EQUIPMENT #17425
BOOMER M2D EL.EQUIPMENT
ads
Ref
Parts Num
Name
0
5112002808
EL.EQUIPMENT
1
5112002819
APPARATUS PANEL
2
0147124403
SCREW. HEX HEAD
3
5112002822
CABLE SET
4
5112317245
RELAY
8
5118090400
RUBBER PROTEC
9
5118090500
RUBBER PROTEC

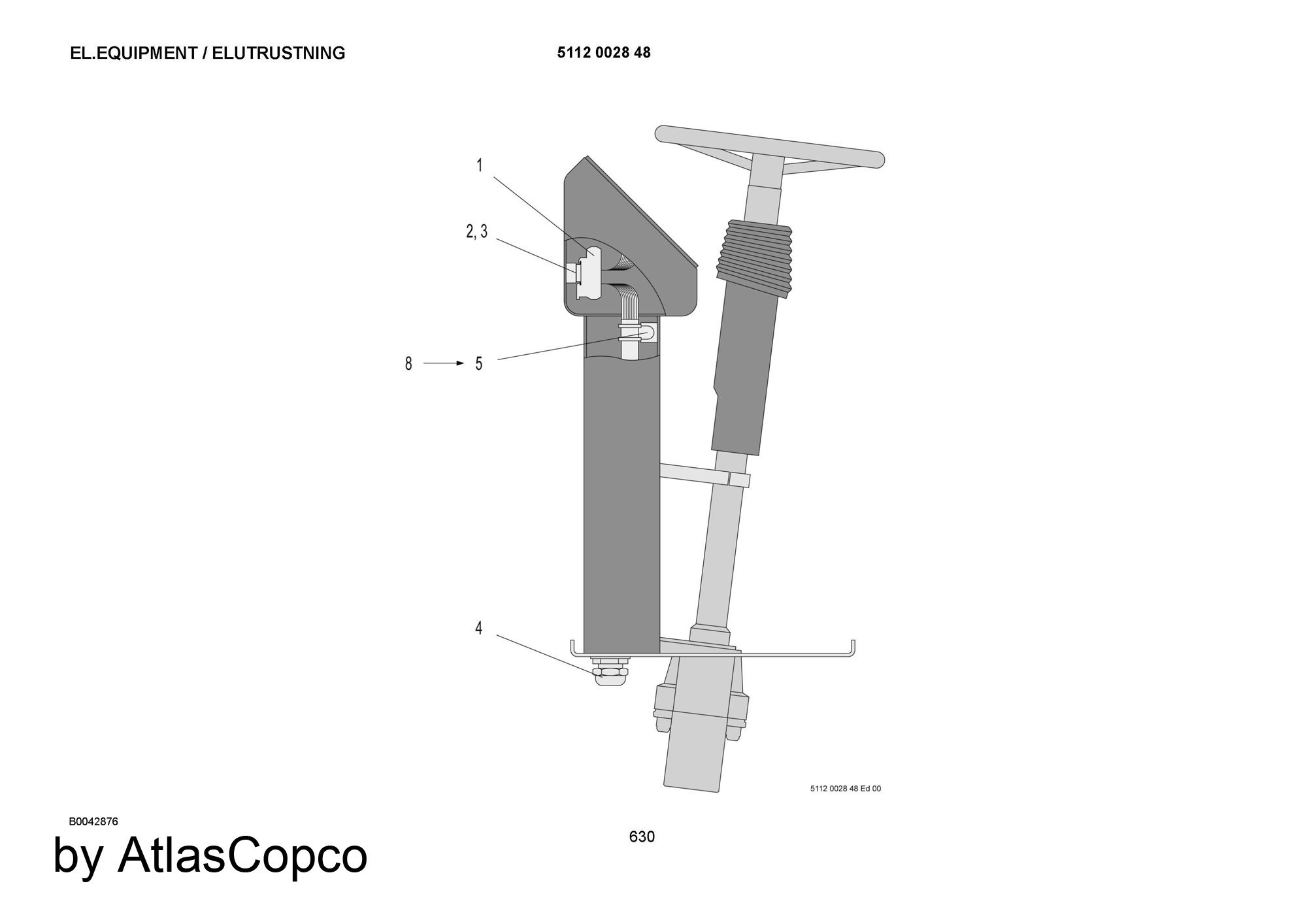

BOOMER M2D EL.EQUIPMENT #17528
BOOMER M2D EL.EQUIPMENT
ads
Ref
Parts Num
Name
0
5112002848
EL.EQUIPMENT
1
5112002871
DRIVERS PANEL
2
0147120503
SCREW. HEX HEAD
3
0301231800
PLAIN WASHER
4
0698514064
CABLE GLAND
5
0346100209
PIPE CLAMP
6
0147132603
SCREW. HEX HEAD
7
0301233500
PLAIN WASHER
8
0266211000
NUT

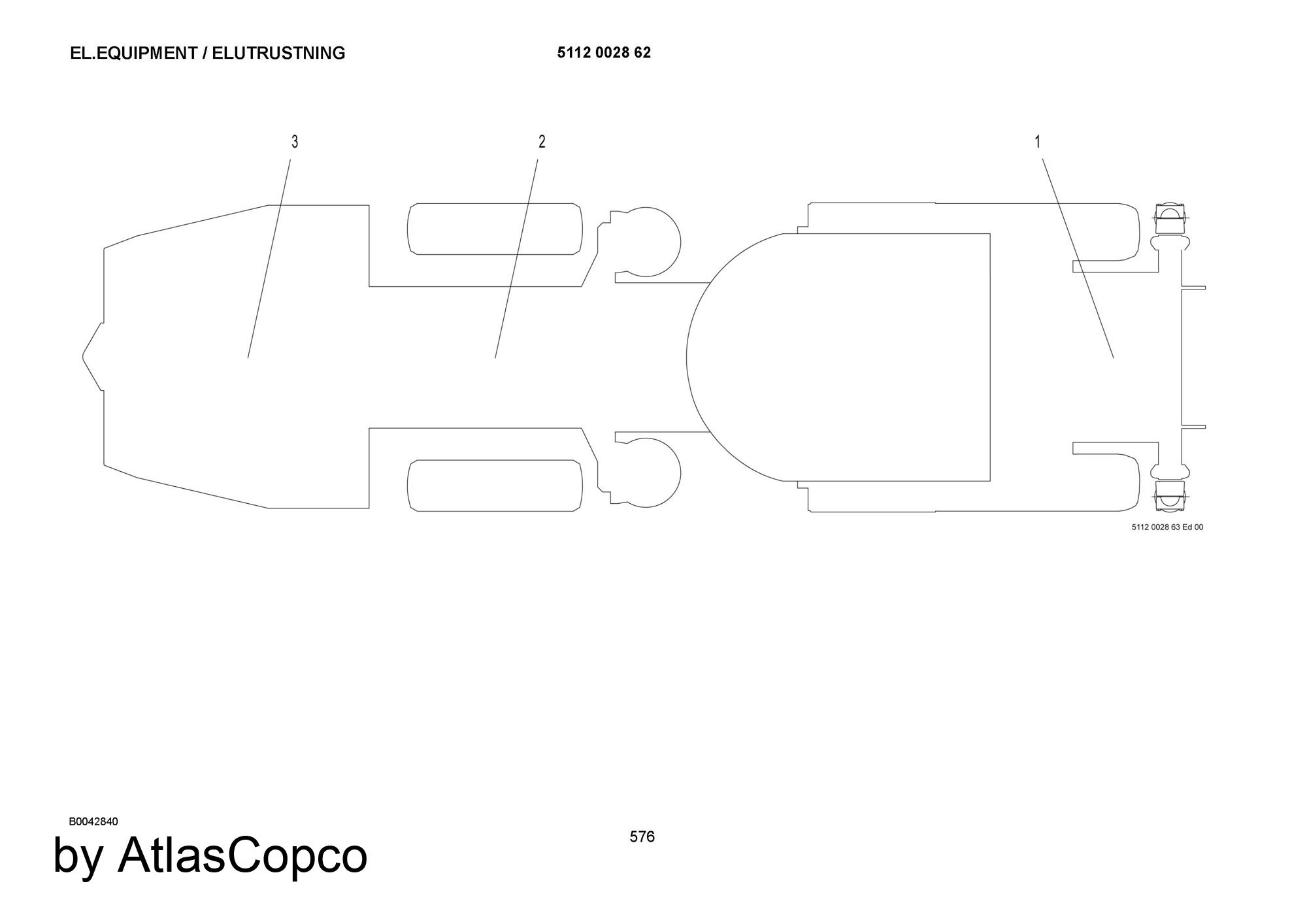

BOOMER M2D EL.EQUIPMENT #20470
BOOMER M2D EL.EQUIPMENT
ads
Ref
Parts Num
Name
0
5112002862
EL.EQUIPMENT
1
5112002806
EL.EQUIPMENT
2
5112002808
EL.EQUIPMENT
3
5112002810
EL.EQUIPMENT
