BOOMER XE3 ATTACHMENT #18299
BOOMER XE3 ATTACHMENT
ads
Ref
Parts Num
Name
1
9106217343
ATTACHMENT
2
9106221954
USB CABLE
3
0211110501
HEX SOCK. SCREW
4
0301230900
PLAIN WASHER
BOOMER XE3 ATTACHMENT #18696
BOOMER XE3 ATTACHMENT
ads
Ref
Parts Num
Name
1
9106222307
ATTACHMENT
2
9106222308
HOLDER
3
0346290023
U-BOLT
4
0147132903
SCREW. HEX HEAD
BOOMER XE3 ATTACHMENT #18750
BOOMER XE3 ATTACHMENT
ads
Ref
Parts Num
Name
1
9106217343
ATTACHMENT
2
9106221953
USB CABLE
3
0211110501
HEX SOCK. SCREW
4
0301230900
PLAIN WASHER
BOOMER XE3 ATTACHMENT #21907
BOOMER XE3 ATTACHMENT
ads
Ref
Parts Num
Name
0
5112330848
ATTACHMENT
1
5112330786
ATTACHMENT
2
5112330787
ATTACHMENT
4
3218200827
EDGE LIST
5
5112242500
EDGE LIST
6
0301233500
PLAIN WASHER
7
0147132303
SCREW. HEX HEAD

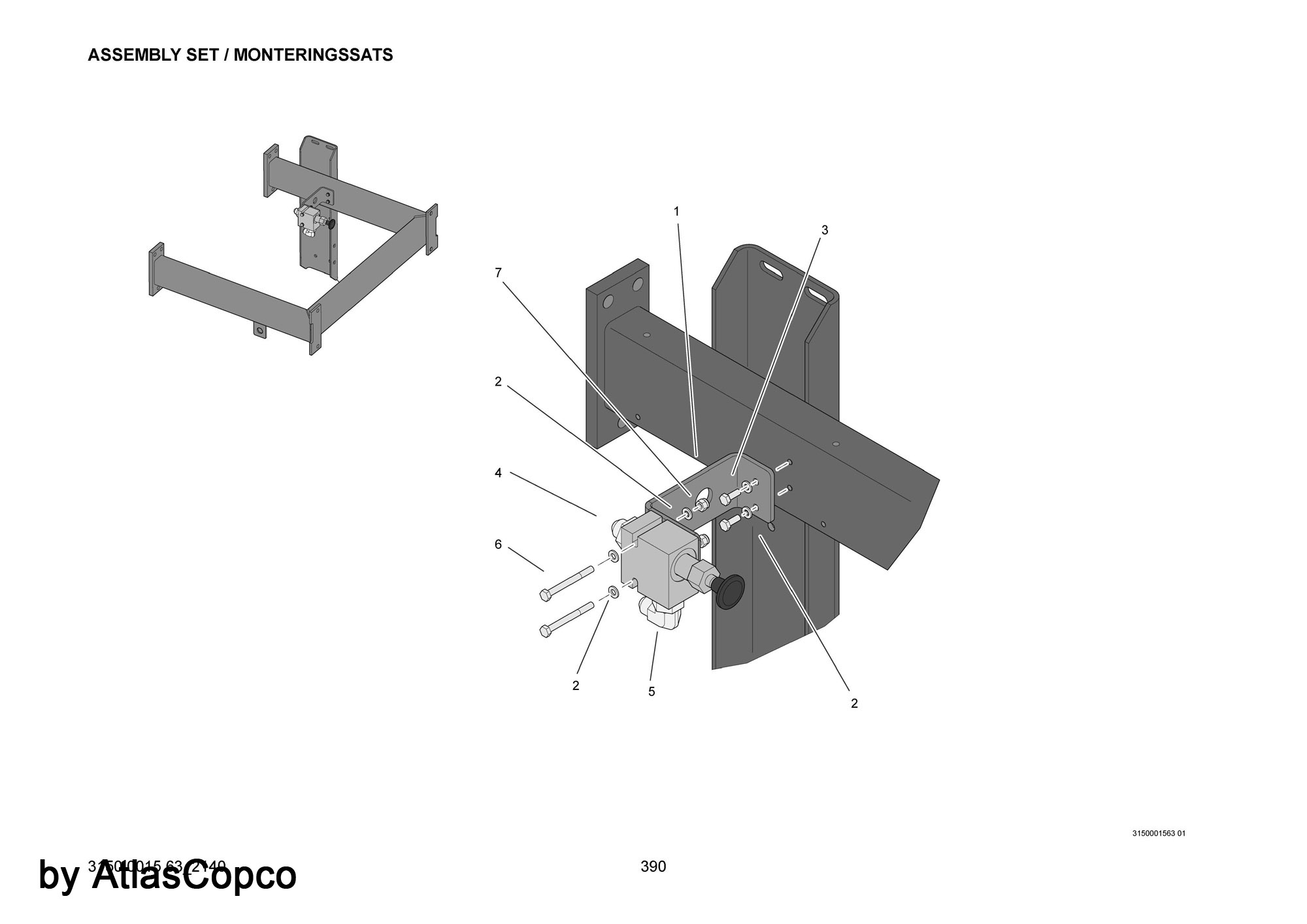

BOOMER XE3 ATTACHMENT #21926
BOOMER XE3 ATTACHMENT
ads
Ref
Parts Num
Name
1
3150000864
ATTACHMENT
2
0300027474
WASHER
3
3150000894
CLIP
4
0147132203
SCREW. HEX HEAD
5
0147132903
SCREW. HEX HEAD
12
3150000818
OVERCENT.VALVE

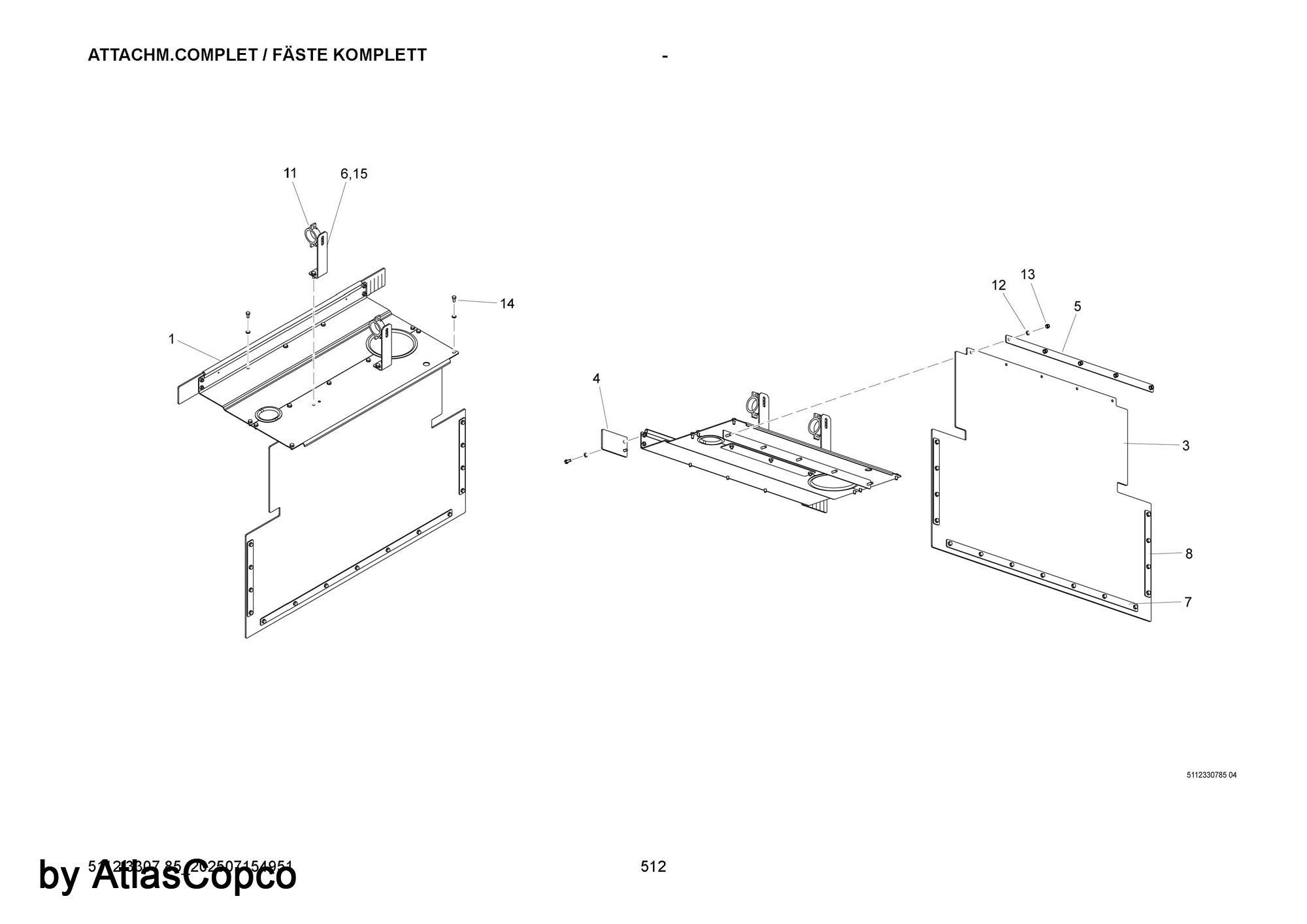

BOOMER XE3 ATTACHMENT #21942
BOOMER XE3 ATTACHMENT
ads
Ref
Parts Num
Name
1
5112330848
ATTACHMENT
3
5112330788
RUBBER CLOTH
4
5112330789
RUBBER ELEMENT
5
5112330790
PLATE
7
5112330753
PLATE
8
5112330755
PLATE
12
0301233500
PLAIN WASHER
13
0291112818
LOCK NUT
14
0147132203
SCREW. HEX HEAD
15
0147132303
SCREW. HEX HEAD
BOOMER XE3 ATTACHMENT #22032
BOOMER XE3 ATTACHMENT
ads
Ref
Parts Num
Name
1
3150001562
ATTACHMENT
2
0301232100
PLAIN WASHER
3
0147124603
SCREW. HEX HEAD
4
3176651300
NIPPLE
5
3176656400
NIPPLE
6
0147125603
SCREW. HEX HEAD
7
0291112815
LOCK NUT

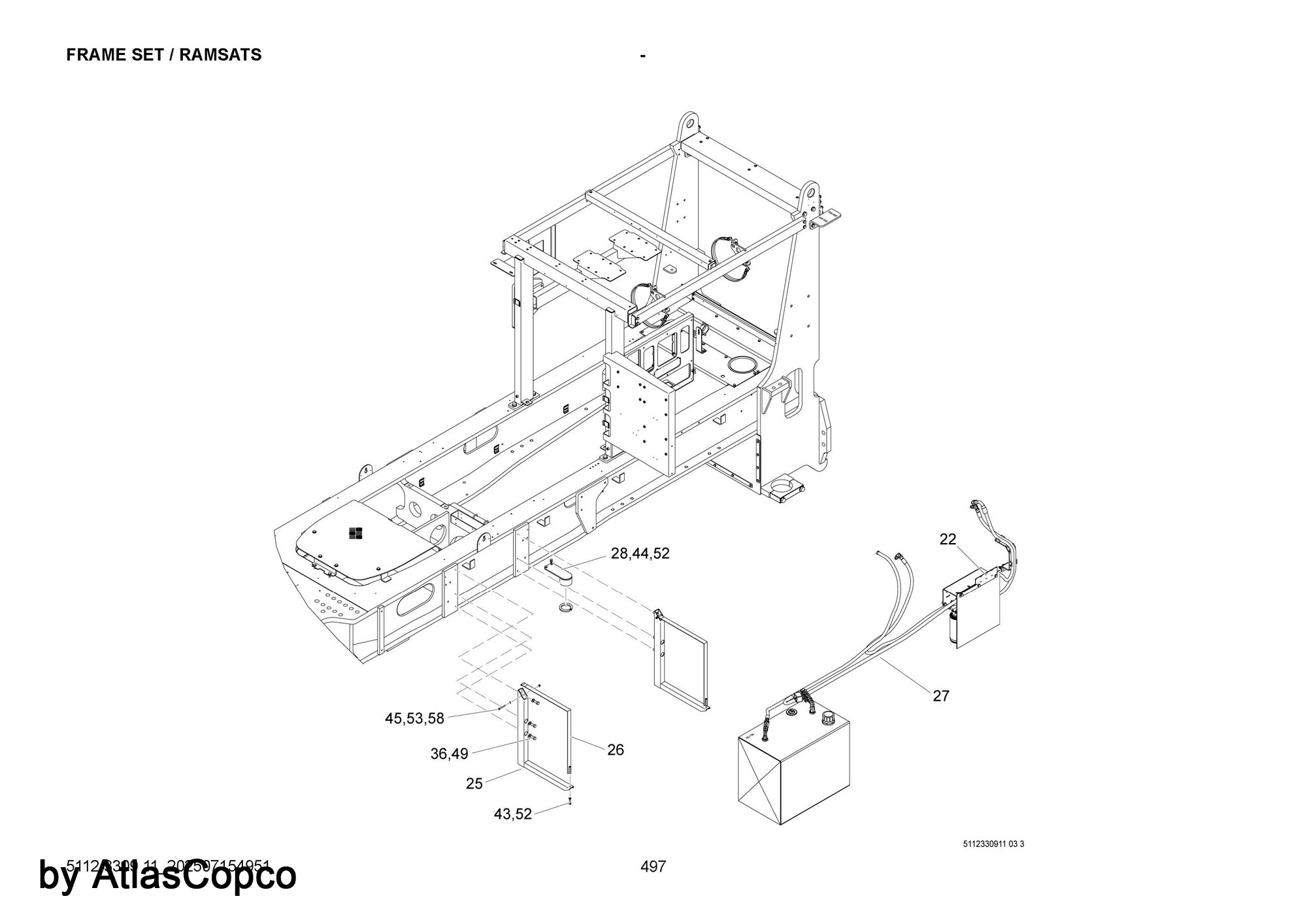

BOOMER XE3 ATTACHMENT #22131
BOOMER XE3 ATTACHMENT
ads
Ref
Parts Num
Name
2
3128259750
ATTACHMENT
3
9106239349
STONE KNIFE
4
9106239903
COVER PLATE
5
9106184450
HOSE HOLDER
6
5112330909
PROTECTION HOOD
7
9106239857
ATTACHMENT
8
3128307719
HOSE HOLDER
9
9106239805
BRACKET
10
9106239870
ATTACHMENT
11
9106184352
PROTECT. SHIELD
12
5112330107
PROTECT. SHIELD
13
5112330912
BRACKET
14
9106247330
BRACKET
15
9106222341
BRACKET BEAM
16
9106222337
BRACKET
17
9111422367
PLATE
18
9106222340
STRAP
19
9106239330
SUPPORT BEAM
20
9106222352
ATTACHMENT
21
9106222355
ATTACHMENT
22
5112004062
SIGN HOLDER
23
5112282600
CLAMP
25
5112302935
BRACKET
26
5112302938
BAND
27
5112330481
FUEL SYSTEM
28
5112302815
PROTECTION
29
5112242500
EDGE LIST
30
0147156403
SCREW. HEX HEAD
31
0147154903
SCREW. HEX HEAD
32
0147148703
SCREW. HEX HEAD
33
0147148303
SCREW. HEX HEAD
34
0147147903
SCREW. HEX HEAD
35
0147140403
SCREW. HEX HEAD
36
0147140103
SCREW. HEX HEAD
37
0147137103
SCREW. HEX HEAD
38
0147136803
SCREW. HEX HEAD
39
0147136603
SCREW. HEX HEAD
40
0147135903
SCREW. HEX HEAD
41
0147136303
SCREW. HEX HEAD
42
0147132503
SCREW. HEX HEAD
43
0147132603
SCREW. HEX HEAD
44
0147132303
SCREW. HEX HEAD
45
0147125503
SCREW. HEX HEAD
46
0226032600
TAPPING SCREW
47
0300027413
PLAIN WASHER
48
0301237800
PLAIN WASHER
49
0301235800
WASHER
50
0301234400
PLAIN WASHER
51
0300027434
PLAIN WASHER
52
0301233500
PLAIN WASHER
53
0301232100
PLAIN WASHER
54
0291112825
LOCK NUT
55
0291112824
LOCK NUT
56
0291112820
LOCK NUT
57
0291112818
LOCK NUT
58
0291112815
LOCK NUT
BOOMER XE3 ATTACHMENT #22175
BOOMER XE3 ATTACHMENT
ads
Ref
Parts Num
Name
2
3128259750
ATTACHMENT
3
9106239349
STONE KNIFE
4
9106239903
COVER PLATE
5
9106184450
HOSE HOLDER
6
5112330909
PROTECTION HOOD
7
9106239857
ATTACHMENT
8
3128307719
HOSE HOLDER
9
9106239805
BRACKET
10
9106239870
ATTACHMENT
11
9106184352
PROTECT. SHIELD
12
5112330107
PROTECT. SHIELD
13
5112330912
BRACKET
14
9106247330
BRACKET
15
9106222341
BRACKET BEAM
16
9106222337
BRACKET
17
9111422367
PLATE
18
9106222340
STRAP
19
9106239330
SUPPORT BEAM
20
9106222352
ATTACHMENT
21
9106222355
ATTACHMENT
22
5112004062
SIGN HOLDER
23
5112282600
CLAMP
25
5112302935
BRACKET
26
5112302938
BAND
27
5112330481
FUEL SYSTEM
28
5112302815
PROTECTION
29
5112242500
EDGE LIST
30
0147156403
SCREW. HEX HEAD
31
0147154903
SCREW. HEX HEAD
32
0147148703
SCREW. HEX HEAD
33
0147148303
SCREW. HEX HEAD
34
0147147903
SCREW. HEX HEAD
35
0147140403
SCREW. HEX HEAD
36
0147140103
SCREW. HEX HEAD
37
0147137103
SCREW. HEX HEAD
38
0147136803
SCREW. HEX HEAD
39
0147136603
SCREW. HEX HEAD
40
0147135903
SCREW. HEX HEAD
41
0147136303
SCREW. HEX HEAD
42
0147132503
SCREW. HEX HEAD
43
0147132603
SCREW. HEX HEAD
44
0147132303
SCREW. HEX HEAD
45
0147125503
SCREW. HEX HEAD
46
0226032600
TAPPING SCREW
47
0300027413
PLAIN WASHER
48
0301237800
PLAIN WASHER
49
0301235800
WASHER
50
0301234400
PLAIN WASHER
51
0300027434
PLAIN WASHER
52
0301233500
PLAIN WASHER
53
0301232100
PLAIN WASHER
54
0291112825
LOCK NUT
55
0291112824
LOCK NUT
56
0291112820
LOCK NUT
57
0291112818
LOCK NUT
58
0291112815
LOCK NUT
BOOMER XE3 ATTACHMENT #23392
BOOMER XE3 ATTACHMENT
ads
Ref
Parts Num
Name
7
9106231986
ATTACHMENT
9
9106241910
PRISM
10
9106971209
BATTERY CHARGER
11
9106231991
BATTERY
12
9106231992
STAND
13
9106971228
TRANSCEIVER
14
9106971211
TRANSCEIVER
15
9106241925
PRISM
16
9106241926
HOLDER
17
9106246586
CABLE
18
9106971212
USER INSTRUCT.
