BOOMER XE3 EPIROC New catalogs

BOOMER XE3 Pages

1. EPIROC - BOOMER XE3 LUBRICAT.PUMP #11791

2. EPIROC - BOOMER XE3 LUBRICAT.PUMP #11968

3. EPIROC - BOOMER XE3 LUBRICAT.PUMP #12570

4. EPIROC - BOOMER XE3 LUBRICAT.PUMP #22290

BOOMER XE3 LUBRICAT.PUMP #11791

BOOMER XE3 LUBRICAT.PUMP

ads

Ref

Parts Num

Name

1

LUBRICAT.PUMP

2

PUMP ELEMENT

3

SAFETY VALVE

4

THREADED SLEEVE

5

HOSE ADAPTER

6

VALVE HOUSING

9

SCREW. HEX HEAD

10

HIGH POWER PIPE

11

PROTECTION COIL

12

PROTECTION COIL

13

PIPE CLAMP

14

PIPE CLAMP

15

TAPPING SCREW

16

CHECK VALVE

19

GASKET

20

PLUG

21

ADAPTER

22

ADAPTER

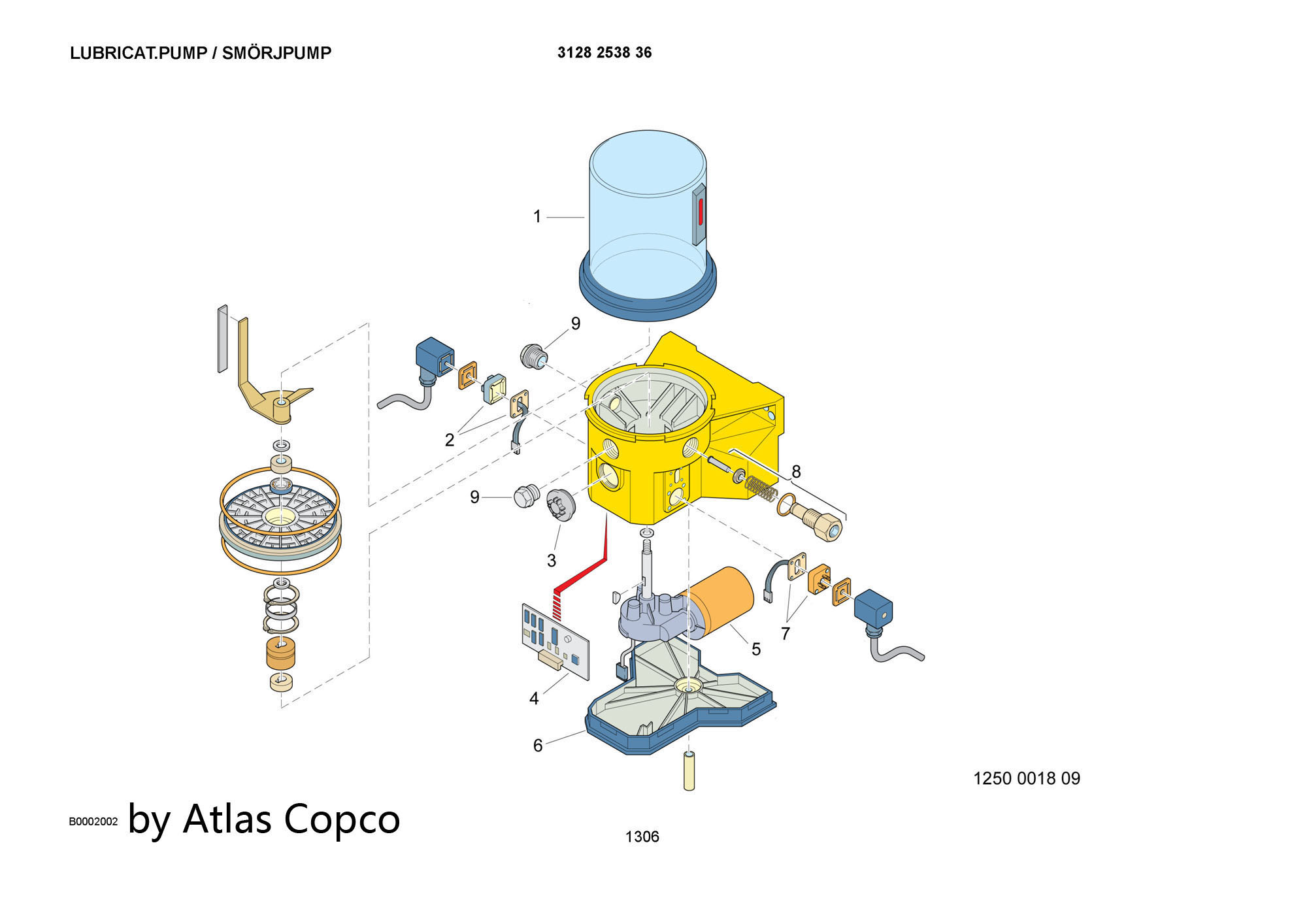

BOOMER XE3 LUBRICAT.PUMP #11968

BOOMER XE3 LUBRICAT.PUMP

ads

Ref

Parts Num

Name

0

LUBRICAT.PUMP

1

RESERVOIR

2

PLUG

3

PLUG

4

CIRCUIT BOARD

5

MOTOR

6

COVER

7

PLUG

8

PUMP ELEMENT

9

PLUG

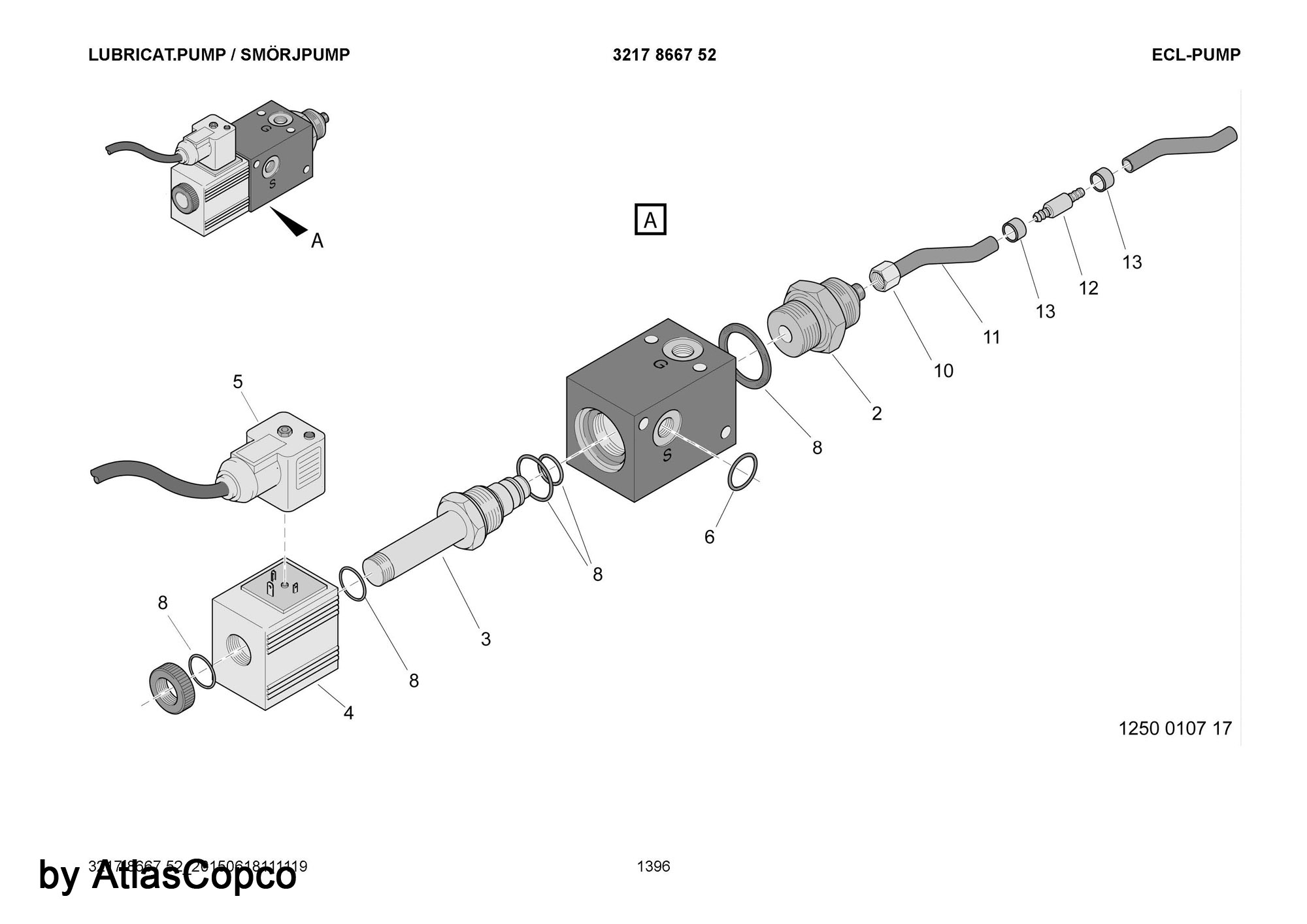

BOOMER XE3 LUBRICAT.PUMP #12570

BOOMER XE3 LUBRICAT.PUMP

ads

Ref

Parts Num

Name

0

LUBRICAT.PUMP

2

NIPPLE

3

CARTRIDGE

4

COIL

6

ORING

8

SEAL KIT

10

COUPLING

11

POLYAMIDE HOSE

12

CONNECTION

13

LOCK RING

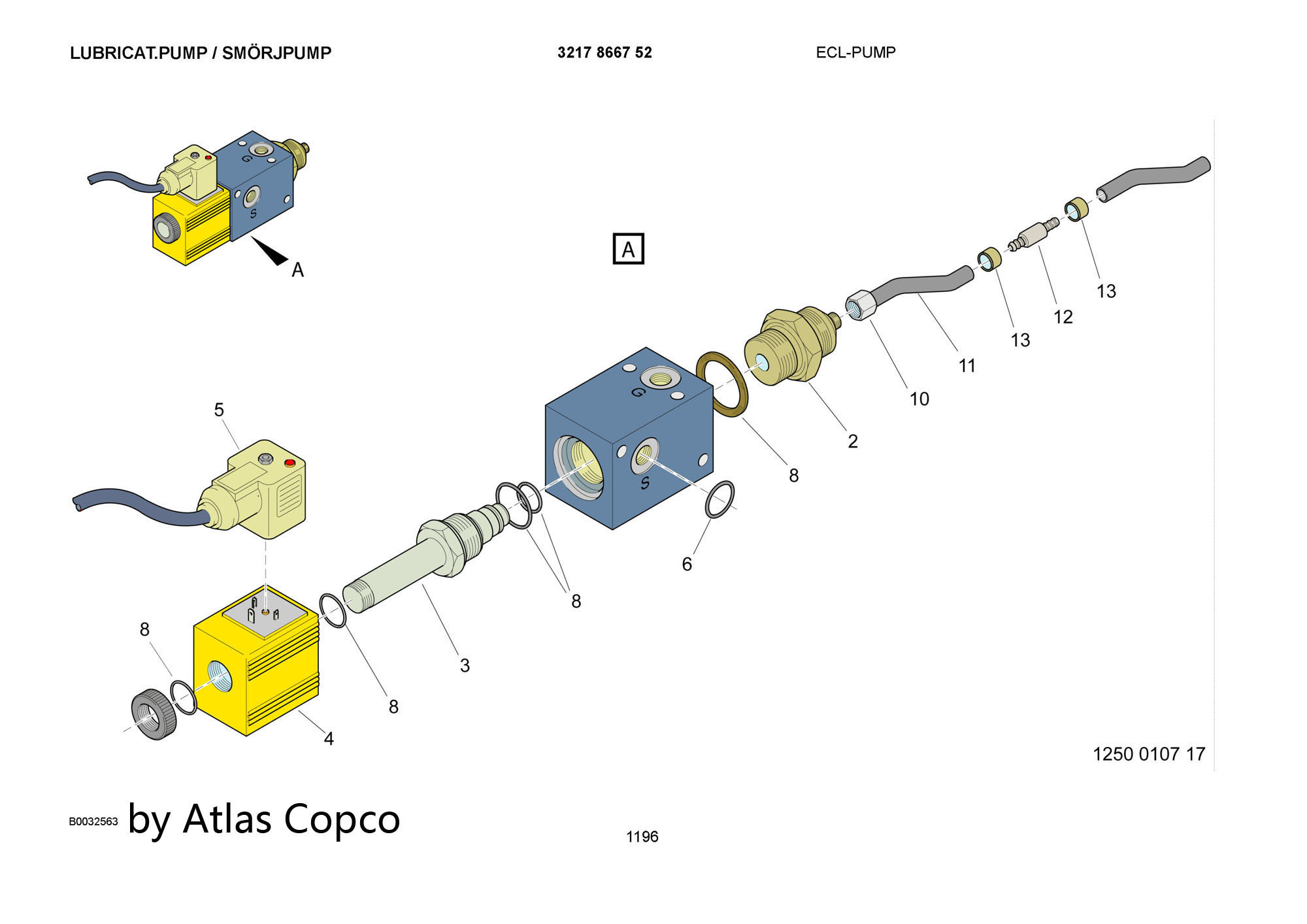

BOOMER XE3 LUBRICAT.PUMP #22290

BOOMER XE3 LUBRICAT.PUMP

ads

Ref

Parts Num

Name

0

LUBRICAT.PUMP

2

NIPPLE

3

CARTRIDGE

4

COIL

5

CONNECTOR

6

ORING

8

SEAL KIT

10

COUPLING

11

POLYAMIDE HOSE

12

CONNECTION

13

LOCK RING
