BOOMER XE3 RELAY #22125

BOOMER XE3 RELAY

ads

Ref

Parts Num

Name

K126A

RELAY

0

PLINTH MODULE

1

MOUNTING RAIL

2

TERMINAL BLOCK

3

END PLATE

4

JUMPER

5

TERMINAL BLOCK

6

END SUPPORT

7

MARKING PLATE

BOOMER XE3 RELAY #22163

BOOMER XE3 RELAY

ads

Ref

Parts Num

Name

K101

RELAY

0

APPARATUS PANEL

1

ELECTR.CABINET

2

GROUND BRAID

3

LOCK NUT

4

PLAIN WASHER

5

GROUND BRAID

6

LOCK NUT

7

PLAIN WASHER

8

EARTH TERMINAL

9

NUT

10

LOCK WASHER

11

MOUNTING RAIL

12

SPACING SCREW

13

PLAIN WASHER

14

SCREW. SLOTTED

15

CABLE TRAY

16

SCREW. SLOTTED

17

PLAIN WASHER

18

END SUPPORT

19

TERMINAL BLOCK

20

END PLATE

22

TERMINAL BLOCK

23

BRIDGE CONN.

24

TERMINAL BLOCK

25

END PLATE

26

MARKING PLATE

27

MARKING PLATE

28

MARKING PLATE

29

END PLATE

30

BRIDGE CONN.

31

MARKING PLATE

32

CABLE. 1CORE

33

CABLE. 1CORE

X5

SLEEVE INSERT

X5

SLEEVE

X3

SLEEVE

F110

FUSE

V103

DIODE UNIT

F110

FUSE CON. TERM.

34

CABLE. 1CORE

K148

TIMING RELAY

F119

END SOCKET

F112

FUSE

X6

SLEEVE

K151

TIMING RELAY

F111

FUSE

R104

RESISTOR

X1

SLEEVE INSERT

X3

HOUSING

X6

SLEEVE

X3

SLEEVE INSERT

X139

TERMIN.CONTACT

X3

SLEEVE

41

LOCK NUT

K114

RELAY

48

LOCK NUT

52

END PLUG

54

END PLUG

50

END PLUG

51

END PLUG

36

CABLE GLAND

39

CABLE GLAND

42

CABLE GLAND

44

LOCK NUT

43

ADAPTER

38

LOCK NUT

35

SCREW. SLOTTED

53

SUPPLY TERMINAL

47

CABLE SEAL

49

END PLATE

46

CABLE STR.WAY

40

ADAPTER

37

ADAPTER

45

CABLE GLAND

BOOMER XE3 RELAY #22191

BOOMER XE3 RELAY

ads

Ref

Parts Num

Name

K101

RELAY

0

APPARATUS PANEL

1

ELECTR.CABINET

2

GROUND BRAID

3

LOCK NUT

4

PLAIN WASHER

5

GROUND BRAID

6

LOCK NUT

7

PLAIN WASHER

8

EARTH TERMINAL

9

NUT

10

LOCK WASHER

11

MOUNTING RAIL

12

SPACING SCREW

13

PLAIN WASHER

14

SCREW. SLOTTED

15

CABLE TRAY

16

SCREW. SLOTTED

17

PLAIN WASHER

18

END SUPPORT

19

TERMINAL BLOCK

20

END PLATE

22

TERMINAL BLOCK

23

BRIDGE CONN.

24

TERMINAL BLOCK

25

END PLATE

26

MARKING PLATE

27

MARKING PLATE

28

MARKING PLATE

29

END PLATE

30

BRIDGE CONN.

31

MARKING PLATE

32

CABLE. 1CORE

33

CABLE. 1CORE

X5

SLEEVE INSERT

X5

SLEEVE

X3

SLEEVE

F110

FUSE

V103

DIODE UNIT

F110

FUSE CON. TERM.

34

CABLE. 1CORE

K148

TIMING RELAY

F119

END SOCKET

F112

FUSE

X6

SLEEVE

K151

TIMING RELAY

F111

FUSE

R104

RESISTOR

X1

SLEEVE INSERT

X3

HOUSING

X6

SLEEVE

X3

SLEEVE INSERT

X139

TERMIN.CONTACT

X3

SLEEVE

41

LOCK NUT

K114

RELAY

48

LOCK NUT

52

END PLUG

54

END PLUG

50

END PLUG

51

END PLUG

36

CABLE GLAND

39

CABLE GLAND

42

CABLE GLAND

44

LOCK NUT

43

ADAPTER

38

LOCK NUT

35

SCREW. SLOTTED

53

SUPPLY TERMINAL

47

CABLE SEAL

49

END PLATE

46

CABLE STR.WAY

40

ADAPTER

37

ADAPTER

45

CABLE GLAND

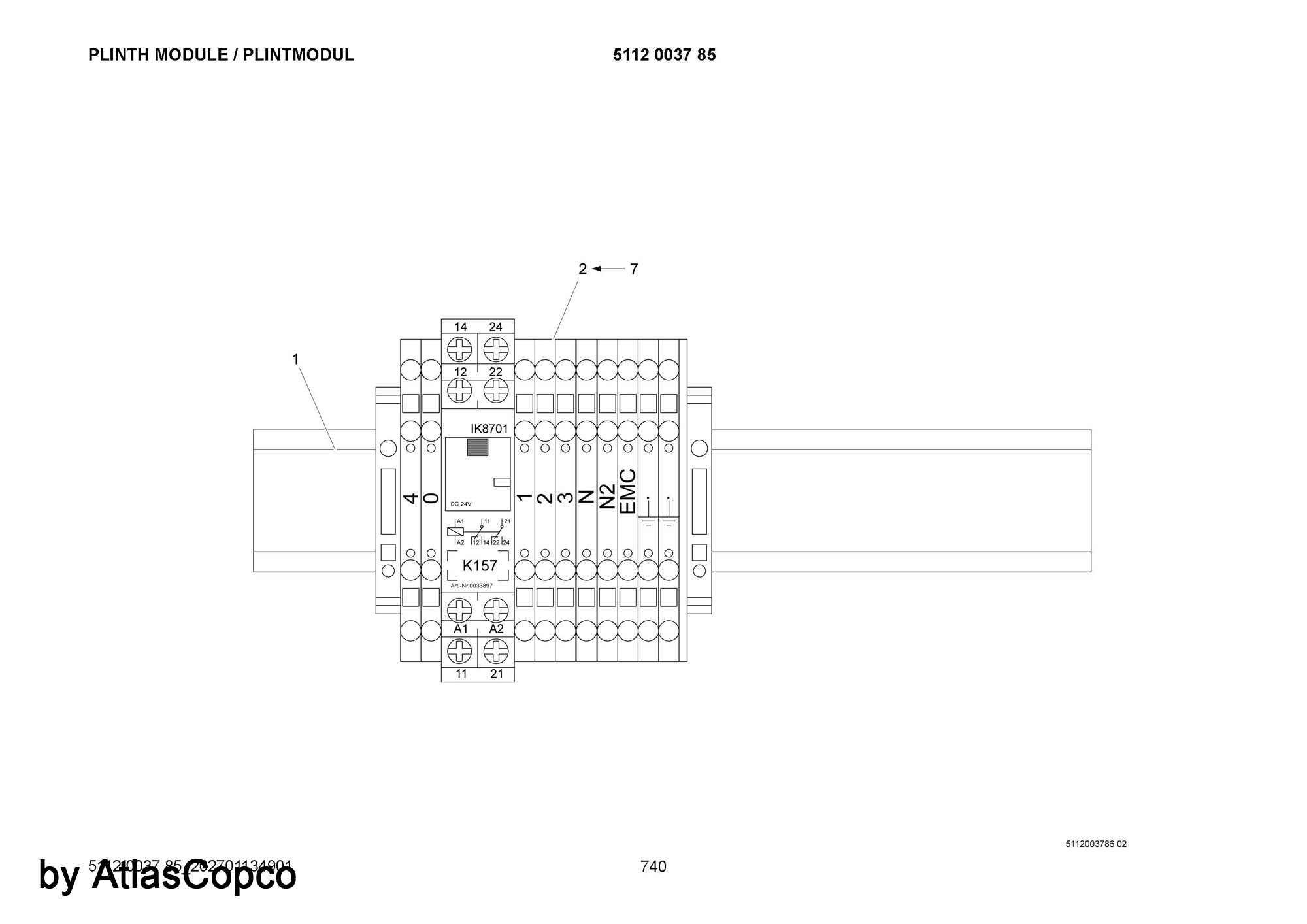

BOOMER XE3 RELAY #22215

BOOMER XE3 RELAY

ads

Ref

Parts Num

Name

K157

RELAY

0

PLINTH MODULE

1

MOUNTING RAIL

2

TERMINAL BLOCK

3

END PLATE

5

TERMINAL BLOCK

6

TERMINAL BLOCK

7

END SUPPORT

BOOMER XE3 RELAY #22259

BOOMER XE3 RELAY

ads

Ref

Parts Num

Name

K05

RELAY

0

ELECTR.CABINET

1F01

OVERLOAD RELAY

F100

FUSE

Q01

CORDGRIP

U1

POWER SUPPLY

1K01

CONTACTOR

1K01

AUX. CONTACT

1K01

TOUCH GUARD

X40

END PLATE

X40

TERMINAL BLOCK

X40

TERMINAL BLOCK

X40

BRIDGE CONN.

X40

END PLATE

S01

EMERG.SET

Q01

MAIN SWITCH

F10

MOTORPROTECTOR

F02

MOTORPROTECTOR

T02

TRANSFORMER

F03

MIN CIRC BREAK

K50

PHASE SEQ.RELAY

V13

TOUCH GUARD

P01

INSTRUMENT

F100

FUSE CON. TERM.

F100

BRIDGE CONN.

1K11

RELAY SOCKET

F160

FUSE

U40

BATTERY CHARGER

V13

SOFTSTARTER

1

ELECTR.CABINET

X403

PLINTH MODULE

K05

RELAY SOCKET

1R11

RESISTOR

1K11

RELAY

S11

SWITCH

K53

SAFETYRELAY

F100

MARKING PLATE

X40

TERMINAL BLOCK

X40

END PLATE

X40

BRIDGE CONN.

X40

TERMINAL BLOCK

X40

TERMINAL BLOCK

X40

END PLATE

X40

END SUPPORT

X40

MOUNTING RAIL

F191

MIN CIRC BREAK

S03

PUSH BUTTON

H02

INDICATION LAMP

H06

INDICATION LAMP

S23

LIMIT SWITCH

K111

RELAY

1T11

TRANSFORMER

T10

TRANSFORMER

K51

EARTHFAULTRELAY

V02

DIODE UNIT

K110

CONTACTOR

S01

PLATE

2

LOCK YOKE

3

GROUND BRAID

5

EARTH TERMINAL

10

PLATE

11

INSTRUCTIONSIGN

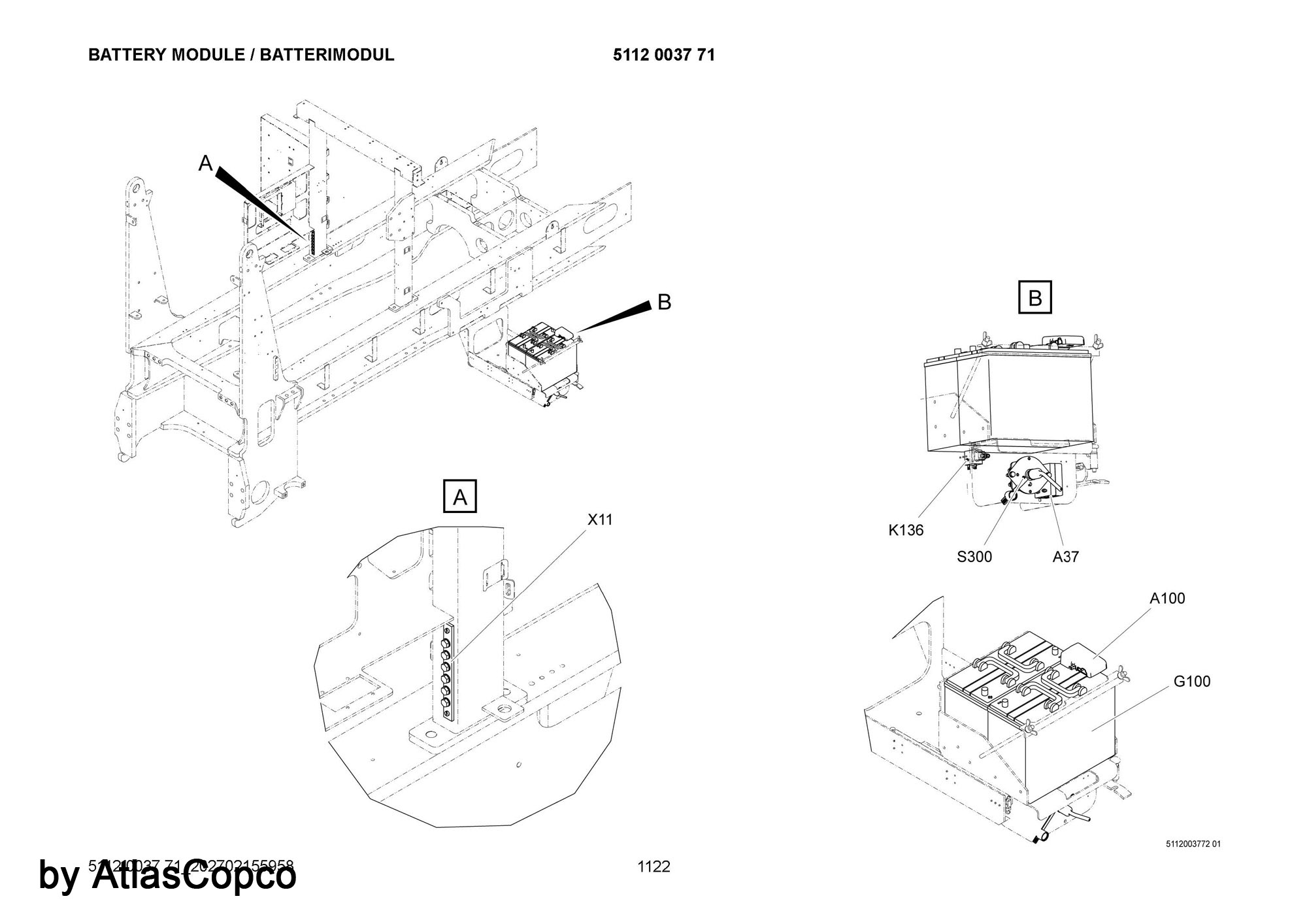

BOOMER XE3 RELAY #22341

BOOMER XE3 RELAY

ads

Ref

Parts Num

Name

K136

RELAY

S300

RUBBER PROTEC

0

BATTERY MODULE

1

CABLE SET

A100

FUSE KIT

S300

BATTERY SWITCH

X11

DISTANCE PIECE

K136

BLIND RIVET

K136

SCREW. HEX HEAD

X11

SCREW. HEX HEAD

S300

SCREW. HEX HEAD

X11

SCREW. SLOTTED

A37

FUSE BOX

A37

LOCK NUT

K136

LOCK NUT

S300

LOCK NUT

A37

PLAIN WASHER

K136

PLAIN WASHER

S300

PLAIN WASHER

S300

PLAST.ST.CABLE

S300

BULLDOG GRIP

G100

START BATTERY

X11

EARTH BAR

A37

SCREW
