BOOMER XL3D EPIROC New catalogs

BOOMER XL3D Pages

1. EPIROC - BOOMER XL3D ROOF #16797

2. EPIROC - BOOMER XL3D ROOF #20056

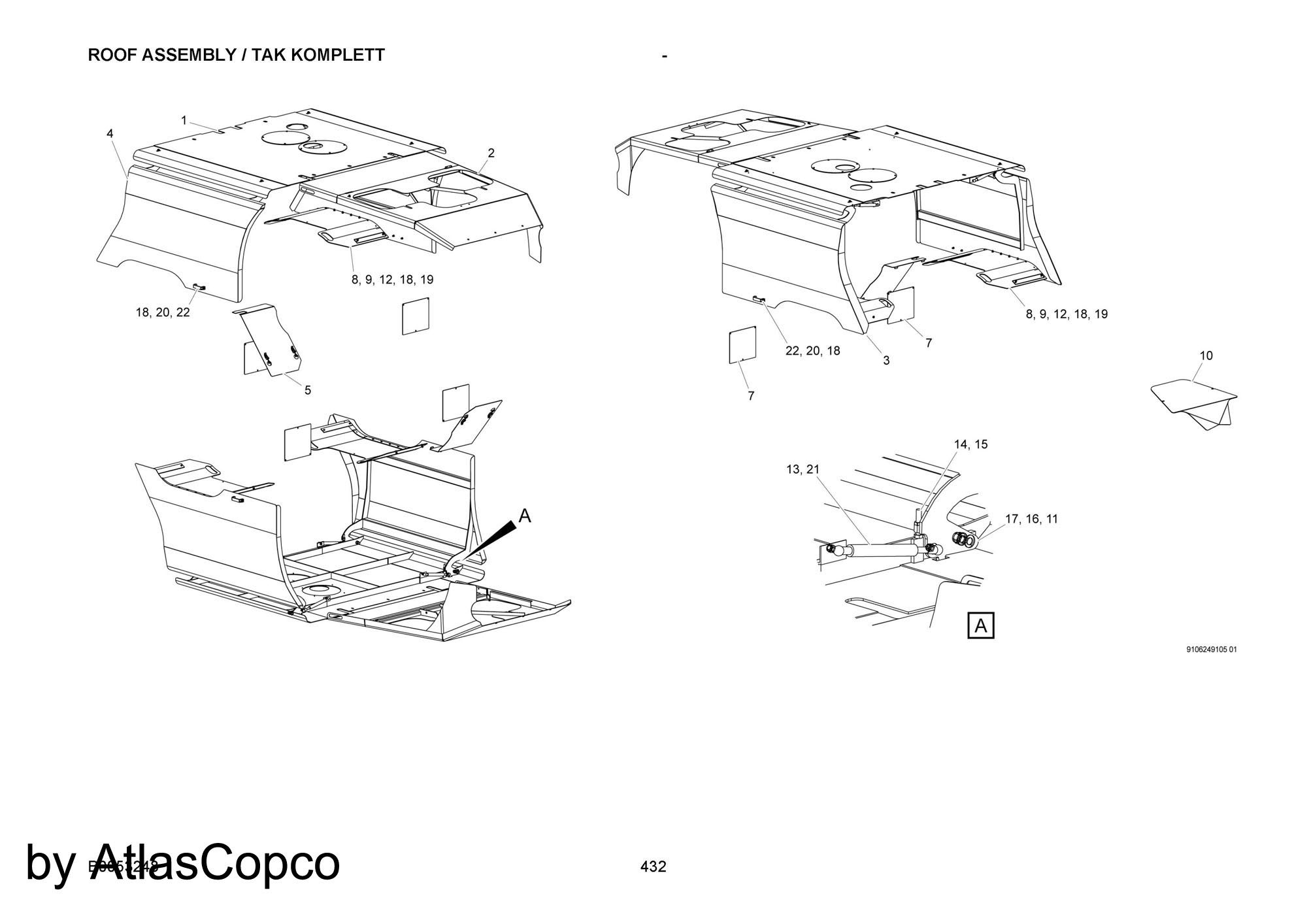

BOOMER XL3D ROOF #16797

BOOMER XL3D ROOF

ads

Ref

Parts Num

Name

1

ROOF

2

ROOF

3

HATCH

4

HATCH

5

COVER PLATE

7

COVER PLATE

8

MUDGUARD

9

SUPPORT

10

PLATE

11

PLAIN WASHER

12

PLAIN WASHER

13

LOCK NUT

14

SCREW. HEX HEAD

15

NUT

16

LOCK NUT

17

SCREW. HEX HEAD

18

LOCK NUT

19

SCREW. HEX HEAD

20

SCREW

21

GAS SPRING

22

HANDLE

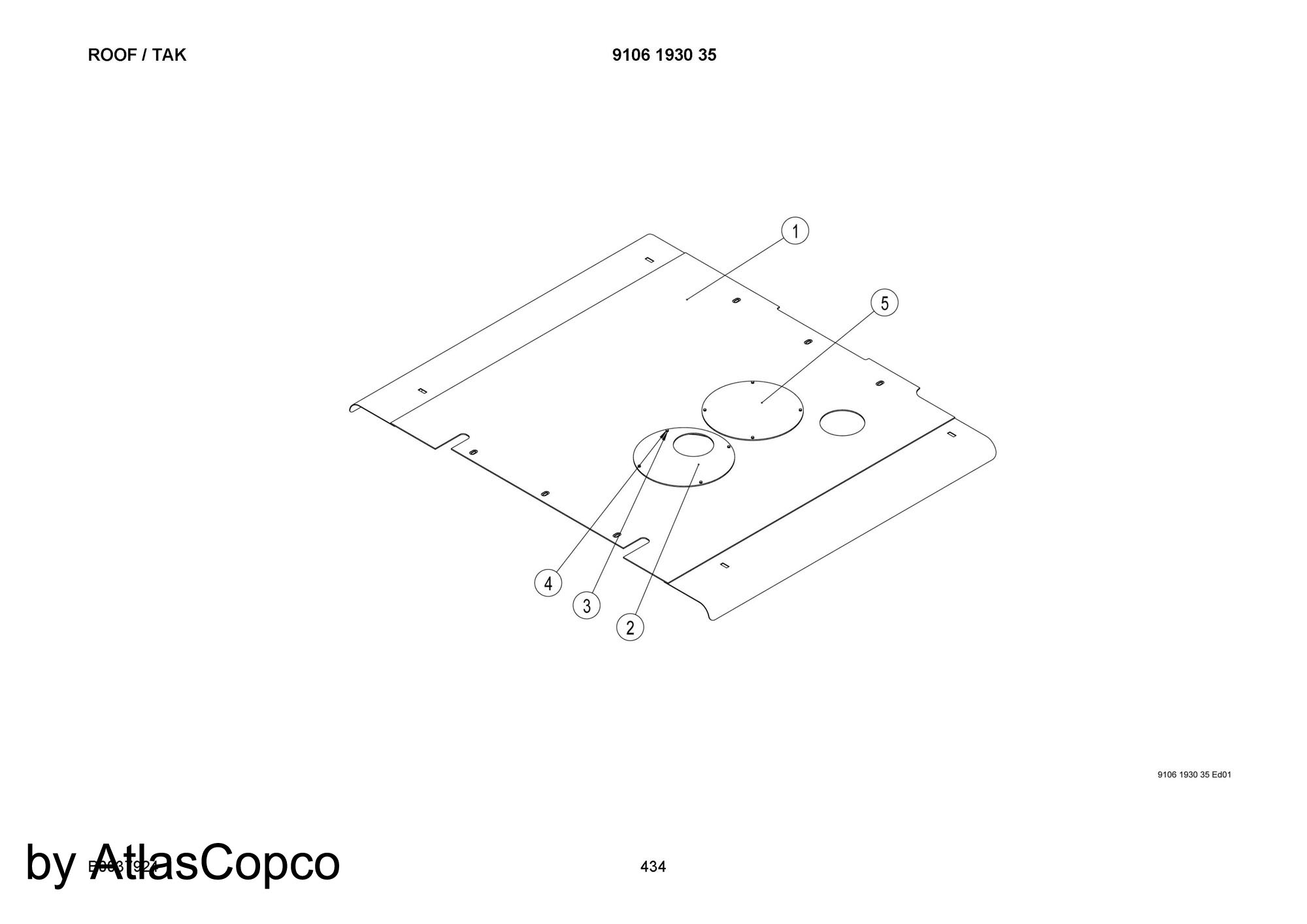

BOOMER XL3D ROOF #20056

BOOMER XL3D ROOF

ads

Ref

Parts Num

Name

0

ROOF

1

ROOF

3

PLAIN WASHER

4

SCREW. HEX HEAD

5

COVER PLATE
