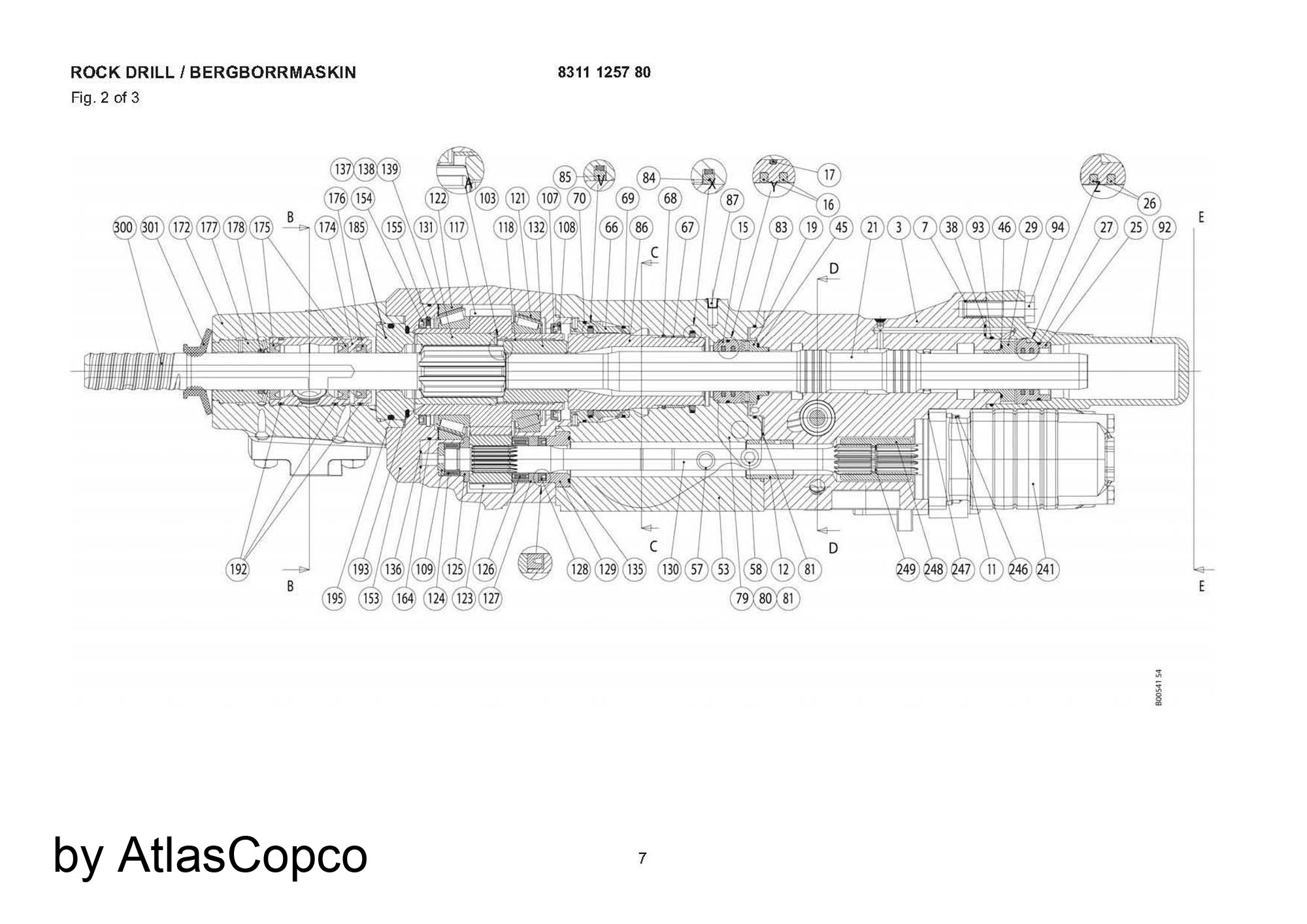

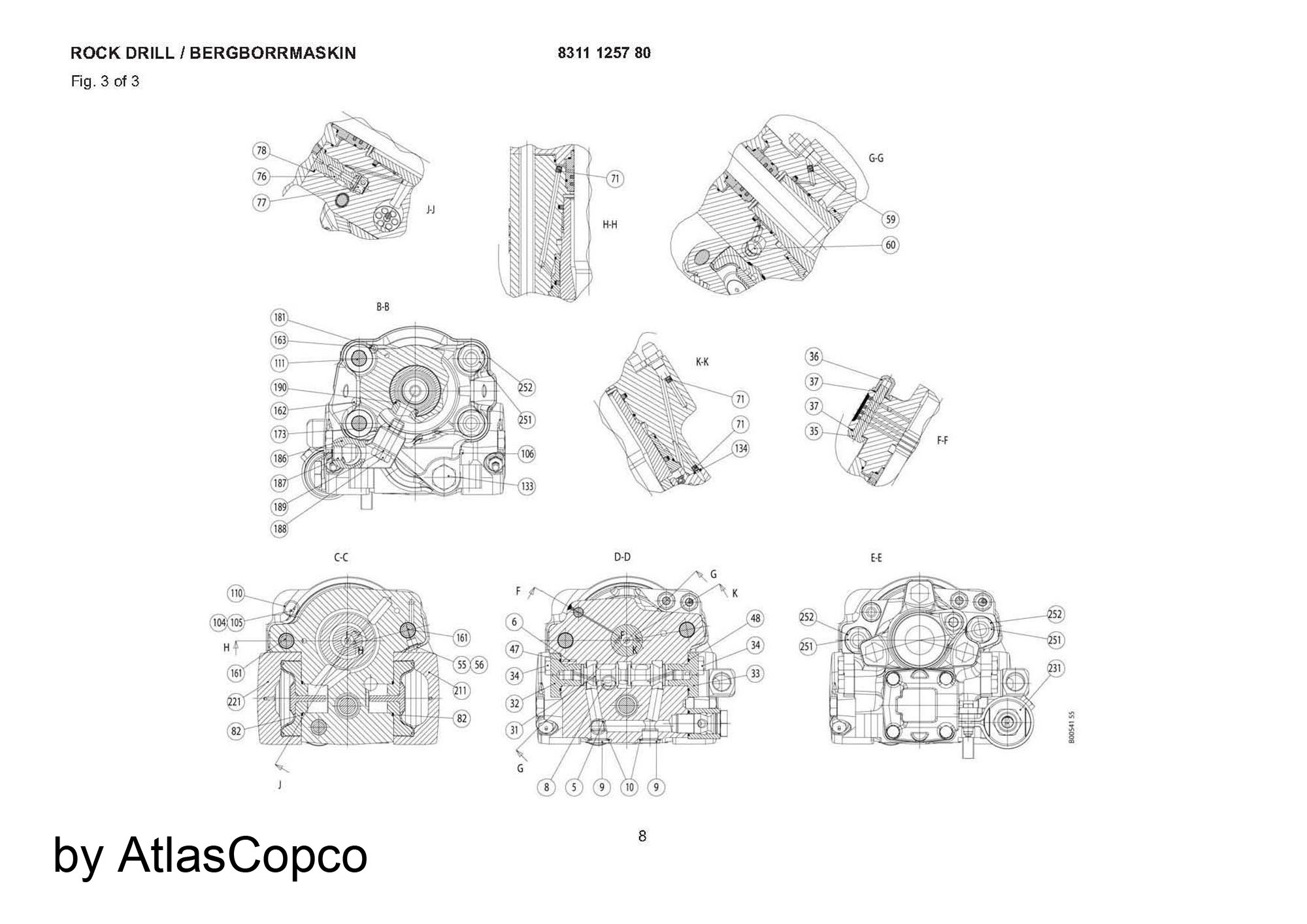

COP 1638HD ROCK DRILL #8714

COP 1638HD ROCK DRILL

ads

Ref

Parts Num

Name

0

ROCK DRILL

2

CYLINDER

5

THREAD INSERT

6

THREAD INSERT

7

THREAD INSERT

8

PIPE PLUG

9

PLUG

10

SEAL WASHER

11

STUD

12

GUIDE

14

SEAL HOUSING COMPL

16

SEAL KIT

17

ORING

19

PISTON GUIDE

21

PISTON

24

SEAL HOUSING COMPL

26

SET OF SEALS

27

ORING

29

PISTON GUIDE

31

VALVE PISTON

32

VALVE COVER

33

VALVE COVER

34

SCREW. HEX HEAD

35

REG. PLUG

36

NUT

37

SEAL WASHER

38

SEAL RING

45

ORING

47

ORING

52

INTERMEDIATE PART COMPL

53

INTERMEDIATE PART

55

PLUG

58

THREAD INSERT

59

NOZZLE

60

PLUG

66

LINER

67

BUSHING

68

LOCK RING

69

ORING

70

ORING

76

VALVE SEAT

77

VALVE CONE

78

ORING

79

CONNECT. PLATE

81

ORING

82

SEAL RING

83

SEAL RING

84

SEAL KIT

85

SEAL KIT

86

DAMPING PISTON

87

PROTECTION PLUG

92

BACK HEAD

93

ORING

102

GEAR HOUSING

104

PLUG

105

GASKET

107

RADIAL LIP SEAL

108

CIRCLIP

109

WASHER

111

STUD

116

ROTATION CHUCK COMPL

118

BUSHING

121

ROLLER BEARING

122

ROLLER BEARING

123

GEAR WHEEL

124

NEEDLE BEARING

125

WASHER

126

NEEDLE BEARING

127

SLEEVE

128

SEAL

129

GUIDE SLEEVE

130

SHAFT

131

DRIVER

132

ROTATION CHUCK BUSHING

133

SIDE BOLT

136

ORING

137

SHIM

138

SHIM

139

SHIM

152

COVER COMPL

153

COVER

154

RADIAL LIP SEAL

155

CIRCLIP

161

SIDE BOLT

162

PIN

164

ORING

172

FRONT HEAD

173

THREAD INSERT

174

FLUSHING HEAD

175

CUP SEAL

176

CUP SEAL

177

GUIDE

178

WIPER

185

STOP RING

186

CONNECT PLATE

190

SEAL RING

192

SEAL RING

193

ORING

195

ORING

211

ACCUMULATOR

221

ACCUMULATOR

231

RETURN ACCUM.

241

HYDRAULIC MOTOR

241

HYDRAULIC MOTOR

241

HYDRAULIC MOTOR

246

NUT

247

GASKET

248

COUPLING

249

CIRCLIP

251

DOME NUT

252

WASHER

291

LABEL

292

LABEL

300

SHANK ADAPTER

300

SHANK ADAPTER

300

SHANK ADAPTER

300

SHANK ADAPTER

300

SHANK ADAPTER

300

SHANK ADAPTER

301

DRILL COLLAR

COP 1638HD ROCK DRILL #20233

COP 1638HD ROCK DRILL

ads

Ref

Parts Num

Name

0

ROCK DRILL

0

ROCK DRILL

COP 1638HD ROCK DRILL #20237

COP 1638HD ROCK DRILL

ads

Ref

Parts Num

Name

0

ROCK DRILL
