COP 1838+ EPIROC New catalogs

COP 1838+ Pages

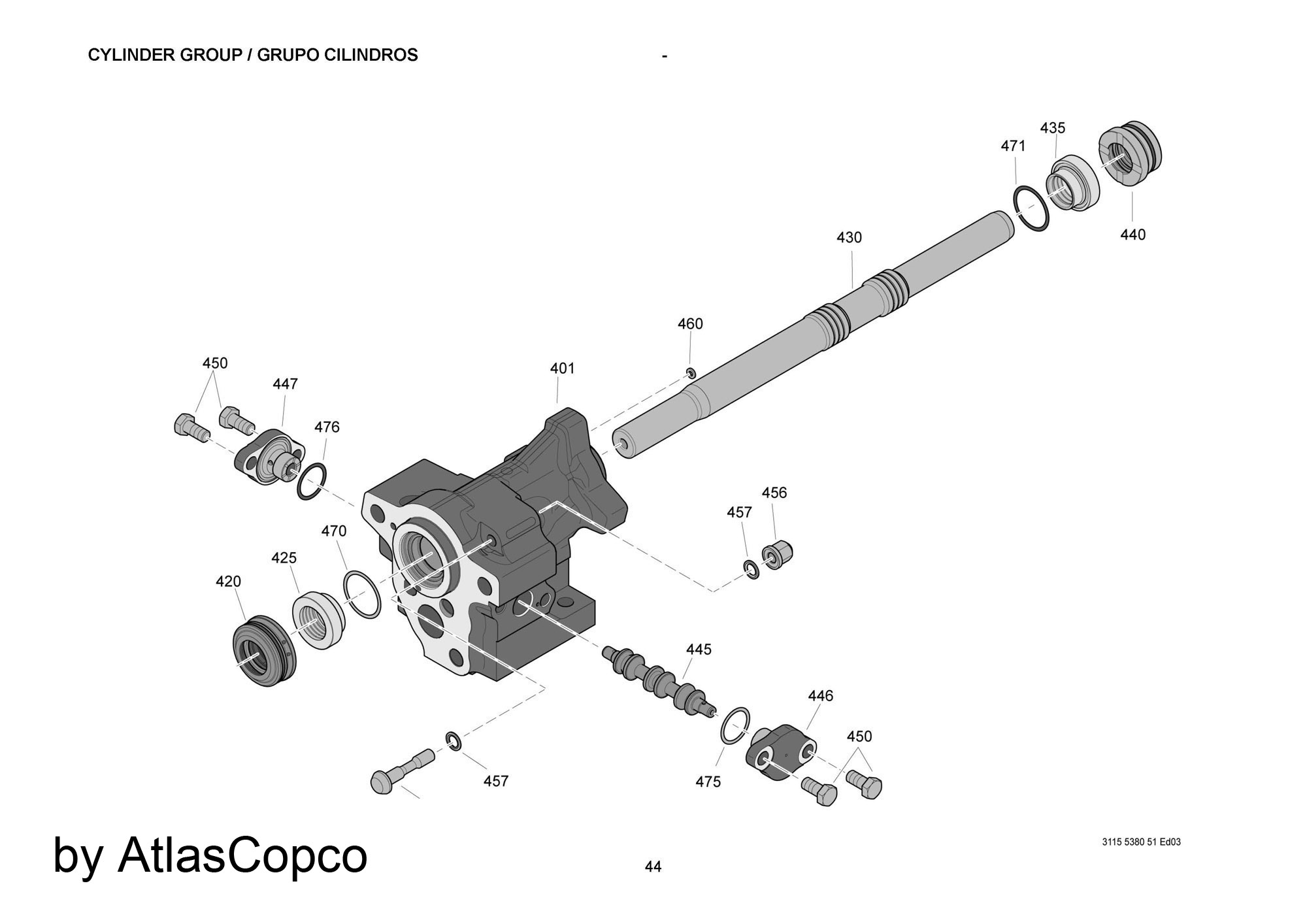

COP 1838+ CYLINDER #8720

ads

Ref

Parts Num

Name

401

3115194480

CYLINDER

420

3115527580

SEAL HOUSE COMP

425

3115167100

PISTON GUIDE

430

3115212900

PISTON

435

3115168000

PISTON GUIDE

440

3115277280

SEAL HOUSE COMP

445

3115176500

VALVE PISTON

446

3115207703

VALVE COVER

447

3115207605

VALVE COVER

450

0147143803

SCREW. HEX HEAD

455

3115329100

REG. PLUG

456

3115321400

NUT

457

3115169700

SEAL WASHER

470

0663613401

ORING

475

0663213301

ORING

COP 1838+ CYLINDER #8765

ads

Ref

Parts Num

Name

401

3115194480

CYLINDER

420

3115527580

SEAL HOUSE COMP

425

3115167100

PISTON GUIDE

430

3115212900

PISTON

435

3115168000

PISTON GUIDE

440

3115277280

SEAL HOUSE COMP

445

3115176500

VALVE PISTON

446

3115207703

VALVE COVER

447

3115207605

VALVE COVER

450

0147143803

SCREW. HEX HEAD

455

3115329100

REG. PLUG

456

3115321400

NUT

457

3115169700

SEAL WASHER

460

3115324500

SEAL RING

470

0663613401

ORING

475

0663213301

ORING

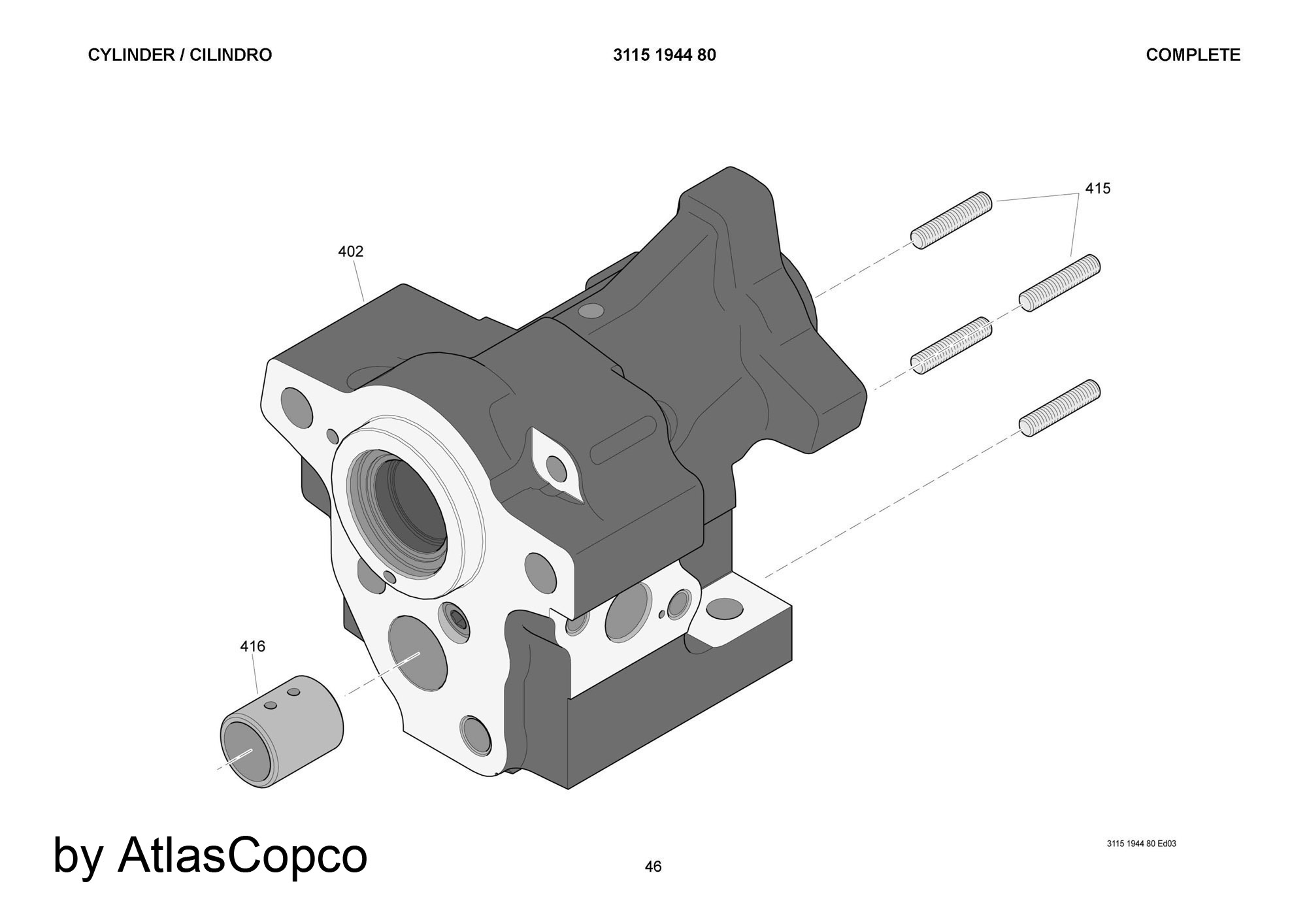

COP 1838+ CYLINDER #8803

ads

Ref

Parts Num

Name

3115194480

CYLINDER

415

3115116500

STUD

416

3115211200

GUIDE

COP 1838+ CYLINDER #8809

ads

Ref

Parts Num

Name

3115194480

CYLINDER

415

3115116500

STUD

416

3115211201

GUIDE
