COP 1838HD+ EPIROC New catalogs

COP 1838HD+ Pages

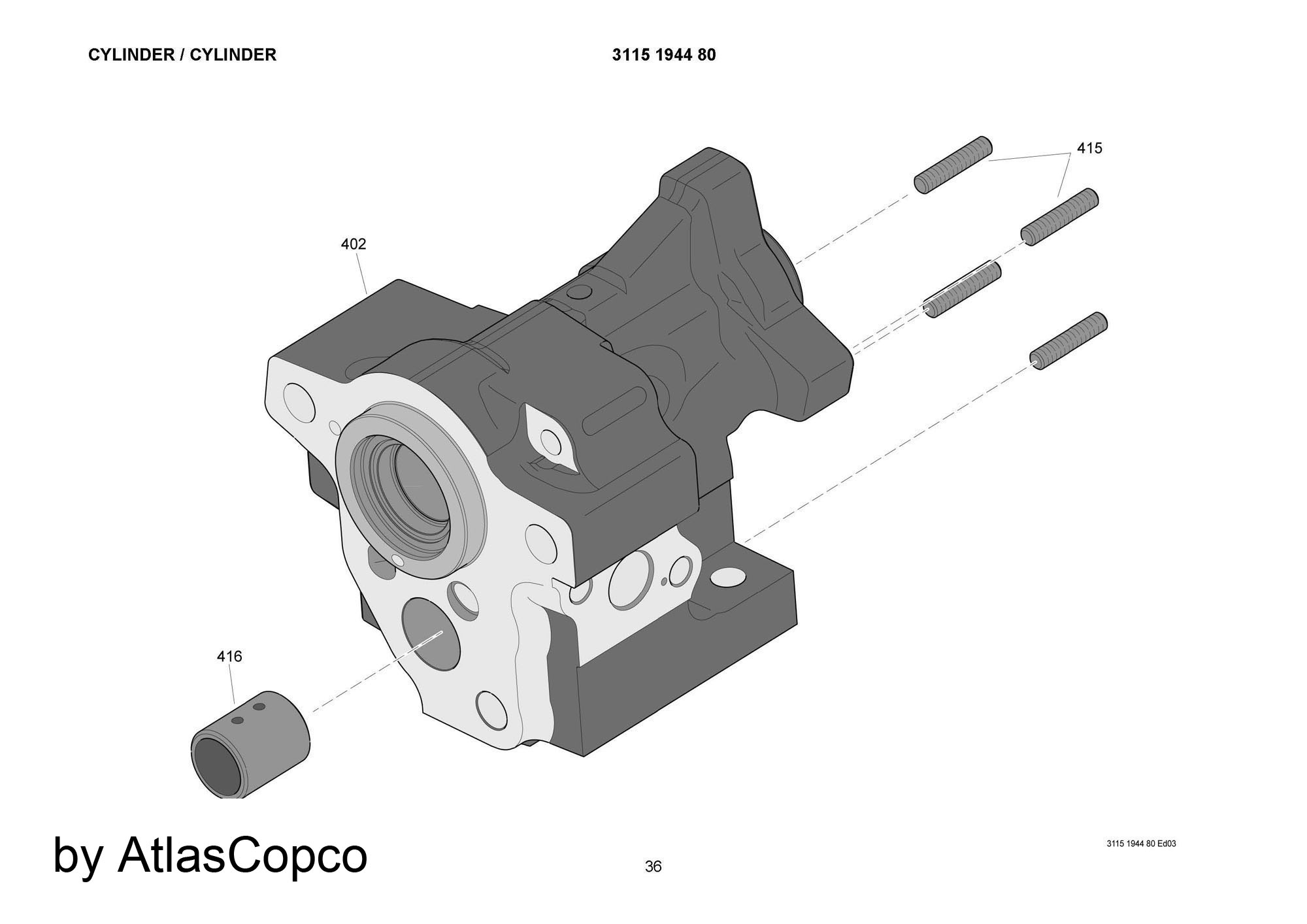

COP 1838HD+ CYLINDER #8877

ads

Ref

Parts Num

Name

3115194480

CYLINDER

415

3115116500

STUD

416

3115211200

GUIDE

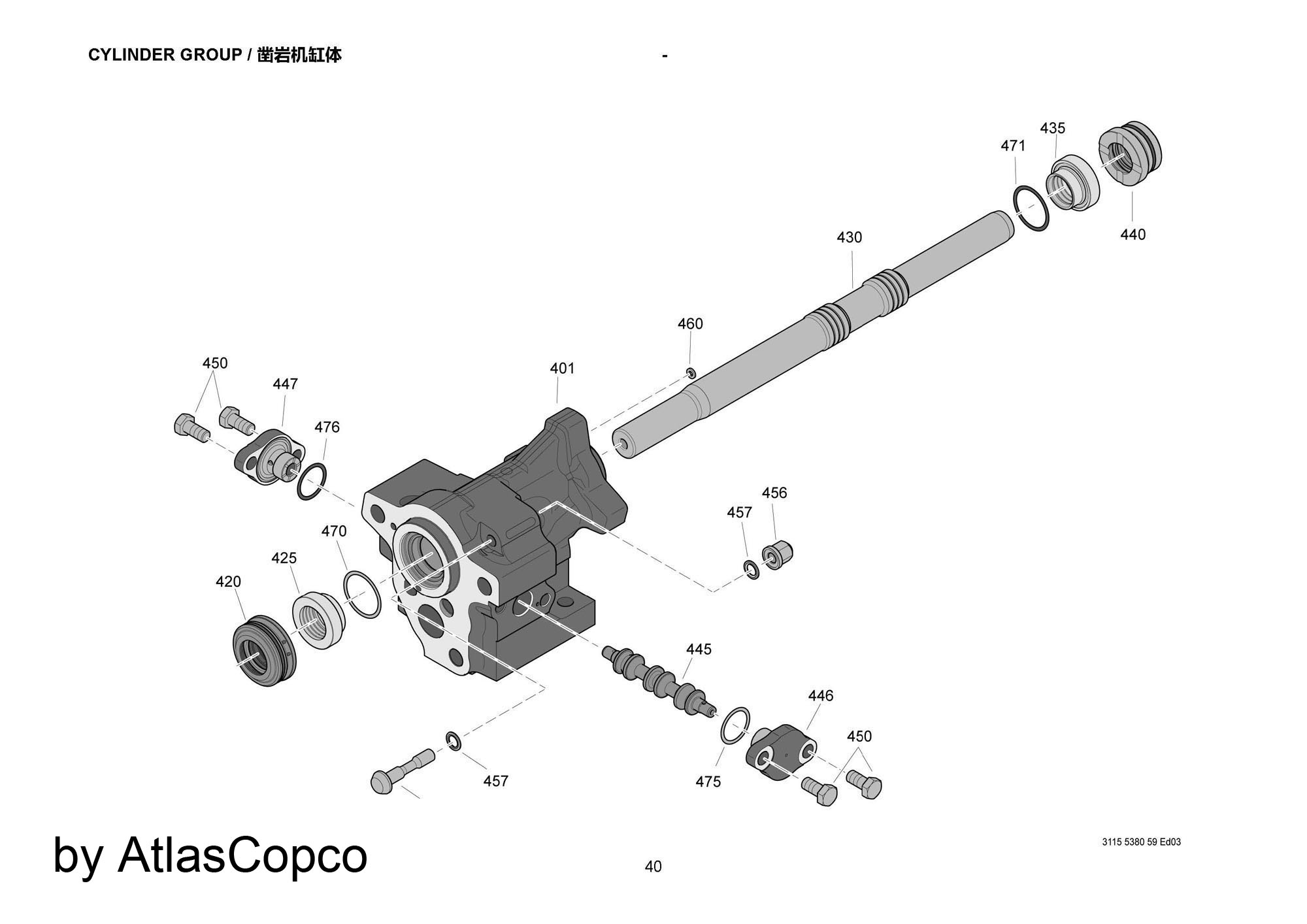

COP 1838HD+ CYLINDER #8885

ads

Ref

Parts Num

Name

401

3115194480

CYLINDER

420

3115527580

SEAL HOUSE COMP

425

3115505001

PISTON GUIDE

430

3115363501

PISTON

435

3115168000

PISTON GUIDE

440

3115277280

SEAL HOUSE COMP

445

3115176500

VALVE PISTON

446

3115207703

VALVE COVER

447

3115207605

VALVE COVER

450

0147143803

SCREW. HEX HEAD

455

3115329100

REG. PLUG

456

3115321400

NUT

457

3115169700

SEAL WASHER

470

0663613401

ORING

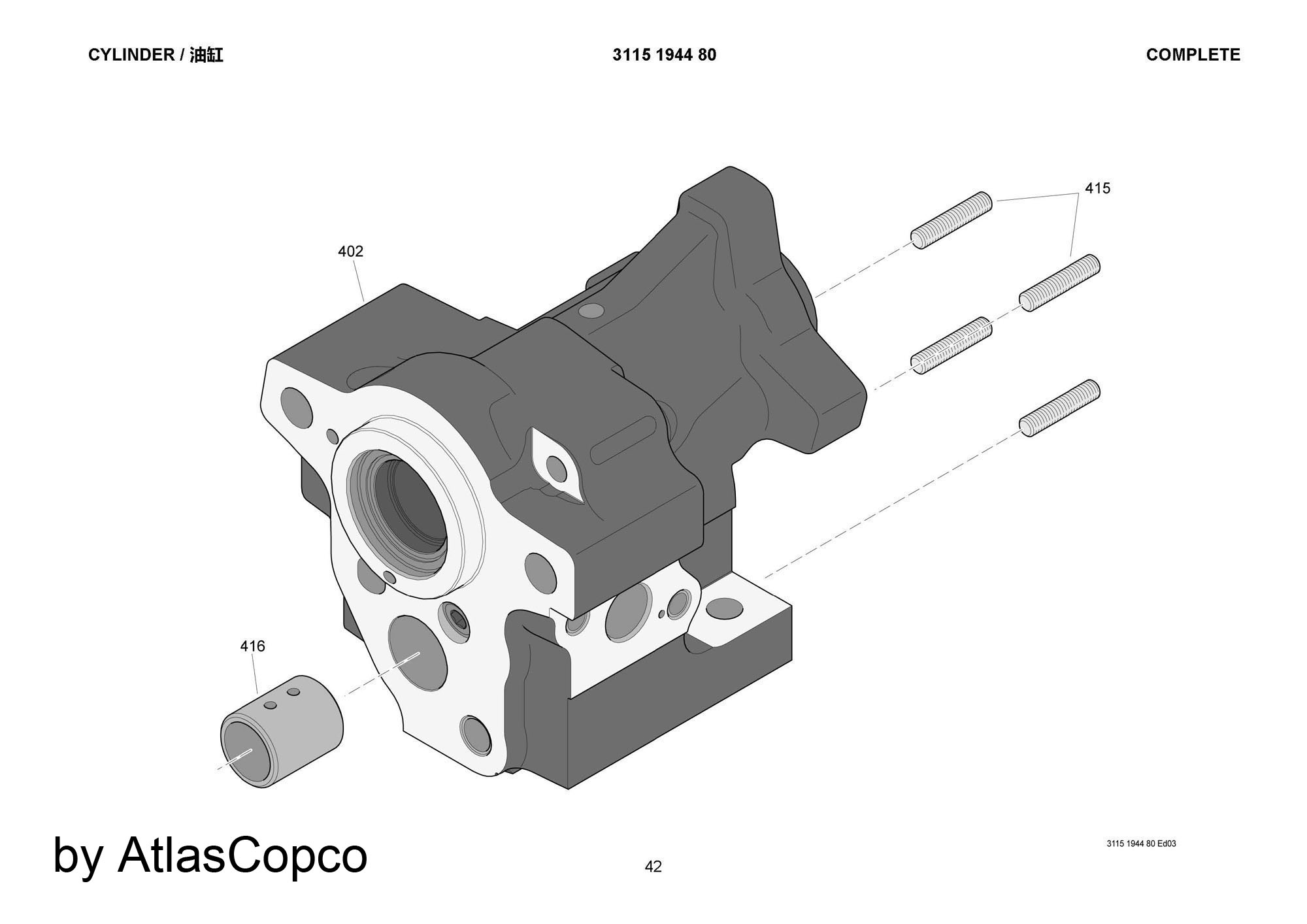

COP 1838HD+ CYLINDER #8929

ads

Ref

Parts Num

Name

3115194480

CYLINDER

415

3115116500

STUD

416

3115211201

GUIDE

COP 1838HD+ CYLINDER #8932

ads

Ref

Parts Num

Name

401

3115194480

CYLINDER

420

3115527580

SEAL HOUSE COMP

425

3115505002

PISTON GUIDE

430

3115212900

PISTON

435

3115168001

PISTON GUIDE

440

3115277280

SEAL HOUSE COMP

445

3115176500

VALVE PISTON

446

3115207703

VALVE COVER

447

3115207605

VALVE COVER

450

0147143803

SCREW. HEX HEAD

455

3115600346

REGULATING PIN

456

3115321400

NUT

457

3115169700

SEAL WASHER

460

3115324500

SEAL RING

470

0663613401

ORING

475

0663213301

ORING
