COP 2560 EPIROC New catalogs

COP 2560 Pages

1. EPIROC - COP 2560 ROCK DRILL #8921

2. EPIROC - COP 2560 ROCK DRILL #20248

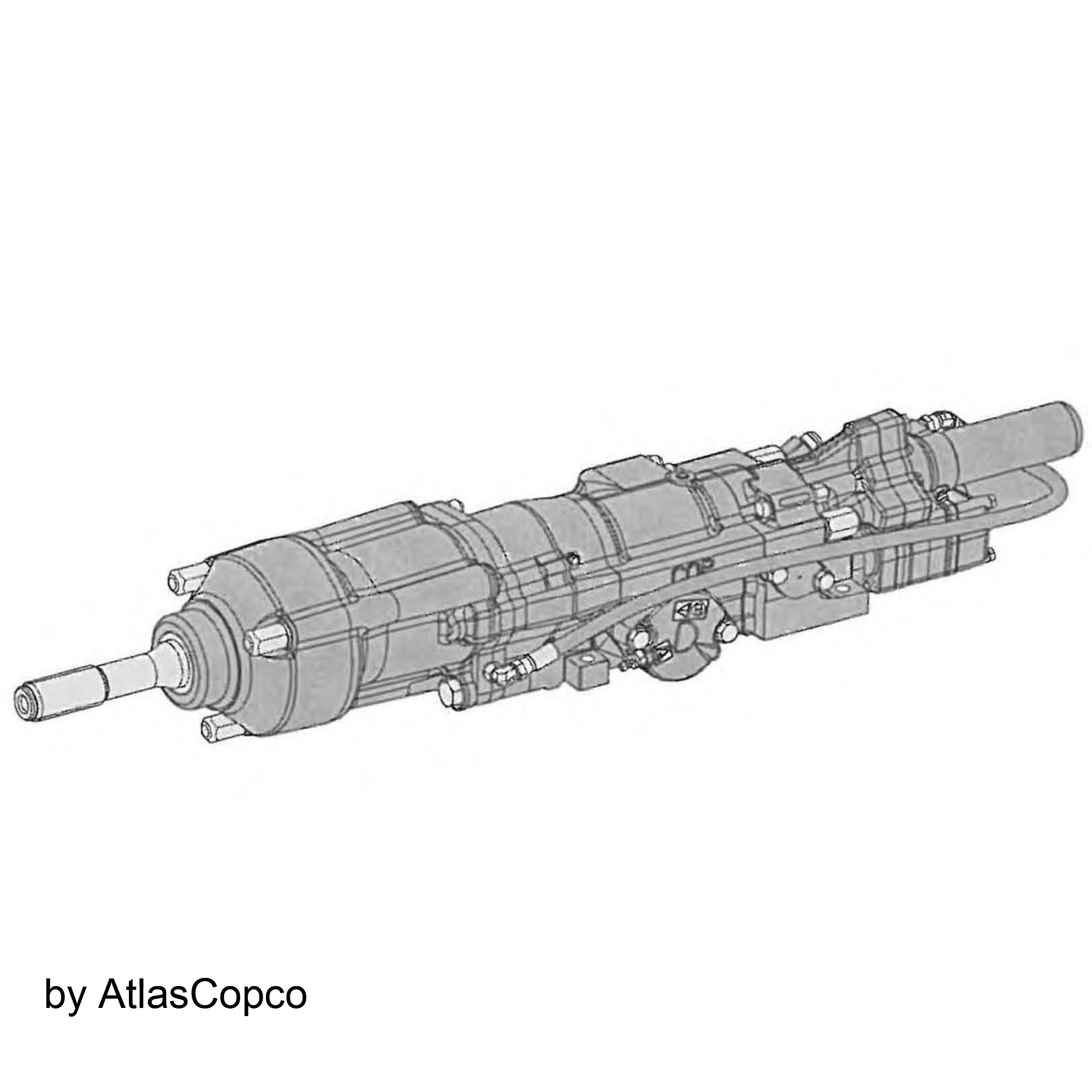

COP 2560 ROCK DRILL #8921

COP 2560 ROCK DRILL

ads

Ref

Parts Num

Name

0

ROCK DRILL

2

CYLINDER COMPL.

5

THREAD INSERT

6

THREAD INSERT

7

THREAD INSERT

8

PLUG

9

PLUG

10

SEAL WASHER

11

STUD

12

GUIDE

14

SEAL HOUSING. COMPL

16

SEAL KIT

17

ORING

19

PISTON GUIDE

21

PISTON

24

SEAL HOUSE COMP

26

SEAL KIT

27

ORING

29

PISTON GUIDE

31

VALVE PISTON

32

VALVE COVER

33

VALVE COVER

34

SCREW. HEX HEAD

35

REGULATING PIN

36

NUT

37

SEAL WASHER

45

ORING

52

INTERMEDIATE PART. COMPL

53

INTERMEDIATE PART

55

PLUG

58

THREAD INSERT

66

LINER

67

BUSHING

68

LOCK RING

69

ORING

70

ORING

72

SET SCREW

76

VALVE SEAT

77

VALVE CONE

78

ORING

79

CONNECTION PLATE

81

ORING

82

SEAL RING

84

SEAL KIT

85

SEAL KIT

86

DAMPING PISTON

87

PROTECTION PLUG

92

BACK HEAD

93

ORING

95

VENTILATOR

103

GEAR HOUSING

104

PLUG

105

GASKET

106

SEAL RETAINER

107

SEAL KIT

108

CIRCLIP

109

WASHER

110

ORING

116

ROTATION CHUCK COMPL

117

ROTATION CHUCK

118

BUSHING

119

THR.NEEDLE CARR

120

THR.NEEDLE CARR

121

ROLLER BEARING

122

ROLLER BEARING

123

GEAR WHEEL

124

NEEDLE BEARING

125

WASHER

126

NEEDLE BEARING

127

BEARING SLEEVE

128

RADIAL LIP SEAL

129

BEARING SLEEVE

130

SHAFT

131

DRIVER

132

ROTATION CHUCK BUSHING

133

SIDE BOLT

135

ORING

136

ORING

137

SHIM

138

SHIM

139

SHIM

141

EXTENSION PIECE

142

PLUG

143

ORING

144

SEAL KIT

148

STRAIGHT NIPPLE

152

COVER COMPL.

153

COVER

154

RADIAL LIP SEAL

155

CIRCLIP

157

PLUG

161

FRONT HEAD COMPL

162

FRONT HEAD

163

GUIDE

164

EXTRACTOR LINER

165

EXTRACTOR LINER

166

CIRCLIP

167

SEAL KIT

168

SEAL KIT

169

ORING

170

ORING

181

EXTRACTORPISTON

182

FLUSHING HEAD

183

FLUSHING ADAPT.

184

BACKUP RING

185

CUP SEAL

186

STUD

187

SIDE BOLT

188

PIN

189

CYLINDRICAL PIN

193

ORING

197

ORING

198

ORING

211

ACCUMULATOR

221

ACCUMULATOR

231

RETURN ACCUMULATOR

241

HYDRAULIC MOTOR

241

HYDRAULIC MOTOR

246

NUT

247

GASKET

248

COUPLING

249

CIRCLIP

251

DOME NUT

252

WASHER

261

STRAIGHT NIPPLE

263

NIPPLE

264

STRAIGHT NIPPLE

291

LABEL

292

LABEL

300

SHANK ADAPTER

300

SHANK ADAPTER

300

SHANK ADAPTER

COP 2560 ROCK DRILL #20248

COP 2560 ROCK DRILL

ads

Ref

Parts Num

Name

0

ROCK DRILL
