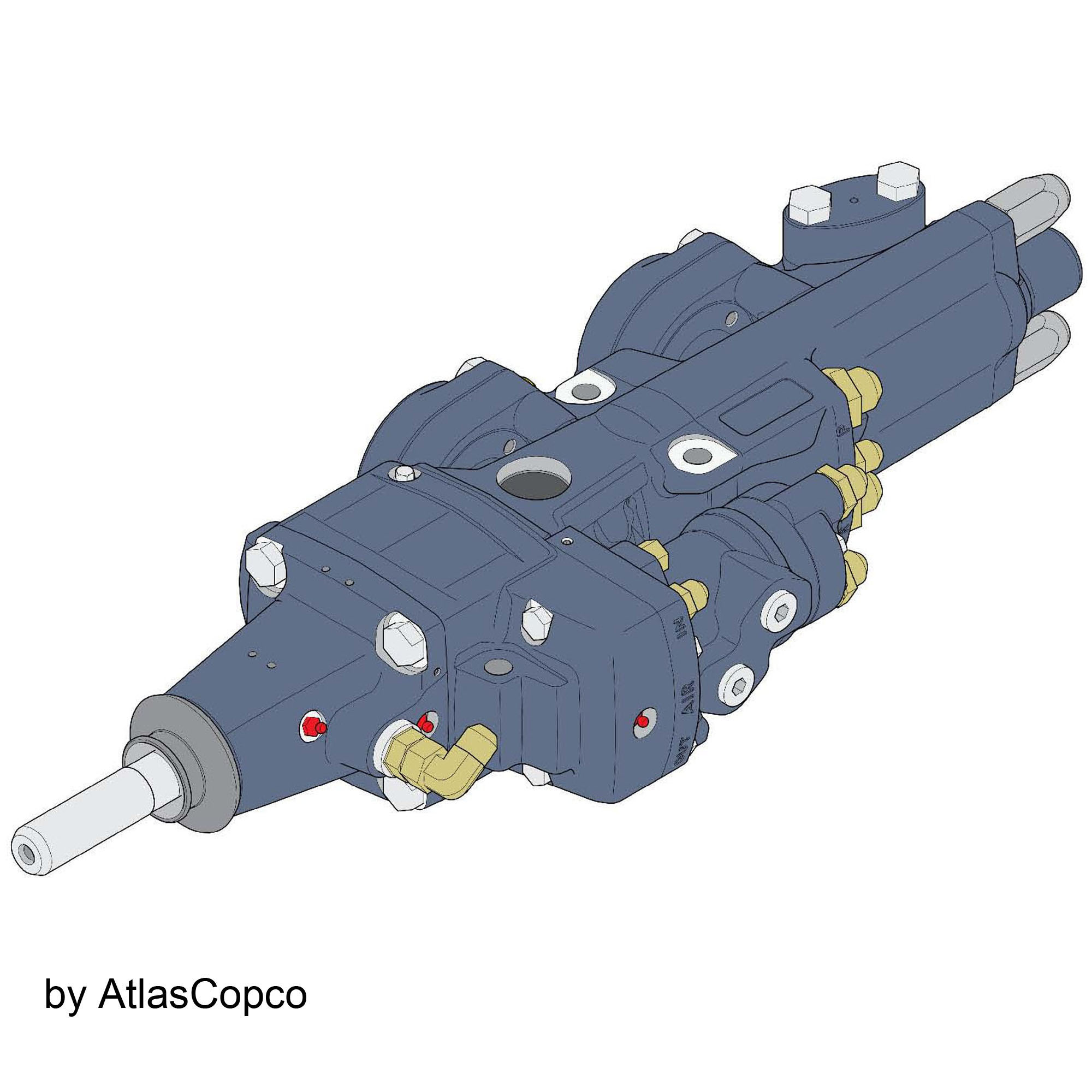

COP RR11 ROCK DRILL #9042
COP RR11 ROCK DRILL
ads
Ref
Parts Num
Name
0
8311120056
ROCK DRILL
7
3115328100
SIDE BOLT
8
3115331500
DOME NUT
9
0147148003
SCREW. HEX HEAD
10
0147141503
SCREW. HEX HEAD
11
0291118001
LOCK NUT
12
3176651700
NIPPLE
13
3176651200
NIPPLE
14
3176651500
NIPPLE
15
3176656500
NIPPLE
17
0088001669
PRODUCT GRAPHICS
18
3115223100
DRILL COLLAR
101
3115600213
FRONT PART COMP
102
3115336800
GUIDE
102
3115325100
GUIDE
103
3115600217
WASHER
103
3115600230
WASHER
104
3115325600
FLUSHING ADAPT.
105
0663210061
ORING
106
0663214200
ORING
107
0663211400
ORING
108
3115328201
WIPER
108
3115328202
WIPER
109
0544216200
GREASE NIPPLE
120
3115600215
FLUSHING HEAD
120
3115600228
FLUSHING HEAD
121
3115600216
FLUSHING HEAD
122
3115600229
FLUSHING HEAD
123
3115328301
CUP SEAL
124
0663211429
ORING
124
0663613600
ORING
125
3115571800
SEAL
127
3115336500
CUP SEAL
130
3115600231
STOP RING COMPL
130
3115600218
STOP RING COMPL
132
0663613501
ORING
201
3115600220
GEAR HOUS. COMP
204
3115600222
LINER
205
3115325901
DAMPING PISTON
206
3115326002
ROT.CH.BUSHING
207
3115326100
BACK-UP RING
208
0509012112
ROLLER BEARING
209
0509022100
ROLLER BEARING
210
3115522700
ROTATION CHUCK
211
3115600224
NUT
212
3115326401
DRIVER
215
3115326500
BACK-UP RING
216
0516410026
INNER RING
217
0516410025
INNER RING
218
0516404700
NEEDLE BEARING
219
0516400025
NEEDLE BEARING
220
3115326600
GEAR WHEEL
222
0147136303
SCREW. HEX HEAD
223
0663614001
O-RING
224
0663210576
ORING
225
0663210168
O-RING
228
0663213501
O-RING
229
3115328401
SEAL KIT
230
3115328402
SEAL KIT
231
0666600048
RADIAL LIP SEAL
232
0666718801
RADIAL LIP SEAL
233
3115304800
SEAL RING
234
3115329002
SEAL RING
235
0665090014
SEAL RING
236
0102040800
PIN
238
0661101400
SEAL WASHER
239
0686420103
PLUG
240
3115600225
WASHER
241
0215000624
HEX SOCK. SCREW
261
3115362100
MOTOR BRACKET
262
0196131800
SET SCREW
301
3115324800
CYLINDER
302
3115327000
LINER
303
3115327101
PISTON GUIDE
304
3115327200
SEAL HOUSING
305
3115327601
PISTON
306
3115327400
PISTON GUIDE
307
3115327300
GUIDE HOUSING
308
3115327500
SEAL HOUSING
309
3115327700
VALVE PISTON
310
3115600275
VALVE COVER COMP
311
3115600277
VALVE COVER COMP
312
3115328605
SEAL KIT
313
3115328602
SEAL KIT
314
3115328805
WIPER
315
3115328802
WIPER
317
0663210167
ORING
321
3115328000
WEAR PLUG
361
3115600272
VALVE COVER
362
3115600273
VALVE COVER
363
3115585800
SEAL
364
0663907801
O-RING
365
3115328901
SEAL RING
400
3115600278
BACK HEAD COMPL
401
3115324902
BACK HEAD
402
3115585700
SEAL
500
3115566980
HYDRAULIC MOTOR
500
3115566982
HYDRAULIC MOTOR
600
3115359481
ACCUMULATOR ASSY
COP RR11 ROCK DRILL #20267
COP RR11 ROCK DRILL
ads
Ref
Parts Num
Name
0
cop-rr11
ROCK DRILL
