DD 321 CYLINDER ASSEMBLY #17006
DD 321 CYLINDER ASSEMBLY
ads
Ref
Parts Num
Name
0
55160993
CYLINDER ASSEMBLY
0
55150568
SEAL KIT
1
55160994
CYLINDER TUBE ASSEMBLY
2
55160996
PISTON ROD ASSEMBLY
5
55093781
PISTON
6
55093808
FRONT COVER
7
55161081
BUSHING
10
81474919
BEARING
15
42227290
CIRCLIP
17
81485139
HEXAGON SOCKET SET SCREW
20
55095244
PISTON SEAL
21
55095279
PISTON GUIDE RING
22
55153447
PISTON DIRT RING
23
55095482
ORING
24
55095415
ROD SEAL
25
55095545
PISTON ROD GUIDE RING
26
55153428
ROD DIRT RING
27
55151043
WIPER
28
55095498
SEAL
30
55150618
ORING
42
85604009
STRAIGHT THREAD ADAPTER
DD 321 CYLINDER ASSEMBLY #17030
DD 321 CYLINDER ASSEMBLY
ads
Ref
Parts Num
Name
0
55099642
CYLINDER ASSEMBLY
0
55164868
SEAL KIT
1
55157183
PISTON
2
55151652
FRONT COVER
4
55099645
CYLINDER ROD
5
55099643
CYLINDER TUBE
6
55095260
PISTON SEAL
8
55095462
PISTON GUIDE RING
9
55095415
ROD SEAL
10
55095545
PISTON ROD GUIDE RING
11
55151043
WIPER
12
55095482
ORING
13
55095499
SEAL
14
55153428
ROD DIRT RING
16
80012719
BEARING
17
57210240
GREASE NIPPLE
18
80011019
CIRCLIP
19
06532701
HEXAGON SOCKET SET SCREW
20
55095543
ORING
21
81485139
HEXAGON SOCKET SET SCREW
22
87193339
OVERCENTER VALVE
24
85604009
STRAIGHT THREAD ADAPTER
25
80103149
BONDED SEAL
26
81260409
PLUG
27
81718079
SWIVEL NUT ELBOW
221
87169439
SEAL KIT
DD 321 CYLINDER ASSEMBLY #17047
DD 321 CYLINDER ASSEMBLY
ads
Ref
Parts Num
Name
0
55099748
CYLINDER ASSEMBLY
0
55155989
SEAL KIT
1
55152816
CYLINDER TUBE ASSEMBLY
2
55155557
PISTON ROD ASSEMBLY
3
55152820
PISTON ASSEMBLY
5
55152974
PISTON
6
55152827
FRONT COVER
10
81558909
PLAIN BEARING
12
20797388
BEARING BUSHING
15
80235309
CIRCLIP
17
55150893
HEXAGON SOCKET SET SCREW
18
44847380
SCREW
20
88504779
PISTON SEAL
21
55095282
PISTON GUIDE RING
22
55153426
PISTON DIRT RING
23
55155990
ORING
24
55153345
ROD SEAL
25
55153350
PISTON ROD GUIDE RING
26
55153459
ROD DIRT RING
27
55153342
WIPER
28
55095501
SEAL
30
55095542
ORING
31
55097013
ROD SEAL
32
55153347
PISTON ROD GUIDE RING
33
55155991
ORING
35
55151381
OVERCENTER VALVE
40
57210240
GREASE NIPPLE
42
85604009
STRAIGHT THREAD ADAPTER
43
81718079
SWIVEL NUT ELBOW
44
80760419
ADAPTER
45
88762869
NEEDLE VALVE
46
88208789
STRAIGHT THREAD ELBOW
47
81709619
PLUG
51
80180269
BONDED SEAL
55
42143450
SPRING WASHER
56
44578060
HEXAGON SOCKET HEAD SCREW
60
55153114
COVER PLATE
65
39014048
SIGN
DD 321 CYLINDER ASSEMBLY #17052
DD 321 CYLINDER ASSEMBLY
ads
Ref
Parts Num
Name
0
55156082
CYLINDER ASSEMBLY
0
55155989
SEAL KIT
1
55152816
CYLINDER TUBE ASSEMBLY
2
55155557
PISTON ROD ASSEMBLY
3
55152820
PISTON ASSEMBLY
5
55152974
PISTON
6
55152827
FRONT COVER
7
20795238
LIMIT BUSHING
8
55156075
LIMIT BUSHING
10
81558909
PLAIN BEARING
12
20797388
BEARING BUSHING
15
80235309
CIRCLIP
17
55150893
HEXAGON SOCKET SET SCREW
18
44847380
SCREW
20
88504779
PISTON SEAL
21
55095282
PISTON GUIDE RING
22
55153426
PISTON DIRT RING
23
55155990
ORING
24
55153345
ROD SEAL
25
55153350
PISTON ROD GUIDE RING
26
55153459
ROD DIRT RING
27
55153342
WIPER
28
55095501
SEAL
30
55095542
ORING
31
55097013
ROD SEAL
32
55153347
PISTON ROD GUIDE RING
33
55155991
ORING
37
55151381
OVERCENTER VALVE
38
55151380
OVERCENTER VALVE
40
57210240
GREASE NIPPLE
42
85604009
STRAIGHT THREAD ADAPTER
43
81718079
SWIVEL NUT ELBOW
44
80760419
ADAPTER
45
88762869
NEEDLE VALVE
46
88208789
STRAIGHT THREAD ELBOW
47
81709619
PLUG
51
80180269
BONDED SEAL
55
42143450
SPRING WASHER
56
44578060
HEXAGON SOCKET HEAD SCREW
60
55153114
COVER PLATE
65
39014048
SIGN

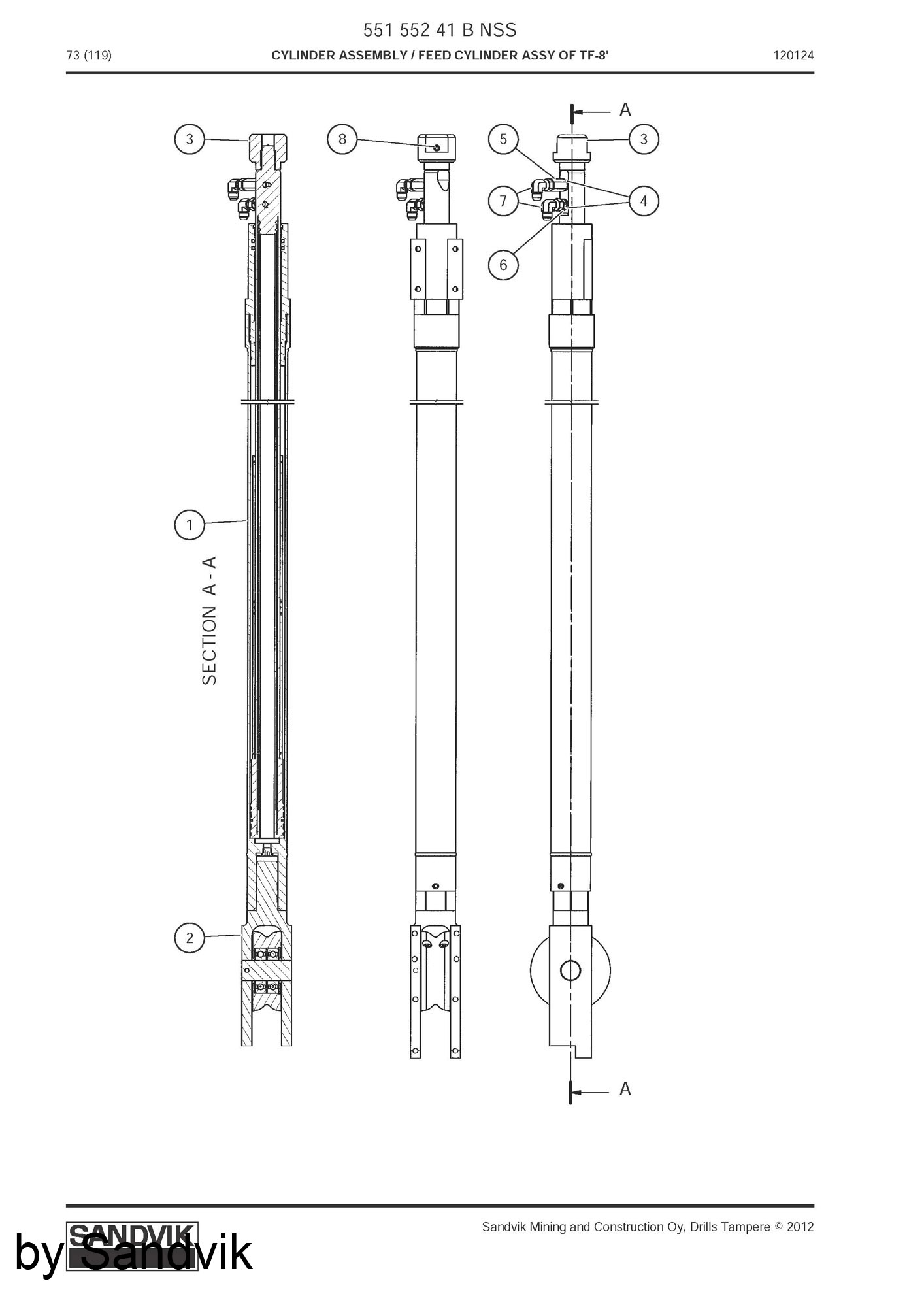

DD 321 CYLINDER ASSEMBLY #17089
DD 321 CYLINDER ASSEMBLY
ads
Ref
Parts Num
Name
0
55155241
CYLINDER ASSEMBLY
1
55085910
CYLINDER
2
32361098
IDLER WHEEL
3
26348798
BRACKET
4
80103149
BONDED SEAL
5
20714468
ADAPTER
6
81799129
STRAIGHT THREAD ADAPTER
7
81718359
SWIVEL NUT ELBOW
8
44817010
HEXAGON SOCKET SET SCREW
DD 321 CYLINDER ASSEMBLY #17096
DD 321 CYLINDER ASSEMBLY
ads
Ref
Parts Num
Name
0
55157533
CYLINDER ASSEMBLY
0
55155841
SEAL KIT
1
55151497
PISTON
2
55155670
FRONT COVER
4
55161548
PISTON ROD ASSEMBLY
5
55155669
CYLINDER TUBE
6
55152123
PISTON SEAL
8
55152124
PISTON GUIDE RING
9
55089986
ROD SEAL
10
55089985
PISTON ROD GUIDE RING
11
55151892
WIPER
12
55095480
ORING
13
55150994
ORING
16
59943148
BUCHA
17
57210240
GREASE NIPPLE
24
81260379
PLUG
25
80180269
BONDED SEAL
26
85730219
PLUG
27
81670189
STRAIGHT THREAD ADAPTER
