DD 321 Pages
1. SANDVIK - DD 321 EXTENSION FEED #17063
2. SANDVIK - DD 321 EXTENSION FEED #17125

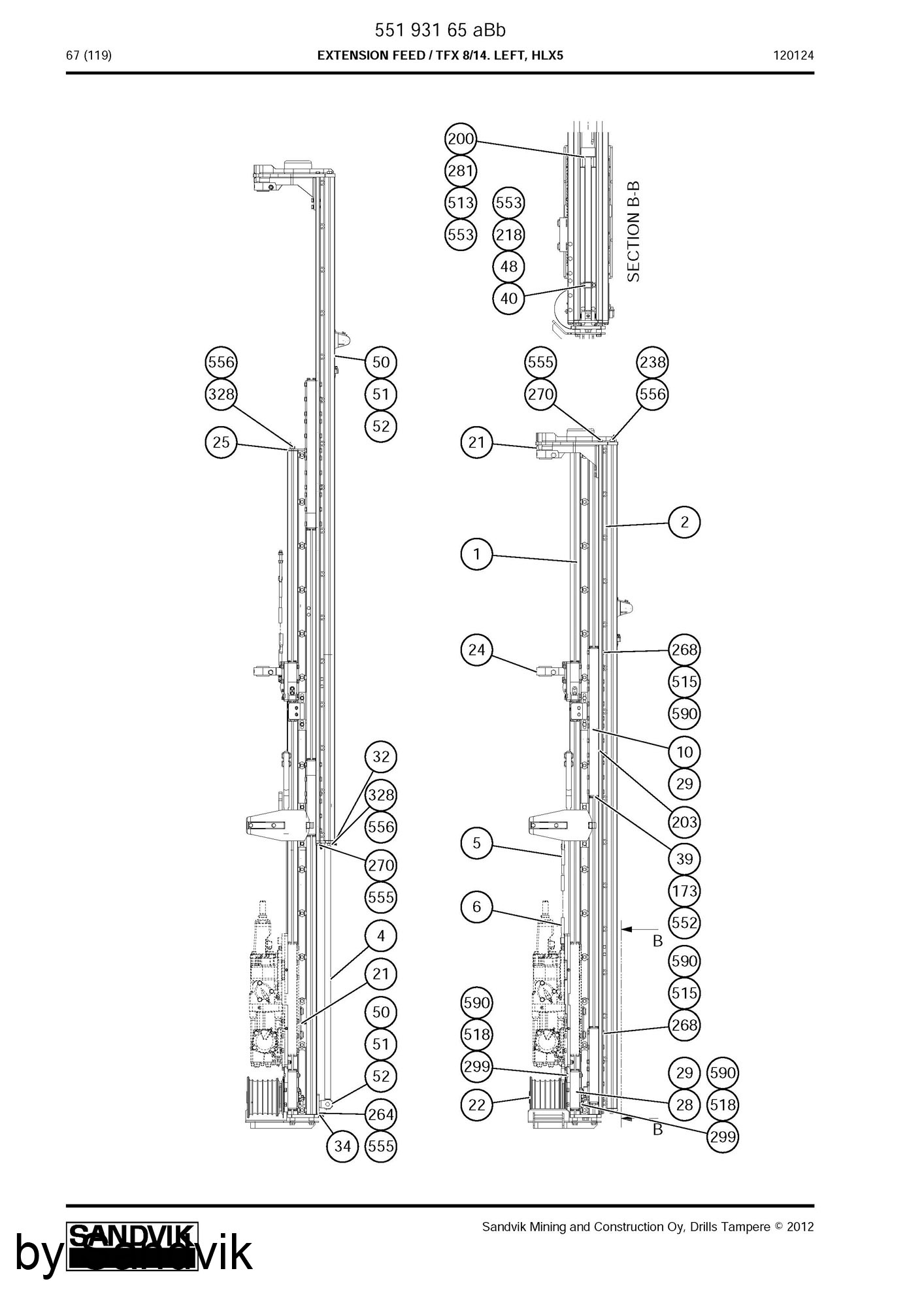

DD 321 EXTENSION FEED #17063
DD 321 EXTENSION FEED
ads
Ref
Parts Num
Name
0
55193165
EXTENSION FEED
11
55017281
BODY
23
32511638
PLACA
29
33001698
SKID SLIDE PIECE
30
28922128
PORCA
31
33134178
BRACKET
33
20960078
SIGN
35
32065408
CONDUIT
36
20756808
PLATE
39
20835308
PLACA FIXAQAO
45
33143628
FRAME
46
55086830
SUPPORT
47
55040796
STOPPING DEVICE
173
80046049
HEXAGON HEAD SCREW
201
80019409
HEXAGON HEAD SCREW
205
44277690
BOLT
280
44265360
HEXAGON HEAD SCREW
281
44266520
HEXAGON HEAD BOLT
328
80054749
HEXAGON HEAD BOLT
518
81125969
NUT. LOCK
552
85128209
LOCK WASHER PAIR
553
85106809
DOUBLE LOCK WASHER
555
85068749
LOCK WASHER
556
85128339
LOCK WASHER
560
85274759
DOUBLE LOCK WASHER
590
55013061
DOUBLE LOCK WASHER
600
45533290
SCREW
601
44585470
HEXAGON SOCKET HEAD SCREW
800
55190513
HOSING

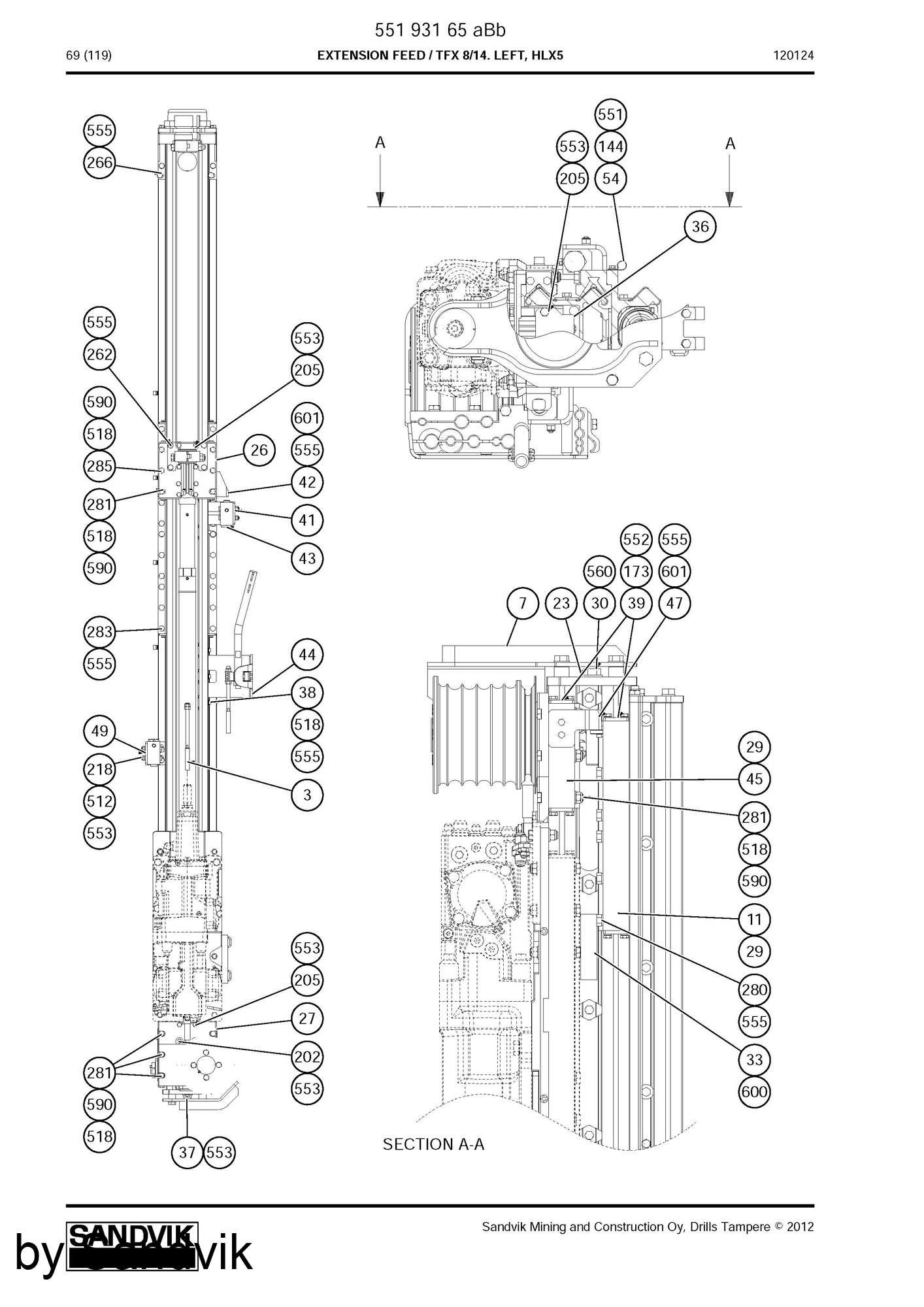

DD 321 EXTENSION FEED #17125
DD 321 EXTENSION FEED
ads
Ref
Parts Num
Name
0
55193165
EXTENSION FEED
1
55011201
BEAM
2
55165753
ASSEMBLY
3
55155241
CYLINDER ASSEMBLY
4
55193155
CYLINDER
5
55038494
WIRE ROPE
6
55038493
WIRE ROPE
10
23705278
BODY
21
55040612
FRONT CENTRALIZER
22
55154978
ASSEMBLY
24
26368598
GUIA MOVEL
25
55040033
PLATE
26
32512498
BERQO
27
55100070
PLATE
28
26337508
FRAME STRIP
29
33001698
SKID SLIDE PIECE
32
55077642
PLATE
34
55040817
BEARING BRACKET
37
20775288
HEXAGON HEAD BOLT
38
20902718
RETAINER SCREW
39
20835308
PLACA FIXAQAO
40
55041351
SUPPORT
41
55012395
FRAME
42
33143508
BRACKET
43
33276778
CYLINDER
44
55152011
ASSEMBLY
48
55051448
GUIDE RING
49
55040806
SUPPORTING BLOCK
50
20888528
PINO
51
20888408
BEARING BUSHING
52
42206480
CIRCLIP
173
80046049
HEXAGON HEAD SCREW
200
80328579
HEXAGON HEAD BOLT
202
80082429
BOLT
203
81664759
HEXAGON SOCKET SET SCREW
205
44277690
BOLT
218
80053609
HEXAGON HEAD BOLT
262
80019659
HEXAGON HEAD SCREW
264
44221850
BOLT
266
44221980
HEXAGON HEAD SCREW
268
55065708
HEXAGON HEAD BOLT
270
80174559
HEXAGON HEAD SCREW
281
44266520
HEXAGON HEAD BOLT
285
44222170
HEX.SCREW
299
44264220
HEXAGON HEAD BOLT
328
80054749
HEXAGON HEAD BOLT
512
81126029
LOCK NUT
513
80082149
NUT. HEXAGON
515
88279119
HEXAGON THIN NUT
518
81125969
NUT. LOCK
552
85128209
LOCK WASHER PAIR
553
85106809
DOUBLE LOCK WASHER
555
85068749
LOCK WASHER
556
85128339
LOCK WASHER
590
55013061
DOUBLE LOCK WASHER
