DT 820 CRADLE ACTUATOR ASSEMBLY #17150
DT 820 CRADLE ACTUATOR ASSEMBLY
ads
Ref
Parts Num
Name
0
55156718
CRADLE ACTUATOR ASSEMBLY
1
32596038
CRADLE ASSY
2
55156731
PIPE
3
55041734
TORQUE MOTOR
7
26438771
EIXO EXPANSIVO
11
20533808
COVER
12
26436758
COVER
14
33120497
VALVE ASSY
19
86793649
VSEAL
20
52204190
ORING
21
26436888
BUCHA DO EIXO DE MESA
22
57210240
GREASE NIPPLE
36
20796098
SHIM
37
34473813
WEDGE
71
26378088
CONICAL SLEEVE
72
85128339
LOCK WASHER
73
26439118
CONICAL BUSHING
155
80874369
HEXAGON HEAD BOLT
317
80049489
HEXAGON HEAD SCREW
553
85106809
DOUBLE LOCK WASHER
791
44581690
HEXAGON SOCKET HEAD SCREW
793
44581970
HEXAGON SOCKET HEAD SCREW

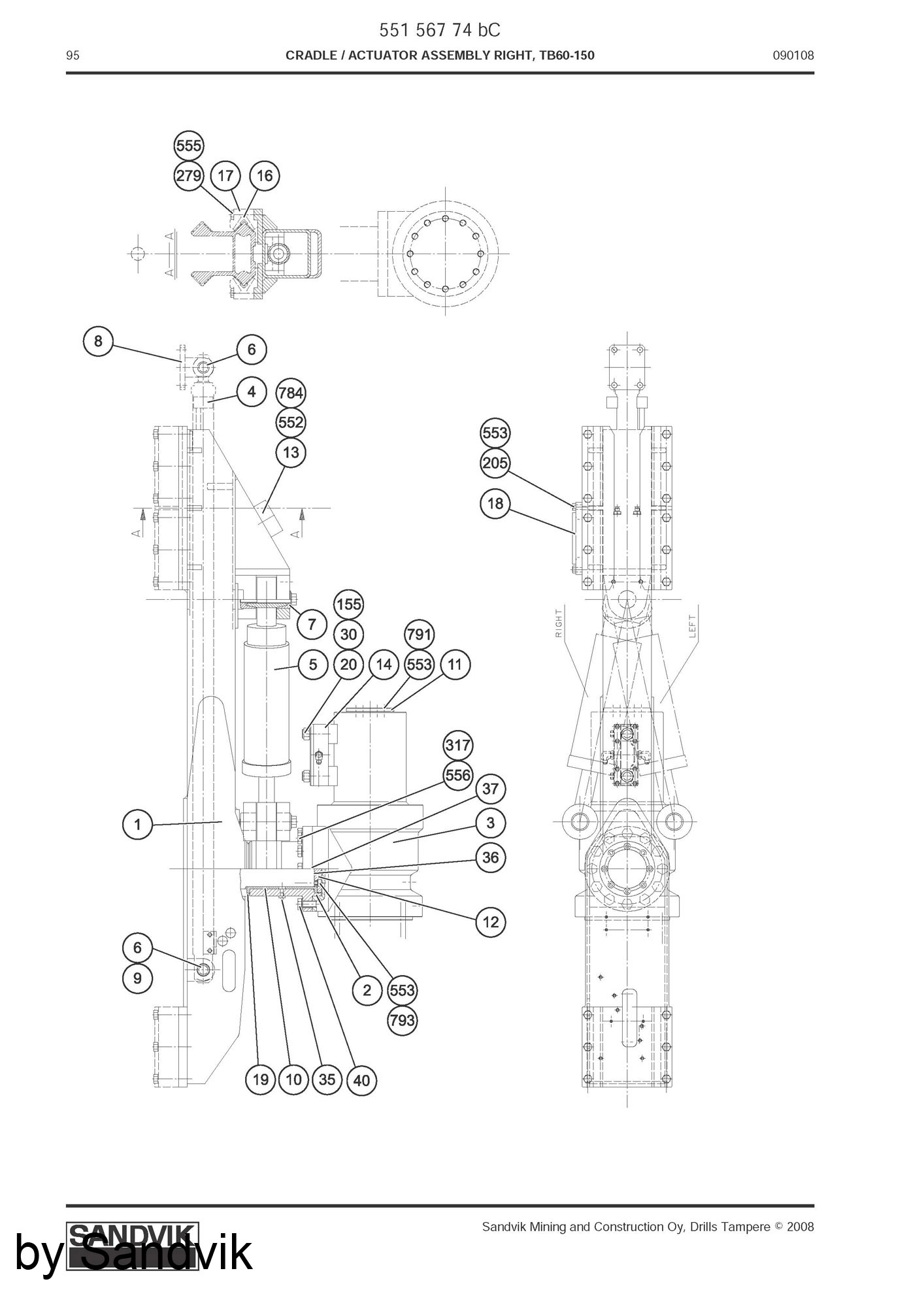

DT 820 CRADLE ACTUATOR ASSEMBLY #17167
DT 820 CRADLE ACTUATOR ASSEMBLY
ads
Ref
Parts Num
Name
0
55156774
CRADLE ACTUATOR ASSEMBLY
1
32596038
CRADLE ASSY
2
55156731
PIPE
3
55041734
TORQUE MOTOR
7
26438771
EIXO EXPANSIVO
11
20533808
COVER
12
26436758
COVER
14
33120497
VALVE ASSY
19
86793649
VSEAL
20
52204190
ORING
21
26436888
BUCHA DO EIXO DE MESA
22
57210240
GREASE NIPPLE
36
20796098
SHIM
37
34473813
WEDGE
71
26378088
CONICAL SLEEVE
72
85128339
LOCK WASHER
73
26439118
CONICAL BUSHING
155
80874369
HEXAGON HEAD BOLT
317
80049489
HEXAGON HEAD SCREW
553
85106809
DOUBLE LOCK WASHER
791
44581690
HEXAGON SOCKET HEAD SCREW
793
44581970
HEXAGON SOCKET HEAD SCREW
