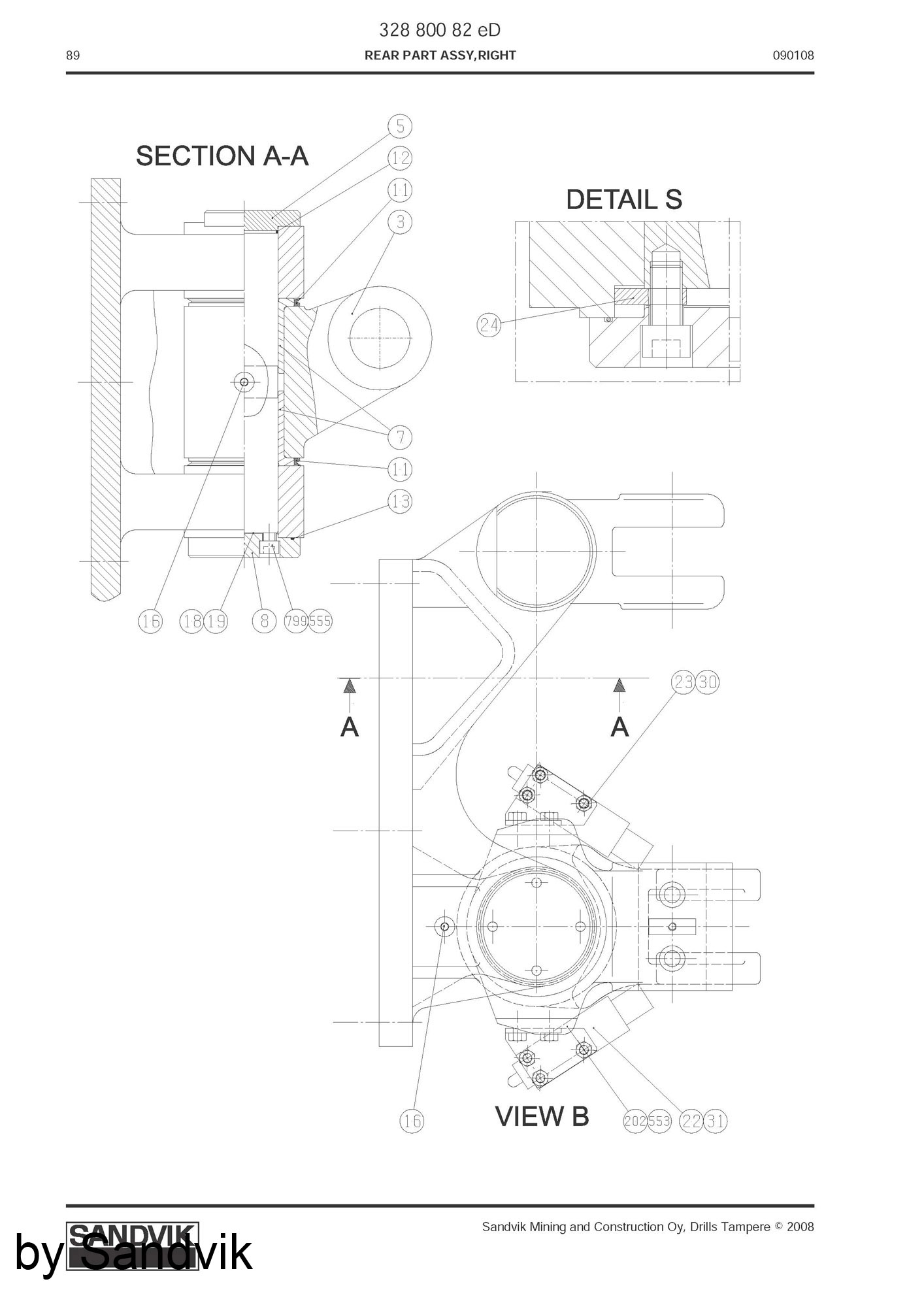

DT 820 REAR PART ASSY RIGHT #17004
DT 820 REAR PART ASSY RIGHT
ads
Ref
Parts Num
Name
0
32880082
REAR PART ASSY RIGHT
1
32896888
SWING ARM MACHINING
2
32656608
MOUNTING PLATE RIGHT.MACH
3
32099018
CROSS PIECE MACHINING
4
32106058
SHAFT
5
20788108
SHAFT
6
26433168
BEARING BUSHING
7
26424018
BUCHA
8
20788368
COVER
9
26438368
COVER
10
20795108
CONNECTING PIECE
11
87345749
VSEAL
12
80011839
O-RING
13
52245080
O-RING
16
57210240
GREASE NIPPLE
18
20795808
SHIM
19
20795928
SHIM
20
80181149
PLUG
22
88424719
VALVE
23
88424849
VALVE
24
34473812
WEDGE
30
33178401
SUPPORT LEFT
31
33178402
SUPPORT RIGHT
40
88719229
FLOW CONTROL VALVE
41
81671909
ADAPTER TEE
42
81718079
SWIVEL NUT ELBOW
43
85838589
SWIVEL NUT MALE ADAPTER
44
85604009
STRAIGHT THREAD ADAPTER
45
86840159
STRAIGHT THREAD ADAPTER
46
88208789
STRAIGHT THREAD ELBOW
202
80082429
BOLT
550
85323979
DOUBLE LOCK WASHER
553
85106809
DOUBLE LOCK WASHER
555
85068749
LOCK WASHER
748
44250000
HEXAGON HEAD SCREW
749
44577460
HEXAGON SOCKET HEAD SCREW
799
44585470
HEXAGON SOCKET HEAD SCREW
DT 820 REAR PART ASSY RIGHT #17013
DT 820 REAR PART ASSY RIGHT
ads
Ref
Parts Num
Name
0
32880082
REAR PART ASSY RIGHT
1
32896888
SWING ARM MACHINING
2
32656608
MOUNTING PLATE RIGHT.MACH
3
32099018
CROSS PIECE MACHINING
4
32106058
SHAFT
5
20788108
SHAFT
6
26433168
BEARING BUSHING
7
26424018
BUCHA
8
20788368
COVER
9
26438368
COVER
10
20795108
CONNECTING PIECE
11
87345749
VSEAL
12
80011839
O-RING
13
52245080
O-RING
16
57210240
GREASE NIPPLE
18
20795808
SHIM
19
20795928
SHIM
20
80181149
PLUG
22
88424719
VALVE
23
88424849
VALVE
24
34473812
WEDGE
30
33178401
SUPPORT LEFT
31
33178402
SUPPORT RIGHT
40
88719229
FLOW CONTROL VALVE
41
81671909
ADAPTER TEE
42
81718079
SWIVEL NUT ELBOW
43
85838589
SWIVEL NUT MALE ADAPTER
44
85604009
STRAIGHT THREAD ADAPTER
45
86840159
STRAIGHT THREAD ADAPTER
46
88208789
STRAIGHT THREAD ELBOW
202
80082429
BOLT
550
85323979
DOUBLE LOCK WASHER
553
85106809
DOUBLE LOCK WASHER
555
85068749
LOCK WASHER
748
44250000
HEXAGON HEAD SCREW
749
44577460
HEXAGON SOCKET HEAD SCREW
799
44585470
HEXAGON SOCKET HEAD SCREW
