HC 109 MONTABERT New catalogs

HC 109 Pages

1. MONTABERT - HC 109 FRONT GUIDE #17197

2. MONTABERT - HC 109 FRONT GUIDE #17215

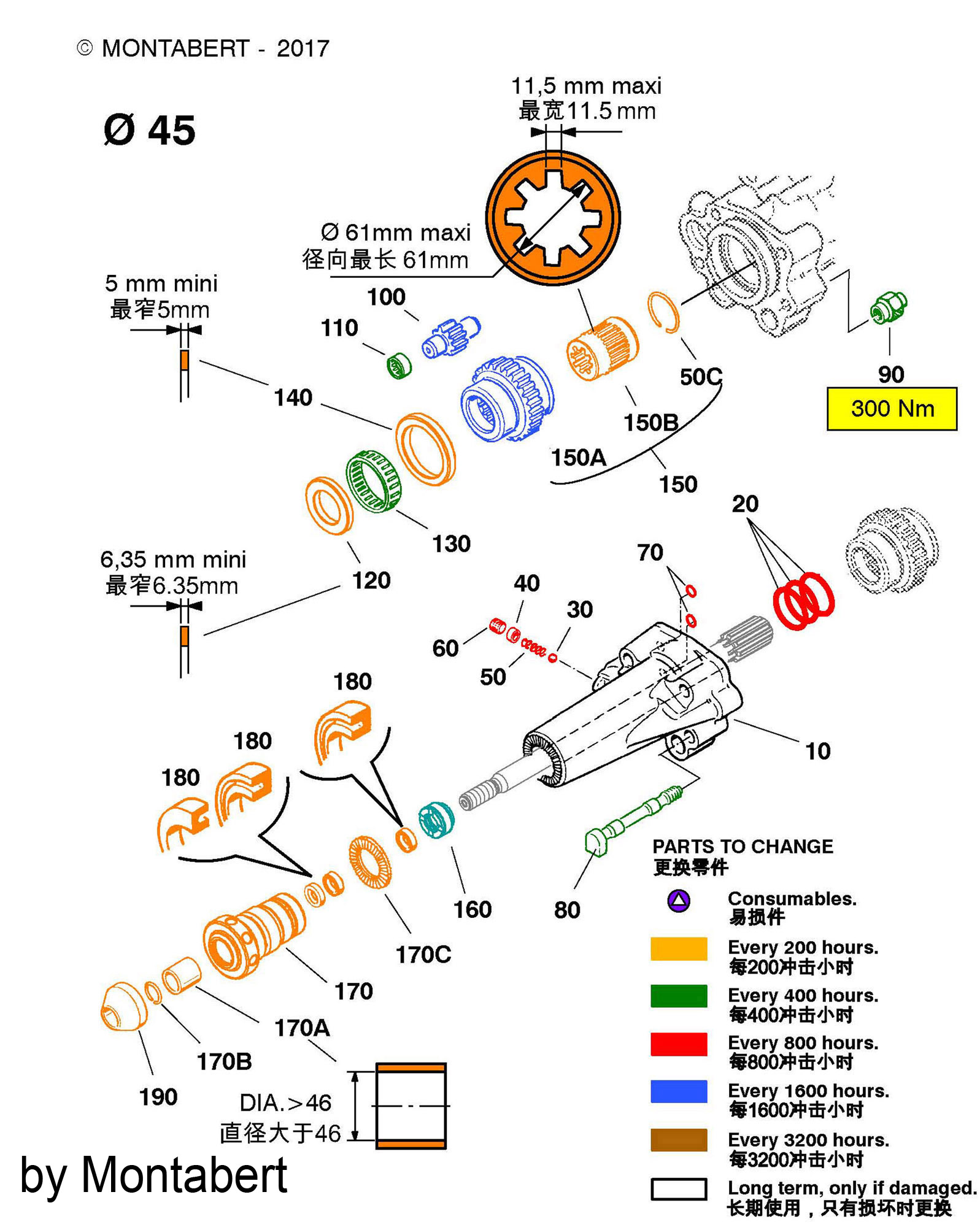

HC 109 FRONT GUIDE #17197

HC 109 FRONT GUIDE

ads

Ref

Parts Num

Name

10

FRONT GUIDE

20

O RING

30

BALL

40

SPRING SEAT

50

SPRING

60

PLUG

170B

SNAP RING

70

O RING

150A

GEAR

150B

SPLINED NUT

170A

GUIDING RING

150C

SNAP RING

80

HEXA. SCREW

90

HEX. NUT

100

GEAR

110

NEEDLE BEARING

120

RING

130

NEEDLE BEARING

140

RING

150

GEAR DRIVEN

160

SHANK RETAINER

170

FLUSHING NOZZLE

180

LIP SEAL

190

SHIELD

170C

PACKING

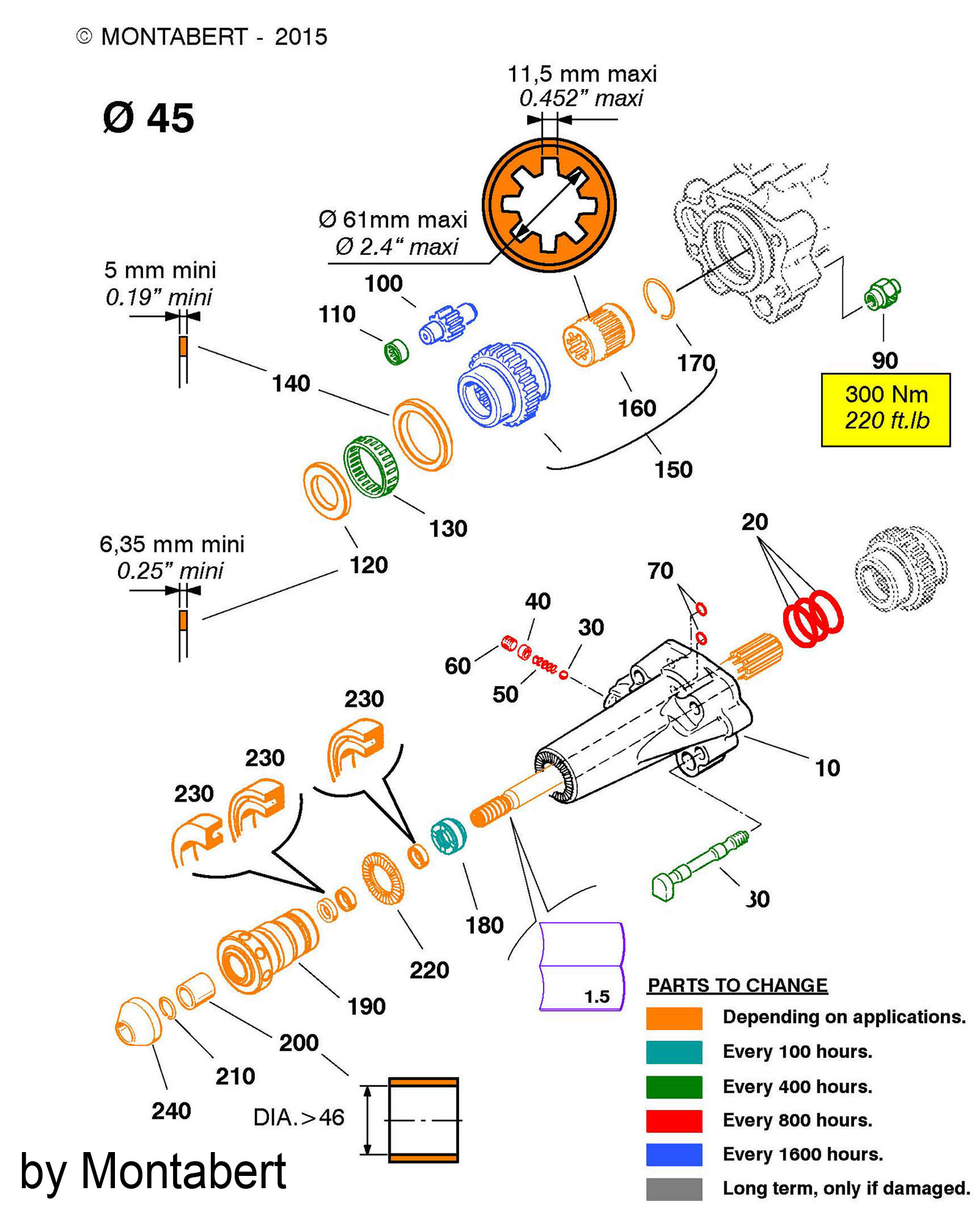

HC 109 FRONT GUIDE #17215

HC 109 FRONT GUIDE

ads

Ref

Parts Num

Name

10

FRONT GUIDE

20

O RING

30

BALL

40

SPRING SEAT

50

SPRING

60

PLUG

70

O RING

80

HEXA. SCREW

90

HEX. NUT

100

GEAR

110

NEEDLE BEARING

120

RING

130

NEEDLE BEARING

140

RING

150

GEAR DRIVEN

160

SPLINED NUT

170

SNAP RING

180

SHANK RETAINER

190

FLUSHING NOZZLE

200

GUIDING RING

210

SNAP RING

220

PACKING

230

LIP SEAL

240

SHIELD
