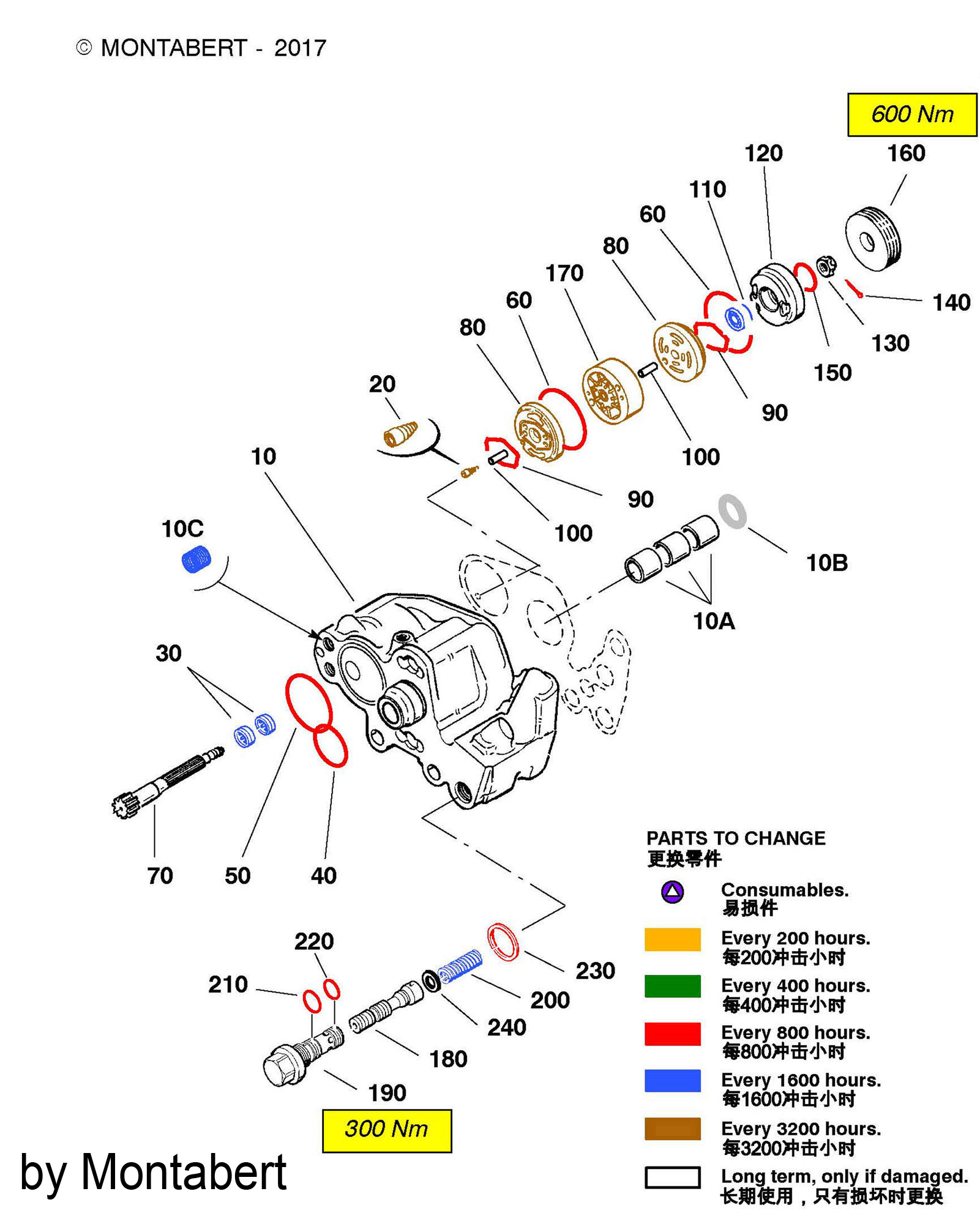

HC 109 MOTOR BODY #17189
HC 109 MOTOR BODY
ads
Ref
Parts Num
Name
10
86475746
MOTOR BODY
20
86223476
SPRING
30
86220811
NEEDLE BEARING
40
86222825
O RING
50
86265071
O RING
60
86221918
O RING
70
86220209
SHAFT
80
86344199
DISTRIBUTION PLATE
90
86261344
O RING
100
86318516
PIN
110
86223559
BALL BEARING
120
86344116
BEARING HOLDER PLATE
130
86313046
NUT
140
86302841
PIN
150
86222668
O RING
160
86313053
COVER
170
86627098
CARTRIDGE
180
86653581
SLIDER
190
86366242
LINING
10A
86221561
GUIDING RING
10C
86264678
HELICOIL THREAD
10B
86223997
SNAP RING
200
86366283
SPRING
210
86234994
O RING
220
86234853
O RING
230
86288131
BS RING
240
86312196
ADJUSTING SHIM

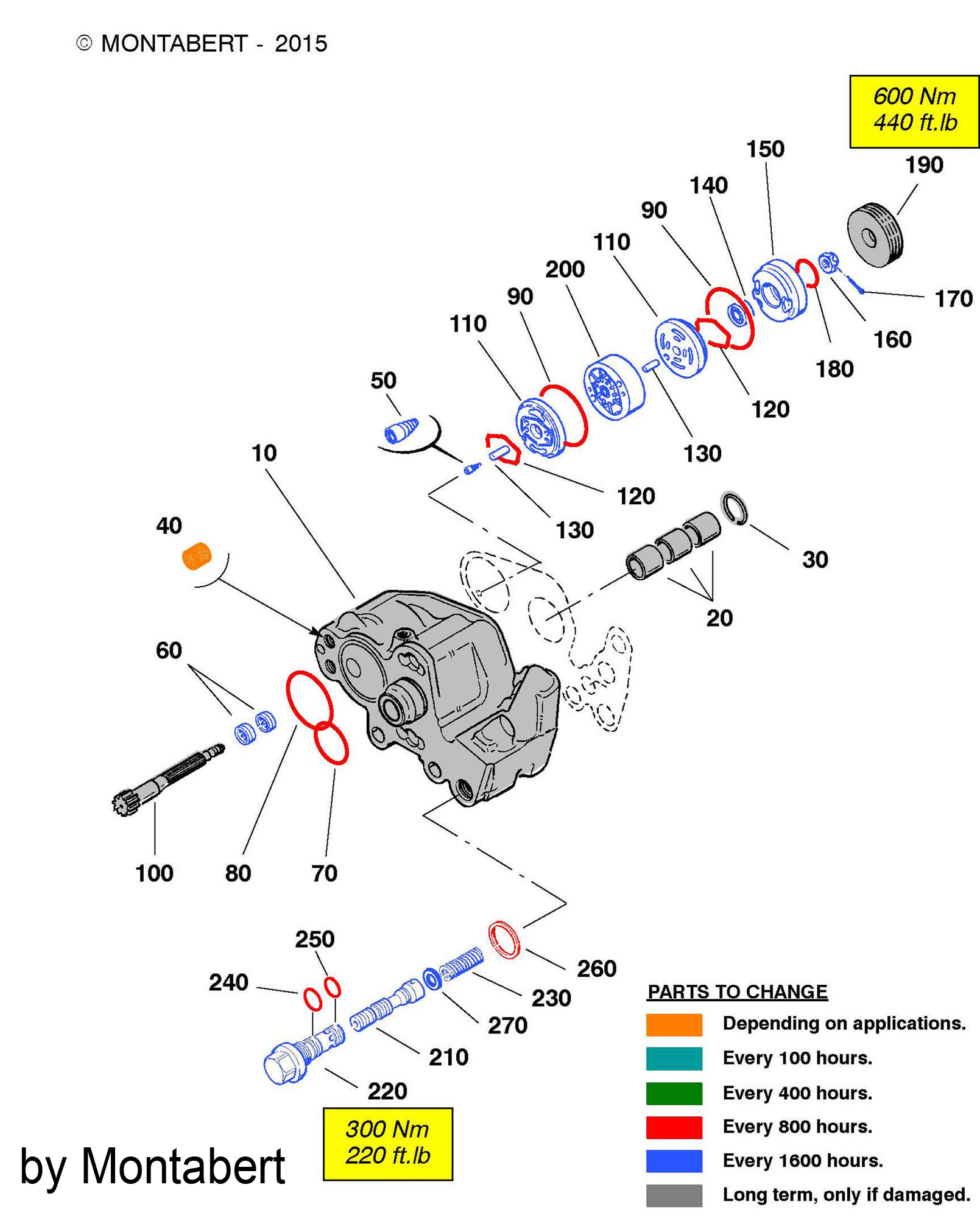

HC 109 MOTOR BODY #17210
HC 109 MOTOR BODY
ads
Ref
Parts Num
Name
10
86475746
MOTOR BODY
20
86221561
GUIDING RING
30
86223997
SNAP RING
40
86264678
HELICOIL THREAD
50
86223476
SPRING
60
86220811
NEEDLE BEARING
70
86222825
O RING
80
86265071
O RING
90
86221918
O RING
100
86220209
SHAFT
110
86344199
DISTRIBUTION PLATE
120
86261344
O RING
130
86318516
PIN
140
86223559
BALL BEARING
150
86344116
BEARING HOLDER PLATE
160
86313046
NUT
170
86302841
PIN
180
86222668
O RING
190
86313053
COVER
200
86632221
CARTRIDGE
210
86653581
SLIDER
220
86366242
LINING
230
86366283
SPRING
240
86234994
O RING
250
86234853
O RING
260
86288131
BS RING
270
86312196
ADJUSTING SHIM

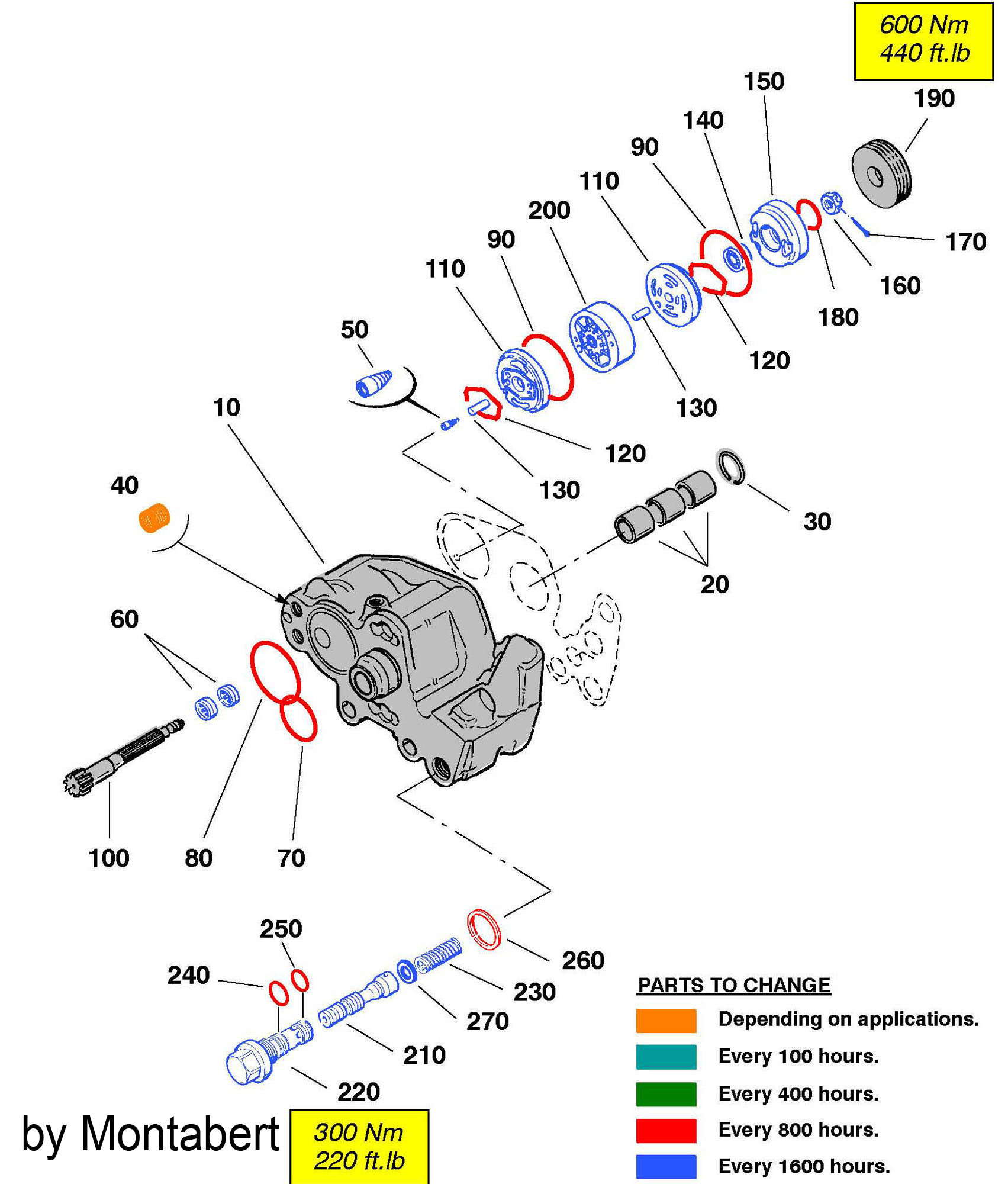

HC 109 MOTOR BODY #17230
HC 109 MOTOR BODY
ads
Ref
Parts Num
Name
10
86475746
MOTOR BODY
20
86221561
GUIDING RING
30
86223997
SNAP RING
40
86264678
HELICOIL THREAD
50
86223476
SPRING
60
86220811
NEEDLE BEARING
70
86222825
O RING
80
86265071
O RING
90
86221918
O RING
100
86220209
SHAFT
110
86344199
DISTRIBUTION PLATE
120
86261344
O RING
130
86318516
PIN
140
86223559
BALL BEARING
150
86344116
BEARING HOLDER PLATE
160
86313046
NUT
170
86302841
PIN
180
86222668
O RING
190
86313053
COVER
200
86627098
CARTRIDGE
210
86653581
SLIDER
220
86366242
LINING
230
86366283
SPRING
240
86234994
O RING
250
86234853
O RING
260
86288131
BS RING
270
86312196
ADJUSTING SHIM
