HC 109 Pages
1. MONTABERT - HC 109 THRUST HOUSING #17204
2. MONTABERT - HC 109 THRUST HOUSING #17222
3. MONTABERT - HC 109 THRUST HOUSING #17261

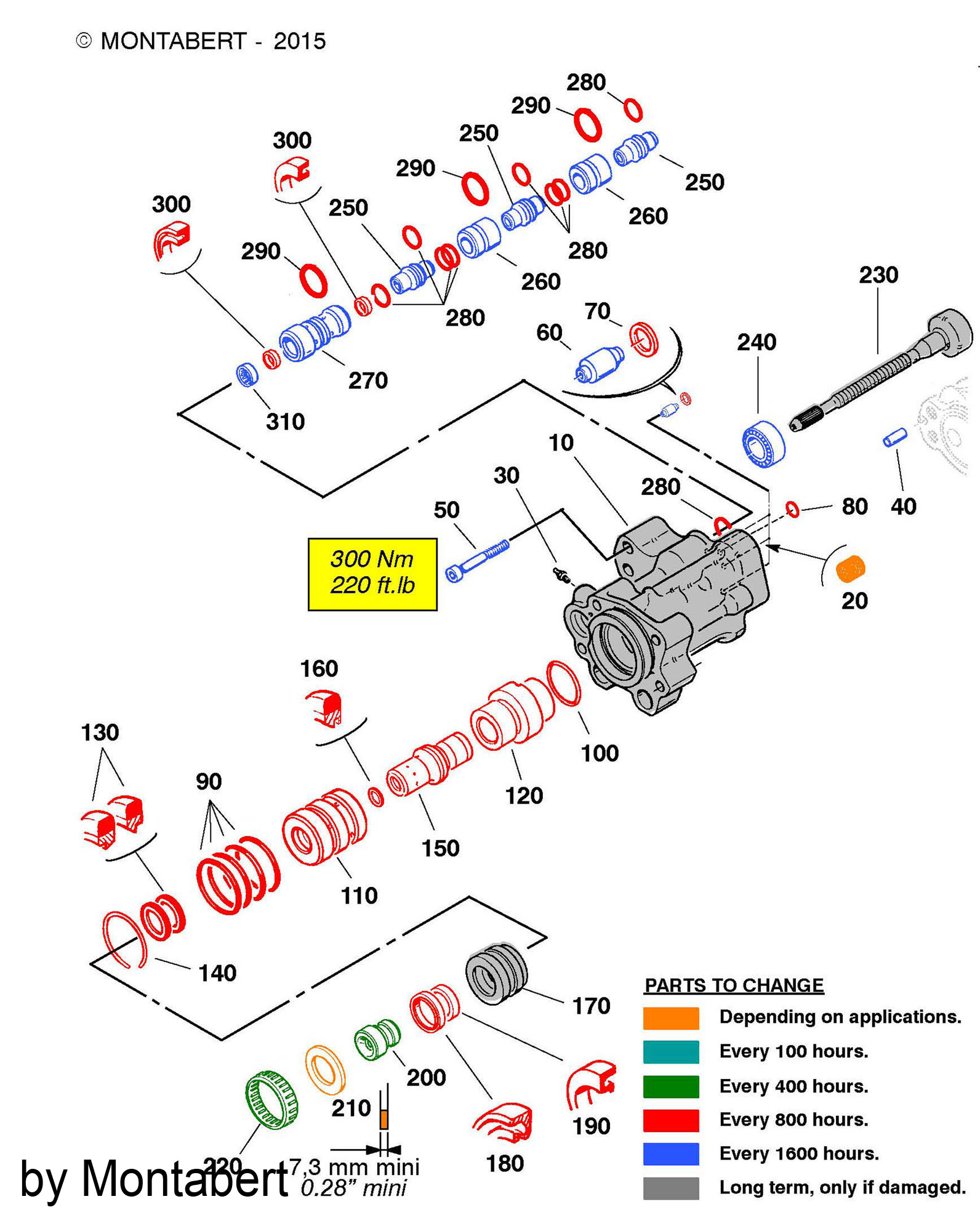

HC 109 THRUST HOUSING #17204
HC 109 THRUST HOUSING
ads
Ref
Parts Num
Name
10
86475001
THRUST HOUSING
20
86264678
HELICOIL THREAD
30
86655354
OILER
40
86223419
PIN
50
95848107
SOCKET HEAD SCREW
60
86322518
VALVE
70
86570447
TIGHT SEAL
80
86616935
FACE SEAL
90
86502234
O RING
100
86578895
O RING
110
86611647
FRONT LINING
120
86611621
REAR LINING
130
86611654
COMPOSITE SEAL
140
86220258
SNAP RING
150
86611639
HYDRAULIC STOP PISTON
160
86611662
SEAL
170
86345022
GUIDE
180
86221652
CENTERING PART
190
86221645
CENTERING PART
200
86223492
SHANK STOP
210
86220241
RING
220
86221603
NEEDLE BEARING
230
86313087
SHAFT
240
86484755
BALL BEARING
250
86223435
TIGHT RING
260
86313095
TIGHT RING
270
86313103
TIGHT RING
280
86232808
O RING
290
86292786
O RING
300
86613254
SEAL
310
86223021
NEEDLE BEARING
320
86501061
RESTRICTOR

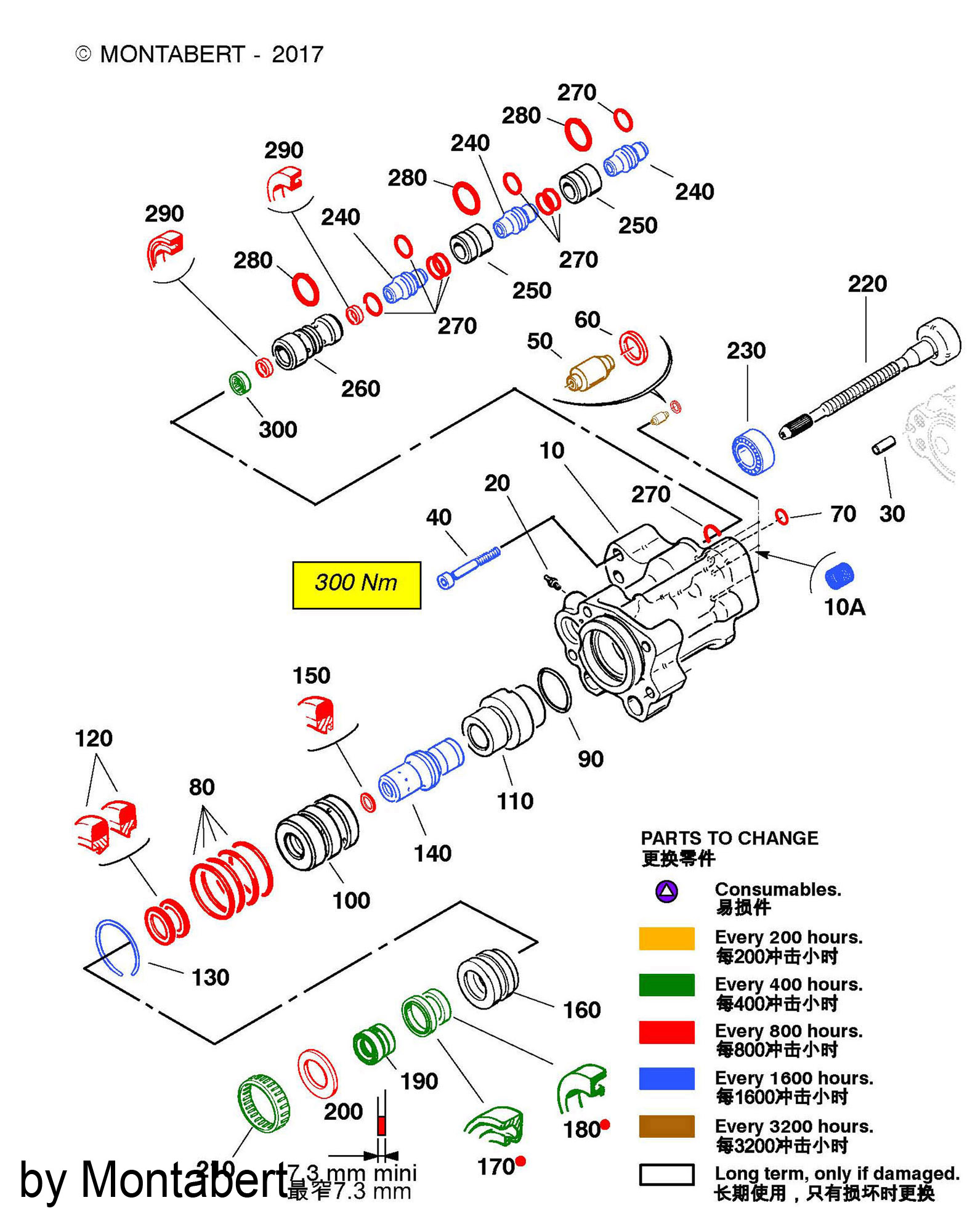

HC 109 THRUST HOUSING #17222
HC 109 THRUST HOUSING
ads
Ref
Parts Num
Name
10
86475001
THRUST HOUSING
20
86655354
OILER
30
86223419
PIN
40
95848107
SOCKET HEAD SCREW
50
86322518
VALVE
60
86570447
TIGHT SEAL
70
86616935
FACE SEAL
80
86502234
O RING
90
86578895
O RING
100
86611647
FRONT LINING
110
86611621
REAR LINING
10A
86264678
HELICOIL THREAD
120
86611654
COMPOSITE SEAL
130
86220258
SNAP RING
140
86611639
HYDRAULIC STOP PISTON
150
86611662
SEAL
160
86345022
GUIDE
170
86221652
CENTERING PART
180
86221645
CENTERING PART
190
86223492
SHANK STOP
200
86220241
RING
210
86221603
NEEDLE BEARING
220
86313087
SHAFT
230
86484755
BALL BEARING
240
86223435
TIGHT RING
250
86313095
TIGHT RING
260
86313103
TIGHT RING
270
86232808
O RING
280
86292786
O RING
290
86613254
SEAL
300
86223021
NEEDLE BEARING
HC 109 THRUST HOUSING #17261
HC 109 THRUST HOUSING
ads
Ref
Parts Num
Name
10
86475001
THRUST HOUSING
20
86264678
HELICOIL THREAD
30
86655354
OILER
40
86223419
PIN
50
95848107
SOCKET HEAD SCREW
60
86322518
VALVE
70
86570447
TIGHT SEAL
80
86616935
FACE SEAL
90
86502234
O RING
100
86578895
O RING
110
86611647
FRONT LINING
120
86611621
REAR LINING
130
86611654
COMPOSITE SEAL
140
86220258
SNAP RING
150
86611639
HYDRAULIC STOP PISTON
160
86611662
SEAL
170
86345022
GUIDE
180
86221652
CENTERING PART
190
86221645
CENTERING PART
200
86223492
SHANK STOP
210
86220241
RING
220
86221603
NEEDLE BEARING
230
86313087
SHAFT
240
86484755
BALL BEARING
250
86223435
TIGHT RING
260
86313095
TIGHT RING
270
86313103
TIGHT RING
280
86232808
O RING
290
86292786
O RING
300
86613254
SEAL
310
86223021
NEEDLE BEARING
