HC 50 Pages
1. MONTABERT - HC 50 COMPLETE HOUSING #17205
2. MONTABERT - HC 50 COMPLETE HOUSING #17217
3. MONTABERT - HC 50 COMPLETE HOUSING #17233
4. MONTABERT - HC 50 COMPLETE HOUSING #17234

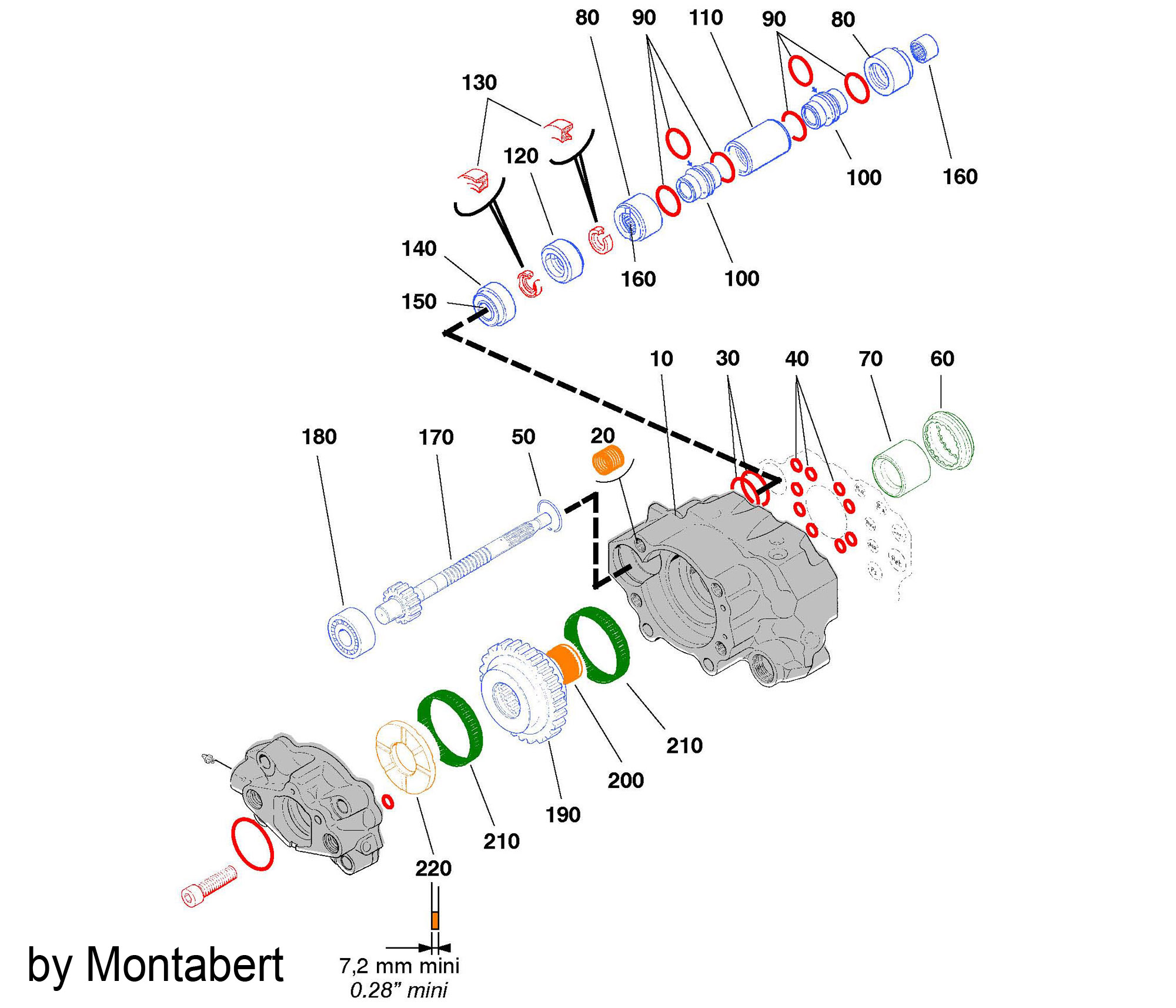

HC 50 COMPLETE HOUSING #17205
HC 50 COMPLETE HOUSING
ads
Ref
Parts Num
Name
10
86386216
COMPLETE HOUSING
20
86292786
O RING
30
86570447
TIGHT SEAL
40
86323763
SNAP RING
50
86334133
CENTERING PART
60
86334125
SHANK THRUST
70
86323771
TIGHT RING
80
86232766
O RING
90
86323797
TIGHT RING
100
86323789
TIGHT RING
110
86323805
SEAL HOLDER RING
120
86322278
LIP SEAL
10A
86264678
HELICOIL THREAD
130A
86322252
SELF LUBRICATING RING
130
86323813
SHOULDERED RING
170A
86605920
SPLINE SHANK
140
86322260
NEEDLE BEARING
150
86323953
GEAR DRIVING SHAFT
160
13900717
BALL BEARING
170
86334141
GEAR DRIVING
180
86250107
DRIVE COMPONENT
190
86582855
THRUST WASHER

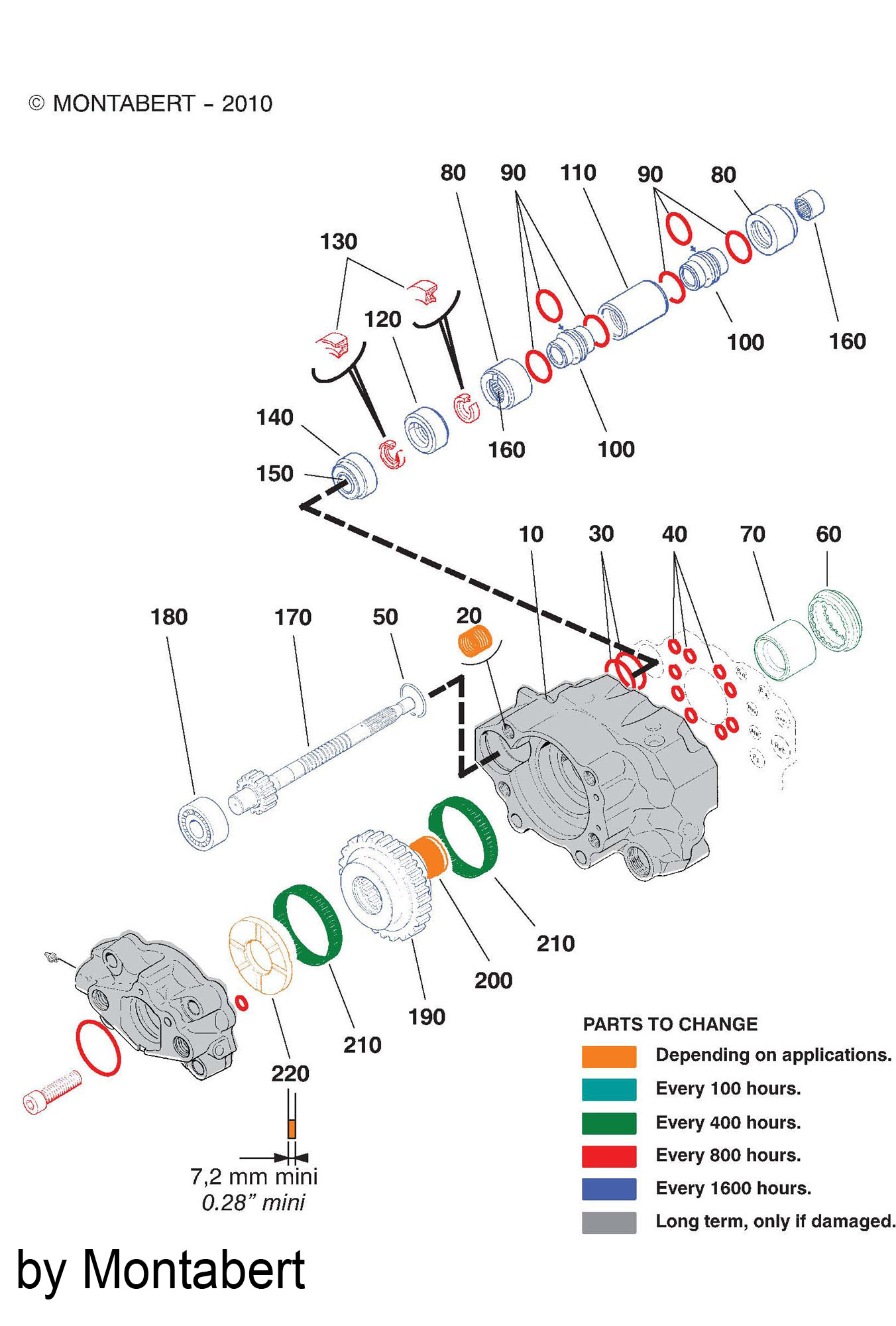

HC 50 COMPLETE HOUSING #17217
HC 50 COMPLETE HOUSING
ads
Ref
Parts Num
Name
10
86386216
COMPLETE HOUSING
20
86264678
HELICOIL THREAD
30
86292786
O RING
40
86570447
TIGHT SEAL
50
86323763
SNAP RING
60
86334133
CENTERING PART
70
86334125
SHANK THRUST
80
86323771
TIGHT RING
90
86232766
O RING
100
86323797
TIGHT RING
110
86323789
TIGHT RING
120
86323805
SEAL HOLDER RING
130
86322278
LIP SEAL
140
86323813
SHOULDERED RING
141
86322252
SELF LUBRICATING RING
150
86322260
NEEDLE BEARING
160
86323953
GEAR DRIVING SHAFT
170
13900717
BALL BEARING
180
86334141
GEAR DRIVING
190
86605920
SPLINE SHANK
200
86250107
DRIVE COMPONENT
210
86582855
THRUST WASHER

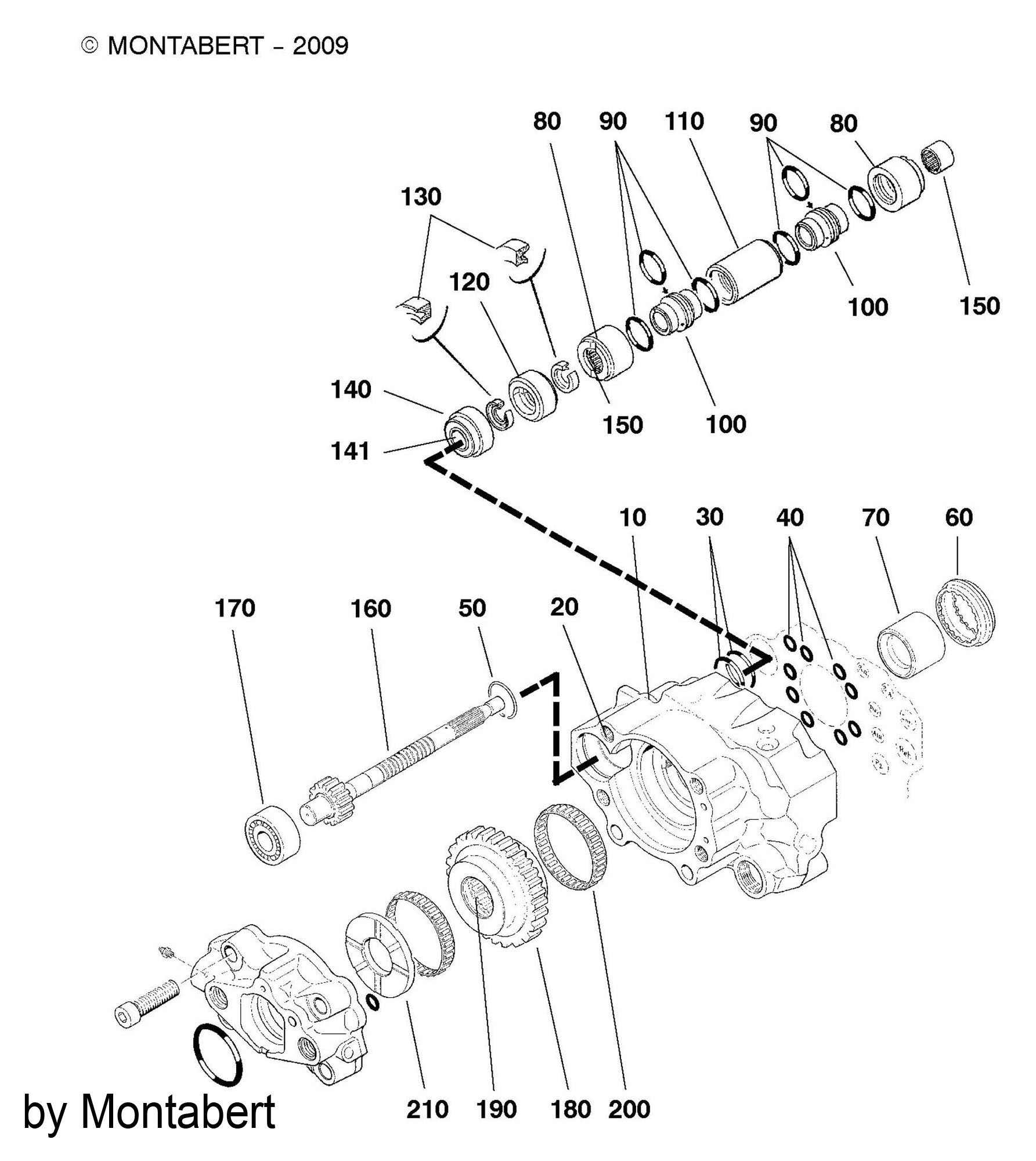

HC 50 COMPLETE HOUSING #17233
HC 50 COMPLETE HOUSING
ads
Ref
Parts Num
Name
10
86386216
COMPLETE HOUSING
20
86264678
HELICOIL THREAD
30
86292786
O RING
40
86570447
TIGHT SEAL
50
86323763
SNAP RING
60
86334133
CENTERING PART
70
86334125
SHANK THRUST
80
86323771
TIGHT RING
90
86232766
O RING
100
86323797
TIGHT RING
110
86323789
TIGHT RING
120
86323805
SEAL HOLDER RING
130
86322278
LIP SEAL
140
86323813
SHOULDERED RING
150
86322252
SELF LUBRICATING RING
160
86322260
NEEDLE BEARING
170
86323953
GEAR DRIVING SHAFT
180
13900717
BALL BEARING
190
86334141
GEAR DRIVING
200
86605920
SPLINE SHANK
210
86250107
DRIVE COMPONENT
220
86334307
THRUST WASHER

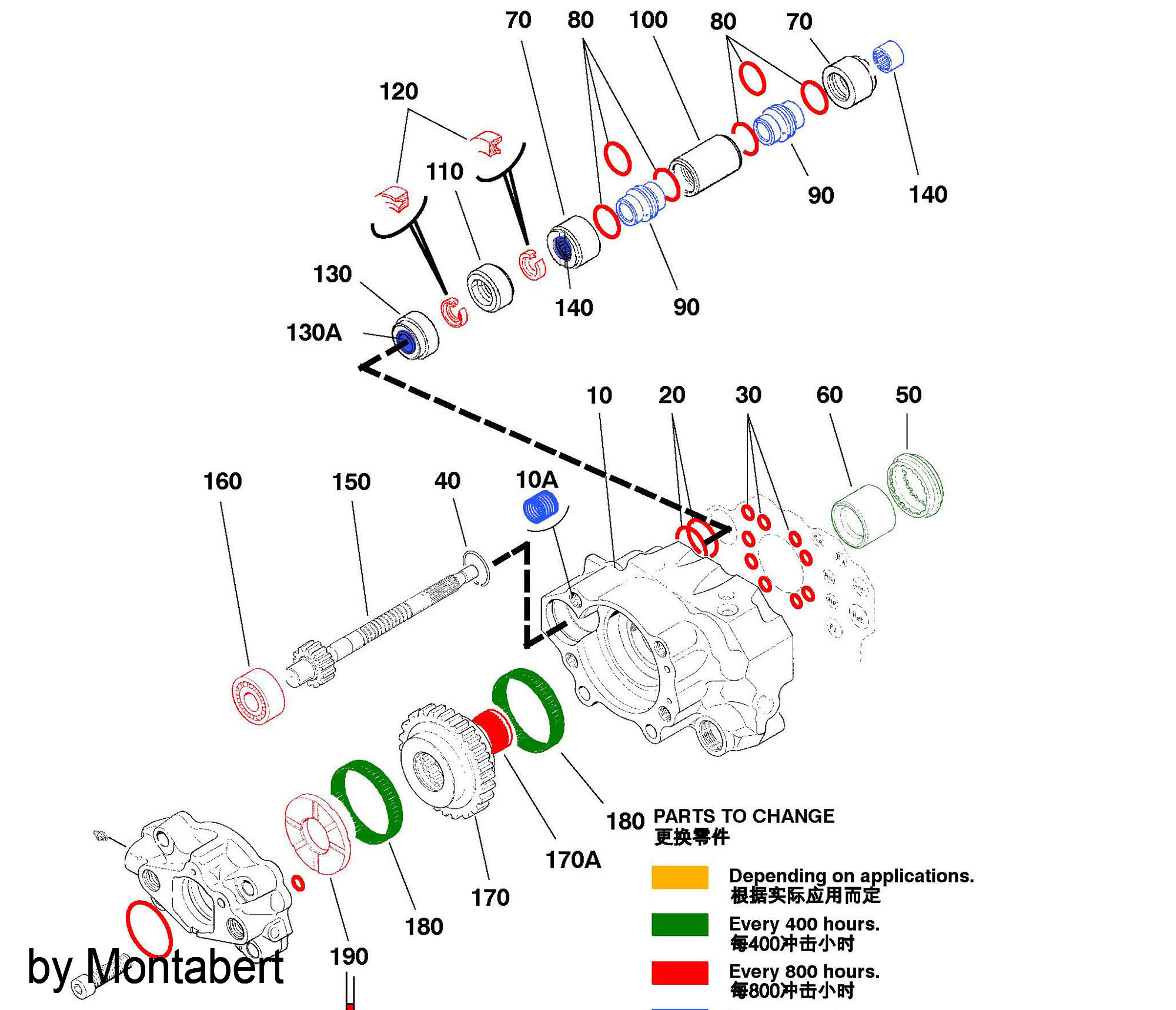

HC 50 COMPLETE HOUSING #17234
HC 50 COMPLETE HOUSING
ads
Ref
Parts Num
Name
10
86386216
COMPLETE HOUSING
20
86264678
HELICOIL THREAD
30
86292786
O RING
40
86570447
TIGHT SEAL
50
86323763
SNAP RING
60
86334133
CENTERING PART
70
86334125
SHANK THRUST
80
86323771
TIGHT RING
90
86232766
O RING
100
86323797
TIGHT RING
110
86323789
TIGHT RING
120
86323805
SEAL HOLDER RING
130
86322278
LIP SEAL
140
86323813
SHOULDERED RING
150
86322252
SELF LUBRICATING RING
160
86322260
NEEDLE BEARING
170
86323953
GEAR DRIVING SHAFT
180
13900717
BALL BEARING
190
86334141
GEAR DRIVING
200
86605920
SPLINE SHANK
210
86250107
DRIVE COMPONENT
220
86582855
THRUST WASHER
