HC 50 MONTABERT New catalogs

HC 50 Pages

1. MONTABERT - HC 50 FRONT GUIDE #17187

2. MONTABERT - HC 50 FRONT GUIDE #17211

3. MONTABERT - HC 50 FRONT GUIDE #17216

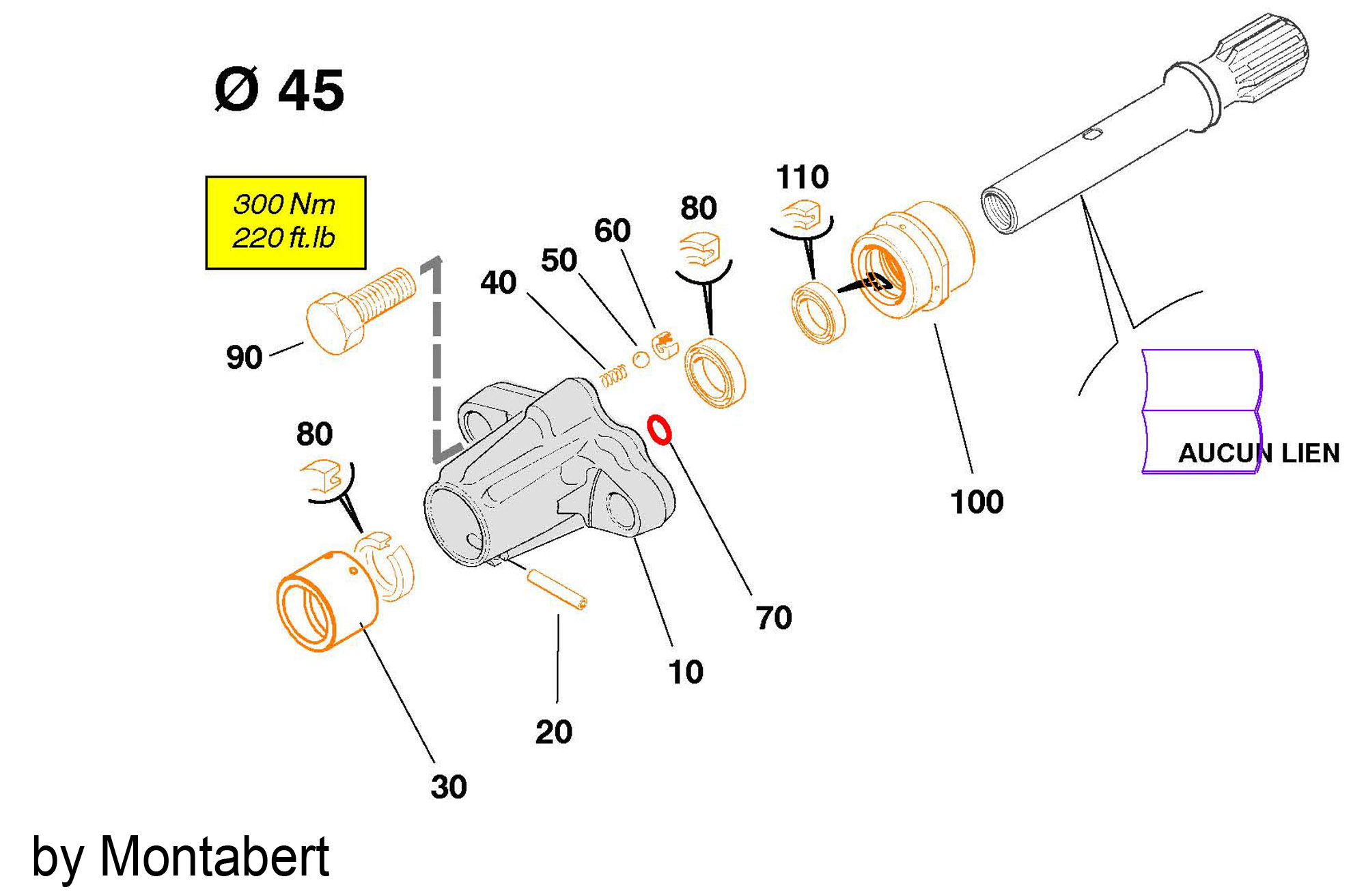

HC 50 FRONT GUIDE #17187

HC 50 FRONT GUIDE

ads

Ref

Parts Num

Name

10

FRONT GUIDE

20

ELASTIC PIN

30

GUIDING RING

40

SPRING

50

BALL

60

SEAL

70

TIGHT SEAL

80

LIP SEAL

90

HEX. SCREW

100

RETAINER CHUCK

110

LIP SEAL

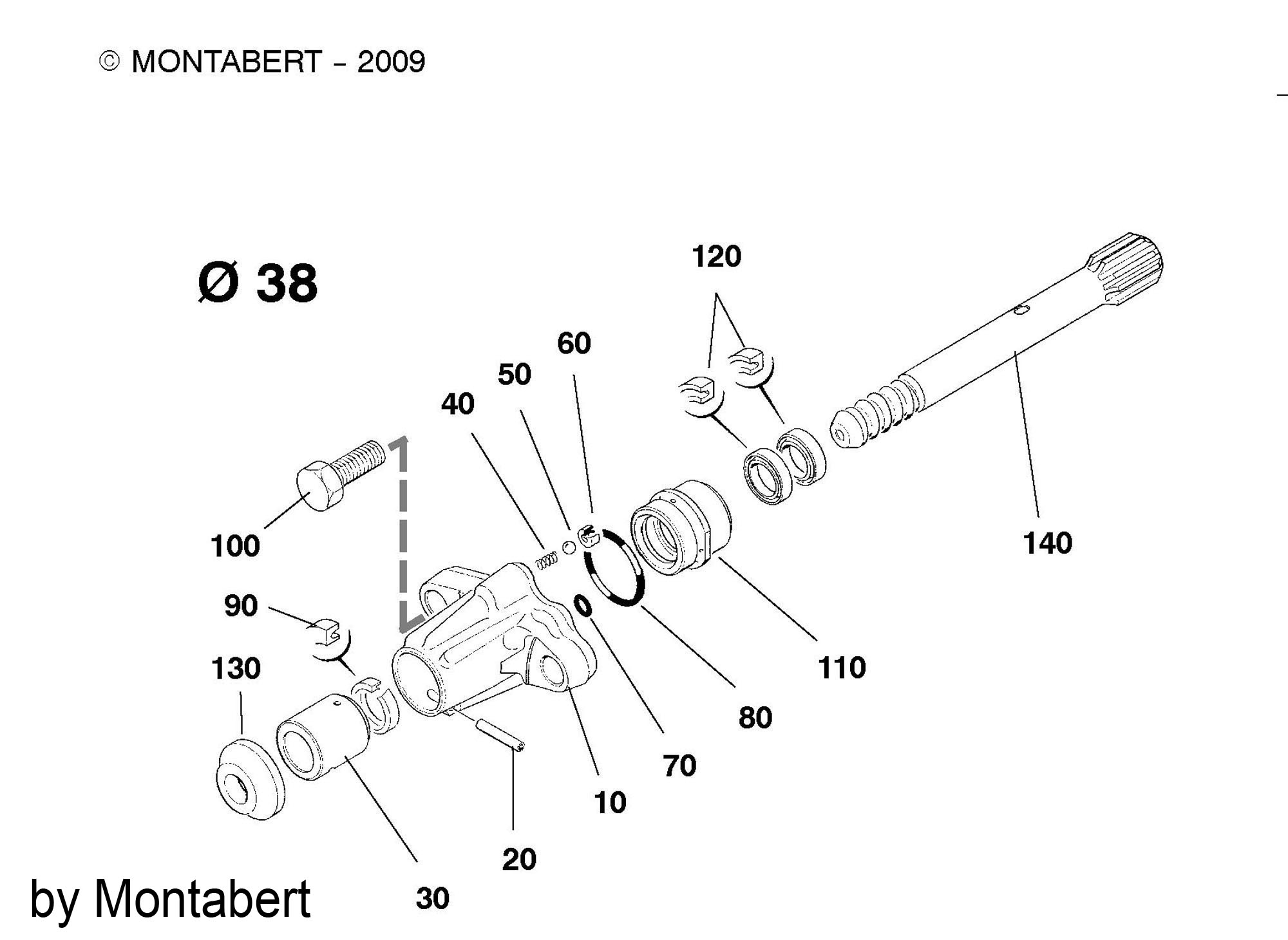

HC 50 FRONT GUIDE #17211

HC 50 FRONT GUIDE

ads

Ref

Parts Num

Name

10

FRONT GUIDE

20

ELASTIC PIN

30

GUIDING RING

40

SPRING

50

BALL

60

SEAL

70

TIGHT SEAL

80

O RING

90

LIP SEAL

100

HEX. SCREW

110

RETAINER CHUCK

130

SHIELD

140

MALE SHANK T 38

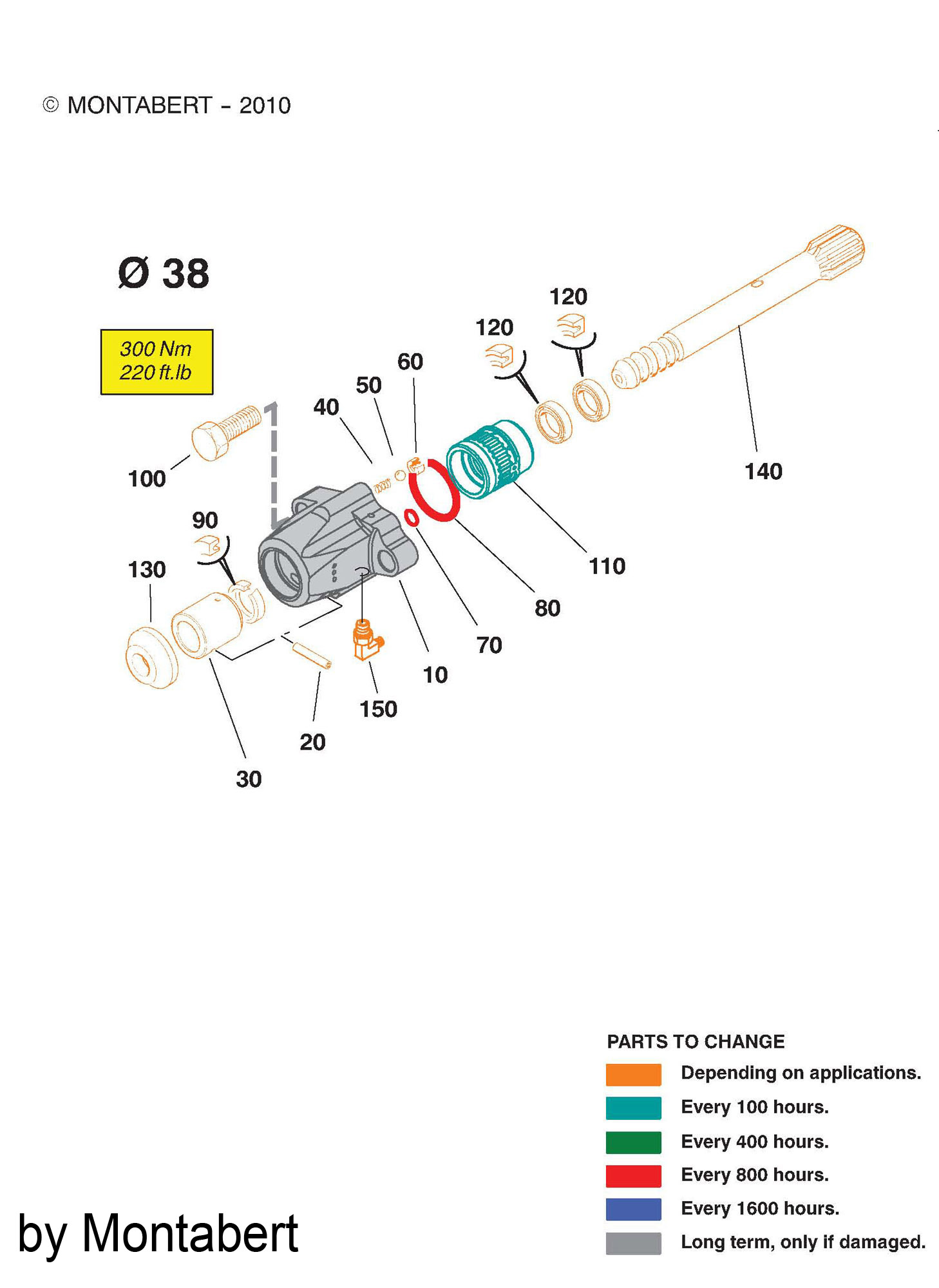

HC 50 FRONT GUIDE #17216

HC 50 FRONT GUIDE

ads

Ref

Parts Num

Name

10

FRONT GUIDE

20

ELASTIC PIN

30

GUIDING RING

40

SPRING

50

BALL

60

SEAL

70

TIGHT SEAL

80

ORING

90

LIP SEAL

100

HEX. SCREW

110

RETAINER CHUCK

130

SHIELD

140

MALE SHANK T 38

150

ADAPTER
