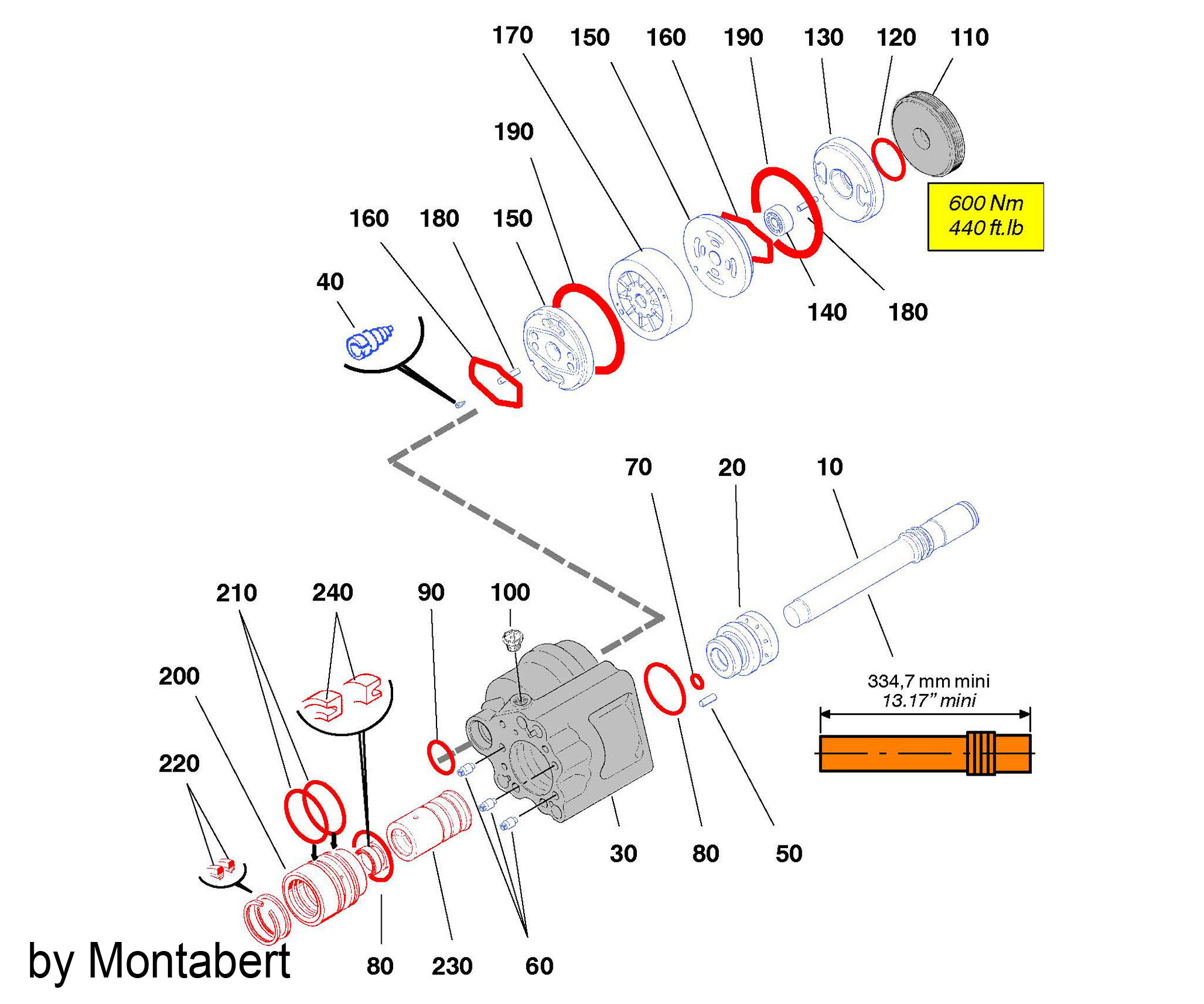

HC 50 STRIKING PISTON #17192
HC 50 STRIKING PISTON
ads
Ref
Parts Num
Name
10
86333838
STRIKING PISTON
20
86334299
DOWN CYLINDER
30
86386794
MOTOR BODY
40
86223476
SPRING
50
86223419
PIN
60
86322518
VALVE
70
86570447
TIGHT SEAL
80
86238201
O RING
90
86292786
O RING
100
86249265
PLASTIC PLUG
110
86313053
COVER
120
86222668
O RING
130
86344116
BEARING HOLDER PLATE
140
86223559
BALL BEARING
150
86344199
DISTRIBUTION PLATE
160
86261344
O RING
170
86642311
CARTRIDGE
180
86318516
PIN
190
86221918
O RING
200
86334109
THRUST LINING
220
86300936
ROD JOINT
230
86334117
HYDRAULIC STOP PISTON
240
86334174
LIP SEAL

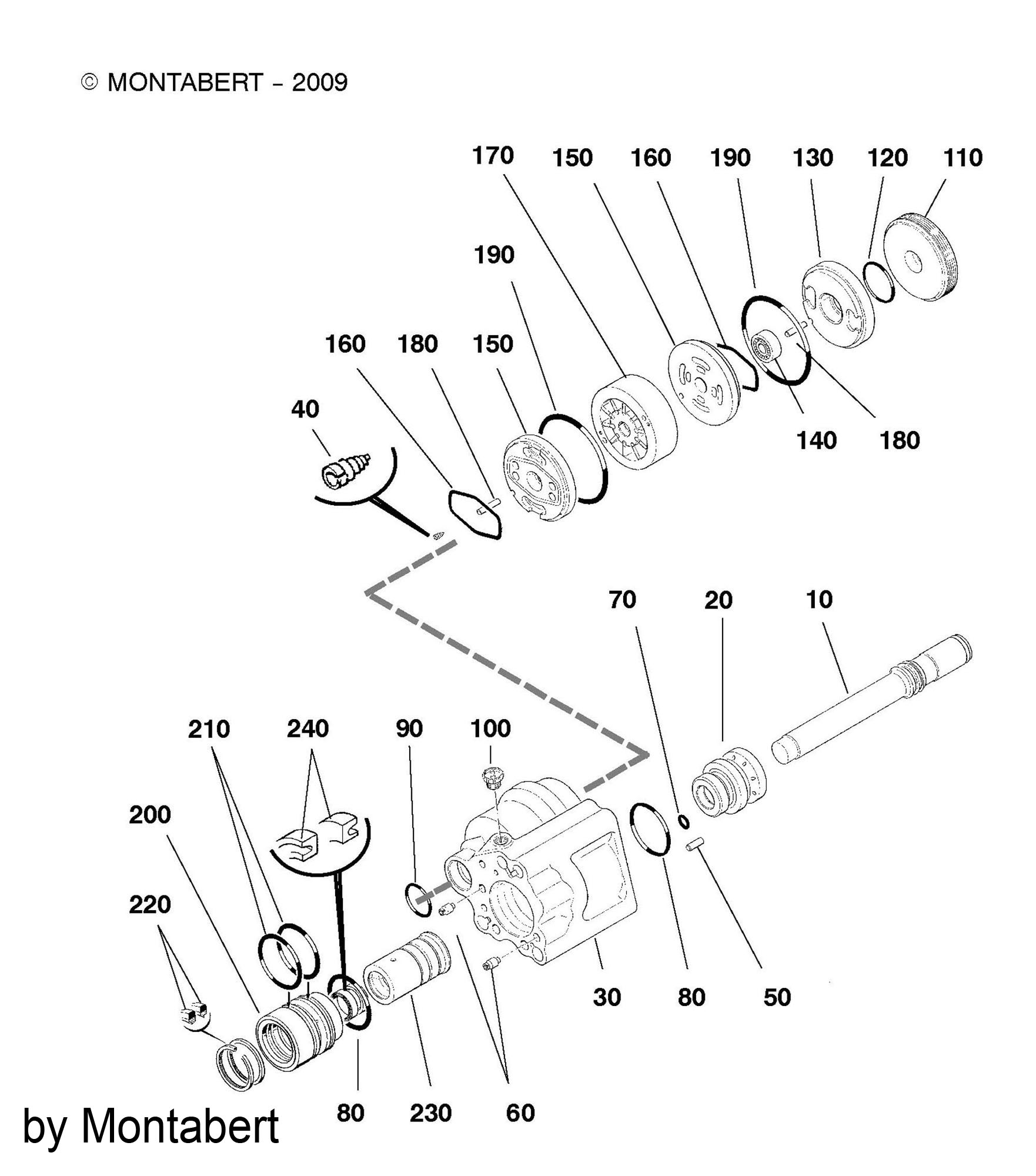

HC 50 STRIKING PISTON #17206
HC 50 STRIKING PISTON
ads
Ref
Parts Num
Name
10
86333838
STRIKING PISTON
20
86334299
DOWN CYLINDER
30
86386794
MOTOR BODY
40
86223476
SPRING
50
86223419
PIN
60
86322518
VALVE
70
86570447
TIGHT SEAL
80
86238201
O RING
90
86292786
O RING
100
86249265
PLASTIC PLUG
110
86313053
COVER
120
86222668
O RING
130
86344116
BEARING HOLDER PLATE
140
86223559
BALL BEARING
150
86344199
DISTRIBUTION PLATE
160
86261344
O RING
170
86640117
CARTRIDGE
180
86318516
PIN
190
86221918
O RING
200
86334109
THRUST LINING
220
86300936
ROD JOINT
230
86334117
HYDRAULIC STOP PISTON
240
86334174
LIP SEAL

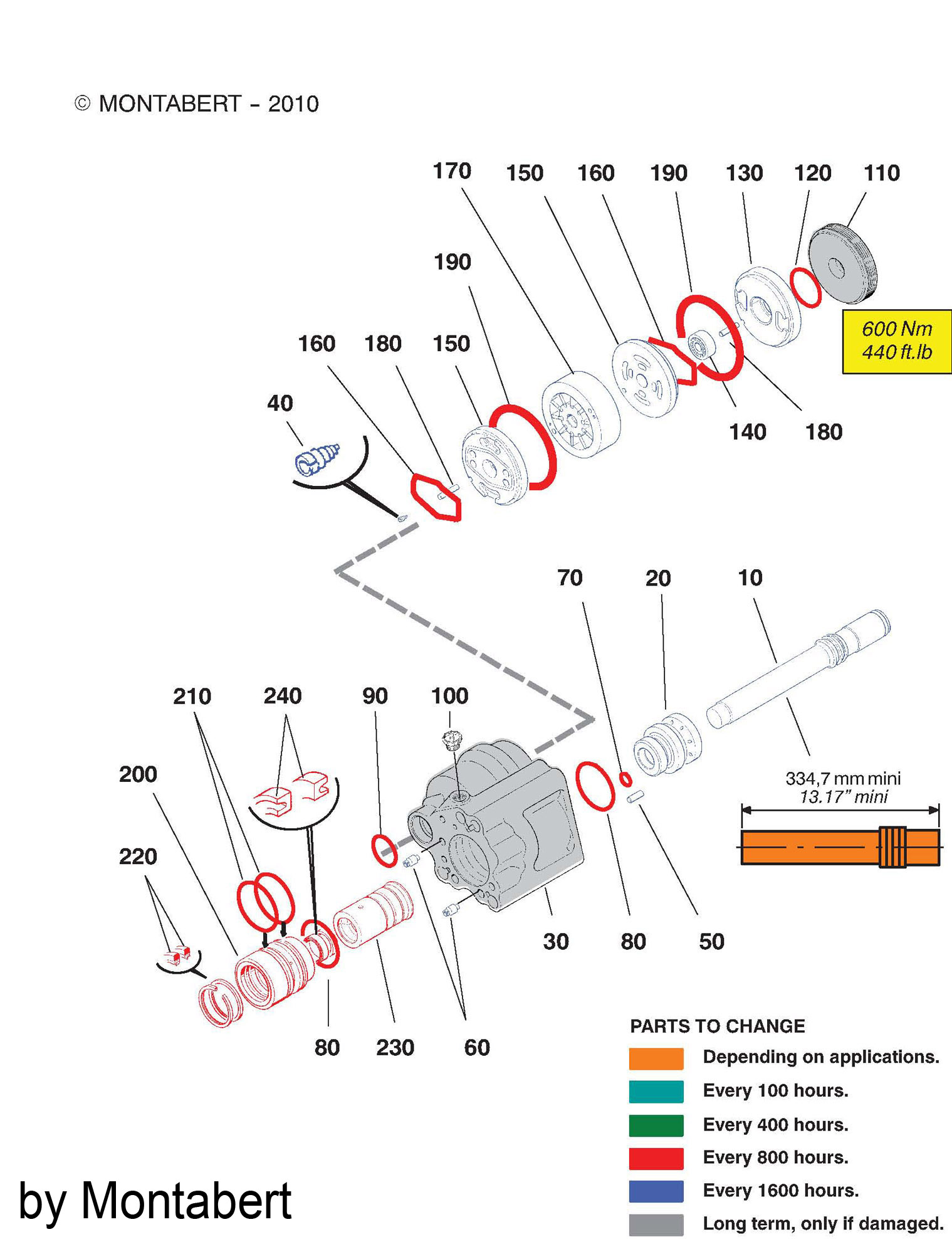

HC 50 STRIKING PISTON #17213
HC 50 STRIKING PISTON
ads
Ref
Parts Num
Name
10
86333838
STRIKING PISTON
20
86334299
DOWN CYLINDER
30
86386794
MOTOR BODY
40
86223476
SPRING
50
86223419
PIN
60
86322518
VALVE
70
86570447
TIGHT SEAL
80
86238201
O RING
90
86292786
O RING
100
86249265
PLASTIC PLUG
110
86313053
COVER
120
86222668
O RING
130
86344116
BEARING HOLDER PLATE
140
86223559
BALL BEARING
150
86344199
DISTRIBUTION PLATE
160
86261344
O RING
170
86632296
CARTRIDGE
180
86318516
PIN
190
86221918
O RING
200
86334109
THRUST LINING
220
86300936
ROD JOINT
230
86334117
HYDRAULIC STOP PISTON
240
86334174
LIP SEAL

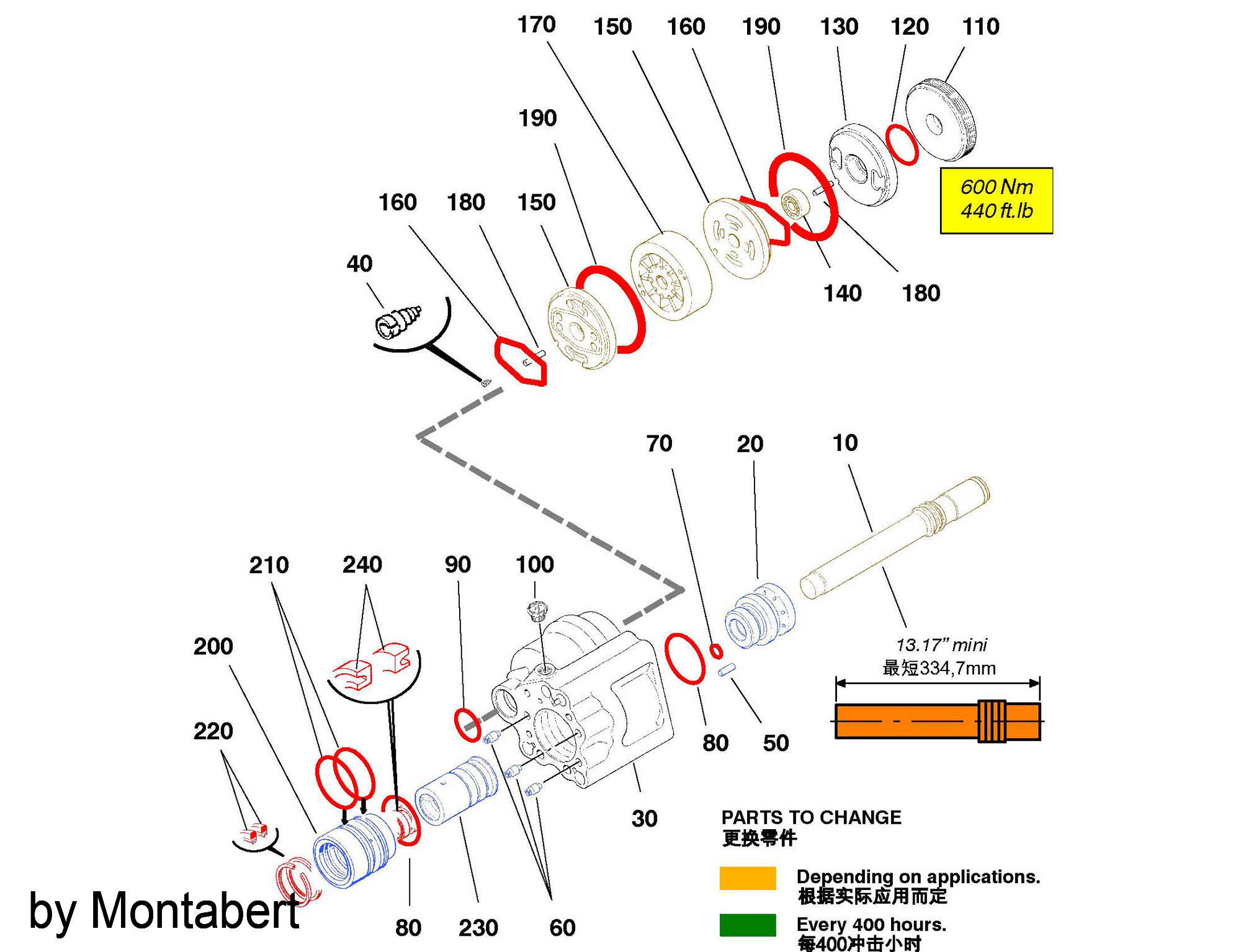

HC 50 STRIKING PISTON #17248
HC 50 STRIKING PISTON
ads
Ref
Parts Num
Name
10
86333838
STRIKING PISTON
20
86334299
DOWN CYLINDER
30
86386794
MOTOR BODY
40
86223476
SPRING
50
86223419
PIN
60
86322518
VALVE
70
86570447
TIGHT SEAL
80
86238201
O RING
90
86292786
O RING
100
86249265
PLASTIC PLUG
110
86313053
COVER
120
86222668
O RING
130
86344116
BEARING HOLDER PLATE
140
86223559
BALL BEARING
150
86344199
DISTRIBUTION PLATE
160
86261344
O RING
170
86642311
CARTRIDGE
180
86318516
PIN
190
86221918
O RING
200
86334109
THRUST LINING
220
86300936
ROD JOINT
230
86334117
HYDRAULIC STOP PISTON
240
86334174
LIP SEAL
